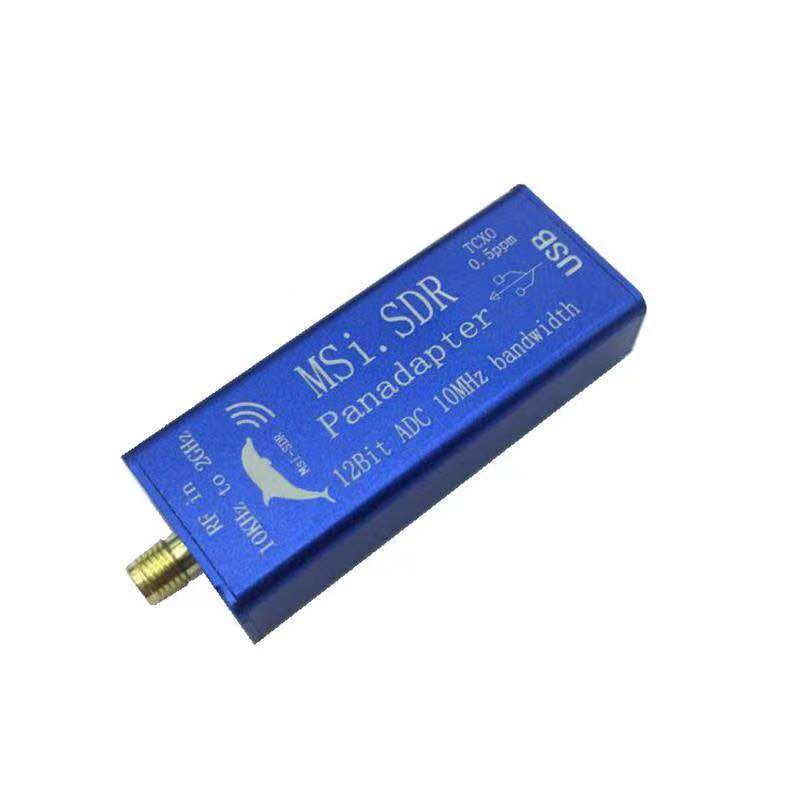

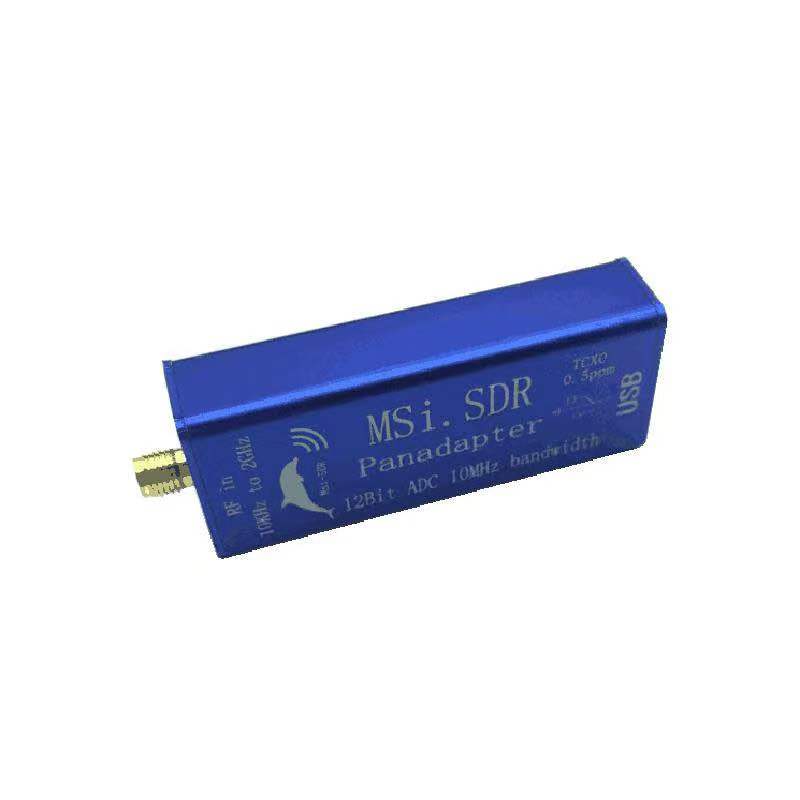

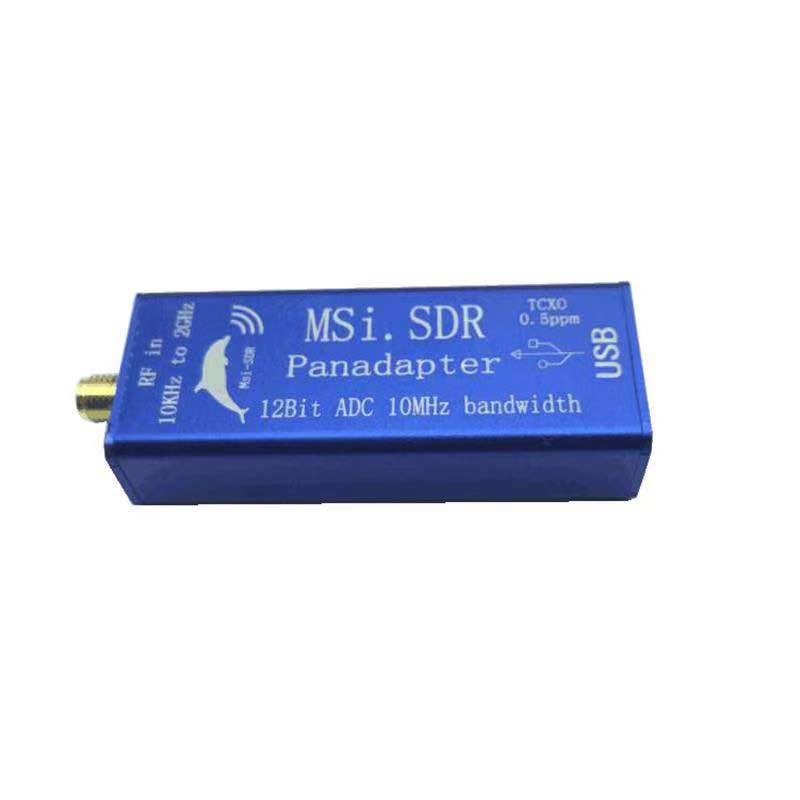

MSI.SDR 10kHz To 2GHz Panadapter SDR Receiver Compatible SDRPlay RSP1 TCXO 0.5ppm

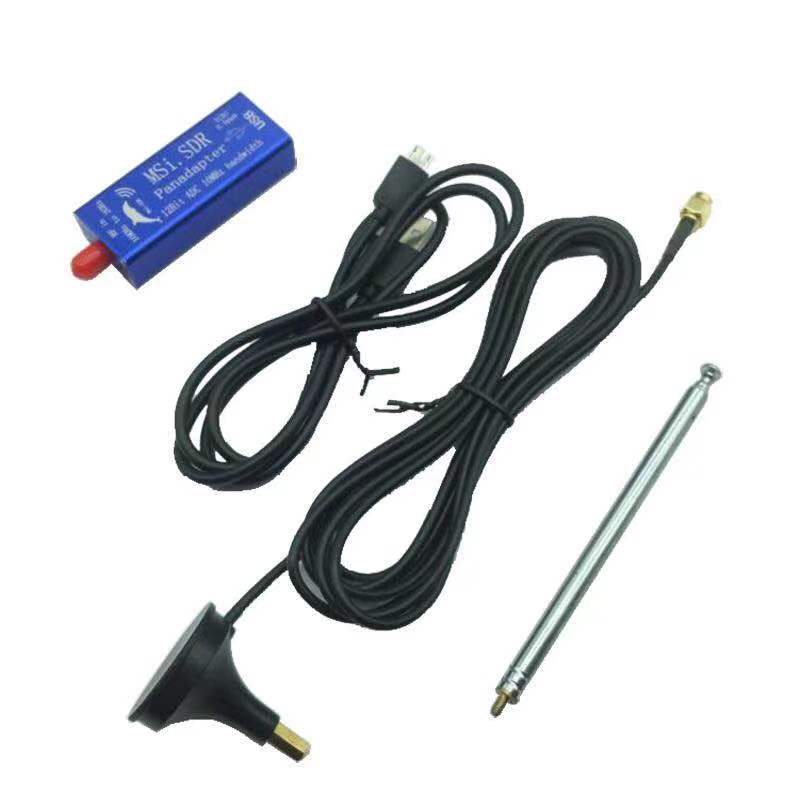

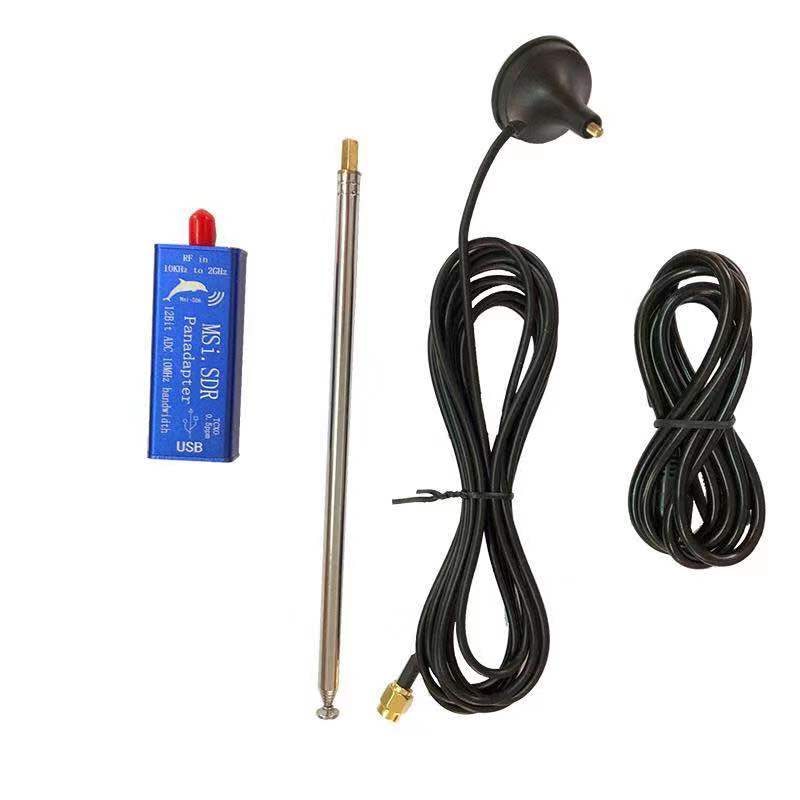

KEY FEATURES Continuous coverage from 10kHz to 2GHz 12-bit ADC silicon technology (not another 8 bit dongle!) Up to 10 MHz bandwidth Built-in TCXO 0.5ppm Built-in Performance front-end filters · Low noise floor Simple USB interface (type micro) SMA antenna socket Powers over the USB cable Compatible with SDRPLAY RSP1 software SDRuno，HDSDR ，SDR# ，SDRConsole Robust and strong aluminum case Ideal for portable operation No need for an up-converter Covers all amateur bands from experimental LF through HF, VHF and UHF Simultaneous entire amateur band monitoring possible Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR & SDRuno) Compatible with existing open source radio software ExtIO based plugin available Multiplatform support including Windows, Linux, Mac,Android and Raspberry Pi 2/3 Weight 25g Size: 62mm x 25mm x 15mm Low Current: 120 – 175 mA Connectivity Single 50Ω RF connector (SMA) USB 2.0 (high speed) type micro socket Frequency Range Continuous coverage 10kHz – 2GHz Frequency Tolerance: 0.5ppm (max) What you will get : 1x MsiSDR host X1 1x Micor USB cable (1.0M) 1x Test antenna
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
