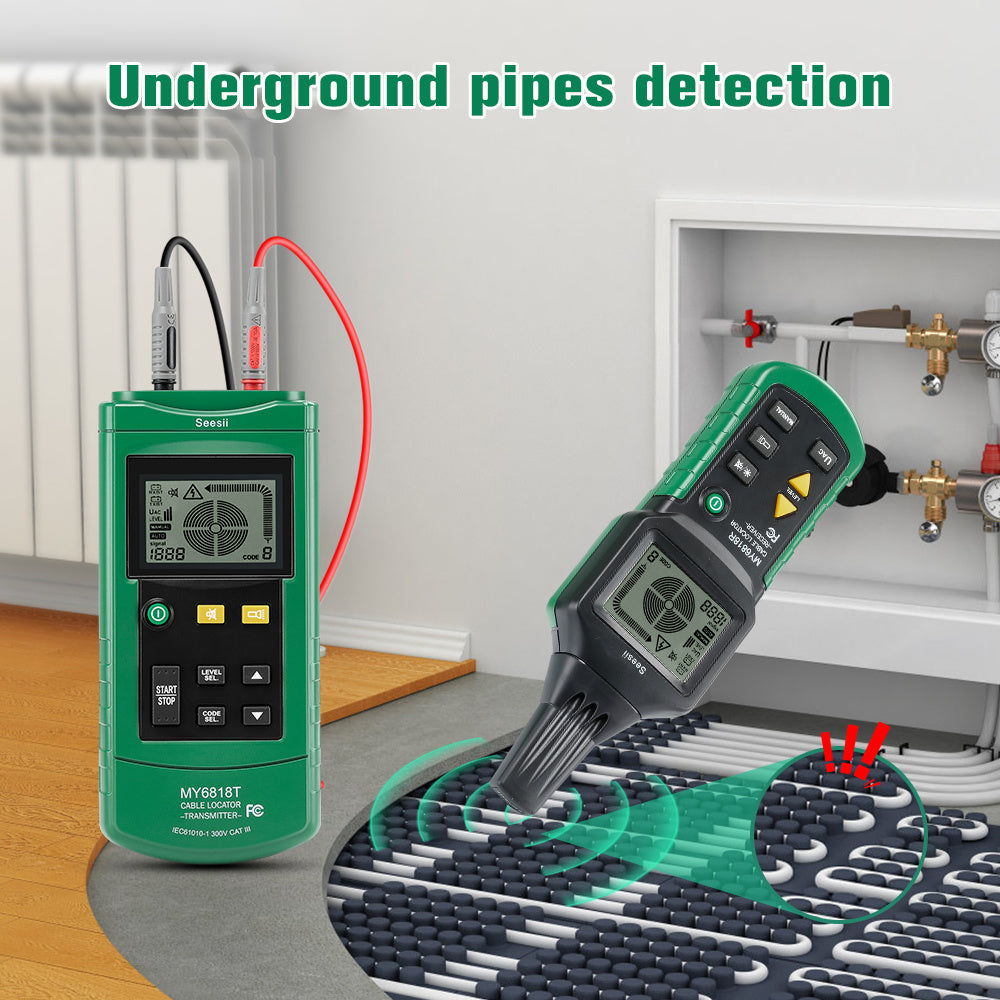

MY6818 Wire Tracker Cable Finder Locator Metal Pipe Locator Detector Tester
Detecting fuses and assigning current circuits

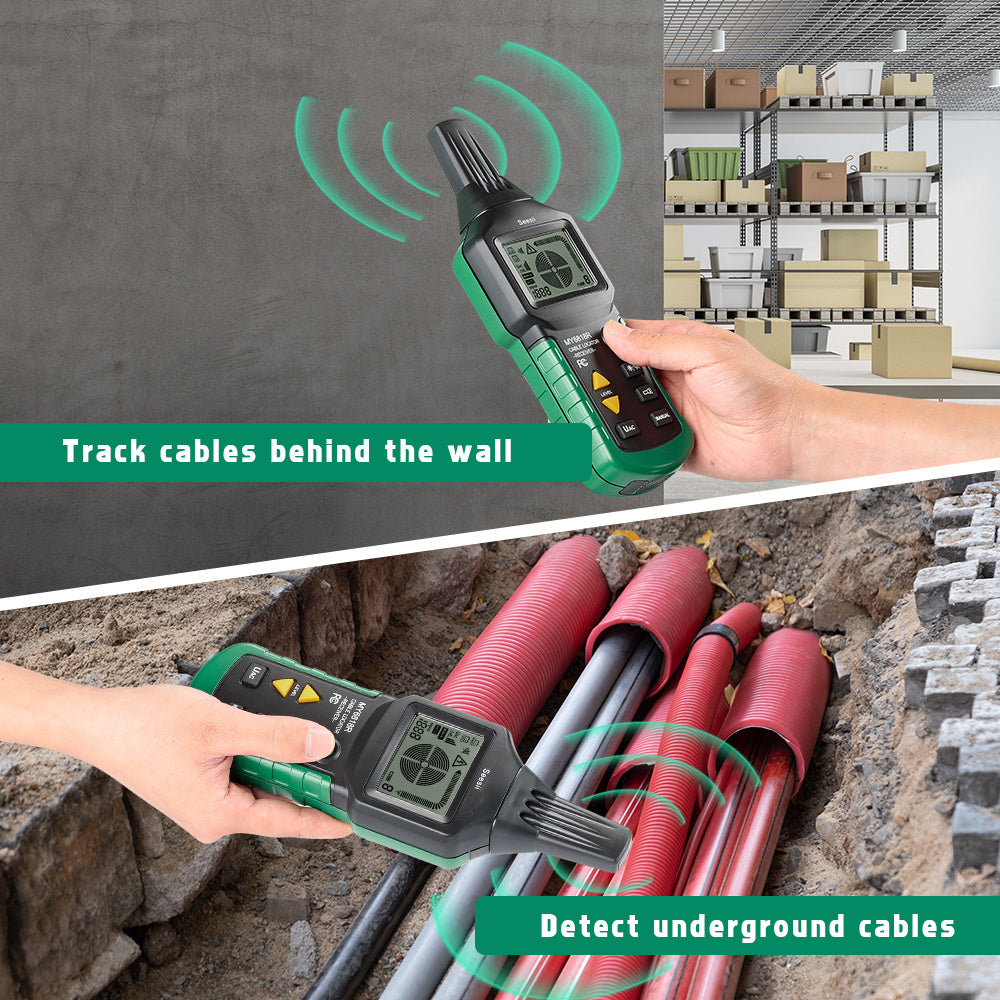

Tracing sockets and distribution sockets having accidentally been covered by plastering
Features :
2. The screen of the transmitter can display preset transmitting power, transmitted codes-its own battery energy-mains voltage detected-AC/DC status of mains voltage detected-and warning symbol for mains voltage.
3. The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference
4. The sensitivity of the receiver can be adjusted either manually or automatically
5. The receiver can sweep frequency automatically
6. Both the transmitter and the receiver can work under mute mode
7. Additional transmitters are available to extende or distinguish multiple signals.
9. Auto power off within 10 minutes.

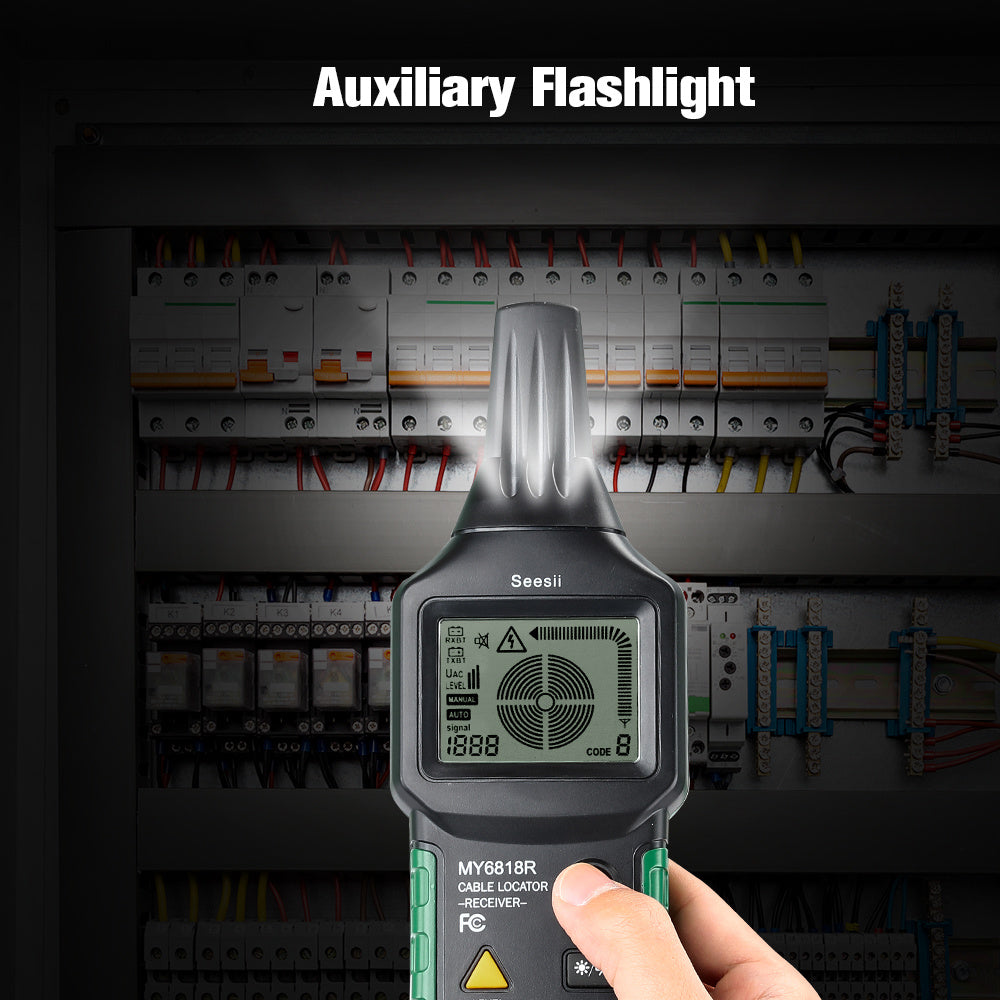

10. Flashlight Function.
11. Backlight Function.
12. Mute Function.
Specification:
Voltage Measurement Range: Transmitter: 12V-400V (AC / DC)
Output Signal: Transmitter: 125KHz
Voltage: Transmitter: maximum 400V (AC / DC)
Cable Depth Measurement :Receiver 0-2.5 m (wall / underground cable)
Main Voltage Measurement : Receiver 0-0.4m
Work Environment:Transmitter:0~40℃; Receiver:0~40℃
Storage Temperature: Transimiter:-20℃~60°c; Receiver:-20℃~60℃
Relative hamidity(no condensation):Transmitter Maximum:80%; Receiver Maximum:80%
Measuring Height: Transmitter Maximum:2000m; Receiver Maximum:2000m
General Characteristics:

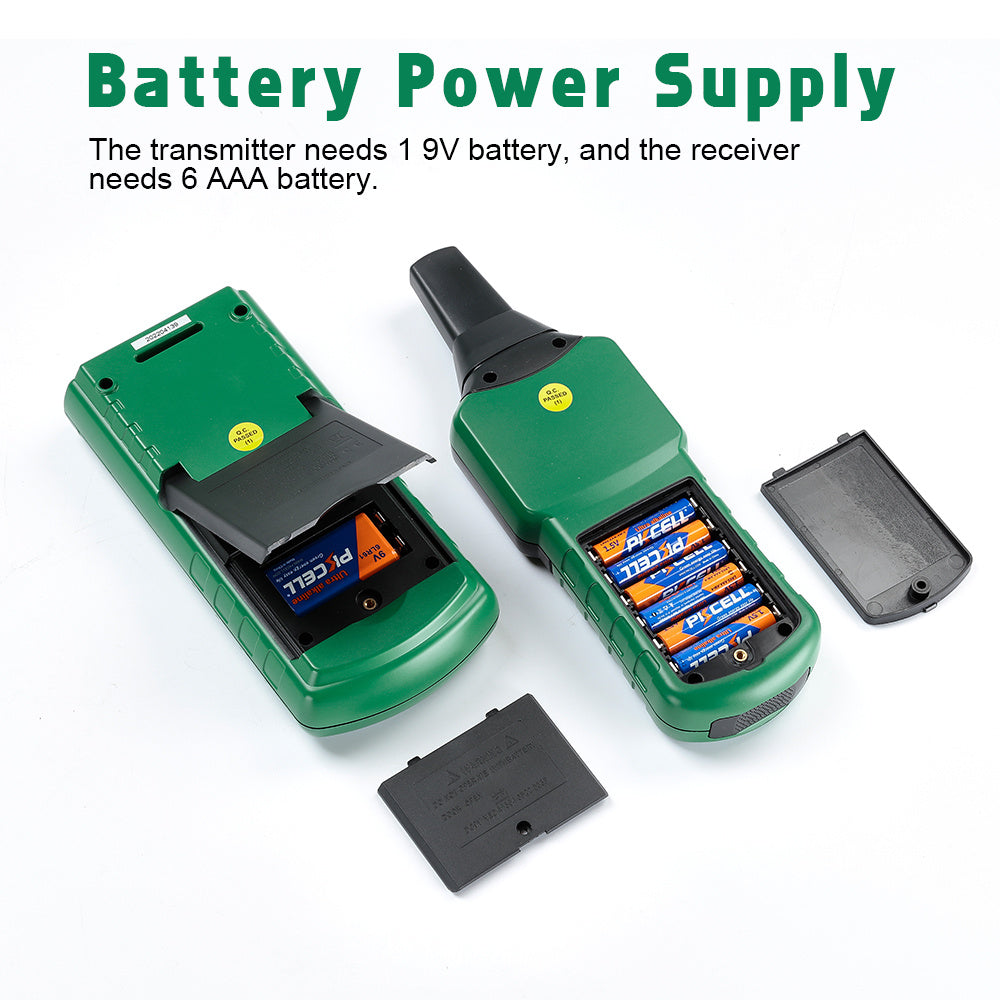

Power Supply: Receiver: 1 * 9V LR61 (not included); Transmitter: 6 * 1.5vAAA (not included)
Dimension: Receiver: 241.5 * 78 * 38.5mm ; Transmitter: 190 * 89 * 42.5mm
Product Weight: Receiver: 263g; Transmitter: 370g
Package Size: 28 * 20 * 8.5cm / 11 * 7.8 * 3.3in
Package Weight: 1053g / 2.3lb
Package List:

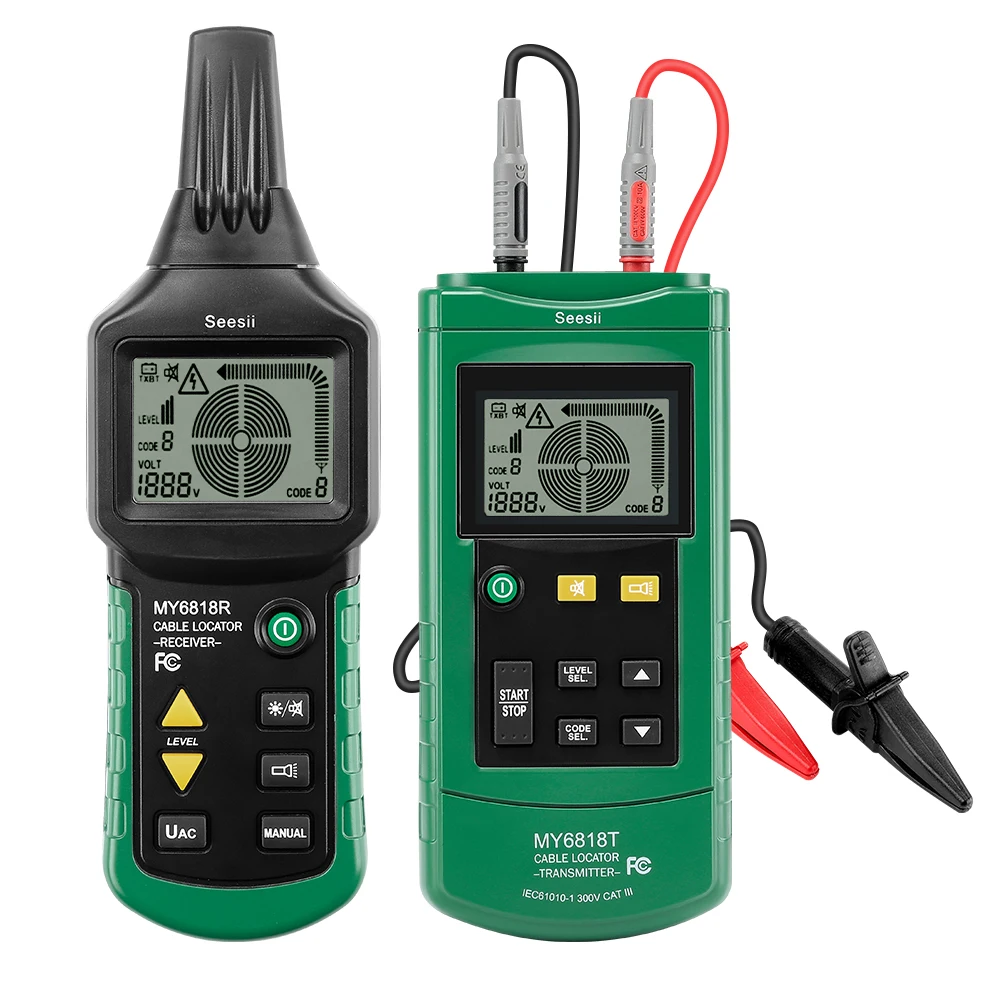

1 * MY6818 Transmitter
1 * MY6818 Receiver
1 * Pair Test Lead
1 * Pair Crocodile Clamps
1 * Pair Test Probes
1 * Grounding Rod
1 * English Manual
1 * Carrying Bag
