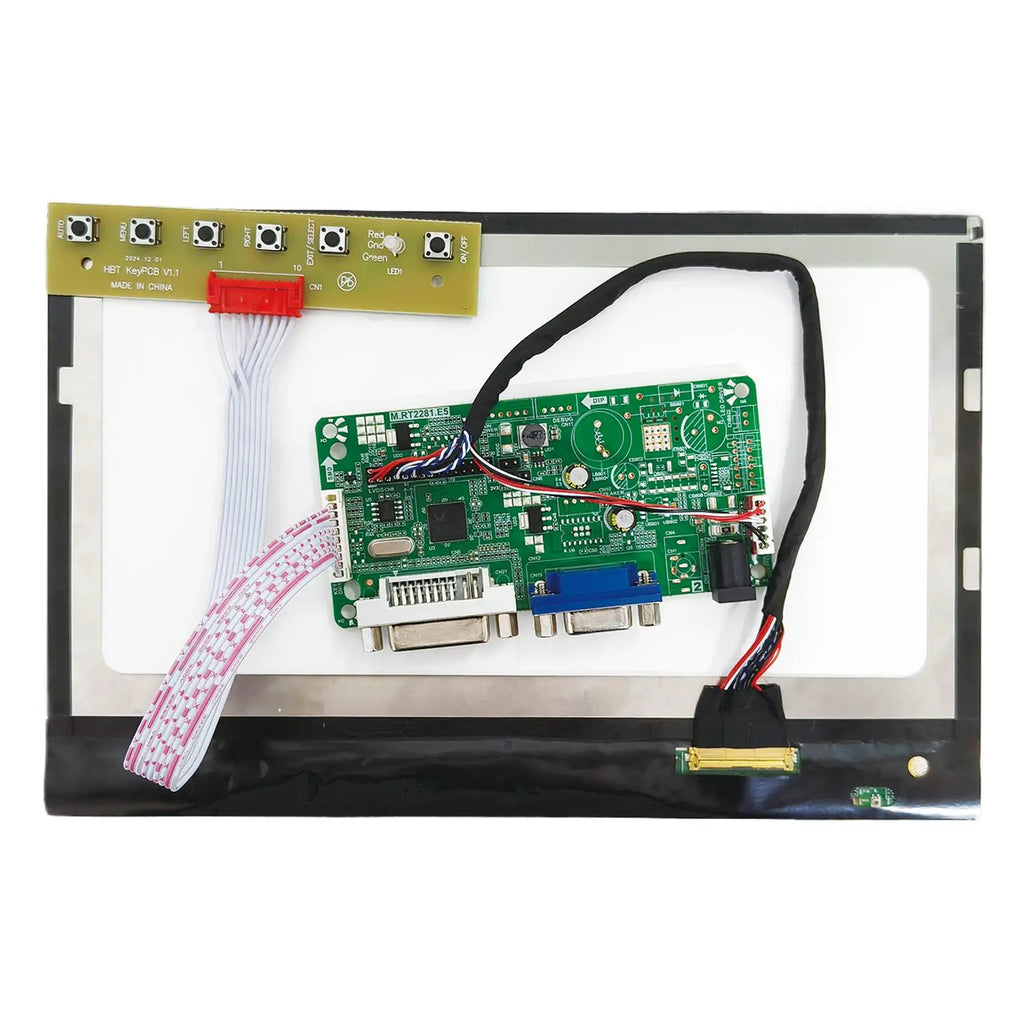

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

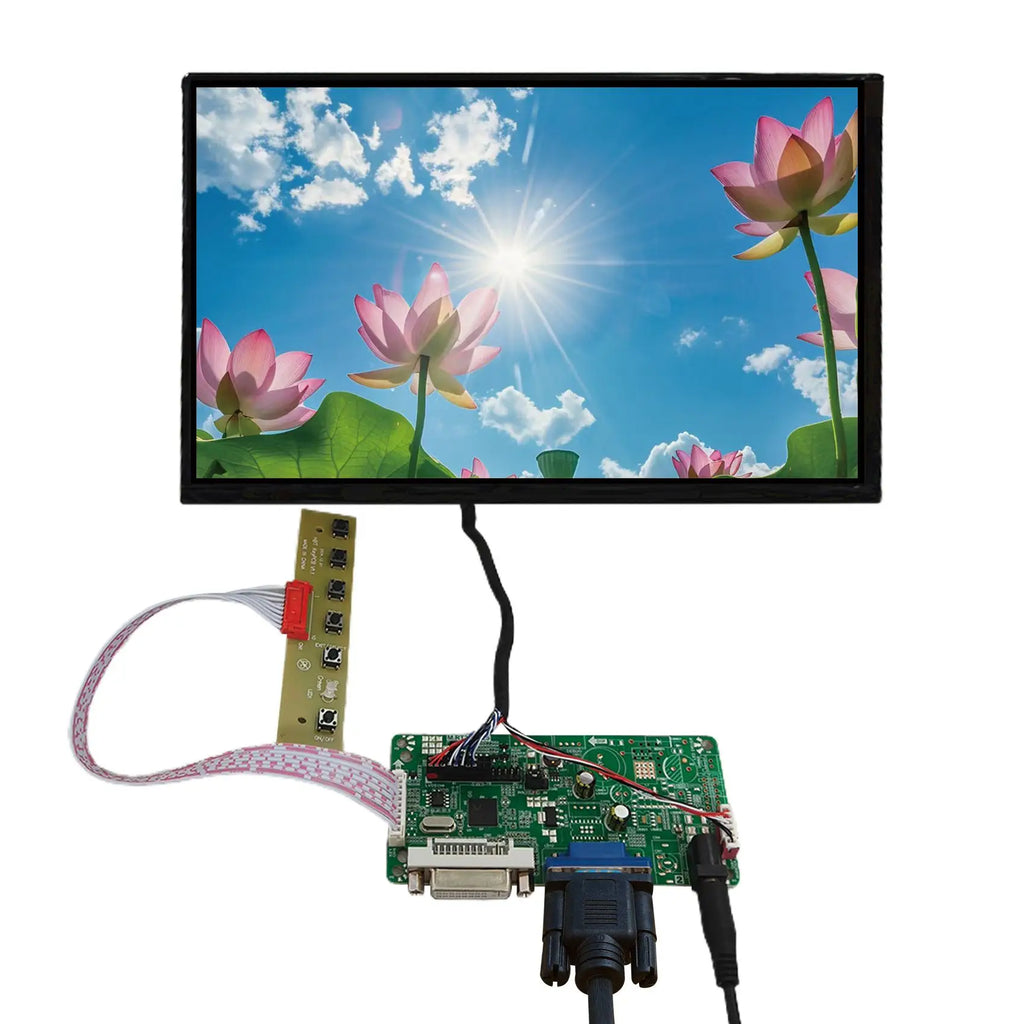

10.1" N101ICG-L21 1280X800 IPS LCD Screen:
Display Mode AAS, Normally Black, Transmissive
Resolution 1280(RGB)×800
Outline Size 227.42× 147.64×4.85 (H×V×D)
Active Area 216.96× 135.6(H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (1 ch, 6-bit) , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
