1. PCB: 54mm x 85.5mm x 11mm (excluding connectors and switches)
2. Measuring frequency: 50KHz ~ 1.5GHz
3. RF output: -13dbm (maximum -9dbm)
4. Frequency accuracy: Less than 2ppm
5. Frequency stability: Less than 0.5ppm
6. Measuring range: 70dB (50kHz-300 MHz), (50dB (300M-600MHz), 40dB (600M-900MHz));
7. Port SWR: Less than 1.1
8. Display: 2.8 inch TFT (320 x240)
9. USB interface: USB type-C communication mode: CDC (serial)
10. Power supply: USB 5V 120mA, built-in 450mAh battery, maximum charging current 1A
11. Number of calibration points: 101 (fixed)
12. Number of scan points: 101 (fixed)
13. Display tracking: 4, mark: 4, setting save: 5
Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart
Material: Plastic
Color: Photo color
Package Contents:

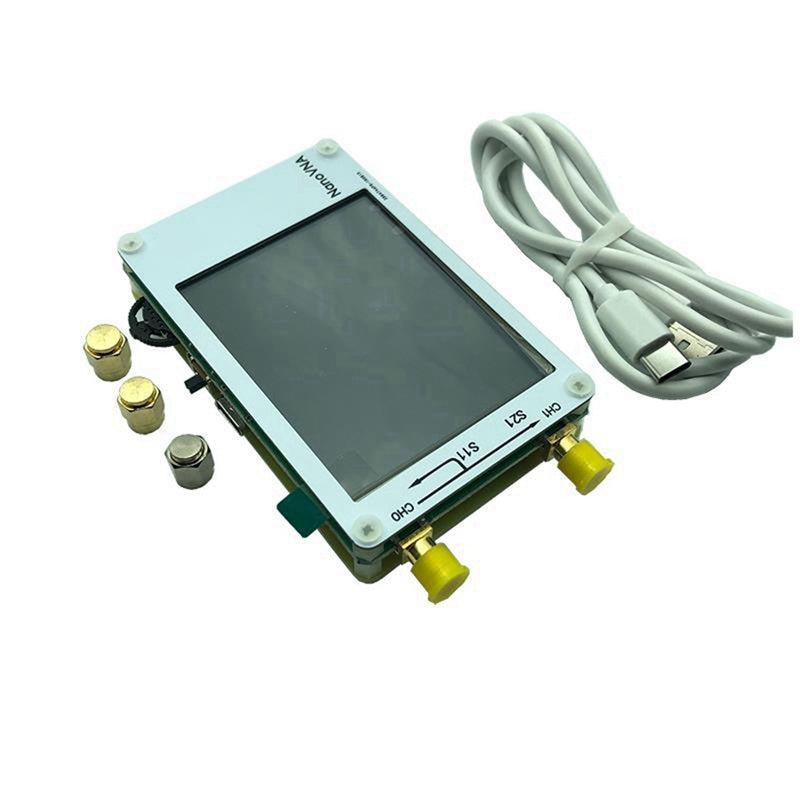

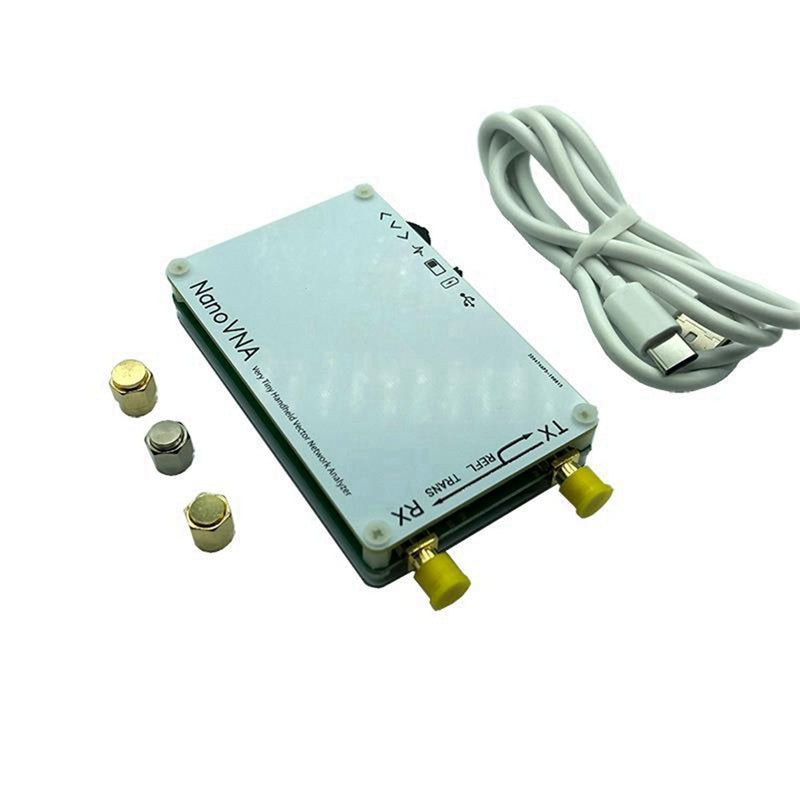

1 set * Antenna Analyzer
