QM18-62mm general valve seat reamer
1. Strong applicability: all valves with angles between 18-62mm can be used;
2. Forming at one time: processing the working face and chamfering at one time;
3. No need to polish: the processed valve seat usually does not need to be polished and can be used directly with the new valve;
4. Precise positioning: It can accurately ensure the angle of the working surface of the valve seat, the position of the upper and lower chamfers, the width and the coaxiality with the valve guide;
5. Permanent use: the reamer blade can be sharpened and replaced after it becomes dull, and the entire reamer can be used permanently, benefiting from a lifetime investment;
6. Ability to process additional hard seat rings: the blade is made of cemented carbide and can process additional hard seat rings;
7. Special function: can hinge the valve seat ring and process the valve seat ring hole;
8. Improve work efficiency: Compared with old-fashioned reamer, work efficiency can be increased by more than 10 times. This performance exceeds the imagination of ordinary people, and all old-fashioned reamers can be eliminated by purchasing a set.

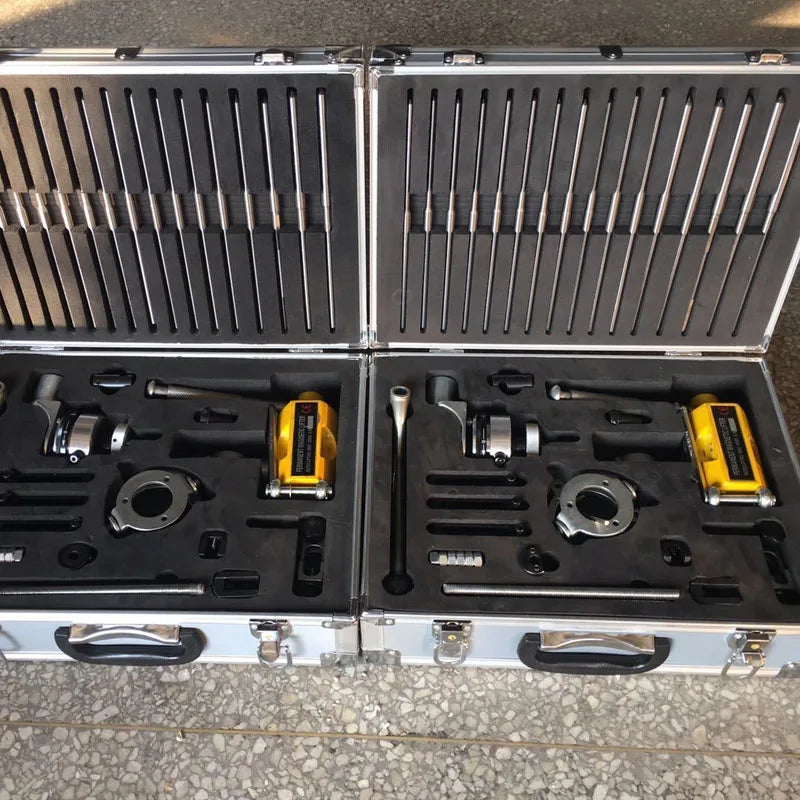

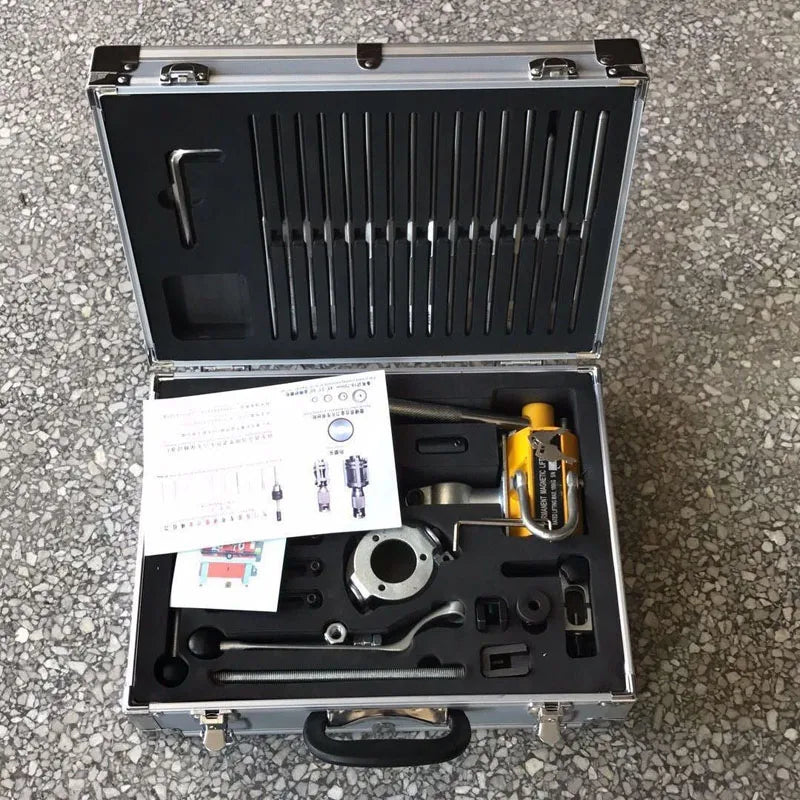

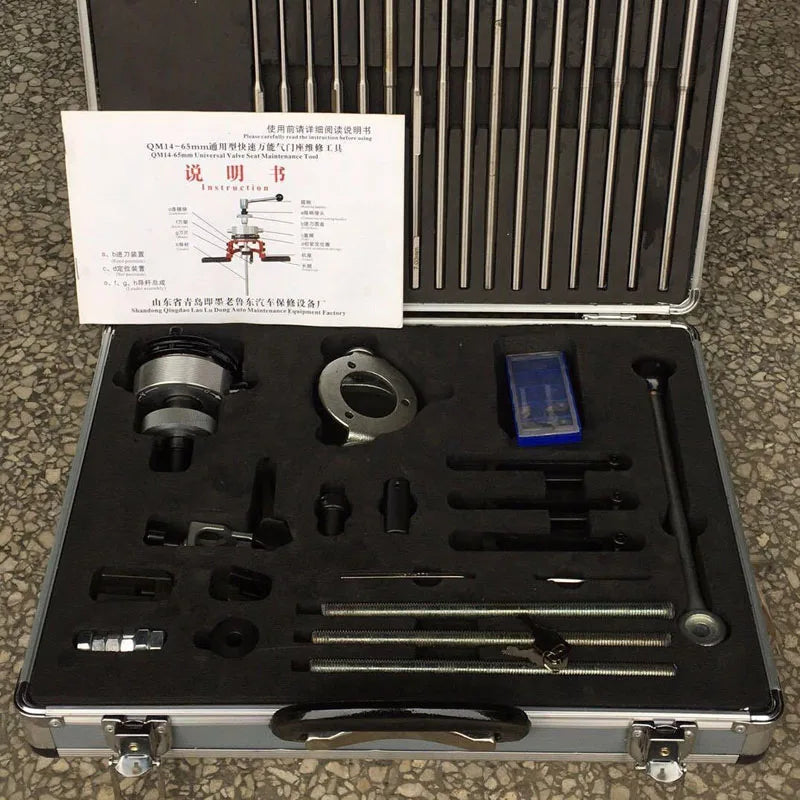

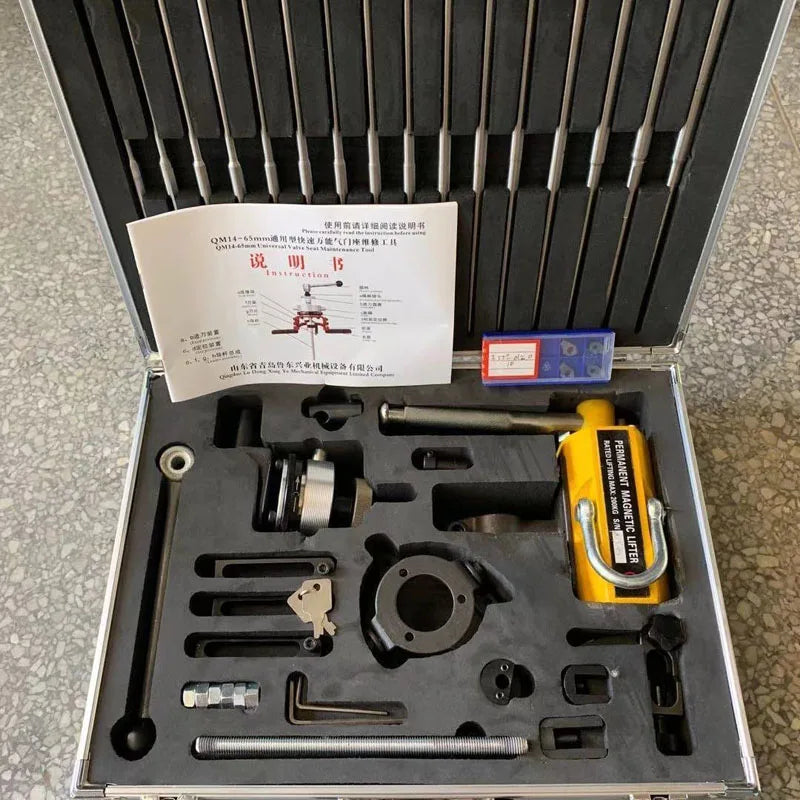

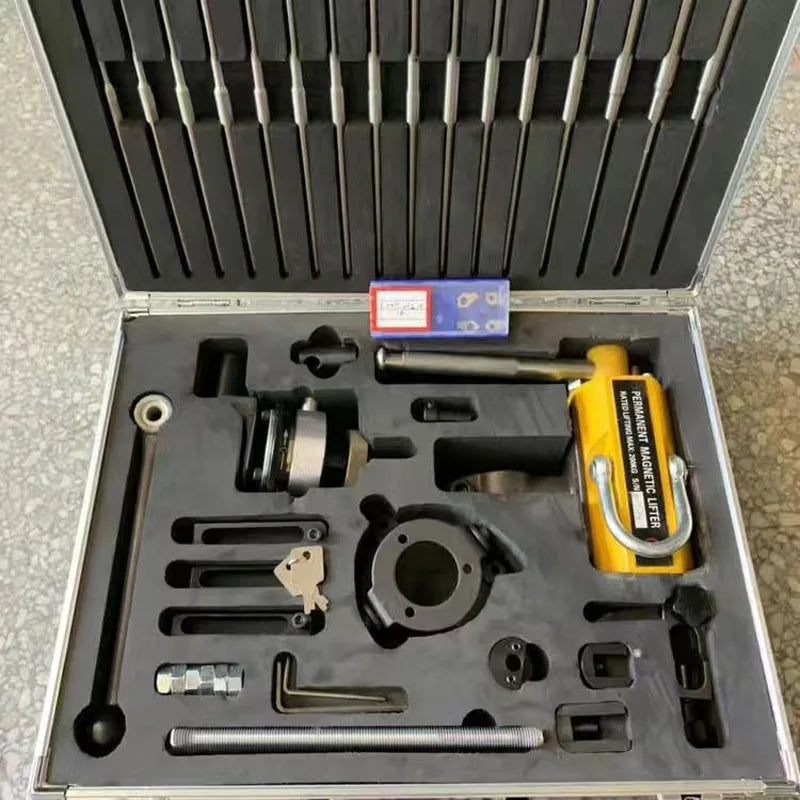

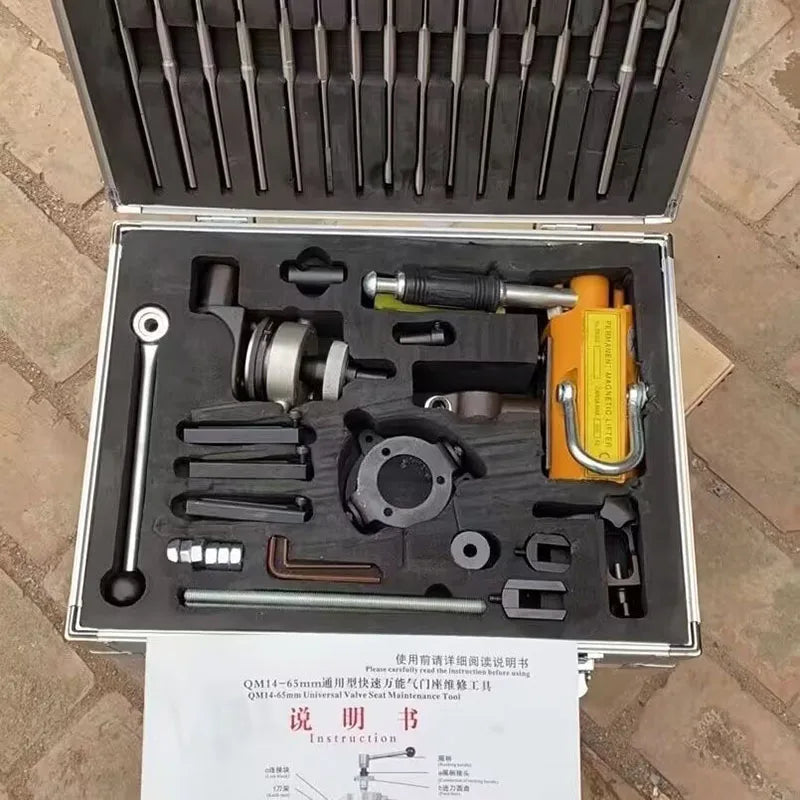

Magnet packing list
1: Body assembly * 1
2: Adjustable base * 1
3: 18-40mm blade holder * 1
4: 40-60mm blade holder * 1
5: Tool setter * 1
6: Fixing bolt * 3
7: Long legs * 3
8: Crank* 1
9: Grinding wheel set * 1
10: Allen wrench * 2
11: Guide rod (5.00 / 5.48 / 5.97 / 6.58 / 7.00 / 7.99 / 8.03 / 8.97 / 9.00 / 9.43 / 9.50 /10.98 / 11.00 / 11.98) * 1
12: Blade model (45-0.8mm / 45-1.2mm / 55-1.5mm / 60-1.2mm) * 1
13: Magnet* 1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
