Features:
1. Use the VHF220-270MHz band to avoid interference frequencies.
2. Multi-stage narrow-band high-frequency and intermediate-frequency selective frequency filtering is adopted to fully eliminate interference signals.
3. Adopt special ALC circuit without worrying about excessive volume and distortion.
4. Adopt low-power components, the battery has a long service life.
5. Handheld microphone invisible antenna, beautiful and practical.
6. Special handheld microphone switch noise shock wave elimination circuit.
7. All use quartz oscillator circuit, which has extremely high frequency stability.
8. With 31101 audio compression-expansion technology, the noise is greatly reduced and the dynamic range is increased.
9. With the function of whistling depression, it can effectively reduce the return call.
10. Unique noise squelch function, reject external interference and turn on the local sound shielding system.
Specifications:
Model: V3

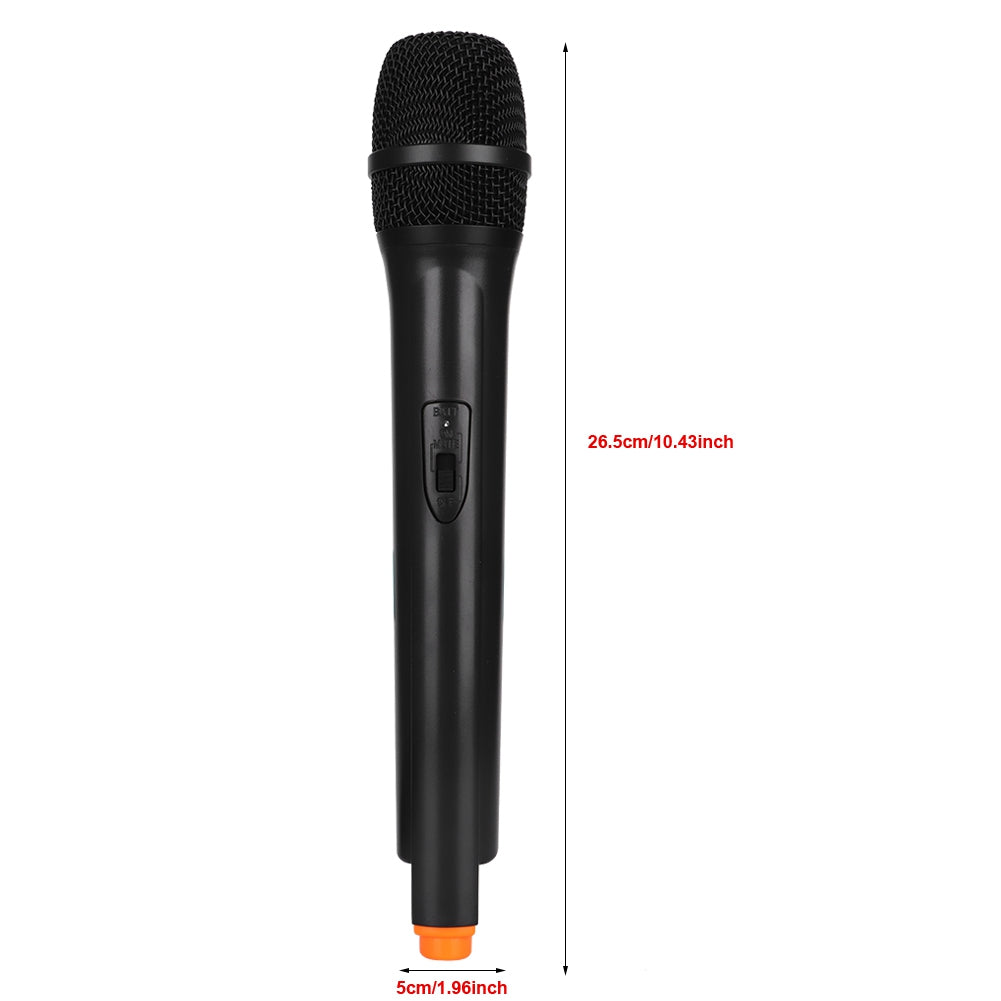

Microphone size: Approx. 27*5*5cm/10.63*1.97*1.97inch
Color box size: Approx. 31*40*8.5cm/12.20*15.75*3.35inch
Packing: 10 / box
N.W: 14.0kg / ctn
G.W: 15.3kg / ctn
transmitter
Carrier frequency: VHF 170-270MHz
Modulation mode: FM
Transmitting power: 10mW
Oscillation: fixed frequency controlled by quartz
Maximum deviation range: + -25KHz
Current consumption: <28mA
Harmonic radiation: < - 50dBm
Battery voltage: 2 * 1.5V AA battery
receiver
Carrier frequency: VHF 170-270MHz
Modulation mode: FM
Oscillation: fixed frequency controlled by quartz
Equipped with digital LED display
Frequency stability: <+ - 30ppm
Dynamic range: > 90dB
Signal to noise ratio: > 100dB
Total harmonic distortion: <0.8% 1 KHz
Frequency response: 40Hz-15KHz + -3dB
Sensitivity: 5dBuB
Image and spurious suppression: > 85dB
Ideal distance: 40 meters

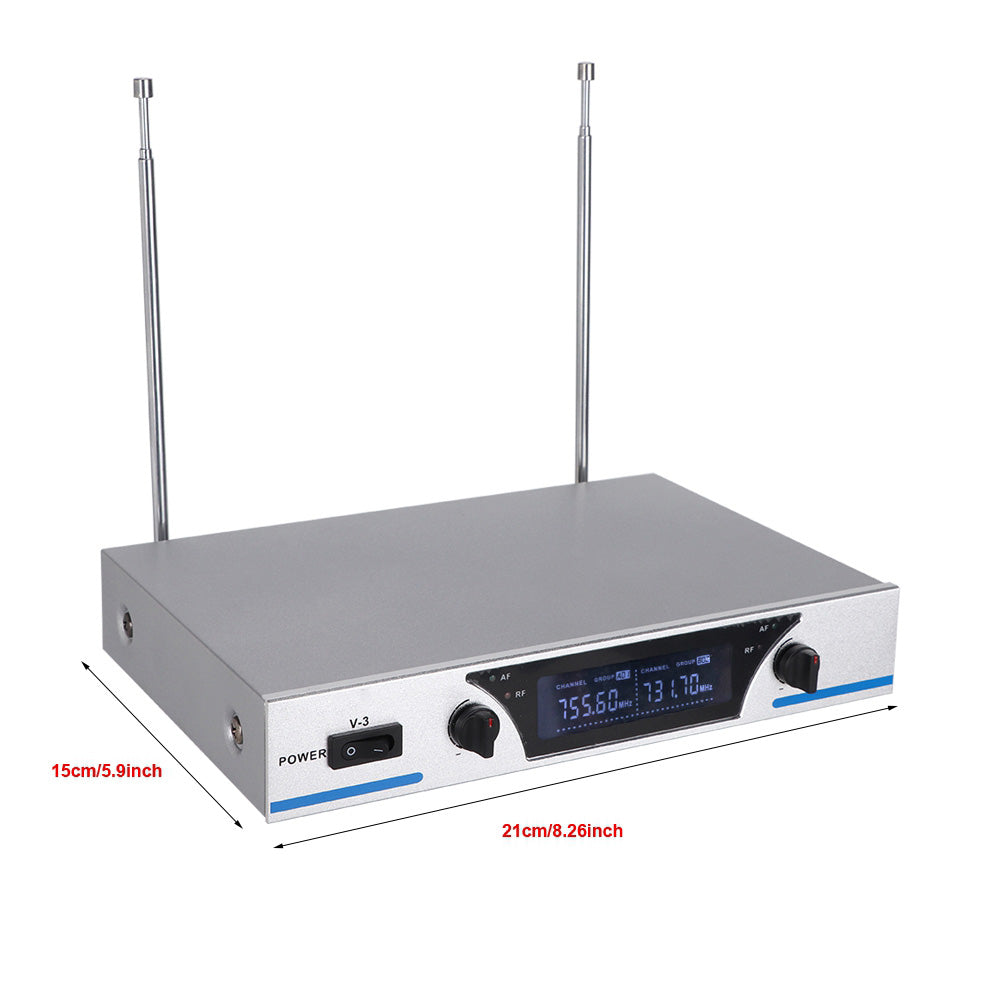

Size: Approx. 21*13.8*3.5cm/8.27*5.43*1.38inch

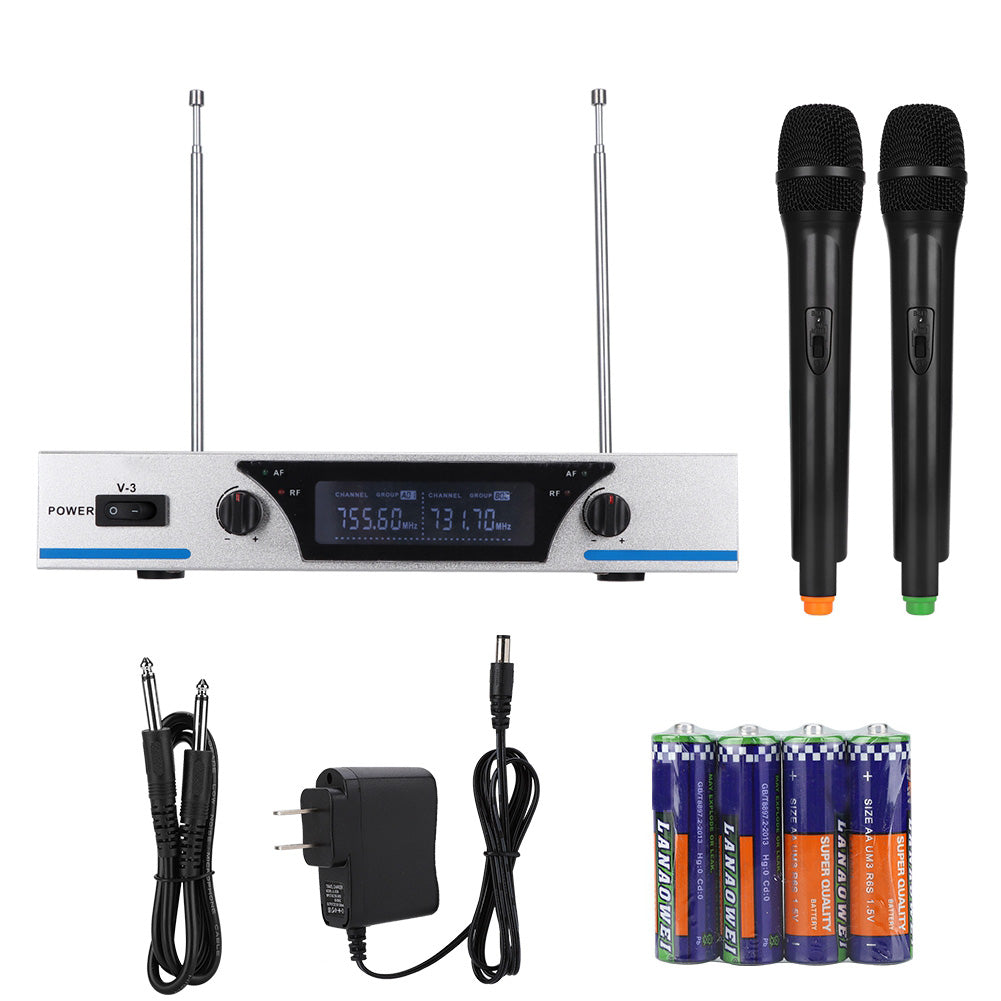

Package List:
1 * Receiver
2 * Microphone
1 * Adapter
1 * Audio Cable
4 * AA Battery
1 * English User Manual
