New WiFi Test ESP8266 Programmable Development Board Deauther Tool with 500mAh Battery Dispaly Wristband Case
Description

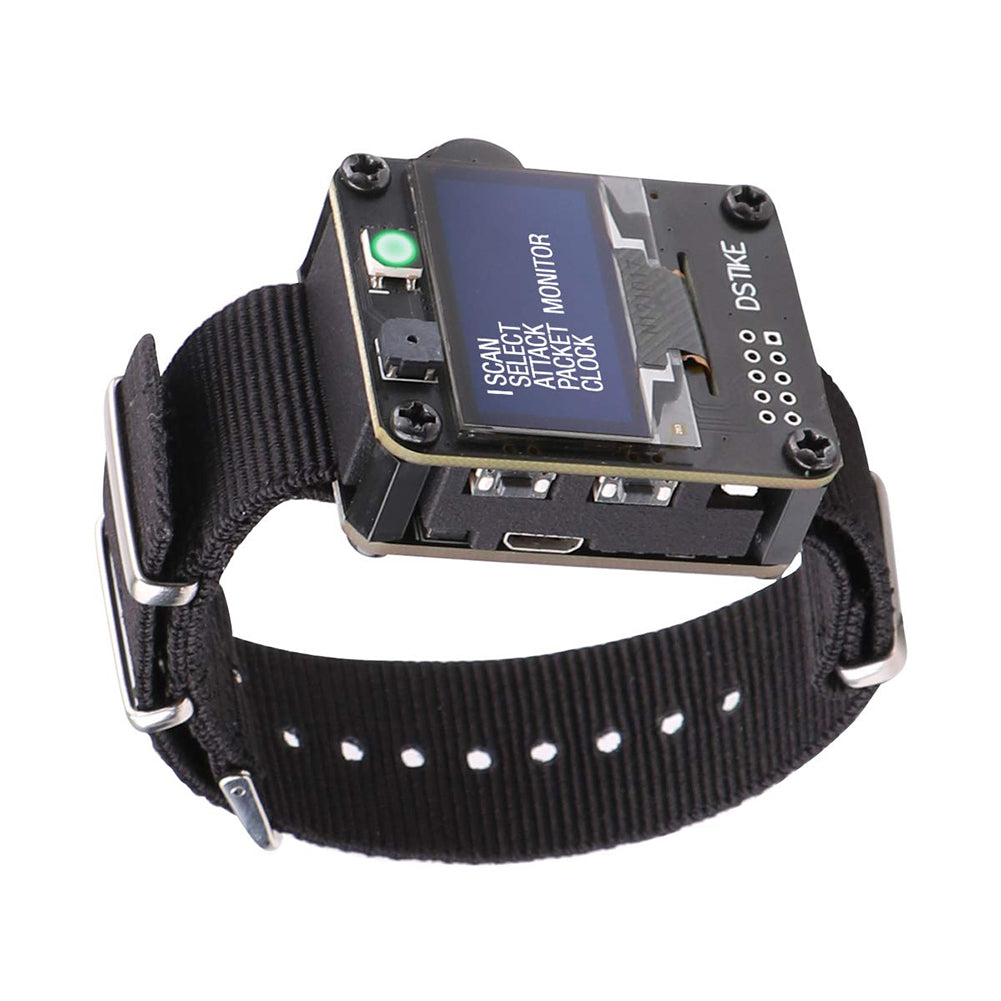

Deauther Watch is an ESP8266 development board, but you can wear it like a smartwatch. This ESP8266 development board comes with a 500mAh lithium battery, OLED display and a 3-way momentary slide switch. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks. You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.
Features
WiFi test board
-Color: As shown.
-Material: Plastic.
-Size: 10x8x5 cm/3.94x3.15x1.97 inch. Usage:
1.You can use it with display and buttons:
https://github.com/spacehuhn/esp8266_deauther/wiki/Setup-Display-&-Buttons
2. You can also connect to "pwned" with the password "deauther" and use the web interface:
https://github.com/spacehuhn/esp8266_deauther/wiki/Web
3. If you lost the password you can reset it:
https://github.com/spacehuhn/esp8266_deauther/wiki/FAQhow-to-do-a-reset.
Note:
Only support 2.4GHz
DSTIKE Deauther Watch and ESP32 Watch share the same screen board, but pinmap and breakout pads are different!
What makes it special?
Only ~80mA power usage
Up to around 7 hours work time
200 mA charging current
Indicate charging LED (Red means charging, off means full)
Included 8dB antenna and 2dB antenna
Power Switch (Strongly recommend turn it off when charging)
Protection: short, overcharging, over discharging, temperature

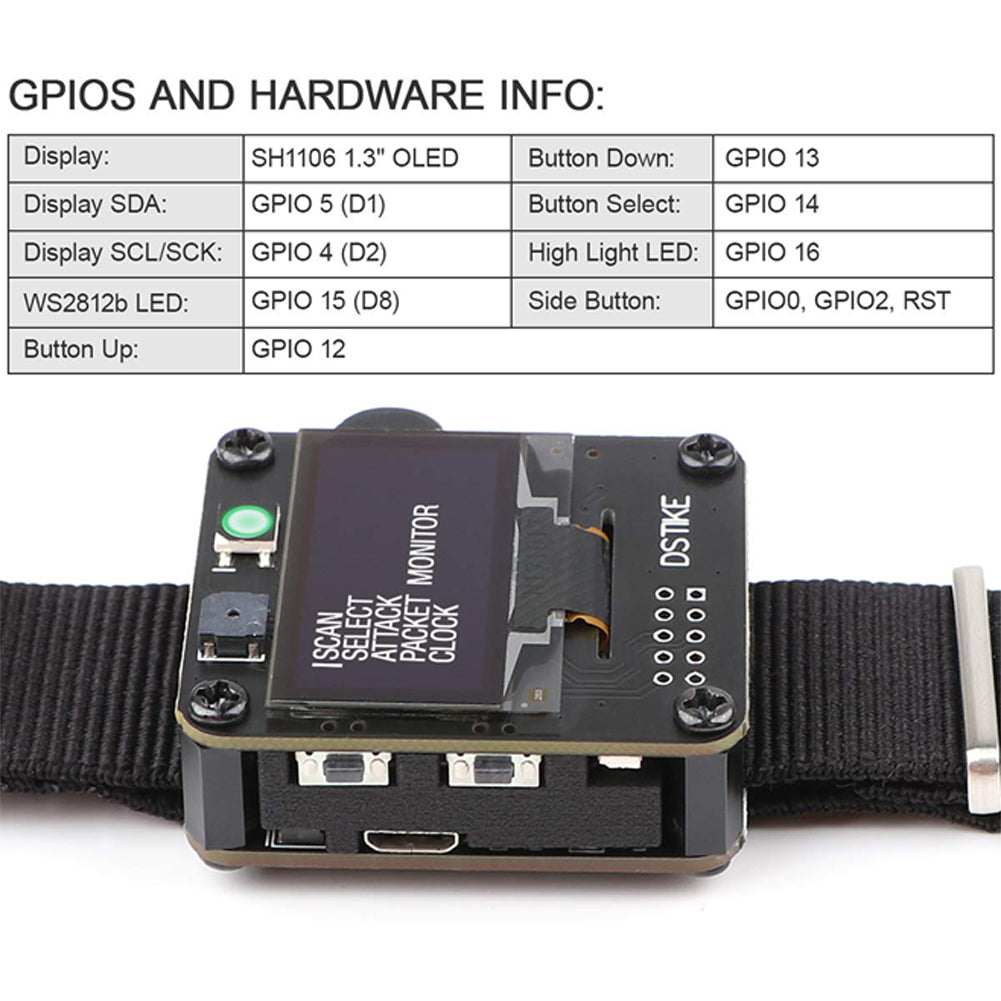

GPIOs and Hardware Info:
Display: SH1106 1.3" OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
High Light LED: GPIO 16
Side Button: GPIO0, GPIO2, RST
Packing list 1 * WiFi test board
1 * 5db FPC antenna
