Features:
1. Test Criteria: Test information on standard PoE devices such as standards, supply voltage, power polarity and mode.
2. Detection voltage: Determine the power supply voltage, power polarity and mode of non-standard PoE equipment.
3. Detecting the network: Check for shorts, crossovers and open circuits in the network cable.
4. Detect current: Test the current, voltage and power consumed by the DC appliance.
5. Detection switch: Loopback test function of the switch.
Descriptions:
1. Small size, easy to carry and use.
2. Used to detect network voltage and current as well as lines.
Specification:
Indictor :LCD 128x64 mm, with back light
Continulity function:Cable types CAT5,CAT6
Check UTP/STP cable: YES
Cable short indicate: YES
Max testing range: 600m
Wire mapping: Emitter +Remote,Emitter + switch/routor
PoE function
Test range: DC5-60V POE switch
Standard identify :802.3af/at ( standard/non-standard)
Test range power :0-18W
Output :YES
Power function:Voltage test range DC0-60V
Current test range: 0-3A
Power test range :0-180W
Input voltage protection: DC48V 5mA
Max working current :≤80mA
Loopback: Compatible with 10M, 100M, 1000M switch
Power supply: 3*AAA
Color: black
Size: 420*110*185mm

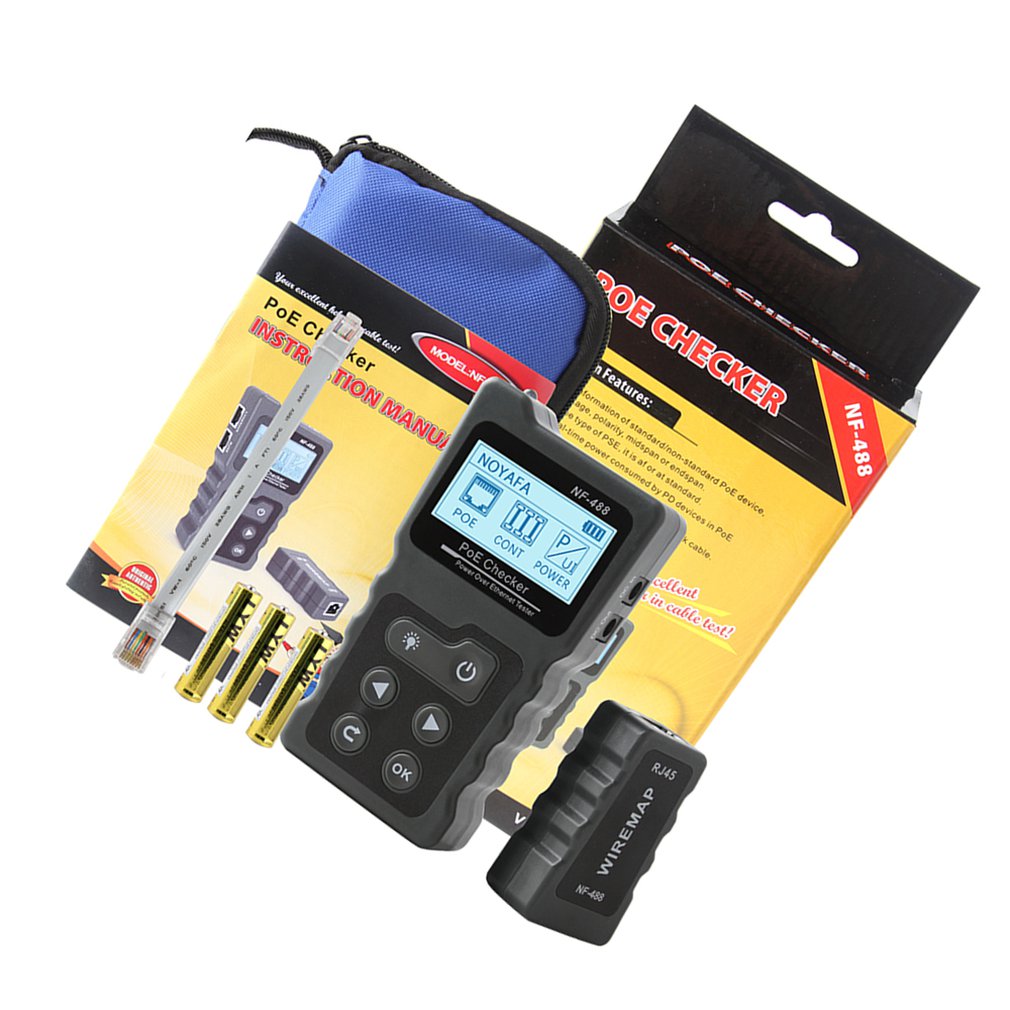

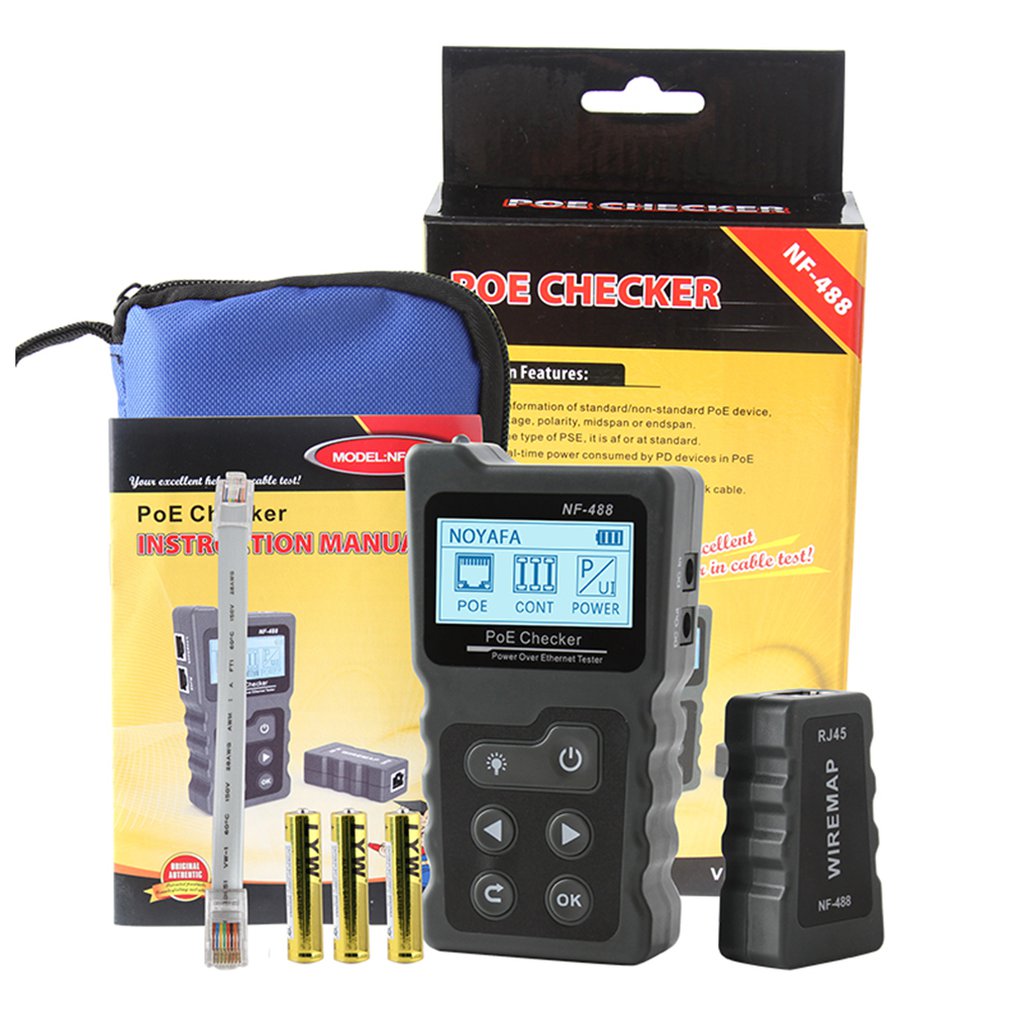

Package Included:
1 x network tester
1 x manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
