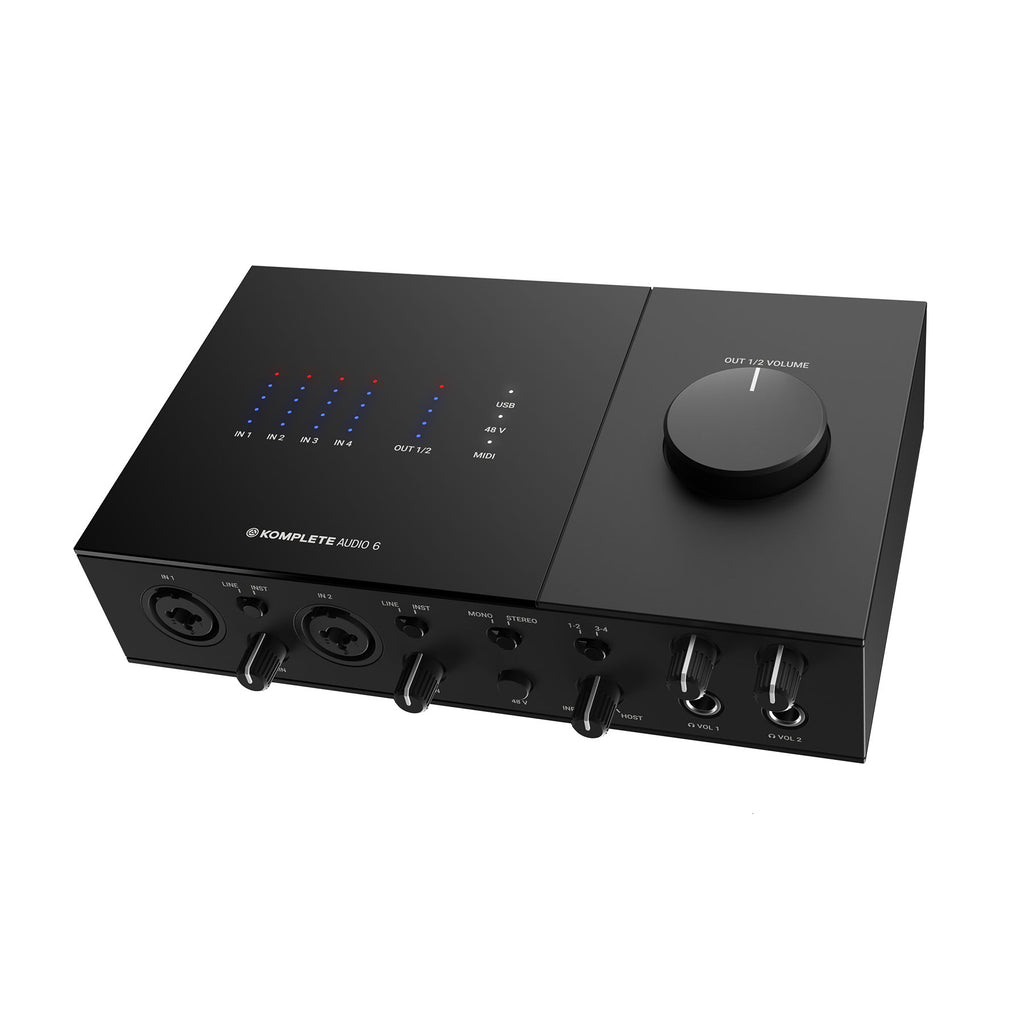

PREMIUM 6-CHANNEL AUDIO INTERFACE

      Record audio in immaculate quality – up to 192 kHz / 24-bit

   Connect your whole setup – 4 analog in/out, 2 digital in/out, 2 headphone out, and MIDI in/out

   Get creating with all the software you need to record and build tracks, plus synths, effects, and more

PLUG INTO STUDIO SOUND

Connect, create, and collaborate with our six-in, six-out audio interface. Featuring high-definition recording, ultra-low latency, and flexible connectivity, AUDIO 6 brings your whole setup together. You can plug in mics, guitars, and synths, create send and return loops with effects, and control synths and drum machines. Plus, you get all the software you need to capture performances, build songs, and polish recordings – bring any idea to life.

READY FOR RECORDING, OR THE ROAD

Whether recording your next album or gigging your latest release, your focus should be on creating at your best. With pro-grade sound, gig-ready portability, and plug-and-play simplicity, AUDIO 6 lets you do just that.

MAKE STUDIO MAGIC

AUDIO 6 works with all your mics, instruments, and headphones. You’ve got a choice of connections and features: 48V phantom power, MIDI in/out, and four analog outputs with additional CV/gate control for your analog gear. Plus, easy-to-see top panel LED VU-meters for all four analog inputs and the main stereo output.

TAKE THE STAGE

Whether you’re a solo performer, duo, or a full band, the AUDIO 6’s pristine audio quality lets you sound as good on stage as in the studio. Turn your laptop into a live rig or vocal processor, with flexible connections to fit any performance. USB bus-power means fewer cables and power supplies, plus a big volume knob on top lets you make easy level adjustments while on stage.

DOUBLE HEADPHONE OUTPUTS

Two high-power headphone outputs, with individual level controls, make it easy to collaborate. Hear exactly what you’re recording, in real-time, with latency-free direct monitoring that lets you blend playback and monitored audio to your liking. We’ve also doubled their output power – great for stage use or high-impedance headphones.

GET CONNECTED

Whether at a small band session or a freewheeling modular synth jam, having a flexible set of connections lets you bring your ideas together and capture music in the moment. XLR, TRS, S/PDIF, and MIDI aren’t just letters, they’re ways to make music happen – and we’ve put these connections right where you need them.

TAKE A CLOSER LOOK

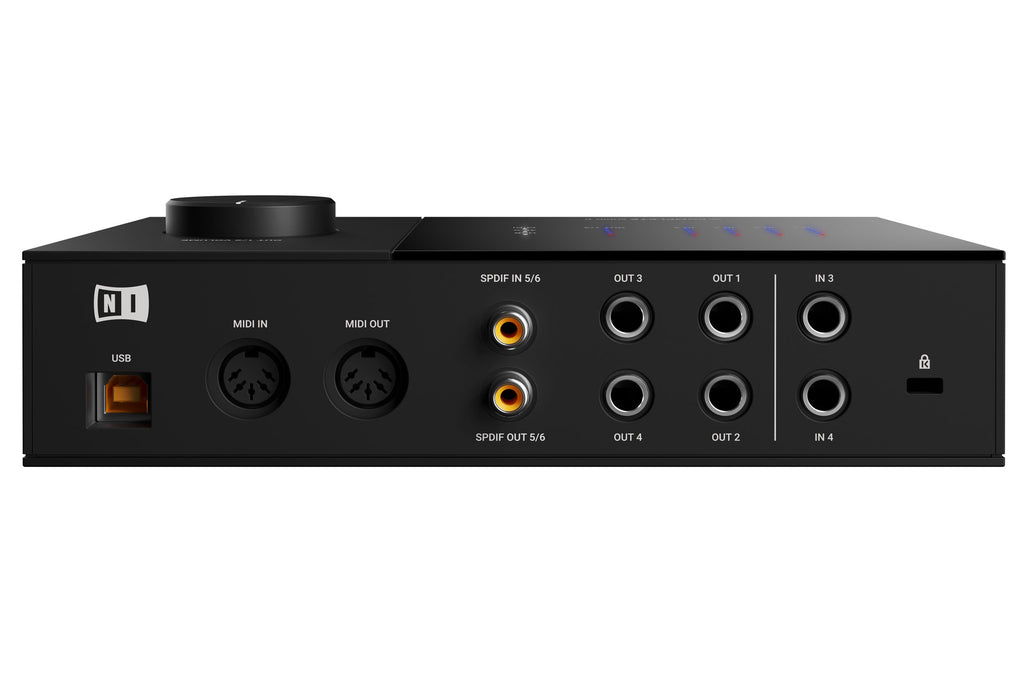

   Connectivity:

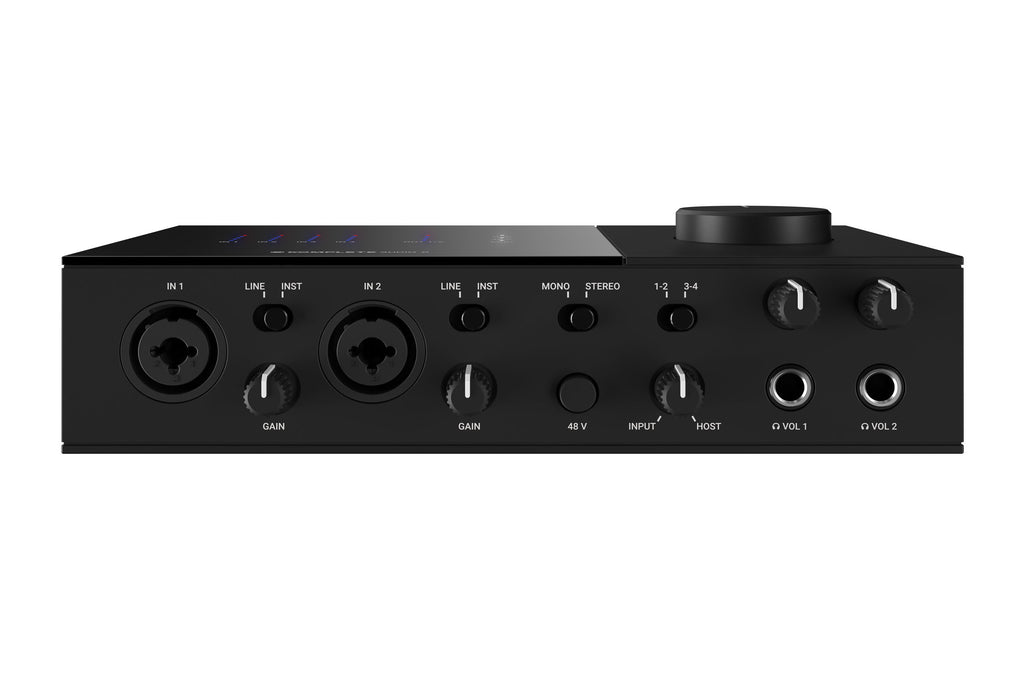

6 inputs: 2x combo-XLR/¼” TRS line inputs with 48V phantom power, and gain control for flexible stereo recording, 2x ¼” TRS line inputs, 1x SPDIF digital stereo input (RCA) 1x MIDI in

6 outputs: 4x DC coupled ¼” TRS outputs for modular control*, 1x SPDIF digital stereo output (RCA), 1x MIDI out

  Audio Quality: Premium quality at 192 kHz / 24-bit

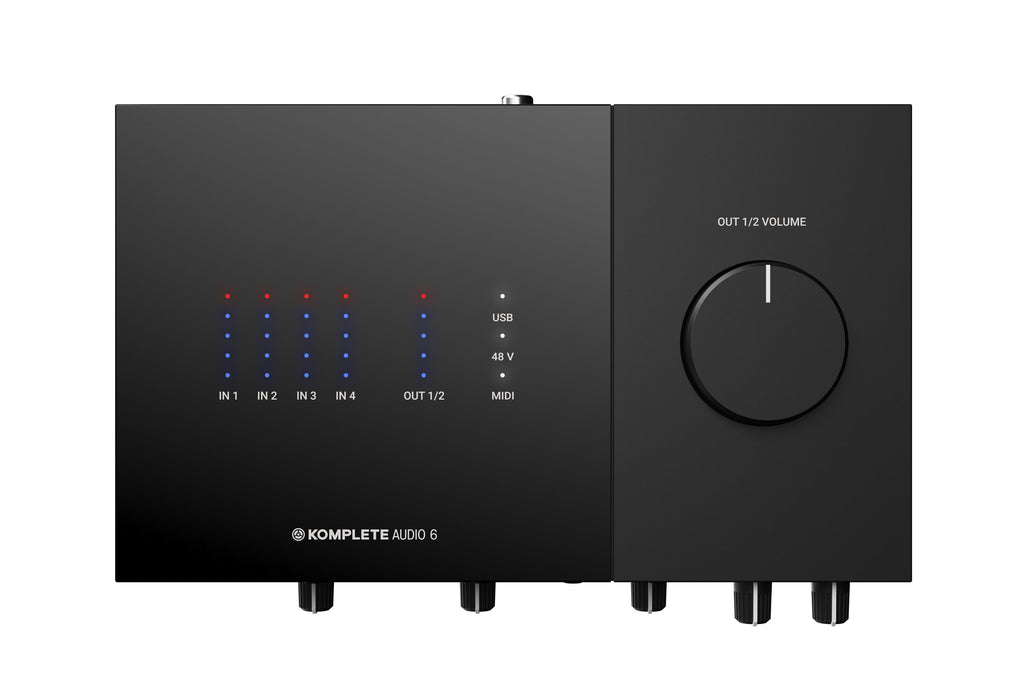

  4x LED input VU meter

  1x LED output VU meter

  48V, USB, and MIDI status LEDs

  Direct monitoring with mono/stereo switch and channel switching (1-2 / 3-4) for blending audio playback while recording

  Big volume knob for quick volume adjustments

  2x headphone out with high-power output and individual volume controls

  USB 2.0 bus-power – no additional power supply needed

  Compatible with Mac and PC (ASIO®/Core Audio/DirectSound®/WASAPI)

  Kensington Security Slot

*Limited to +/-2V range due to the AUDIO 6 being USB powered.
