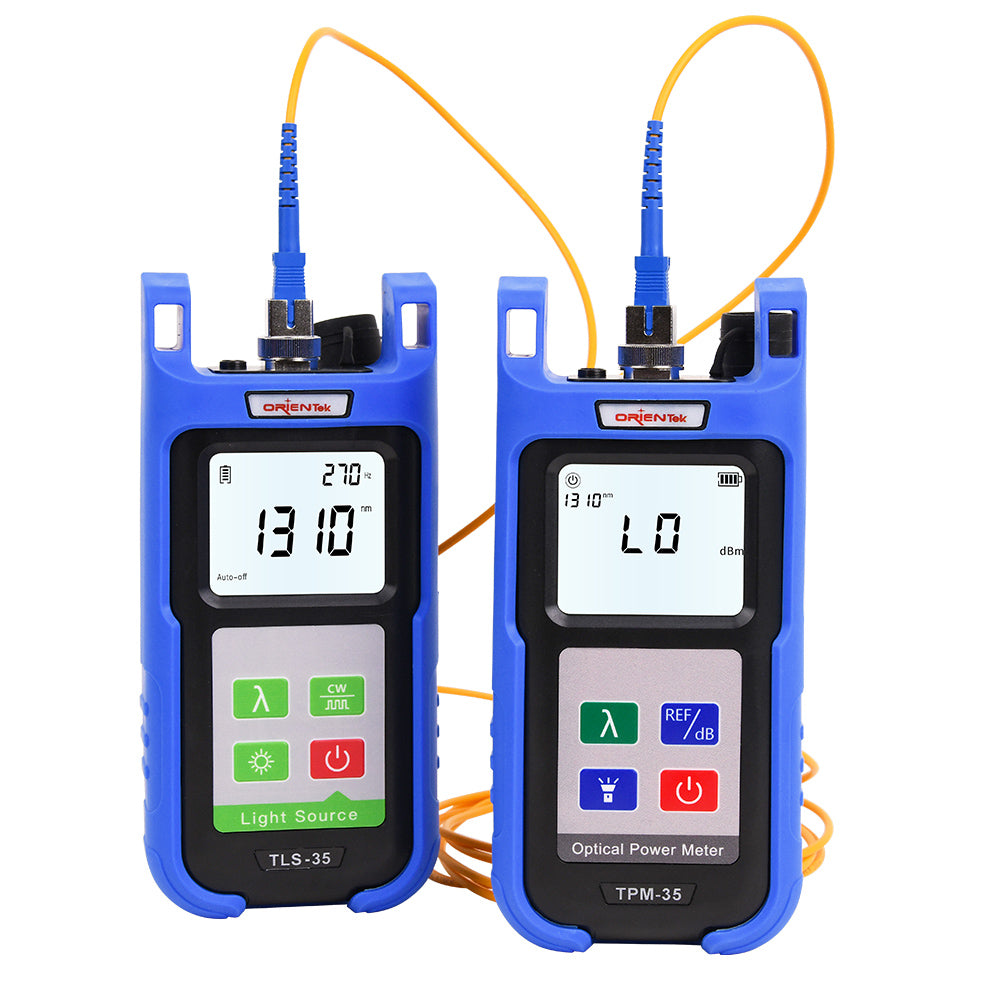

Orientek TPM-35 Fiber Optic Power Meter + TLS-35 Optical Light Source

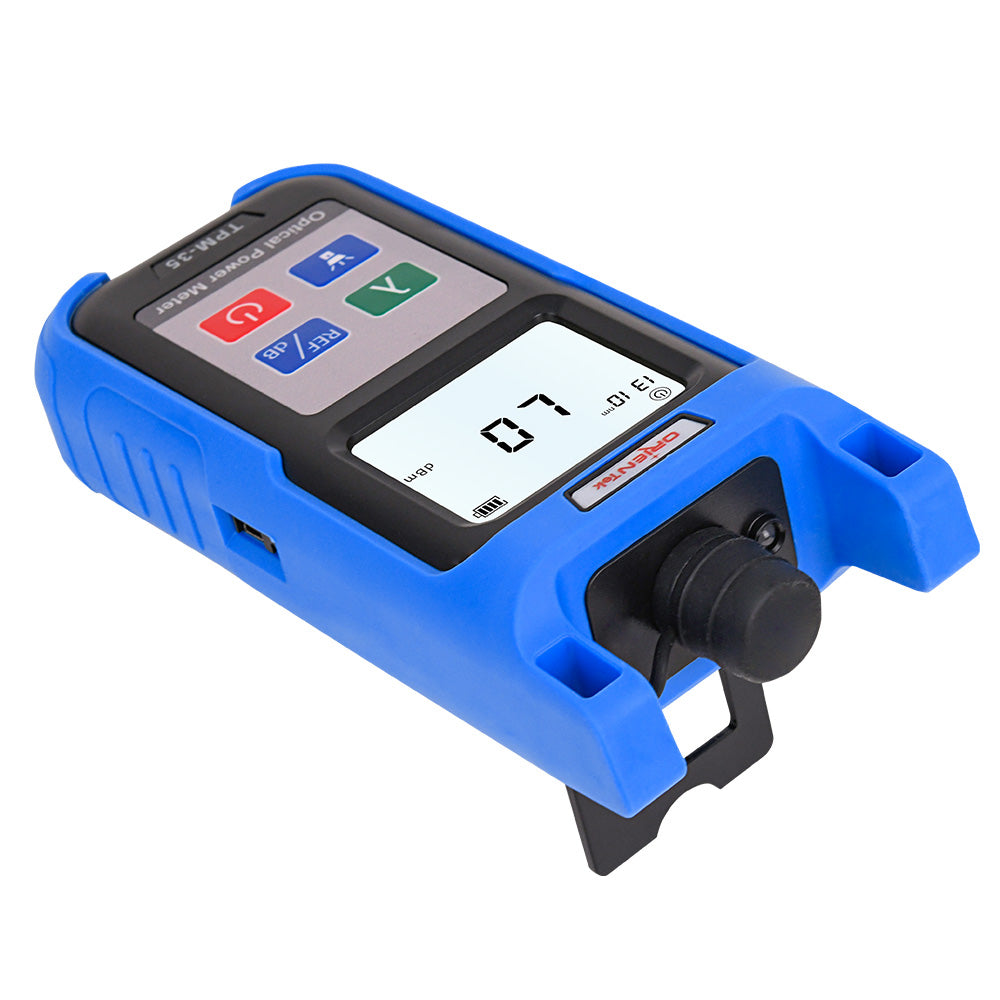

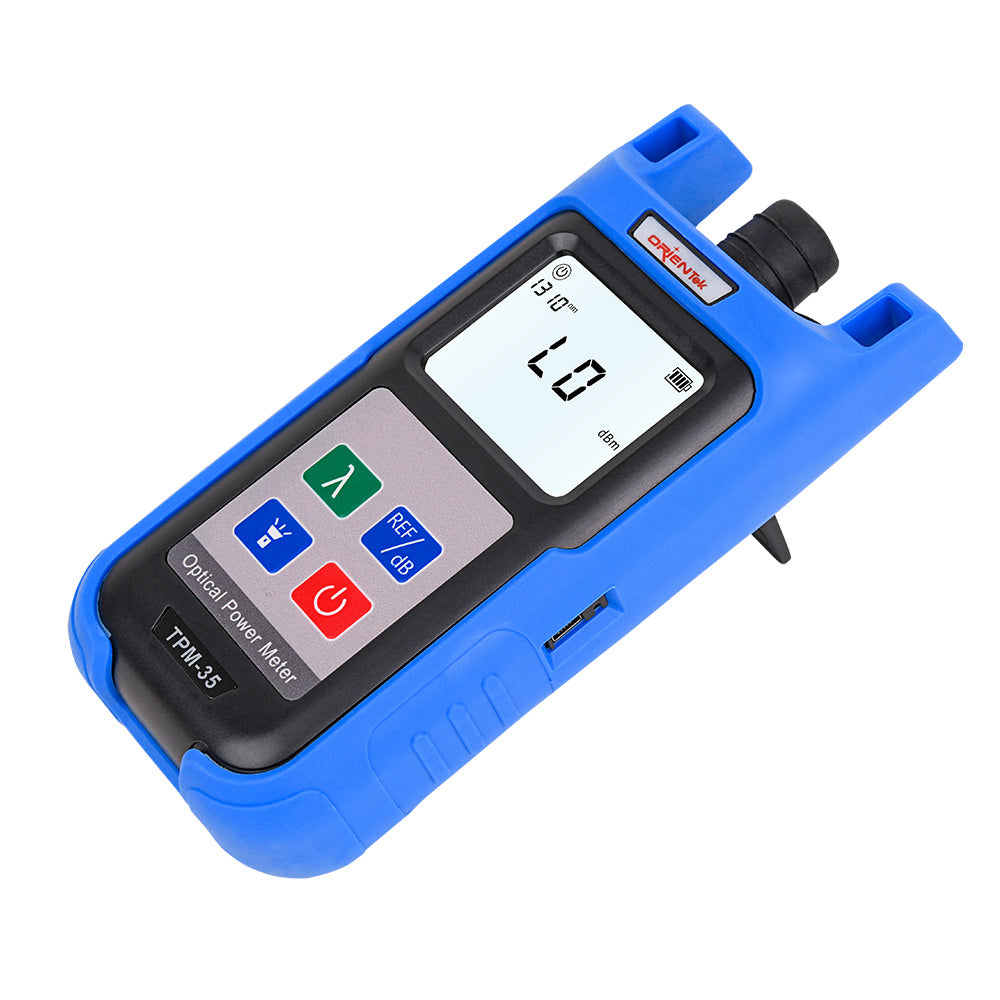

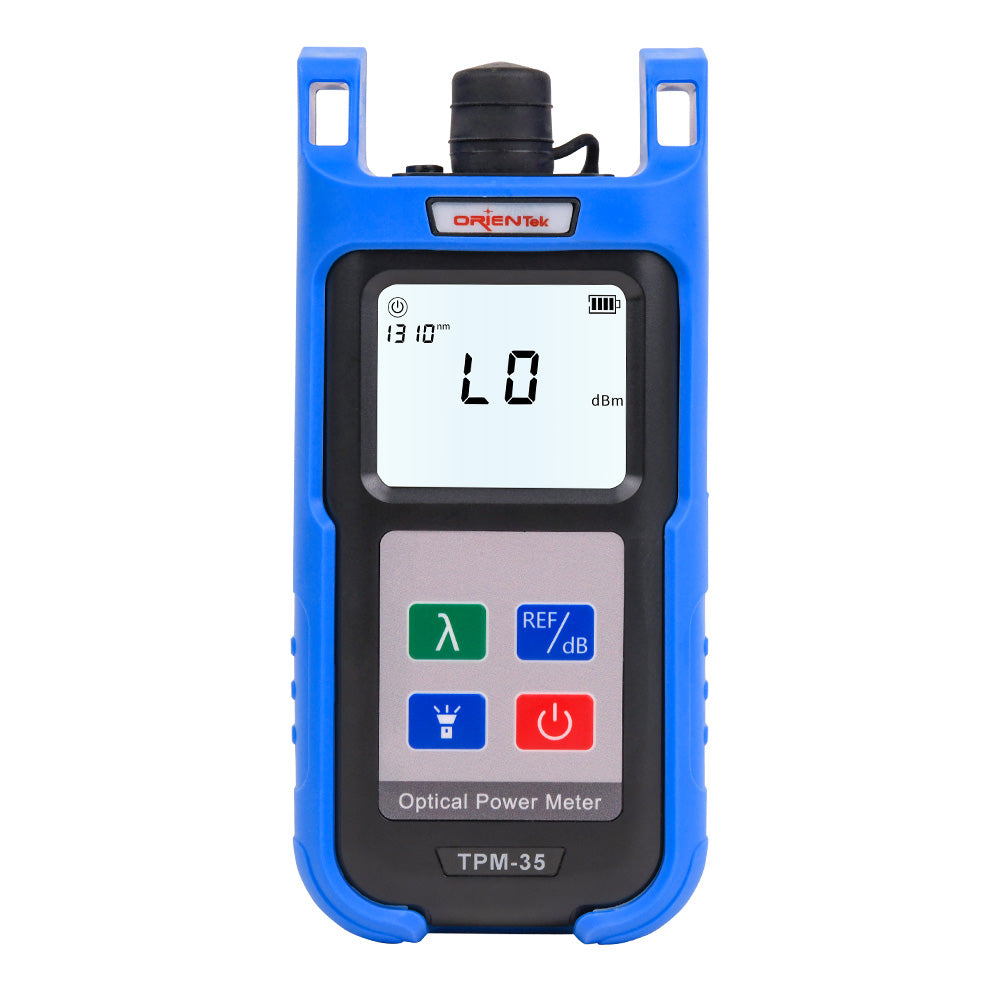

TPM-35 Optical Power Meter
Wavelengths(nm)
850/980/1300/1310/1490/1550/1625(nm)
Measurement Range
-70~+10dBm
Optical Connector
2.5mm universal interface + SC Connector
Power Supply
Alkaline battery (3AA 1.5V battery)
Resolution
0.01dB
Working Temperature
-10~+60(°C)
Storage Temperature
-25~+70(°C)
Dimensions/Weight
160*85*45mm/220g

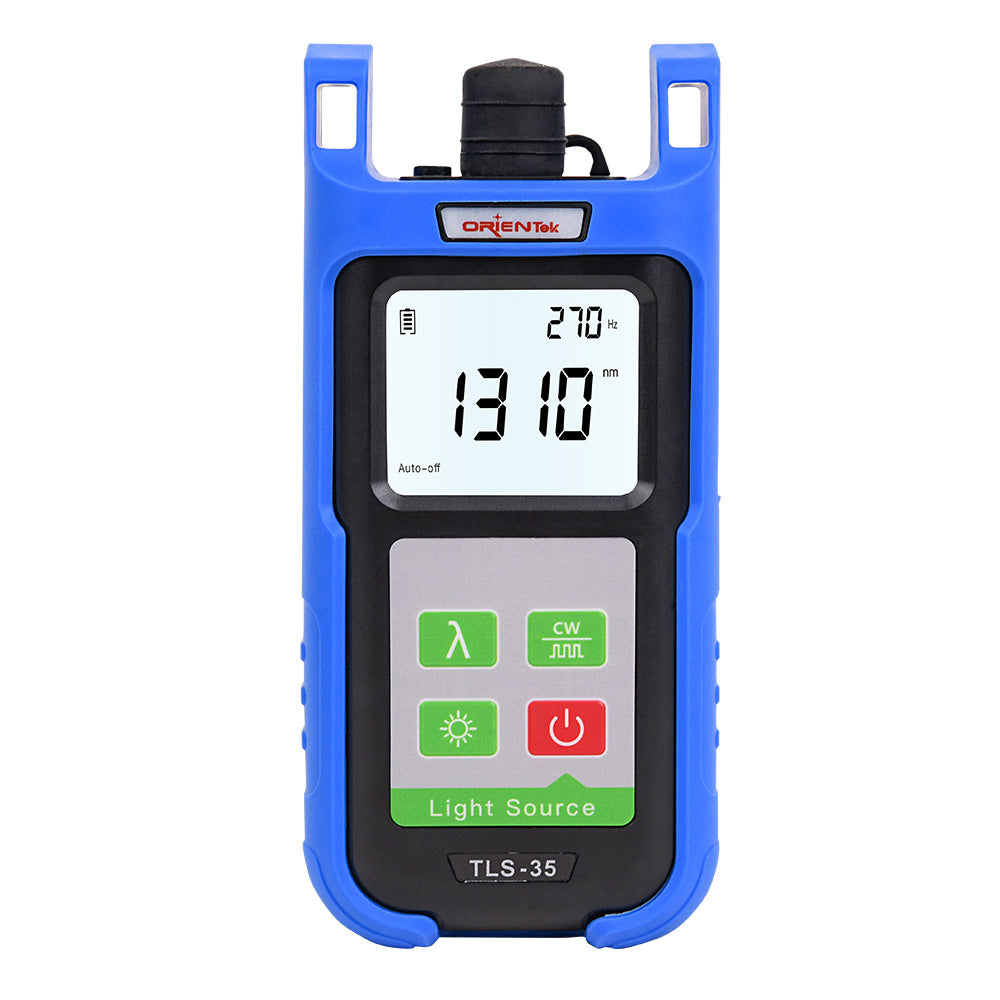

TLS-35 Optical Light Source
Wavelength(nm)
1310+1550nm（TLS-35-S)
850+1300nm（TLS-35-M)
850+1300+1310+1550nm（TLS-35-MS)
1310+1490+1550nm（TLS-35-PON)
Output Power
-5dB
Optical Connector
SC+ 2.5mm universal
Power Supply
Alkaline Battery(3 AA 1.5V batteries)
Output Stability
±0.05dB/15mins;±0.1dB/ 8hours
Modulation Frequencies
CW, 270Hz, 1KHz, 2KHz
Dimensions / Weight
160x85x45mm / 220g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
