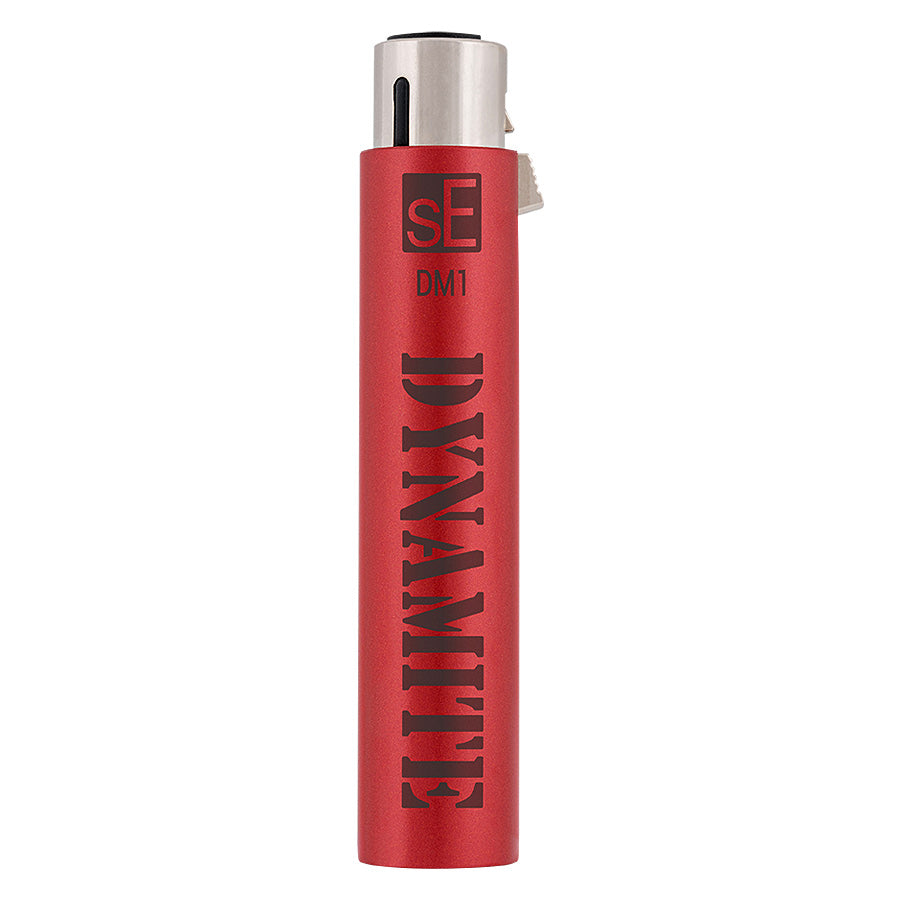

TheDM1 DYNAMITE: explosive level for all your passive mics.

  Some mics need a LOT of gain - and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.

  With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

         Whether you’re a podcaster, recording engineer, or running live sound, the DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

    Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.

    +28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD

         designed for neutral, balanced sound quality

     the perfect way to boost the signal of a passive microphone

     gain stays consistent regardless of connected load

     provides significantly improved level to your mic preamp for proper gain staging

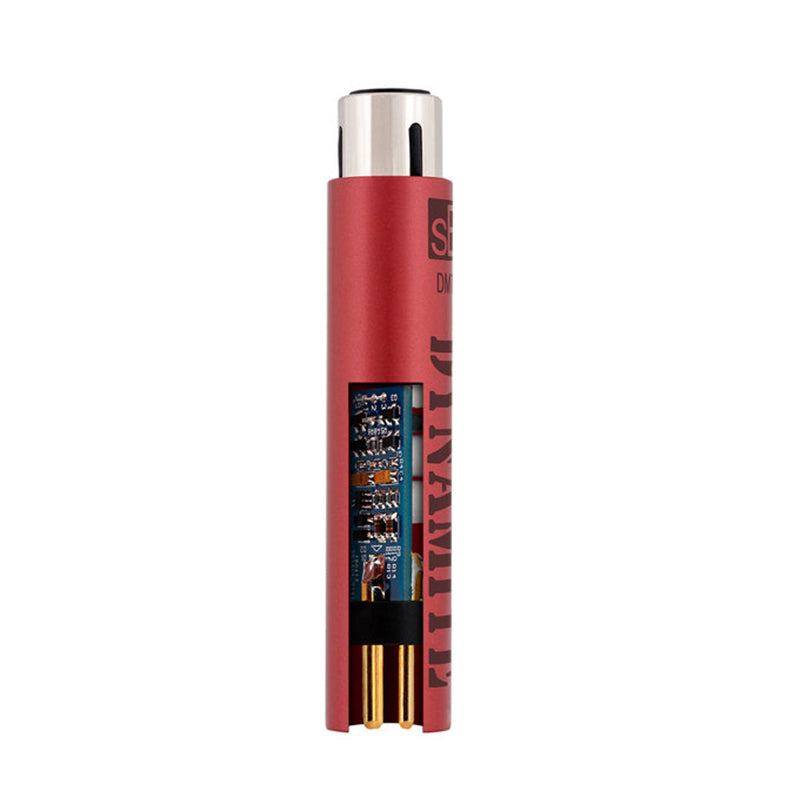

    SOPHISTICATED CLASS-A ELECTRONICS

         state of the art electronics and high-grade FETs provide supremely low noise

     transformerless design for pristine sound quality

     provides the lowest noise in its class

    DEDICATED OUTPUT BUFFER AMPLIFIER

         provides +28dB output independent of load impedance or cable length

     extremely low output impedance

     drives long cable runs and can reduce susceptibility to RF interference, buzz & hum

    SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH

         efficient rejection of any electrical interference and noise

     high-quality finish ensures a great look for many years

     slim design allows for easy placement in the studio or on stage

    GOLD-PLATED XLR CONNECTOR

         for loss-free and reliable signal connection

    IN THE BOX

    DM1

sE Logo Sticker

User manual with warranty card

    SPECIFICATIONS

    Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)

    Gain: 28 dB (load 1kOhms)

    Max output level (0.5% THD): 8.3 dBV (2.6 V)

    Output noise level: 9 μV (JIS-A)

    Powering: 48 Volts according toIEC 61938

    Electrical impedance: 135 Ohms

    Recommended load impedance: >1k Ohms

    Current consumption: 3.0 mA

    Connectivity: 3-pin male/female XLR connector

    Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)

    Weight: 80 g (2.82 oz.)

    SYSTEM REQUIREMENTS

    REQUIREMENTS

         input: passive microphone (ribbon/dynamic)

     output: preamp/mixer/audio interface providing 48V phantom power

    LIMITATIONS

         not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
