Description:
*1. Model: ZT-703S

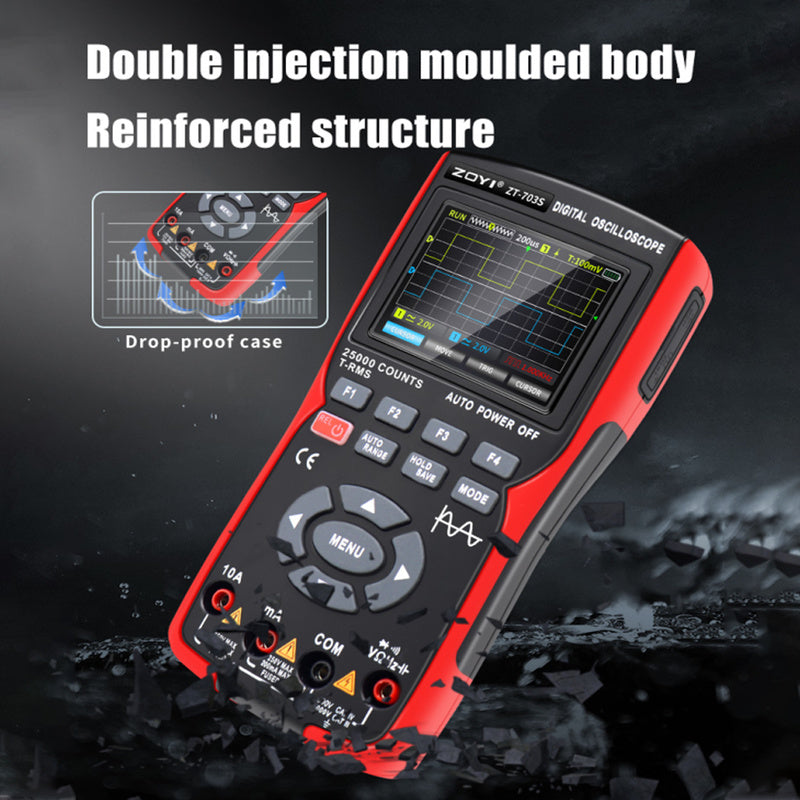

*2. Material: ABS+TPE
*3. Battery: 1 * built-in 3400mAh 18650 battery (included)
*4. Display: 3.5inch color display, 25000 words
*5. Screen Resolution: 320*240
*6. DC Current: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.8%+3)
*7. AC Current: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.5%+3)
*8. DC Voltage: 25.000mV-250.00mV; 2.5000V-1000.0V ±(0.5%+3)
*9. AC Voltage: 25.000mV-250.00mV; 2.5000V-750.0V ±(0.5%+3)
*10. AC Current Frequency Response: 40Hz-1kHz
*11. Resistance: 0-250.0ΜΩ, ±(1%+3)
*12. Capacitance: 0-99 99mF, ±(2.0%+5)
*13. Frequency: 0-999,9kHz, ± (0.1%+3)
*14. Mode: Auto+Manual;
*16. Language: Chinese/English
*17. True RMS: yes
*18. Backlighting: yes
*19. Diode: yes
*20. Buzzer: yes
*21. Low Battery Indicator: yes
*22. Screen Backlight: yes
*23. Data Hold: yes
*24. Bandwidth: 50MHz
*26. Waveform Interpolation: (sinx)x
*27. Sweep Speed: 10ns/div-20s/div
*28. Time Base Accuracy: 20ppm;
*29. Record Length: Up to 128Kbyte

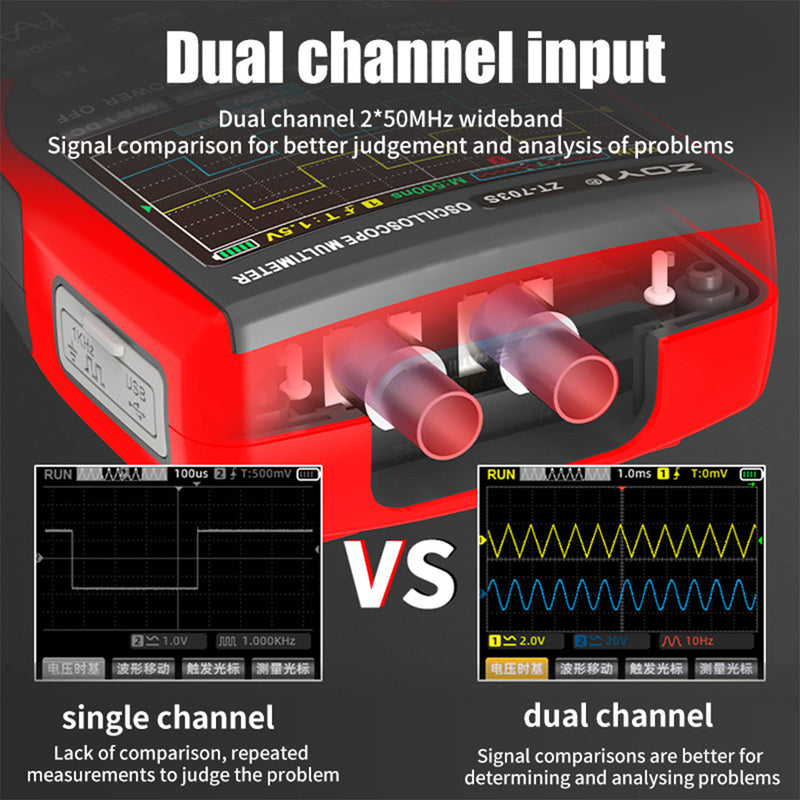

*30. Channel: 2
*31. Trigger: auto, normal, single

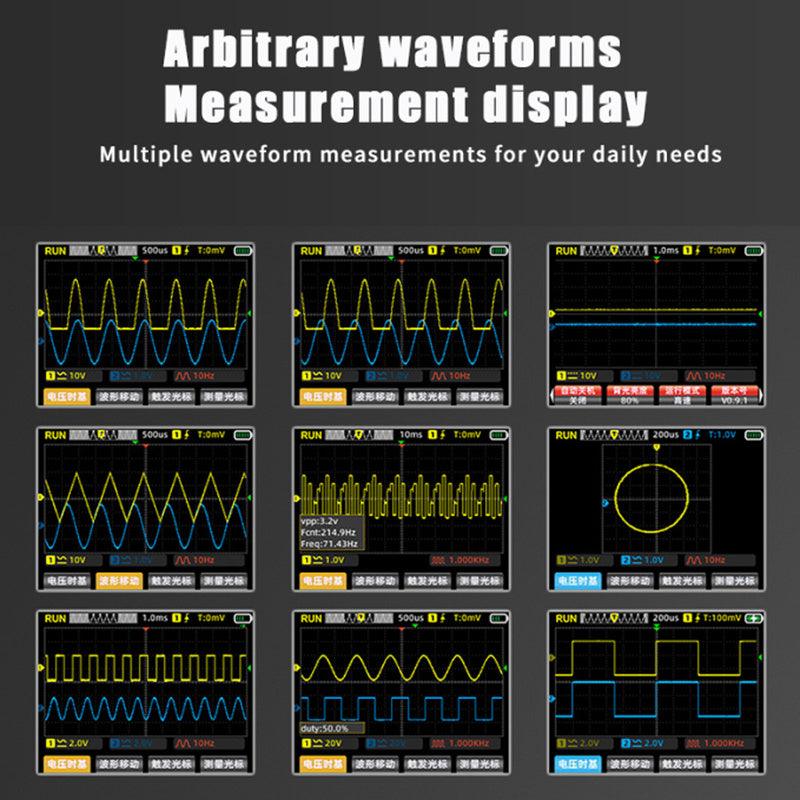

*32. Automatic Measurement: Period, frequency, peak-to-peak, max, Min, RMS, Duty Cycle, Number of Pulses
*33. Signal Generator: Sinewave, squarewave, sawtooth wave, halfwave, full-wave
*34. Operation Mode: Normal mode 200MSa/s, high speed mode 280MSa/s
*36. Afterglow Mode: Minimum, 500ms, 1s, 10s, Unlimited
*37. Operating Temperature: 0-40℃

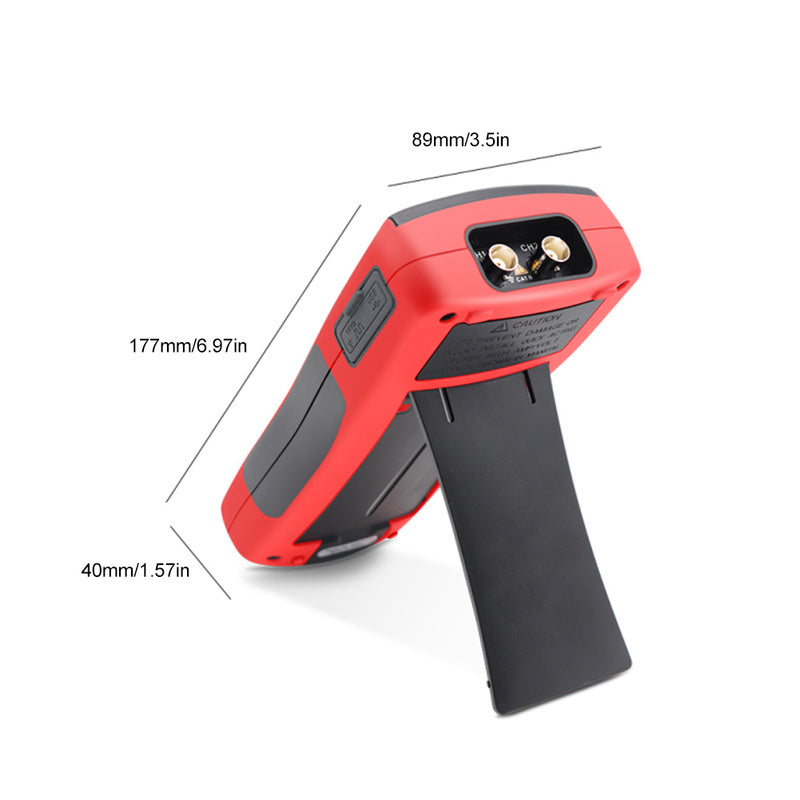

*38. Size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in
*39. Package Size: 232 * 132 * 67mm / 9.13 * 5.20 * 2.64in
*40. Package Weight: 732g / 1.61lb

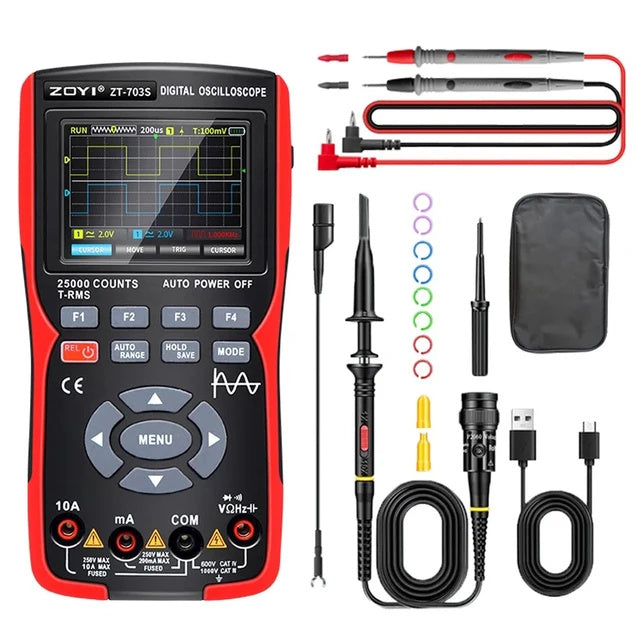

Package Includes:
1 x 3in1 Oscilloscope Multimeter;
1 x Test Probe with Accessory Set
1Pair x Meter Pen
1 x Cable
1 x Storage Bag

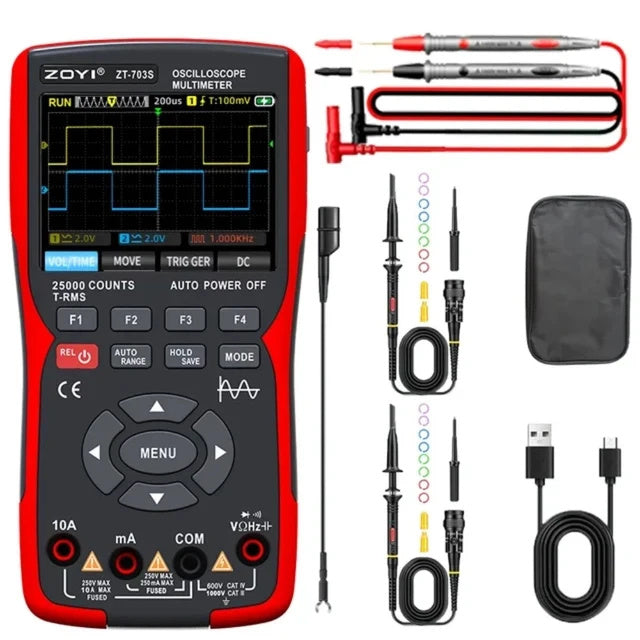

OR
1 x 3in1 Oscilloscope Multimeter;
2 x Test Probe with Accessory Set
1Pair x Meter Pen
1 x Cable
1 x Storage Bag
