1.lmr400 n connector,Body brass nickel plated, Pin brass gold plated, PTFE(PTFE) Insulator ,50 ohm
2.N connector ,Salt spray test for 48 hours ,VSWR below 1.3(DC-6G)

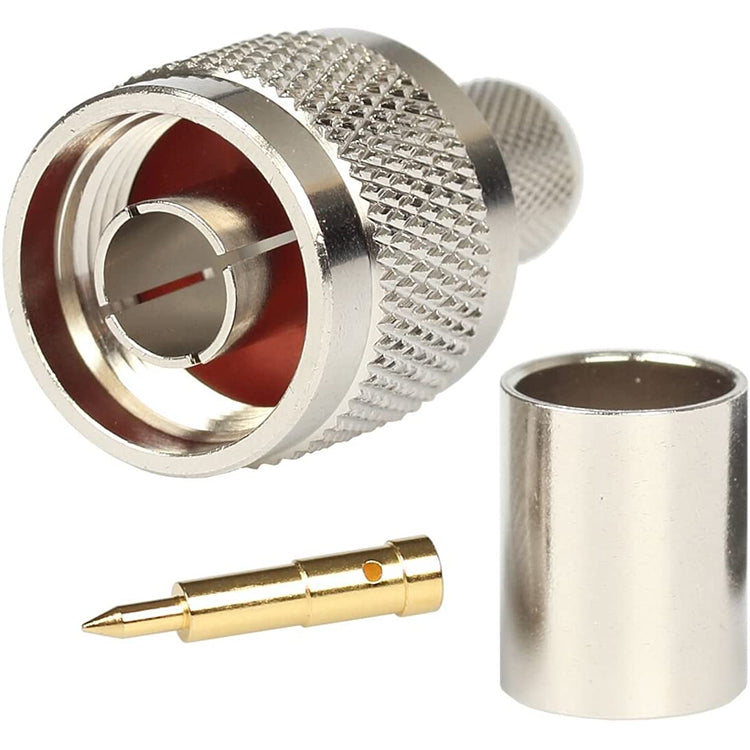

3.Crimp male n ,it is easy to install, is reliable, and is built to last. Work with the 50ohm low loss RF cable :LMR-400 and Belden 9913 and L-com ca-400 and RG8
4.10 piece connectors with Black heat shrink tube, It connected with any brand N female connector
5. Coaxial connector,Insulation Resistance :greater than equal 5000MΩ Durability :greater than equal 500 cycles
Materials & Plated:
Body brass nickel plated, Pin brass gold plated, PTFE(PTFE) Insulator for a reliable signal every time .
Salt spray test for 48 hours ,VSWR below 1.3(DC-6G)
Electricail Characteristics:
Impedance:50 ohm
Dielectric Withstanding Voltage:2500V (RMS)
Contact Resistance:Center conductor less than equal 1mΩ
Outer conductor less than equal 1mΩ Insulation Resistance :greater than equal 5000MΩ
Durability :greater than equal 500 cycles
Temperature range: -40°C to +85 °C
Build or Repair Coaxial Cable:
Use to create your own custom length N cable assembly with this N male crimp connector which is widely used in Wireless Communications Systems,
Short Antenna Feeder runs or any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile Antennas).
colour:silver
Material:brass

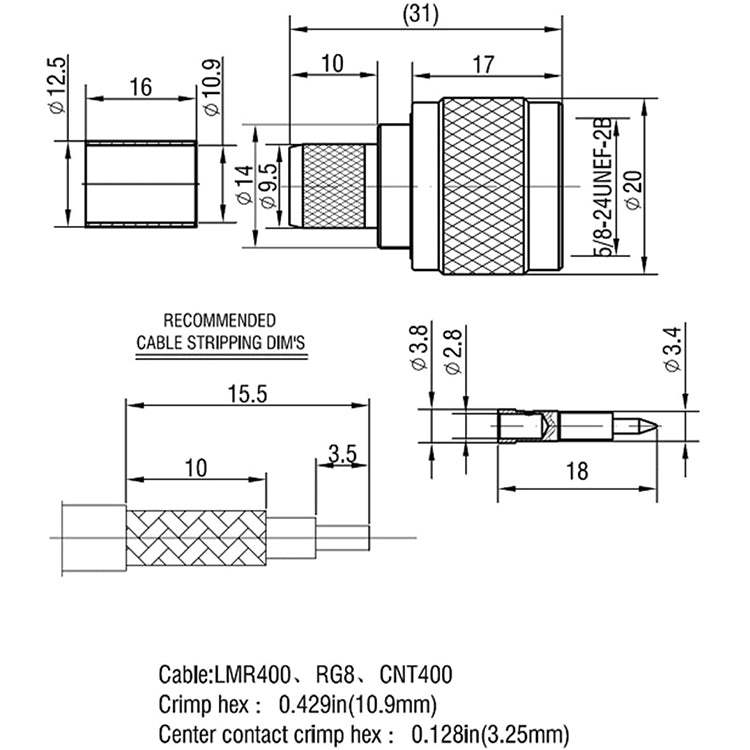

size:31mm

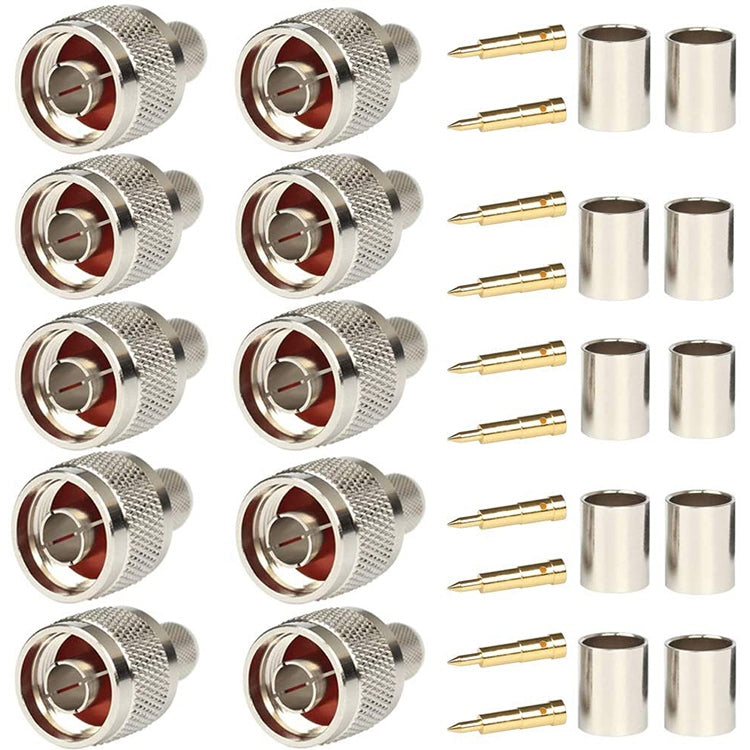

Package contents:
10 x connectors
10 x pressure tubes
10 x pins
10 x heat shrinkable tubes
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
