Features:
With 5 interchangeable terminals with different crimping ranges.
Professional wire crimper tool with self adjustable ratchet mechanism for easy operation.
Applicable to most of non-insulated crimp terminals and connectors.
Multi-functional wire stripper with upgraded design and more comfortable handle for wires from 24 to 10AWG (0.2-6.0mm²).
Due to great handle grasping position, light and compact structure and handle design ensure perfect crimping effect.
Designed according to human factors engineering, it can save 50% energy when crimping.
Plastic tool box has surface waterproofing and is more suitable for carrying and long time storage.
Specifications:
Brand Name: PARON
Model: JX-D5301S
Material: High-carbon Steel + Alloy
Color: Yellow + Black

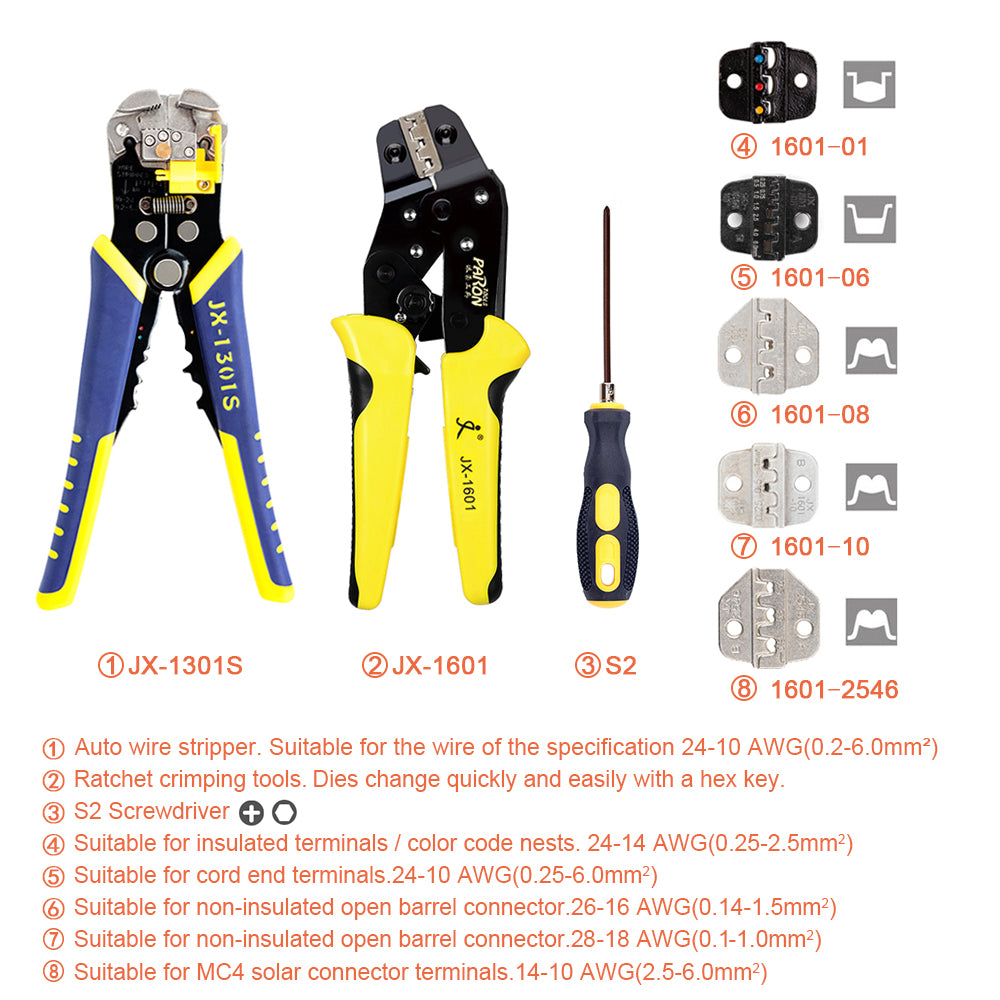

Suitable Terminals & Crimping Range of Wire Crimper:
JX 1601-01: Color Code Nests + Insulated Terminals 24-14 AWG (0.25-2.5mm²)
JX 1601-06: Cord End Terminals 24-10 AWG (0.25-6.0mm²)
JX 1601-08: Non-insulated Open Barrel Connector 26-16 AWG (0.14-1.5mm²)
JX 1601-10: Non-insulated Open Barrel Connector 28-18 AWG (0.1-1.0mm²)
JX 1601-2546: Solar Connector Terminals 14-10 AWG (2.5-6.0mm²)
Stripping Range of Auto Wire Stripper: 24-10 AWG (0.2-6.0mm²)
Wire Crimper Size: Approx. 190 * 80 * 20mm / 7.48 * 3.15 * 0.79in
Wire Crimper Weight: Approx. 348.5g / 12.29oz
Auto Wire Stripper Size: Approx. 210 * 108 * 28mm / 8.27 * 4.25 * 1.10in
Auto Wire Stripper Weight: Approx. 316g / 11.15oz
Package Size: Approx. 23.5 * 18.5 * 4.5cm / 9.25 * 7.28 * 1.77in
Package Weight: Approx. 1010g / 35.63oz
Note: Please notice the anastomosis direction of dies and terminal when operation, otherwise the die will be burst open.

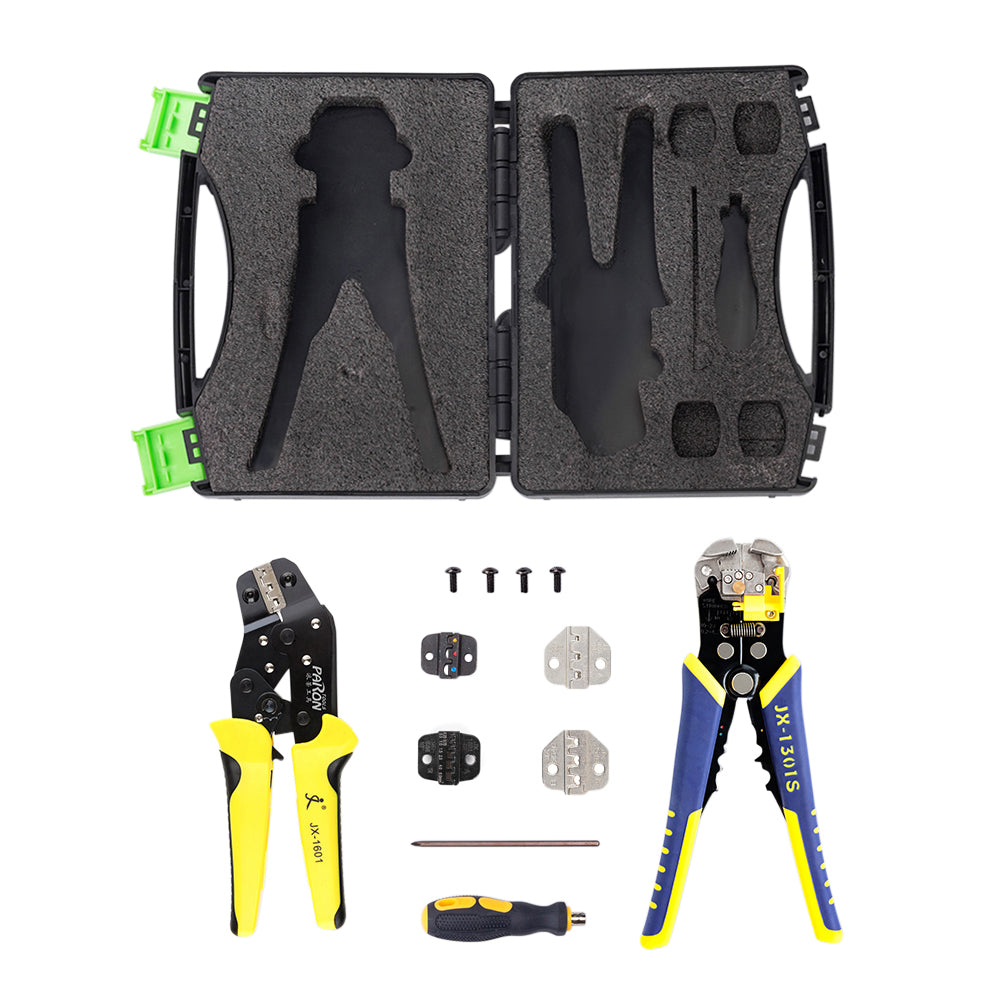

Package List:
1 * JX-1601 Wire Crimper
1 * JX-1301S Auto Wire Stripper
1 * S2 Screwdiver
4 * Spare Dies
4 * Screws
1 * Tool Box
