- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Specification:

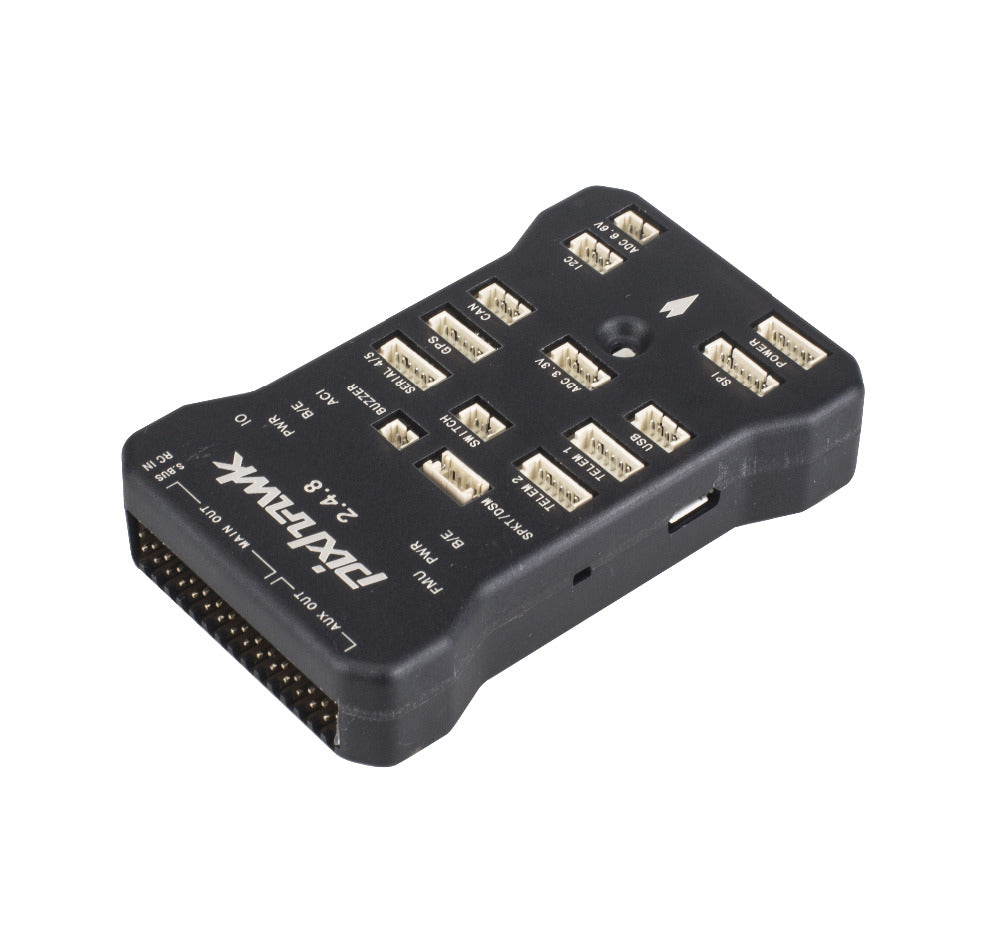

The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
Color:Black
Size: 50x81x16mm/2.0x3.2x0.6 in
Package size: 110x145x18mm/4.3x5.7x0.7 in
Weight: 48g
Package weight: 52g
