- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Specification:

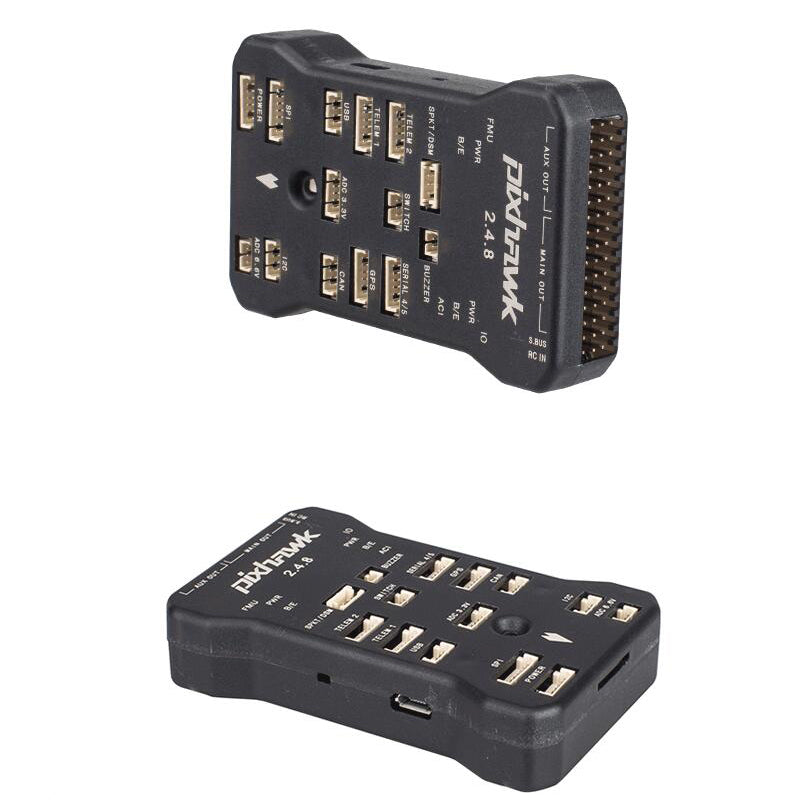

The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output

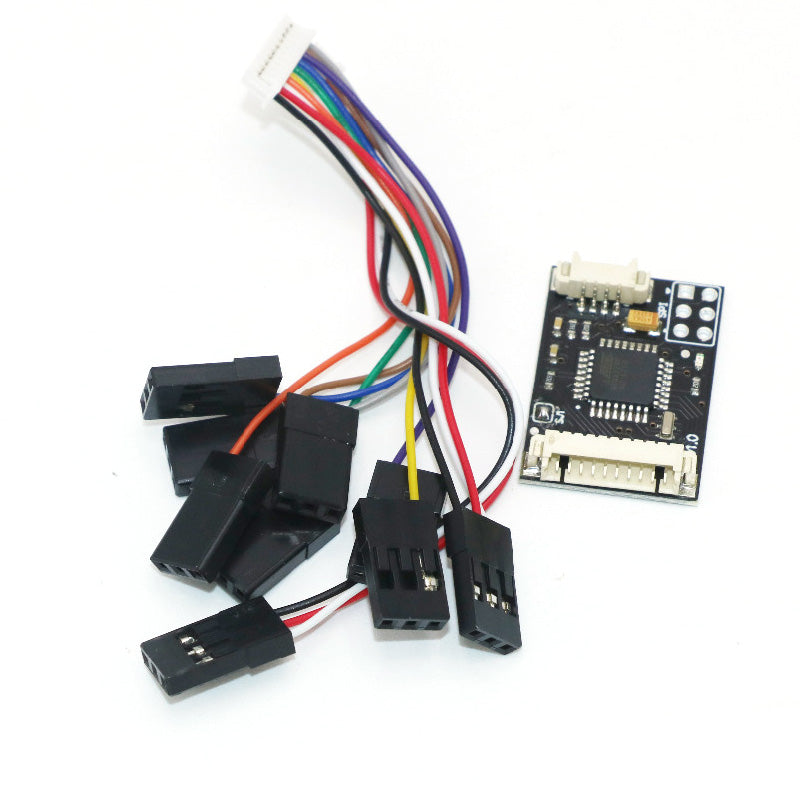

PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
Color:Black
Size: 50x81x16mm/2.0x3.2x0.6 in
Package size: 110x145x18mm/4.3x5.7x0.7 in
Weight: 48g
Package weight: 52g

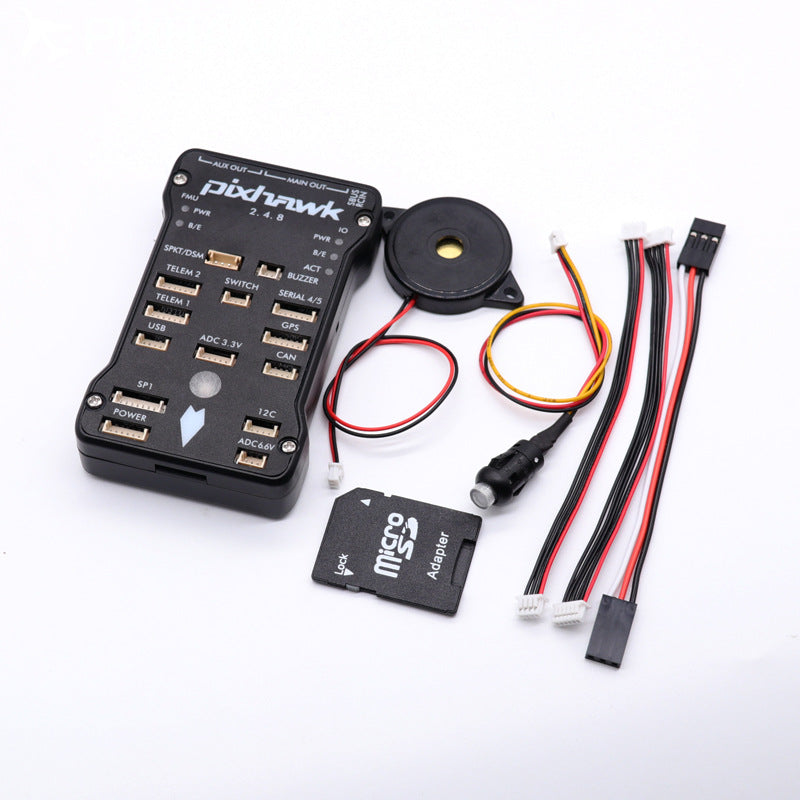

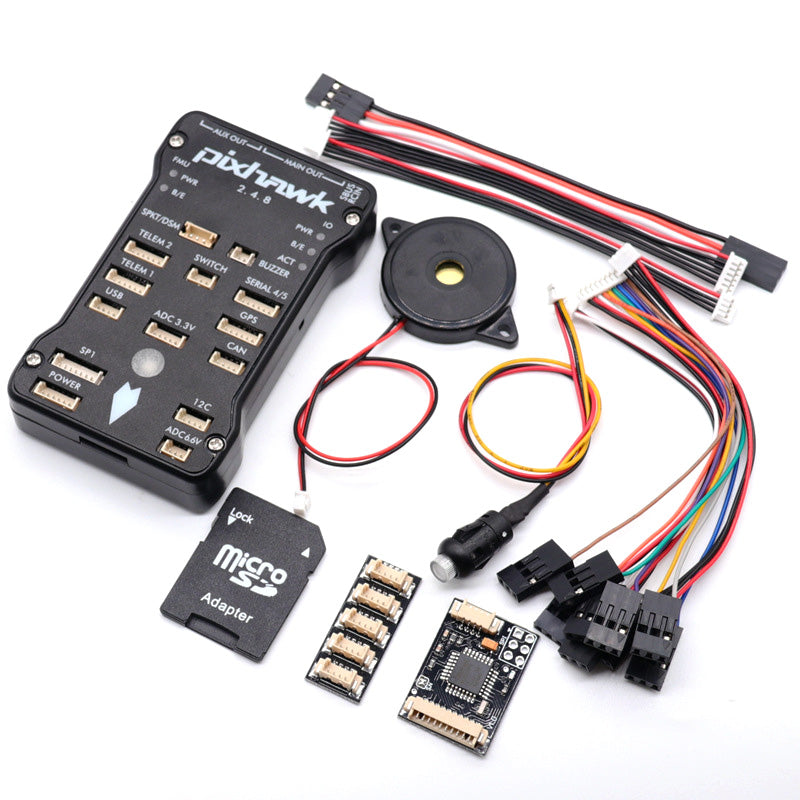

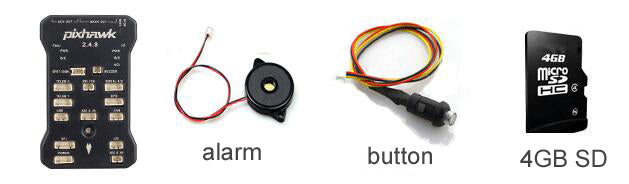

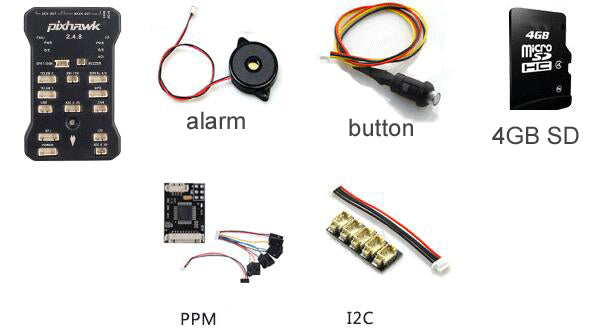

Package included:
1 x 2.4.8 Pixhawk main control
1 x Safety switch
1 x Flight control shell
1 x Buzzer
1 x 6pin to 6pin line
1 x 4Pin to 4Pin line
1 x 3pin DuPont line
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
