Rated Voltage: DC 24V
Voltage Range: DC 12–40V
Rated Power: 38.4W
Rated Torque: 0.71 N·m
Stall Torque: 1.95 N·m
Rated Speed (after reduction): 258 RPM
Max Speed (after reduction): 380 RPM
Rated Current: 1.6A
Stall Current: 4.19A
Phase-to-Phase Resistance: 4.466Ω
Phase-to-Phase Inductance: 0.45mH
Speed Constant: 15.83 RPM/V
Torque Constant: 0.35 N·m/A
Number of Pole Pairs: 0:00 Pairs
Reduction Ratio: 9:1
Reducer Type: Planetary
Reducer Gear Material: ALU
Reducer Backlash: 15 arcmin
Motor Weight: 120g

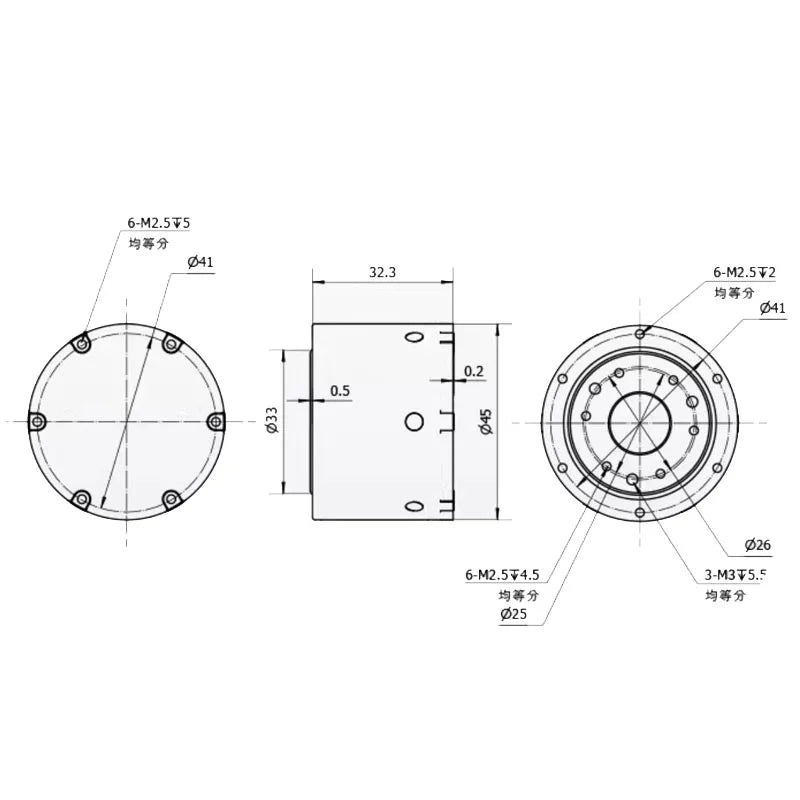

Motor Dimensions: 45 × 32.3 mm
Max Axial Load: 75N
Max Radial Load: 300N
Noise Level: < 60dB
Communication Protocol: CAN & RS485
Protection Rating: IP54
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
