Display technology: 4.3 inches IPS 800x480 resolution DC dimming bright LCD
Control mode: resistive touch screen + rotary encoder
Working mode: CW, AM, SSB single sideband (LSB/USB), WFM, FM radio stereo (headphone required)
Audio interface: support ordinary 3.5mm earphones or CTIA (US standard) interface earphones
Channel storage: 99 channels can be preset, preset station name, station frequency and demodulation mode
Basic parameters
Frequency range: 100k-149MHz
Spectrum bandwidth: 192kHz, 128kHz, 64kHz, FFT real-time spectrum display
Charging port: USB Type-C, 5.0V/2A
Current consumption: about 250mA @ 5V
Battery capacity: 5000mAh/3.7V, 18.5Wh
Show list of controls
Encoder selectable twelve items
1.Channel selection: 1-99
2.Frequency setting: 100k-149MHz, minimum step 1Hz
3.Speaker volume (SPK): 0~35dB, 1dB step
4.Earphone volume (EAR): 0~35dB, 1dB step
5.Modulation: CW, LSB, USB, AM, WFM, STE (FM stereo), I/Q
6.AGC setting: OFF, SLOW, MID, FAST
7.Reference level (REF): -99~99dB, 1dB step
9.IF GAIN : -12~67dB, 1dB step
11.Spectrum bandwidth setting: RF spectrum (192kHz, 128kHz, 64kHz) and audio spectrum (64kHz)
12.Waterfall Locale: Waterfall or Waveform (x1 / x8 / x64 amplitude)

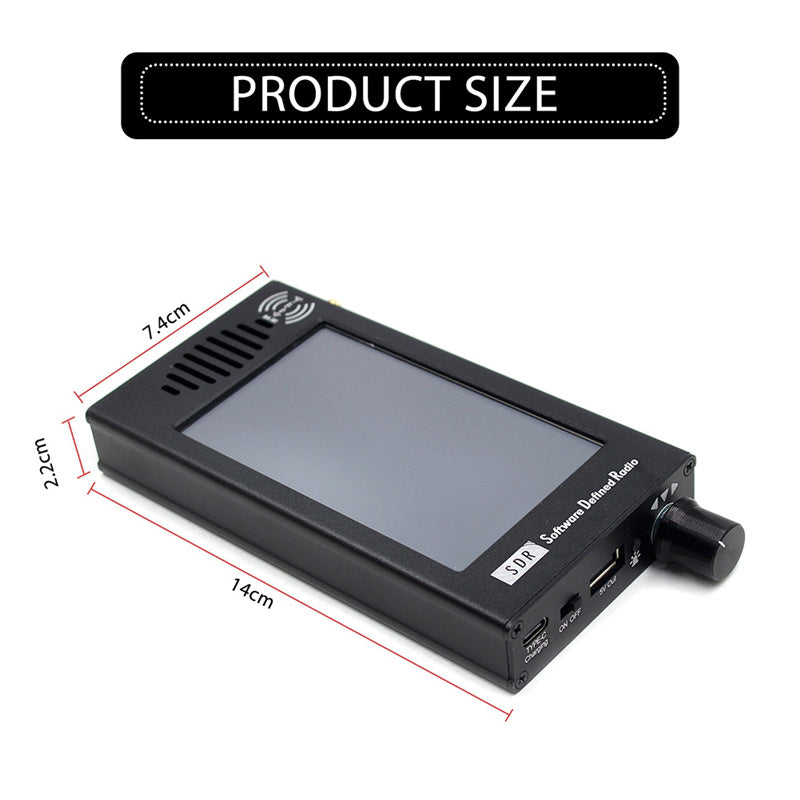

size: 140 x 74 x 22mm
Material: ABS+metal
colour: black

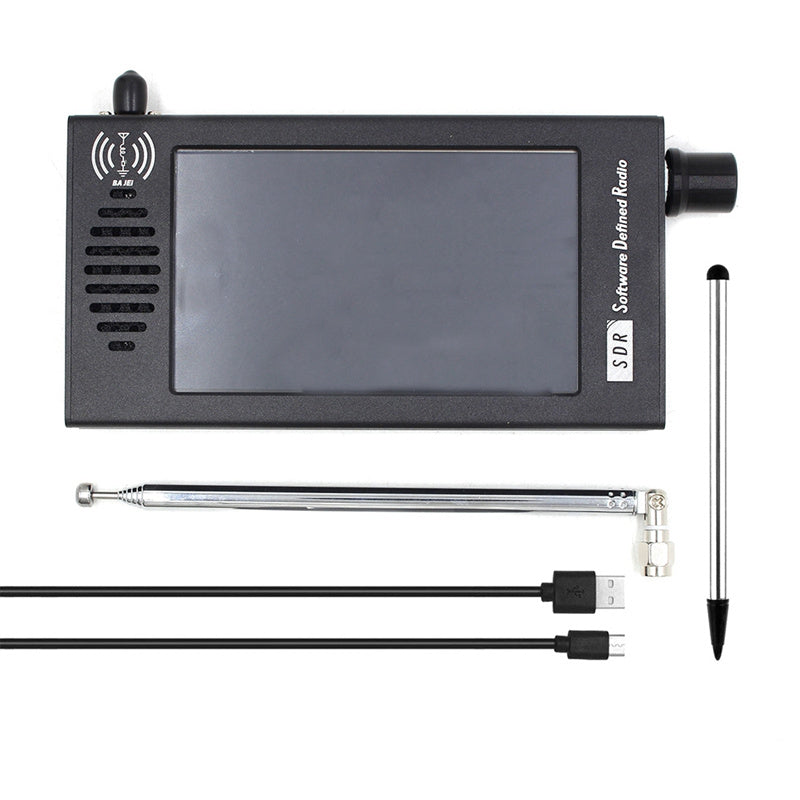

Package Contents:
1 x receiver
1 x antenna
1 x data cable
1 x stylus
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
