Portable ECG EKG Machine Digital 6-channel Electrocardiograph with SoftwareFeatures:
12-lead simultaneous standard resting ECG

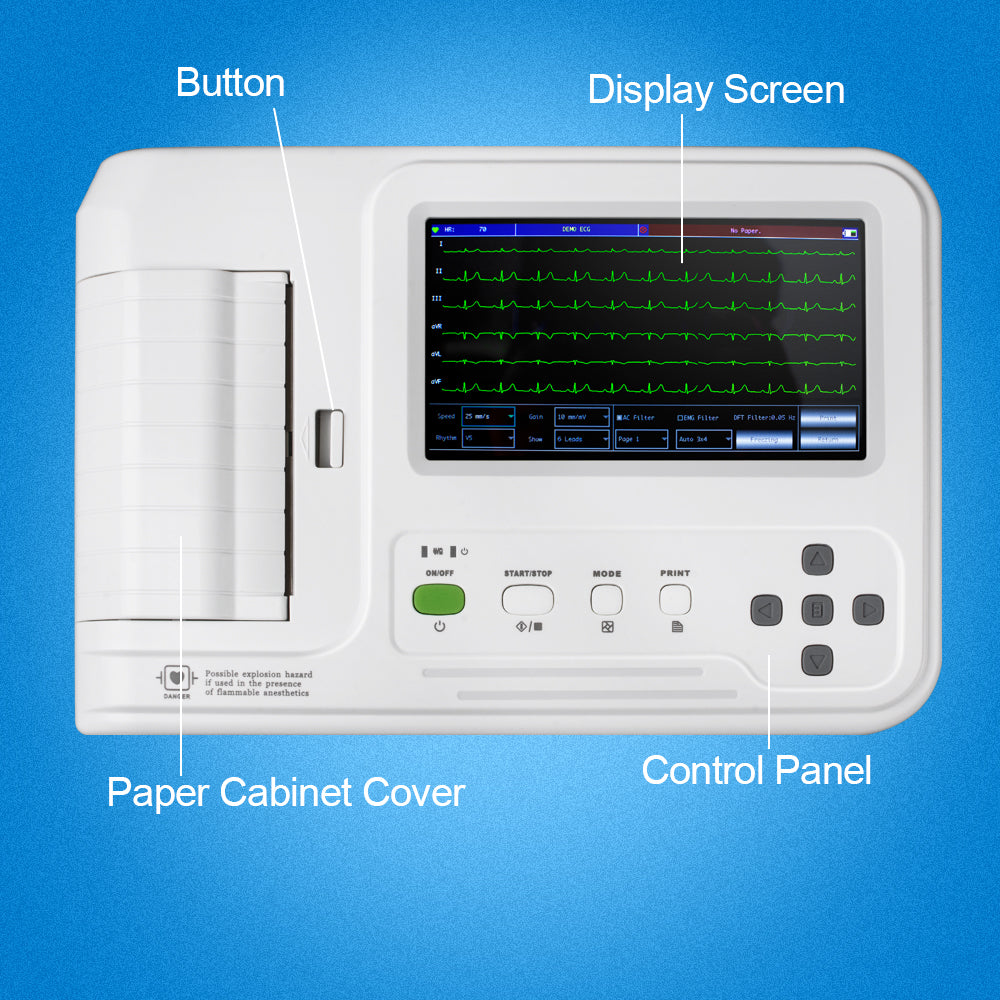

7-inch TFT, touch screen, led backlight
Digital isolation technology and signal processing solution, digital filter
Patient management, name and age and id.
Detail analysis report.
Multi-language options: Germany, France, Italian, Turkey, etc
Built-in lithium rechargeable battery, wide thermal printing system
USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation
Specification:
Safety standard
IEC class I, type CF
Lead
Standard 12 leads
Patient leak current
<10uA
Input impedance
>=50M
Frequency response
0.05~150Hz(-3dB)
Time constant
>3.2s
CMRR
>100dB
Dimension of recording paper
80mmx20m
Paper speed
25mm/s, 50mm/s
Sensitivity choice
5, 10, 20mm/mV
Measurement parameters
HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc,
P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Product safety type
Class I, CF. Defibrillation and pacing protection
Enduring polarization voltage
300mv
Noise level
<15uVp-p
Dimension
130mm x 74mm x 25mm (WxLxH)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
