 Overview

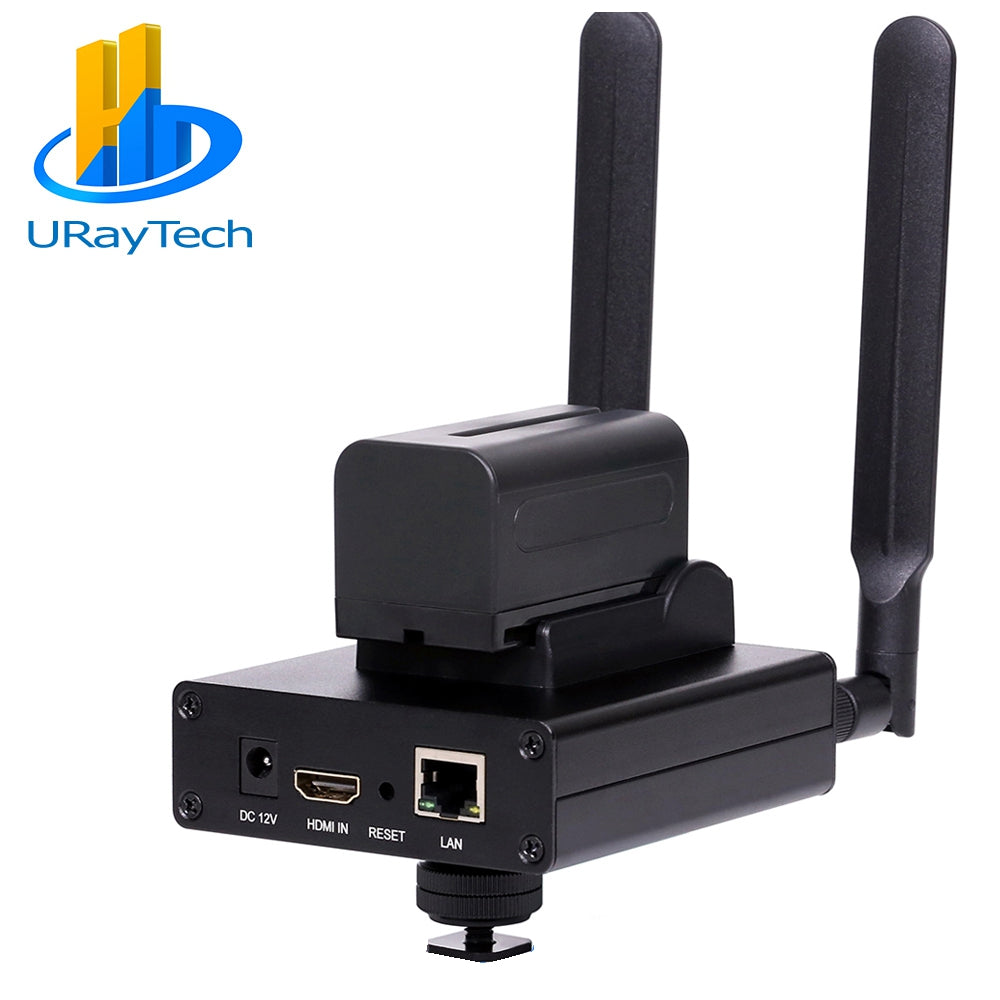

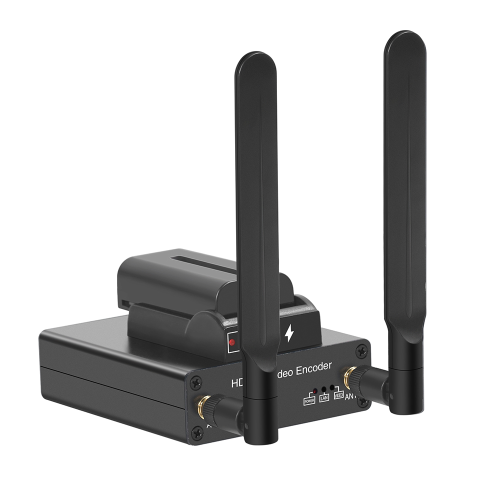

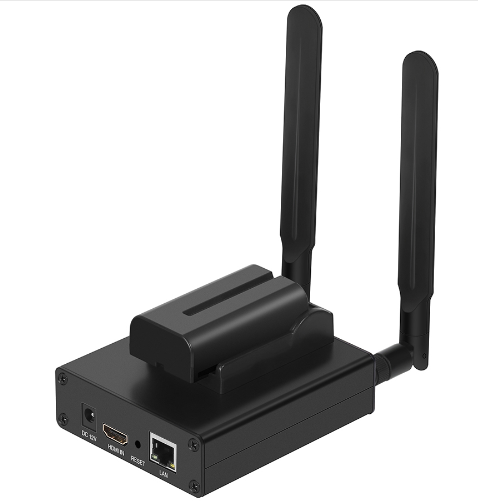

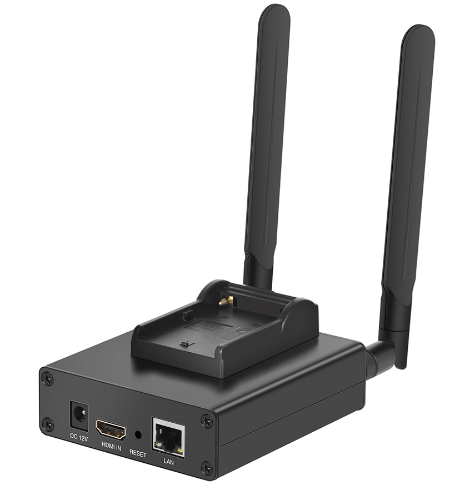

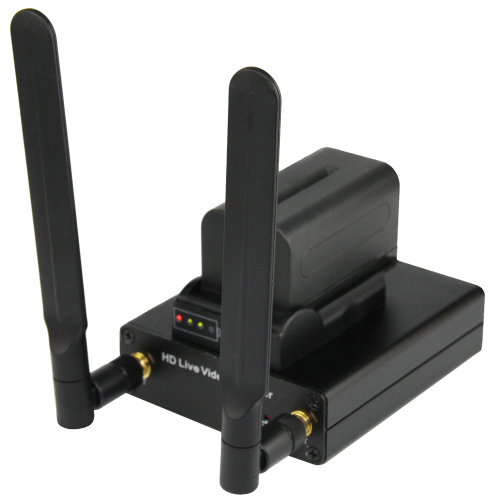

 URaytech video encoder(Model No. UHE264-1WB-Mini) is a HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) input, H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

 We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

 All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

 Typical Connection

 The Feature

               •   Embedded HiLinux system, stable and effective

     •   Support wide area network remote management(via port forwarding)

     •   Support MPEG-4 /H.264 AVC and MJPEG video encoding for selection

     •   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

     •   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

     •   Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

     •   Support insert image, logo, text, roll text, time on the output video stream

     •   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

     •   Support different protocol transmission for the 4 output video streams

     •   Support upgrade device by upgrading new firmware

     •   Support configure the encoder via webpage or APP

     •   Support hot shoe mount at camera

     •   Support external SONY battery F550, F750, F970 for selection

     •   Support 2.4G WIFI and 5G WIFI

     •   Support connect to spare WIFI automaticlly when WIFI signal lost connection

     •   Provide SDK and API and CGI for secondary development

     •   Network interface full-duplex mode with 1000M speed

     •   Support HDCP and HD blue-ray

     •   English webpage operating interface, language is customizable

     •   A click to restore the default configuration

     •   Stable and effective, support 7 x 24h working time

     •   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

     •   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)
