1.Features:

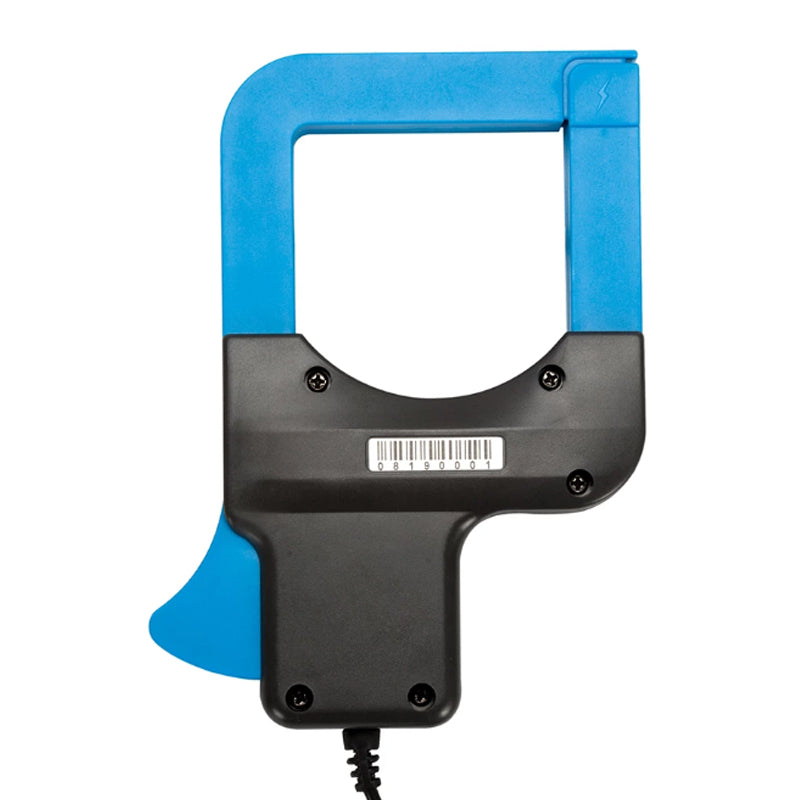

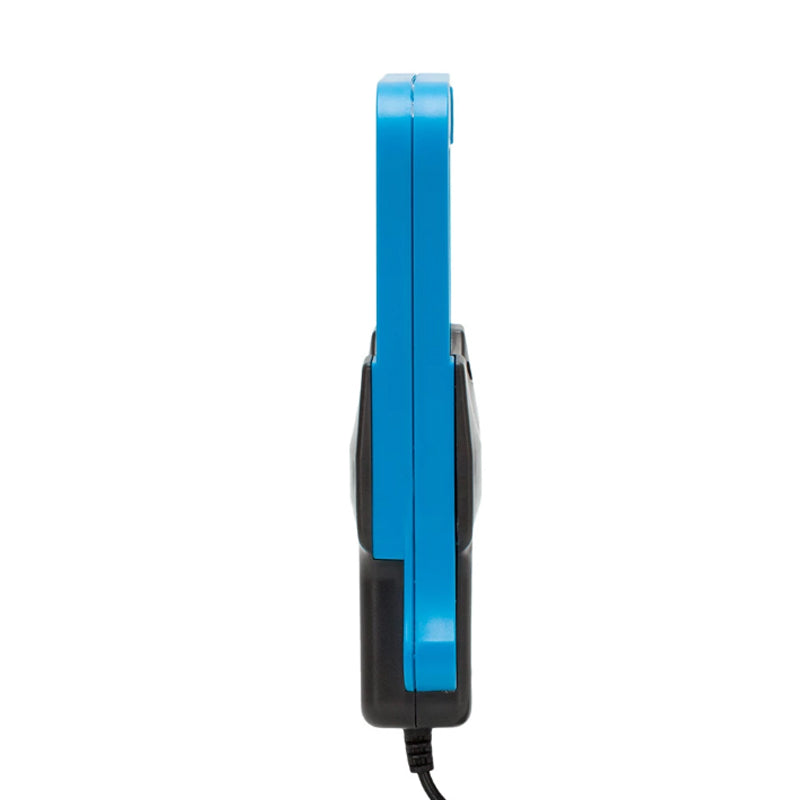

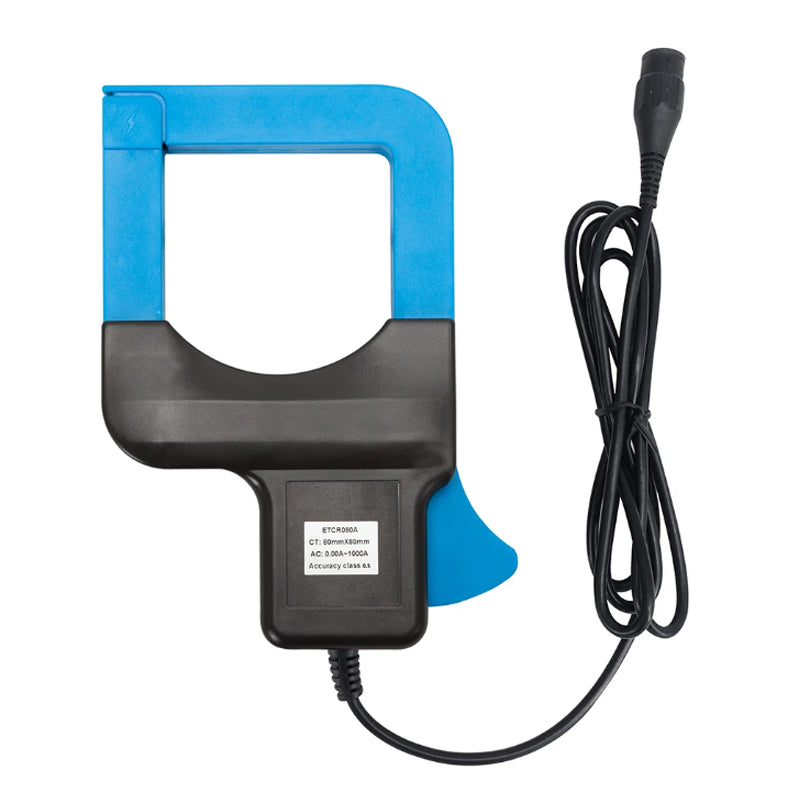

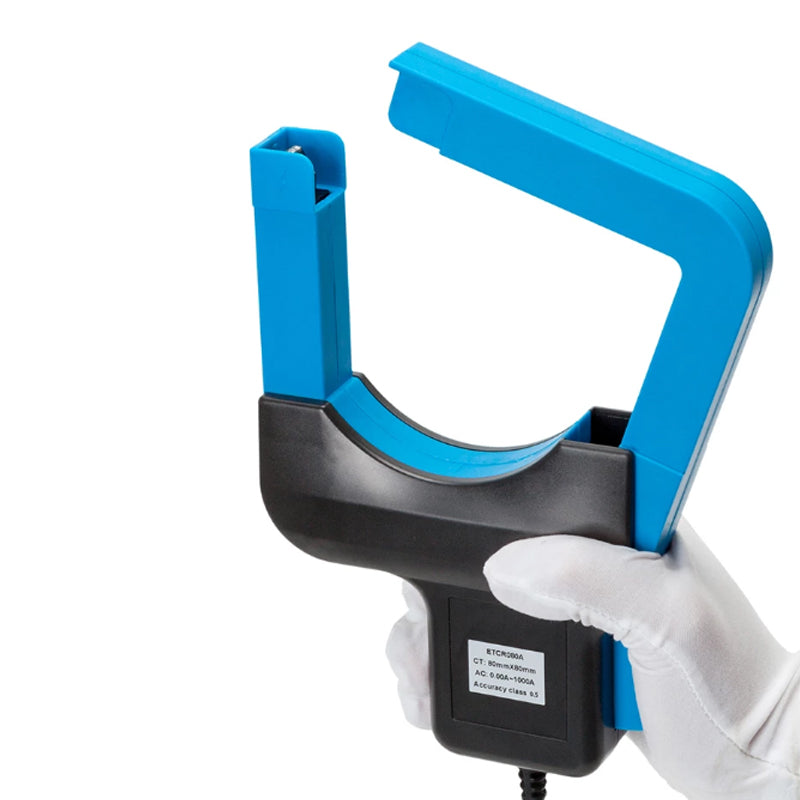

 ETCR080A Large Caliber Clamp Leakage Current / Current Sensor

 is well designed and manufactured for measurement of AC current, higher harmonic current, phase, electric energy, power and power factor, by adopting the latest CT technology. Its large caliber 80mm×80mm can clamp electric cable of Φ80mm, or 96mm×4mm flat cable and steel earth wires. It is portable, clamp designed, no need to disconnect the circuit, non-contact measurement, which means safer and faster. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, electric power quality analyzer, high precision multi-meter, widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

 2.Specifications:

               Model

      Range

        Resolution

     Note

             ETCR080

      0-2000A

     0.01mA

     With shielding function, can measure leakage current

             ETCR080A

      0-2500A

     0.1A

     Without shielding function

              3.Technical Specifications：

             Function

     Measurement of AC current, higher harmonic current, phase, electric energy, power and power factor

             Test Mode

     Clamp CT

             Clamp Size

     80mm×80mm

             Measurement Range

     AC 0-2000A(ETCR080) or AC 0-2500A (ETCR080A)

             Resolution

     0.01mA or AC 0.1A optional

             Accuracy

     ±1.0%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, keep the measured wire be in the center of the clamp)

             Coils Turn

     1:800

             Phase Error

     ≤3°(50Hz/60Hz; 23℃±2℃)

             Reference Load

     RL: 0-2500A≤0.3Ω

             Output Mode

     Current induction output

             Output Interface

     2 bare wires or standard multi-meter pen plug

             Lead length

     2m

             Wire Position

     Keep the measured wire be in the center of the clamp

             Current Frequency

     45Hz-60Hz (Frequency of the measured current)

     10Hz-100kHz

             Circuit Voltage

     Below 600V AC

             Size

     Length 194mm × Width 145mm × Height 40mm

             Weight

     780g

             Working Temperature and Humidity

     -20℃-50℃, below 80%rh

             Storage Temperature and Humidity

     -10℃-60℃, below 70%rh

             Insulation strength

     AC3700V/rms(between core and shell)

             Safety Specifications

     IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)
