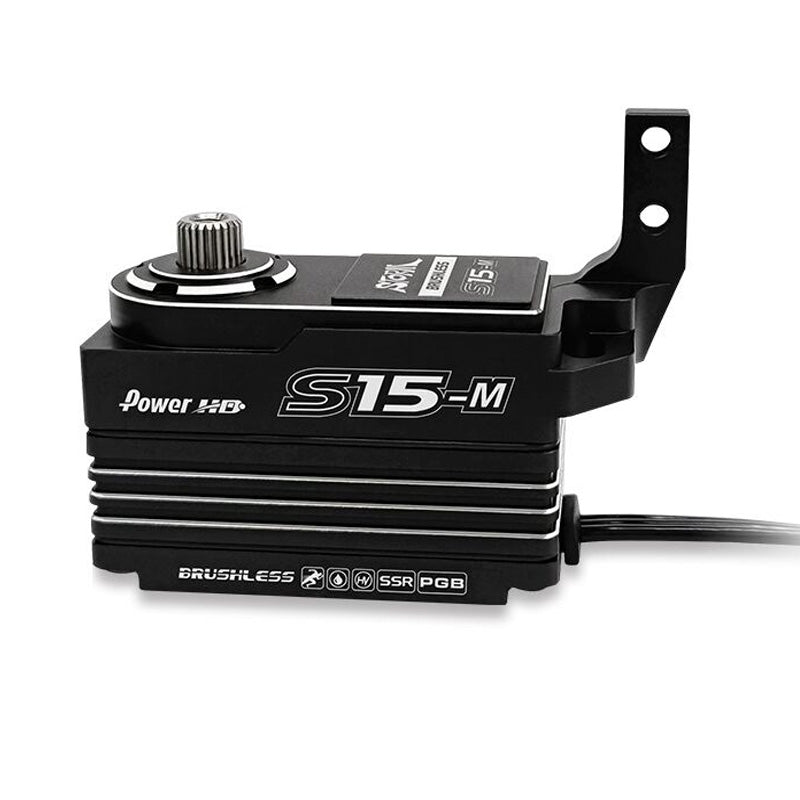

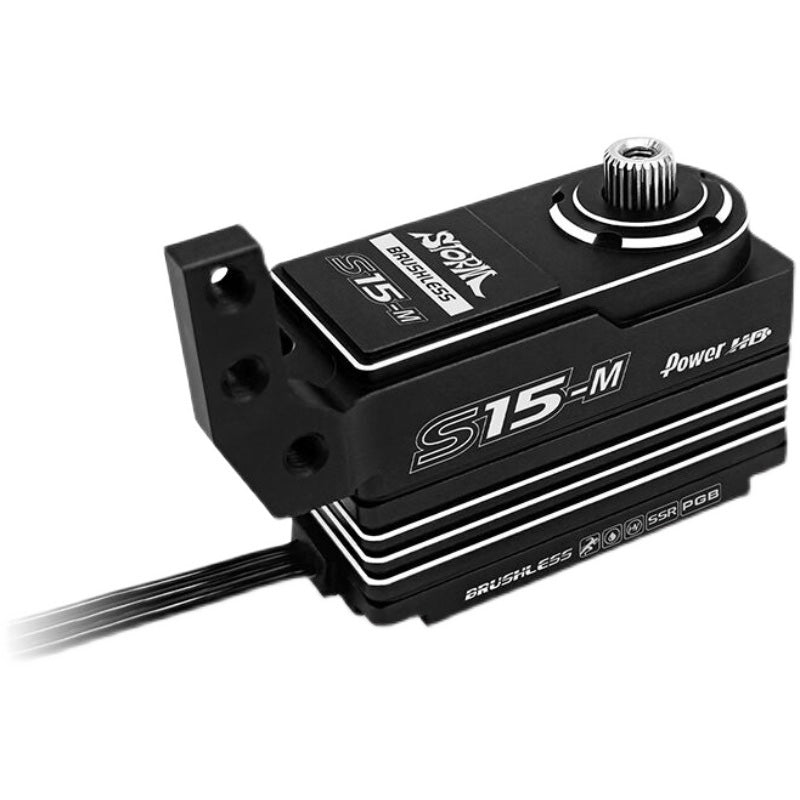

Mugen MTC2 special steering gear S15-m, its shell and mounting bracket are CNC integrated, corresponding to the original steering gear mounting bracket position. The signal line is output in the opposite direction, so that mtc2 can be perfectly wired. S15-m has a lower center of gravity, retains the superior performance of the original S15, and can use the latest steering gear programming card to adjust the steering gear on different sites and feel, Better lap time can be obtained. The product will be on the market in the near future. Don't miss it. Please pay attention!
Features
*7075 + 303 imported steel teeth
*Japan noble potentiometer
*High voltage brushless motor, compatible with 6.0-8.4v voltage
*Upgraded PCB, supporting SSR and sur ultra-high speed modes
*Enjoy two years of exclusive after-sales service after leaving the factory
Specifications
Brand: PowerHD
Model: S15-M
Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) │ 0.060 sec (7.4V) │
Speed: 0.050 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 57.5 g (2.03 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
