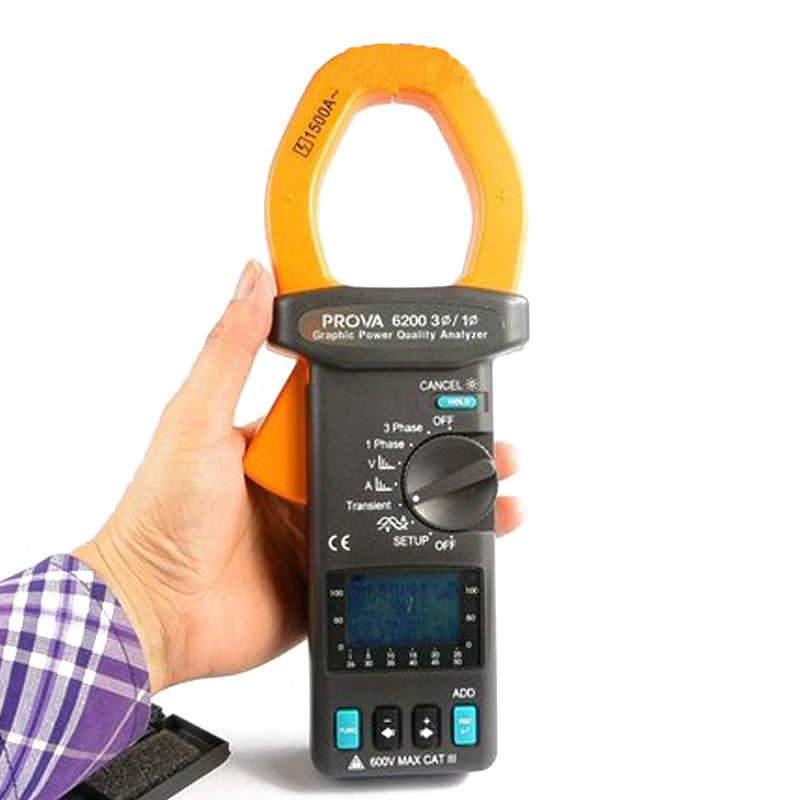

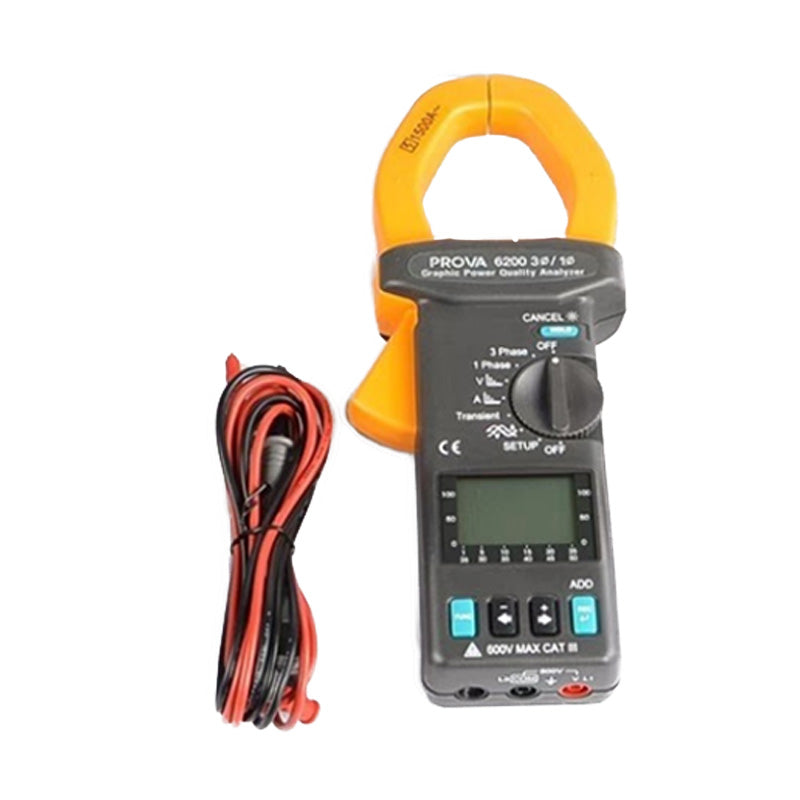

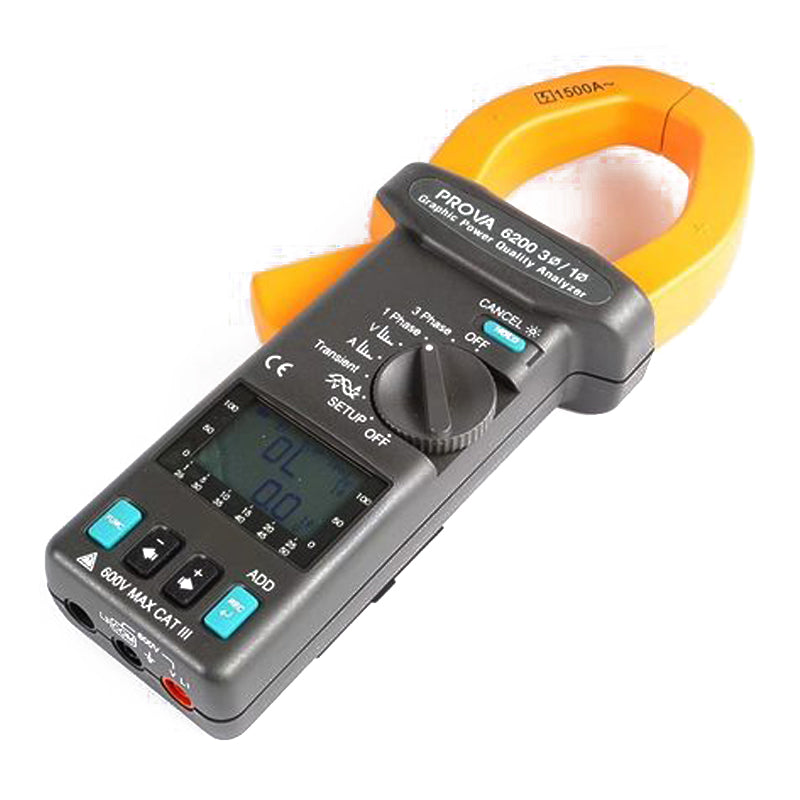

PROVA-6200 Graphic Power Quality Analyzer
Product Features:
- Analysis for Single Phase and Balanced 3 phase system
- True RMS Value (V and I)
- Active Power (K,KW,MW,GW)
- Apparent (VA,KVA,MVA) and Reactive Power (VAR,KVAR,MVAR)
- Power Factor (PF), Phase Angle( )
- Energy (WH,KWH,KVARH,PFH)
- Programmable PT(1 to 3000)Ratios
- Display of Overlapped Voltage and Current Waveform
- Maximum Demand (MD in W,KW,MW) with programmable Period
- Harmonic Analysis (V and I) to 50th Order
- Display of 25 Harmonics in one screen
- Optical Isolated RS-232C Interface
- Smart Datalogging to save Battery
- Datalogging of 32,64,128 or 256 points/cycles
- Analysis of Total Harmonic Distortion (%THD-F)
- Graphic Phasor Diagram
- Capture 128 Transient Events (Time+Cycles+Faults) with Programmable Threshold(%),also can be reviewed in LCD
- 50000 Records with Programmable Interval (1 to 6000 seconds)
- Real-time Output of Waveform, Power Parameters and Harmonics at Command
- Large Dot Matrix LCD Display with Backlight
- Power for Long-term Monitoring
- Built -in Calendar Clock for Data Logging
Specifications:
AC Current (50 or 60 Hz, Auto Range, True RMS)
Range
Resolution
Accuracy of Reading
4.0 V - 1500.0 A
0.01 A
0.5 % 5 dgts
AC Voltage (50 or 60 Hz, Auto Range, True RMS)
Range
Resolution
Accuracy of Reading
4.0 - 600.0 V
0.1 V
0.5 % 5 dgts
Harmonics of AC Voltage in Percentage and Magniude(1 to 50th order)
Range
Resolution
Accuracy (in%)
Accuracy
(in Magnitude)
1 20 th
0.1 %
2 %
2 % 0.5 V
20 50 th
0.1 %
4 % of reading 2 %
4 % of reading 0.5 V
Harmonics of AC Current in Percentage and Magnitude (1 to 50th order)
Range
Resolution
Accuracy (in %)
Accuracy
(in Magnitude)
1 20 th
0.1 %
2 %
2 % of reading 0.4 A
20 50 th
0.1 %
4 % of reading 2 %
4 % of reading 0.4A
Power Factor (PF)
Range
Resolution
Accuracy (>20 V and >20 A)
0.000 - 1.000
0.001
0.04
Phase Angle ( )
Range
Resolution
Accuracy (>20 V and >20 A)
-180 to 180 (0 to 360 )
0.1
1
Total Harmonic Distortion(%THD-F,1 to 50th order)
Range
Resolution
Accuracy (>20 V and >20 A)
0.0 - 20%
0.1%
2 %
20 - 100%
0.1%
6 % of reading 1 %
100 - 999.9%
0.1%
10 % of reading 1 %
Crest Factor (C.F.)
Range
Resolution
Accuracy of Readings
1.00 - 99.99
0.01
5 % 30 digits
AC Watt (50 or 60 Hz, PF 0.5 to 1, CT=1)
Range
Resolution
Accuracy of Readings
(>20V and >20A)
10.0 - 999.9 W
0.1 W
1% 20 dgts
1.00 - 9.999 KW
0.001 KW
1% 20 dgts
10.00 - 99.99KW
0.01 KW
1% 20 dgts
100.0 - 999.9 KW
0.1 KW
1% 20 dgts
1000 - 9999 KW
1 KW
1% 20 dgts
General Specification:
Conductor Size
55mm(approx.), 64*24mm(bus bar)
Battery Type
Two 1.5 V SUM-3
Display
128*64 Dot Matrix
Power Consumption
10 mA (approx.)
Auto - Power - Off
30 minutes after power-on
Update time
2 times/sec. (display)
No. of Samples per Period
512 (voltage or current),256 (power)
Operating Temperature
-10 C to 50 C
Operating Humidity
<85% RH
Storage temperature
-20Cto 60C
Storage Humidity
<75% RH
Dimension
210 mm (L) * 62 mm (W) * 35.6 mm (H),8.3"(L) * 2.5 "(W) * 1.4"(H)
Weight
Test leads *1 pair, Carrying bag*1, Users manual*1
Accessories
640g
