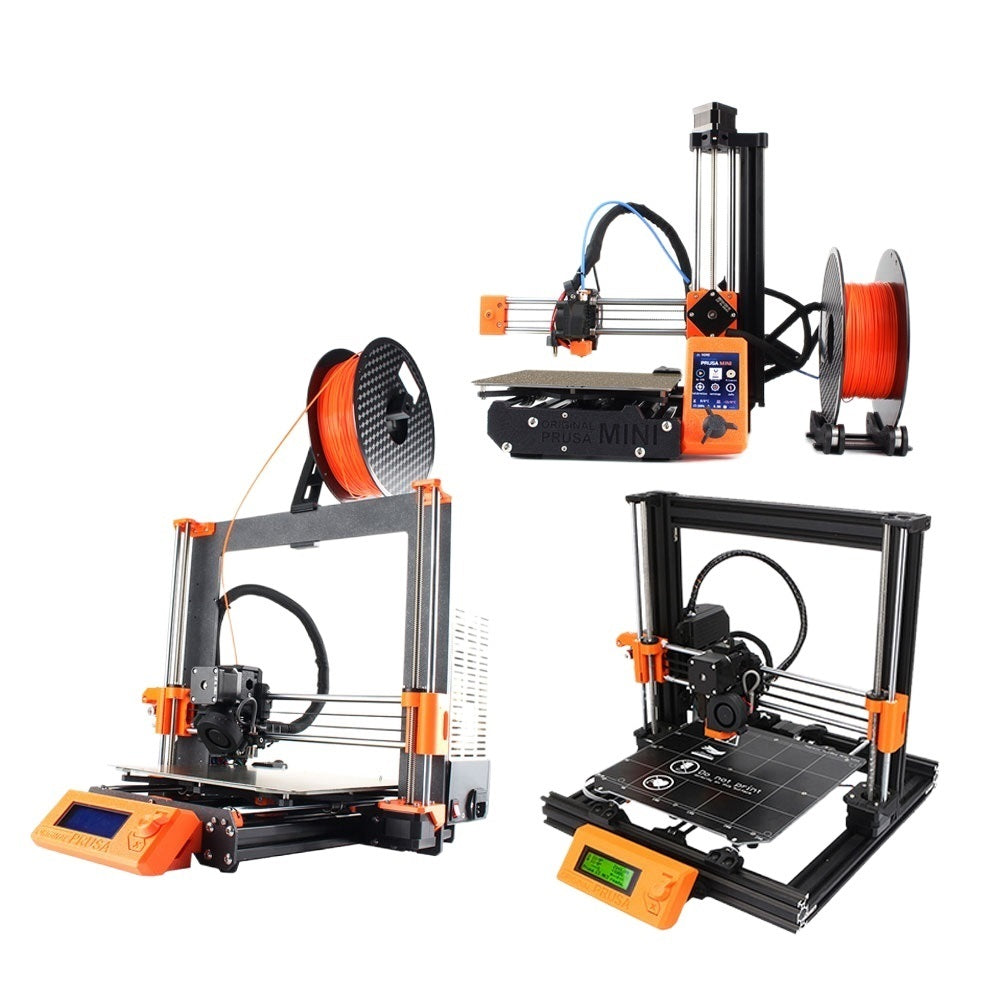

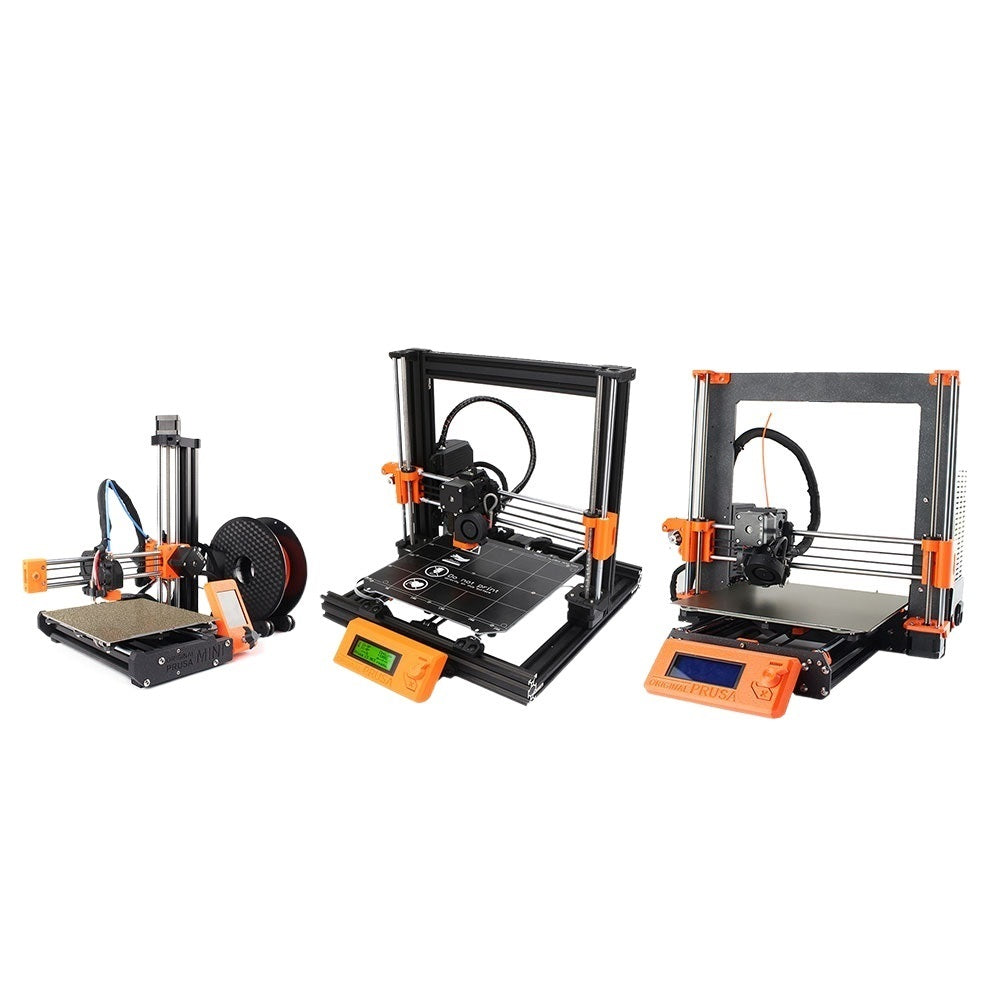

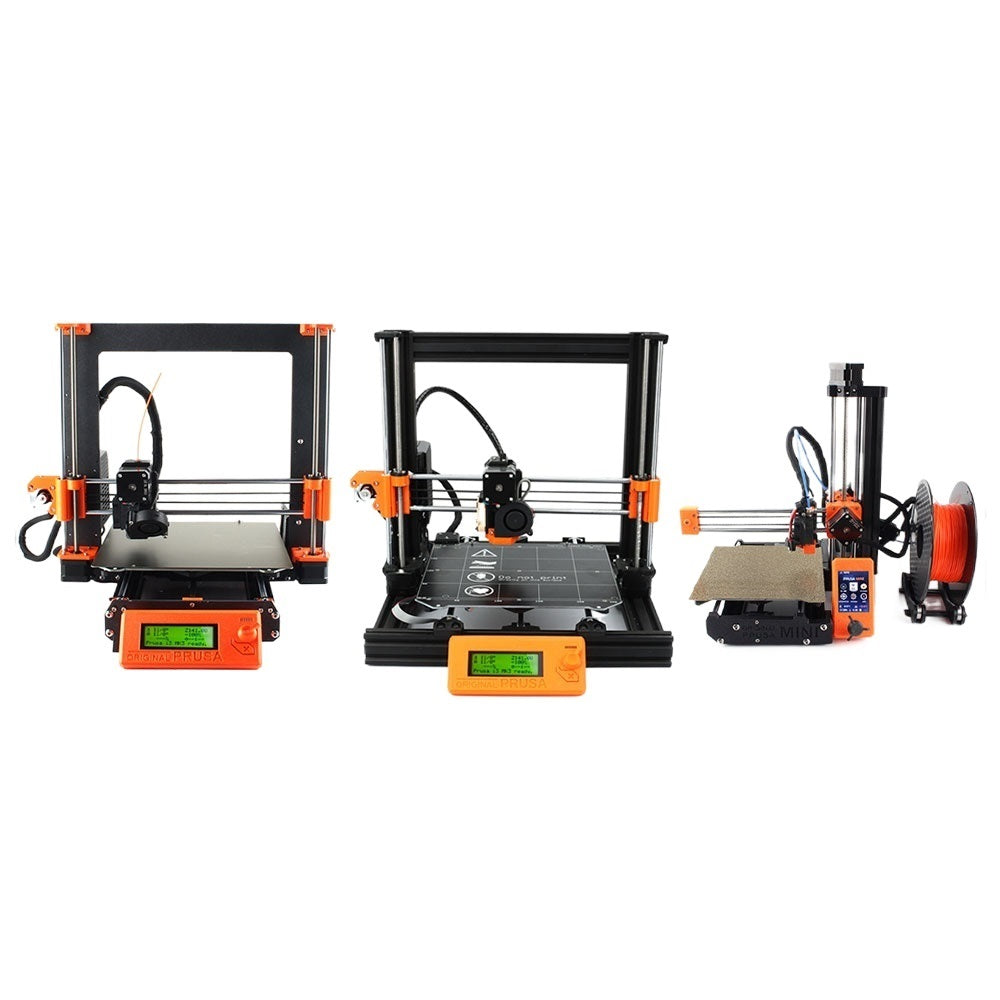

Prusa i3 MK3S Full Kit bear kit Clone Prusa mini DIY Full kit Clone Prusa i3 MK2.5S MK3S MMU2S Complete Kit 3D printer

Prusa i3 MK3S Full Kit bear kit Clone Prusa mini DIY Full kit Clone Prusa i3 MK2.5S MK3S MMU2S Complete Kit 3D printer

Regular price $266.00 USD
Regular price Sale price $266.00 USD
Sale Sold out
Shipping calculated at checkout.
color

   For Clone MK3S kit and Clone MK3S bear kit Attention:the package don't include filament,filament holder,power cable and the printing parts!

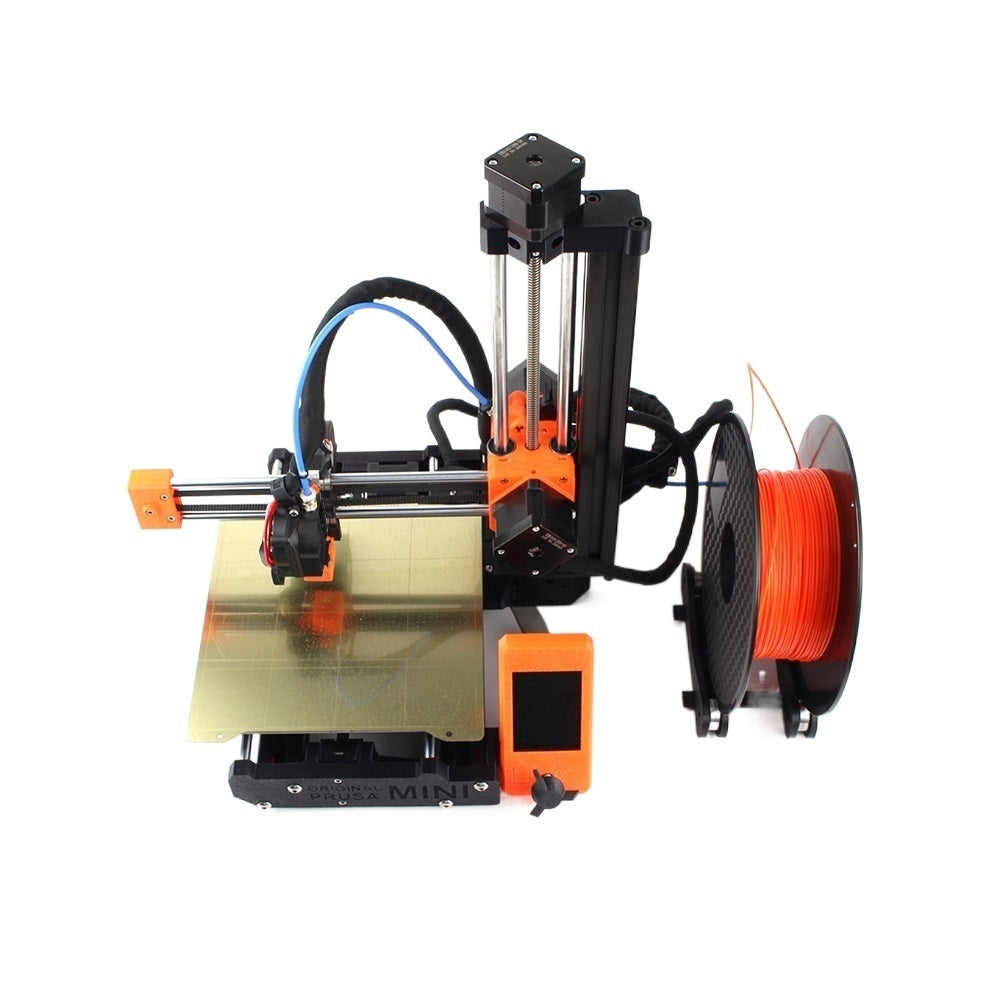

  The Prusa mini kit does not include printed parts and Filament

  Clone Prusa i3 MK3S Full Kit bear kit Clone Prusa mini DIY Full kit Clone Prusa i3 MK2.5S MK3S MMU2S Complete Kit 3D printer

  What you will get with this upgrade?

  NEW FILAMENT SENSOR

  The previous sensor didn't work well with some specific filaments. The new sensor is using the optical sensor which is triggered by a simple mechanical lever. This sensor doesn't care about the optical properties of the filament (it can be completely invisible) and cannot die because of mechanical wear.

  EASIER SERVICE

  Thanks to completely reworked extruder you don't have to take apart the whole extruder if you want to change the nozzle or PTFE tube. As a bonus, the nozzle and the extruder motor is much closer to the X axis, this means less resonance and better prints too. Better Y axis belt tensioning is just the icing on the cake.

  BETTER COOLING

  Thanks to the better design of the whole extruder, air flow is increased and as a result, cooling capabilities are improved. We have also focused on cooling of the the printed object and MK2.5S/MK3S is better for printing from flexible materials.

  For Clone MK3S kit Package listing:

  1. 1*aluminum frame + 1*front plate + 1*rear plate + 1*Y carriage+

  2. 3* U bolts

  3. 10* LM8UU bearings

  4. smooth rods kit-2*320mm+2*330mm+2*370mm

  5. Aluminum Profiles kit- 2 * 205MM 3030 + 2 x*120MM 3030

  6. 4* Antivibration Feet

  7. 1* MK52 magnetic heated bed+ 1* steel sheet+2*PEI sheets

  8. 1*30cm sleeve cable for heated bed

  9. motors kit-Nema 17 stepper motor and z axis 320mm motor

  10. Einsy board+1*2004LCD

  11. IR filament sensor with cable(Set)

  12. power panice with cable and switch

  13. P.I.N.D.A V2 sensor

  14. power supply

  15. 4010 fan

  16. 5015 fan

  17. heatsink extruder radiator with block nozzle kit

  18. 50CM Textile Sleeve Cable Wire*1

  19. HT-NTC100K Thermistor Temperature Sensor 1m*1

  20. 24V 50W Ceramic Cartridge Heater 1M*1

  21. 1 M PTFE Tube Teflonto *1

  22. drive gear extruder kit

  23. 2m gt2 belt with 2* pulley

  24. 2*623h

  25. 9* aluminum spacer

  26. 1set the whole screw nut kit

  27. 1M PTFE Tube

  You can print it by the link

  https://github.com/FYSETC/FYSETC-Prusa-MK3S-clone/tree/master/Prusa%20MK3S%20STL
