Description:

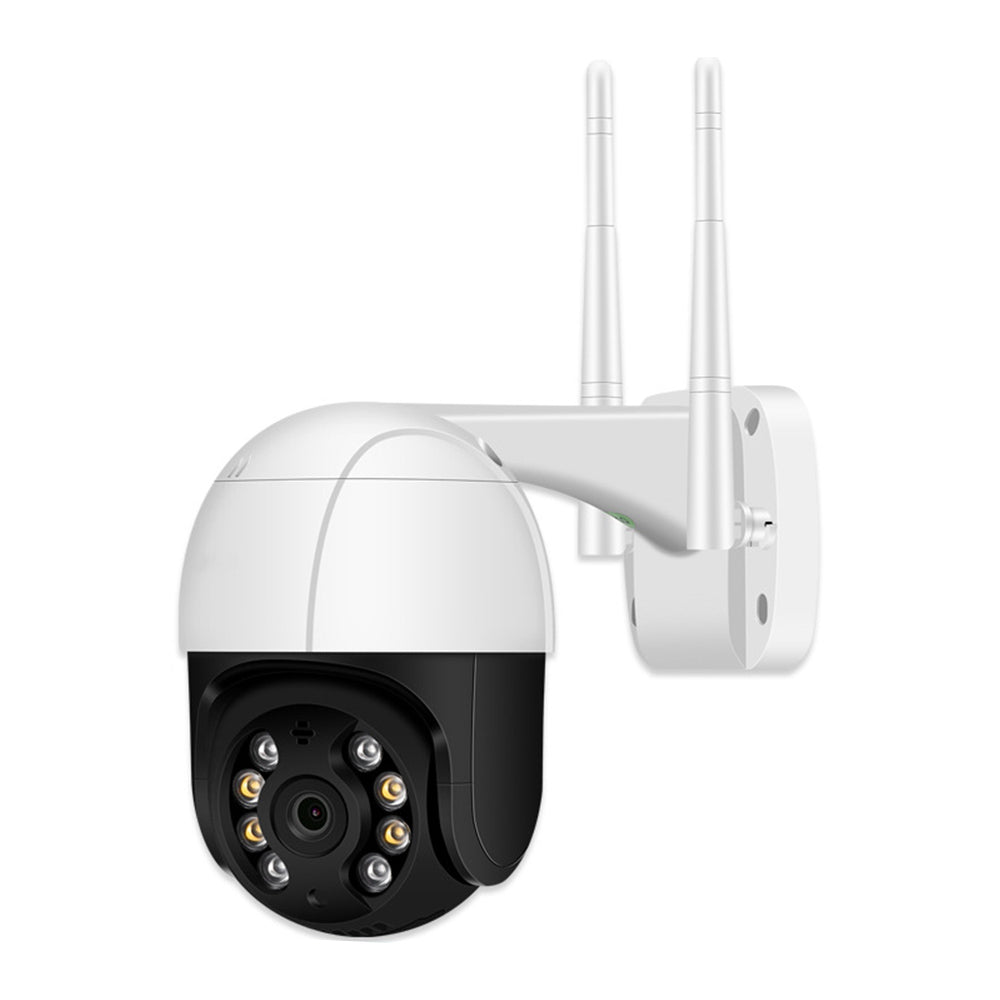

 1. The network camera is suitable for home, office, shop, bank, factory, and school monitoring high-definition PTZ network camera.

 2. This security camera with high resolution 2.0MP/3.0MP/5.0MP CMOS Sensor offers you crystal clear image quality.

 3. You can control the 270°horizontal and 200°vertical pan and tilt remotely via phone which offers you no blind area vision.

 4. Two-way voice monitoring, wireless security camera was built-in speaker offers you to talk with your family.

 5. IP66 waterproof, suitable for indoor and outdoor applications, can also work in bad weather.

 Specifications:

 Item name: WIFI IP Camera

 Type 1:

 Plug type: US/EU

 Resolution:2.0 Megapixel

 Sensor:1/3'' 2MP CMOS

 Video Resolution:1920x1080

 Power (V)：DC12V 2A

 Audio Function：Two-Way Audio

 Power consumption （W)：6W<

 Video Compression：h.265（Support Dual Code )

 Color：Black

 Material: ABS （High Quality ABS Plastic )

 Lens & Viewing Angle: 3.6mm 85 degree

 LED :4pcs ARRAY IR LED+4PCS White Light LED)

 IR Distance: Max 60M

 Wireless Protocol: 802.11b/g/n ,150Mbps ,30-60m

 ONVIF Protocol: ONVIF 2.0

 Video Bit Rate:100Kbps-6Mbps

 Frame Rate:PAL :25fps NTSC :30fps 20fps

 Alert Mode: FTP Photo, Email Phoo, APP Alert

 Alert: Motion Alert, DIY Voice Alert, Humanoid tracking

 Type 2:

 Plug type: US/EU

 Resolution: 3.0 Megapixel

 Sensor:1/2.8'' 3MP CMOS

 Video Resolution: 2304x1296

 Power (V)：DC12V 2A

 Audio Function：Two-Way Audio

 Power consumption （W)：6W<

 Video Compression：h.265（Support Dual Code )

 Color：Black

 Material: ABS （High Quality ABS Plastic )

 Lens & Viewing Angle: 3.6mm 100 degree

 LED: 4pcs ARRAY IR LED+4PCS White Light LED)

 IR Distance: Max 60M

 Wireless Protocol: 802.11b/g/n ,150Mbps ,30-60m

 ONVIF Protocol: ONVIF 2.0

 Video Bit Rate: 100Kbps-6Mbps

 Frame Rate: PAL: 25fps NTSC: 30fps 20fps

 Alert Mode: FTP Photo, Email Phoo, APP Alert

 Alert: Motion Alert, DIY Voice Alert, Humanoid tracking

 Type 3:

 Plug type: US/EU

 Resolution: 5.0 Megapixel

 Sensor: 1/2.7'' 5MP CMOS

 Video Resolution: 2592x1944

 Power (V)：DC12V 2A

 Audio Function：Two-Way Audio

 Power consumption （W)：6W<

 Video Compression：h.265（Support Dual Code )

 Color：Black

 Material: ABS （High Quality ABS Plastic )

 Lens & Viewing Angle: 3.6mm 110degree

 LED: 4pcs ARRAY IR LED+4PCS White Light LED)

 IR Distance: Max 60M

 Wireless Protocol: 802.11b/g/n,150Mbps, 30-60m

 ONVIF Protocol: ONVIF 2.0

 Video Bit Rate: 100Kbps-6Mbps

 Frame Rate: PAL: 25fps NTSC :30fps 20fps

 Alert Mode: FTP Photo, Email Phoo, APP Alert

 Alert: Motion Alert, DIY Voice Alert, Humanoid tracking

 Note:

 - There might be little error of size for manual measurement.

 - The colors deviation might differ due to different monitor settings, please kindly understand.

 Packing list  Package Includes:

 1 x Camera

 1 x DC 12V Power supply

 1 x Screwdriver

 1 x Mounting screws bag

 1 x English users manual
