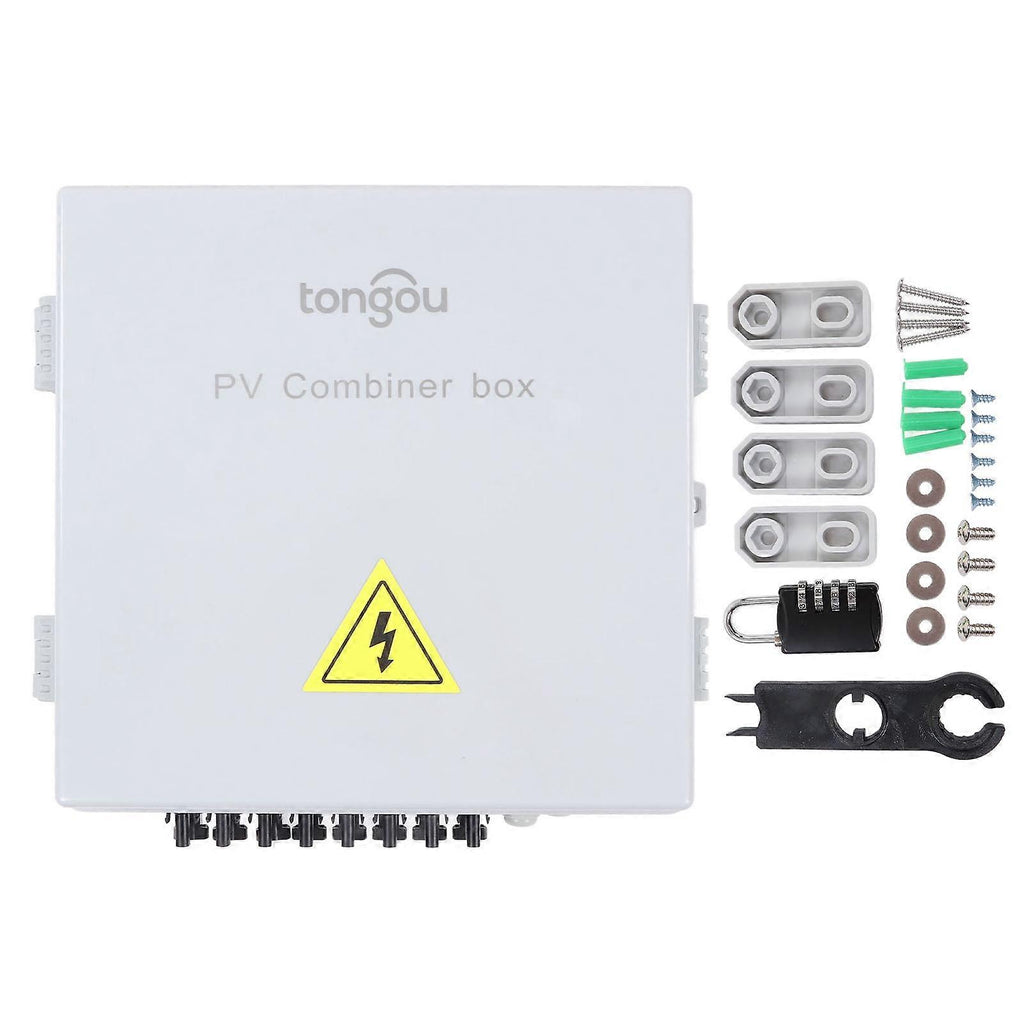

PV Combiner Box 8 String Solar DC Circuit Breaker with 10A Rated Current Fuse for Off Grid Solar Power System 80A

Name: PV Combiner Box 8 String Solar DC Circuit Breaker with 10A Rated Current Fuse for Off Grid Solar Power System 80A
Brand: mickcara
SKU: 8316634765720
Price: 369.83 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8316634765720

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$369.83

Quantity:

Subtotal: $369.83

283 customers are viewing this product

Tags:

Description

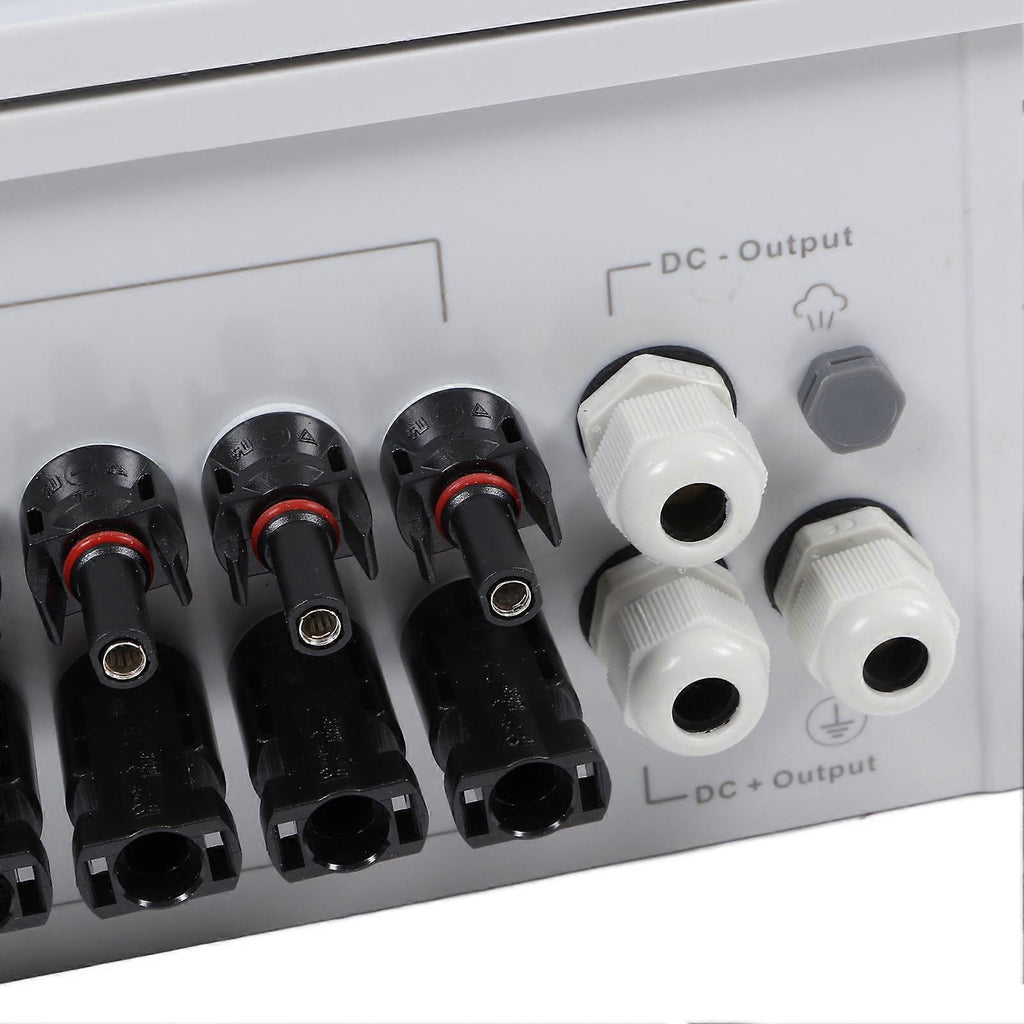

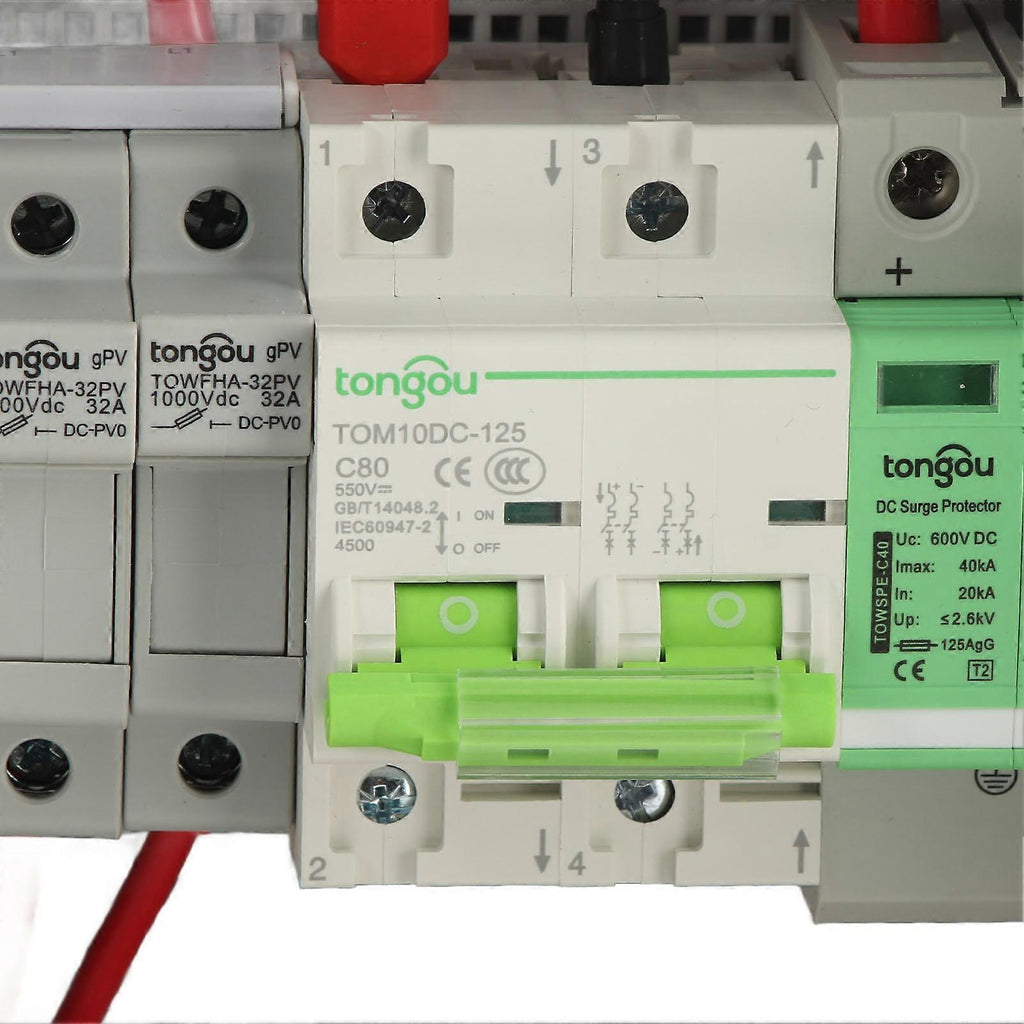

Feature: 1. 8 String Configuration: The PV combiner box has an 8 string configuration with a maximum current of 10A for a single PV input array and a rated continuous load of 250vdc per string. (Regardless of the solar panel specification, regardless of the connection method, whether in series or parallel, as long as the current and voltage of a single PV does not exceed 10A 250Vdc, the combiner box can be connected) 2. Overload Protection: The single PV input array of this PV combiner box is fitted with a high voltage fuse with overload and overcharge protection. 3. Short Circuit Proof: The PV combiner box has a professional high voltage circuit breaker control output with short circuit proof protection, making the system more reliable and safe. 4. Anti Backflow Protection: The PV combiner box has an anti backflow diode, anti backflow and anti reverse protection, a touch safe circuit breaker and a non conductive box. 5. Lightning Protection Module: This PV combiner box includes output cable connectors, safety labels and lightning protection module. Specification: Item Type: PV Combiner Box Material: PC Specifications: ( Maximum Number ) Connected PV Arrays: 8 (Maximum) Individual PV Array Input Current: 10A Total PV Array Input Current: 80A Total Maximum Input Voltage to PV Array: 1000V Protection Level: IP65 Operating Ambient Temperature: -30??C to +70??C Relative Humidity: 0-95% Cooling Method: Natural cooling Surge Lightning Protection: Yes. Package List: 1 x PV Combiner Box1 x Combination Lock4 x Fixed Tab14 x Screws4 x Spacer4 x Expansion Screw1 x Wrench2 x Instruction Manual

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
