Product Description

      12-24V 10-40A LCD MPPT Solar Panel Battery Regulator Charge Controller USB

   Description:

   This is a three-time controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs ,set a different time.

   This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving, It not only has efficient MPPT controller charging function to automatically track the maximum power point, 10%-30%higher than the ordinary controller charging efficientcy, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.

   MPPT 10A/20A/30A/40A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load. It is a very important assembly in the photovoltaic system. It is different from other solar controllers that it is add the comprehensive protection function makes the whole solar photovoltaic system operate efficiently and safely.

   MPPT 10A/20A/30A/40A solar controller can adjust automatically the working voltage of solar panels, which can make solar panels work consistently in the maximum power point of the V-A characteristic curve in a whole day. Compared with common solar controllers, it is equipped with temperature compensation function, can make the work efficiency of photovoltaic modules increased by 30%, and can observably prolong the life of the storage battery.

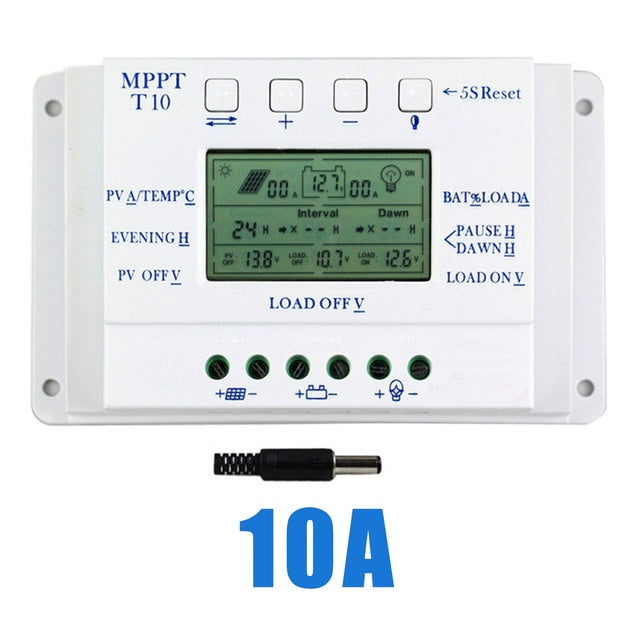

   MPPT 10A:

   MPPT 10A Solar Panel Charge Controller Regulator Solar panel 130W/12V   260W/24V (Without USB Output)

   Compatible with 260W(24v) solar panel with dark activated function, Max current is 10A Timer Intigrated (Lighting function)

   MPPT 20A:

   MPPT 20A Solar Panel Charge Controller Regulator Solar panel 260W/12V,  520W/24V (Without USB Output)

   Compatible with 520W(24v) solar panel with dark activated function, Max current is 20A Timer Intigrated (Lighting function)

   MPPT 30A:

   - MPPT 30A Solar Panel Charge Controller Regulator Solar panel 380W/12V 760W/24V (With USB Output)

   Compatible with 760W(24V) solar panel with dark activated function, Max current is 30A

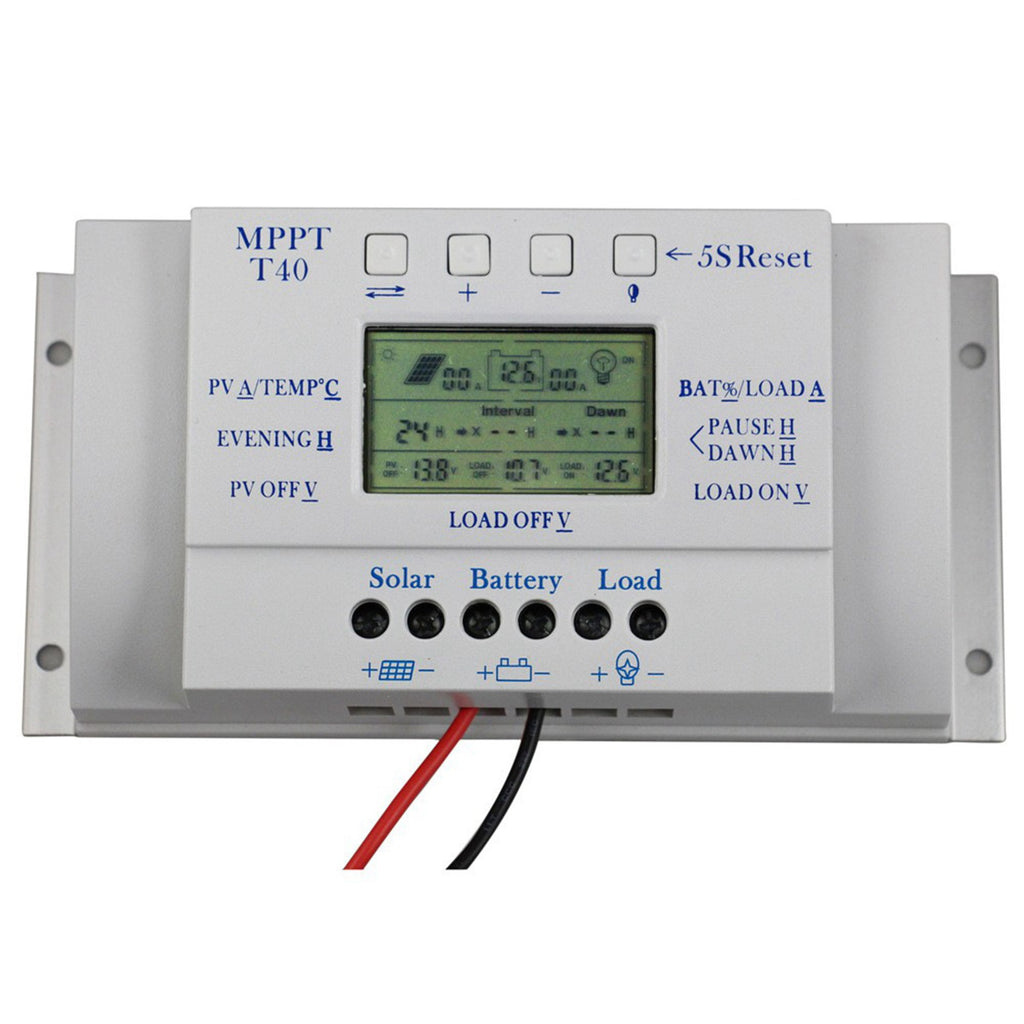

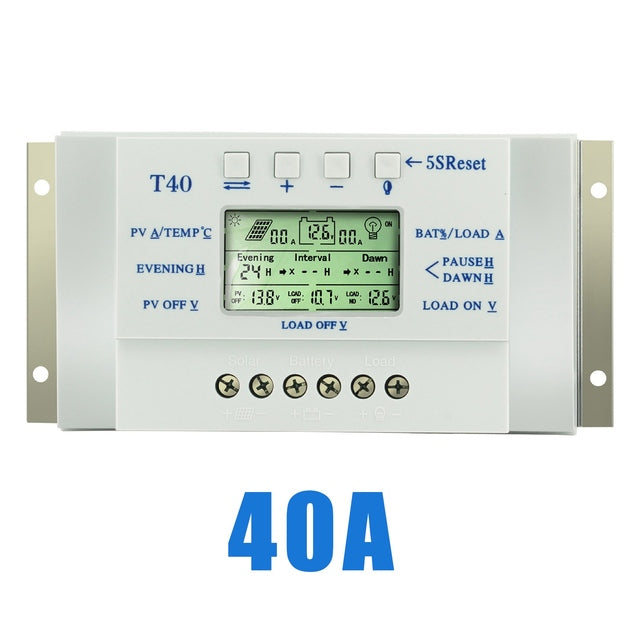

   MPPT 40A:

   MPPT 40A Solar Panel Charge Controller Regulator Solar panel 500W/12V 1000W/24V (With USB Output)

   Compatible with 1000W(24V) solar panel with dark activated function, Max current is 40A

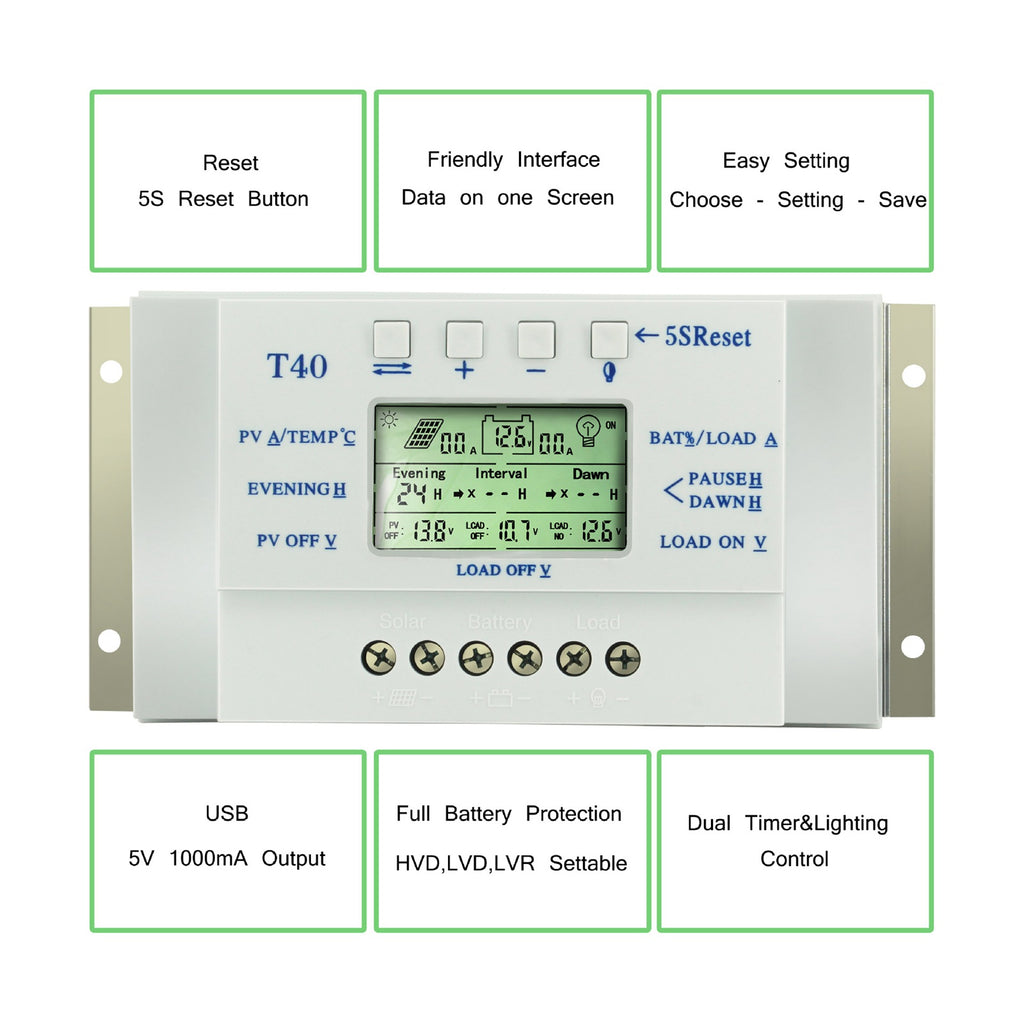

   MPPT10/20/30/40 Series controller has the following features:

   Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%

   Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller

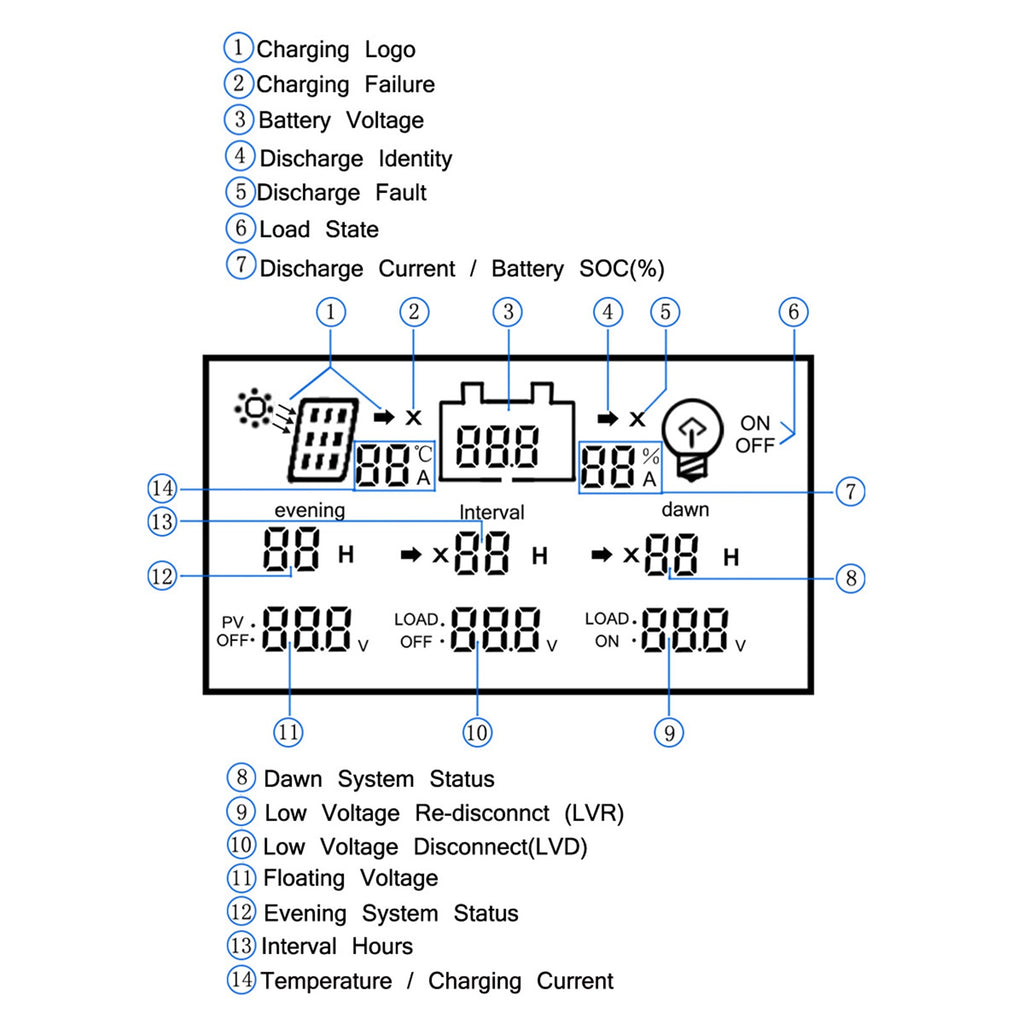

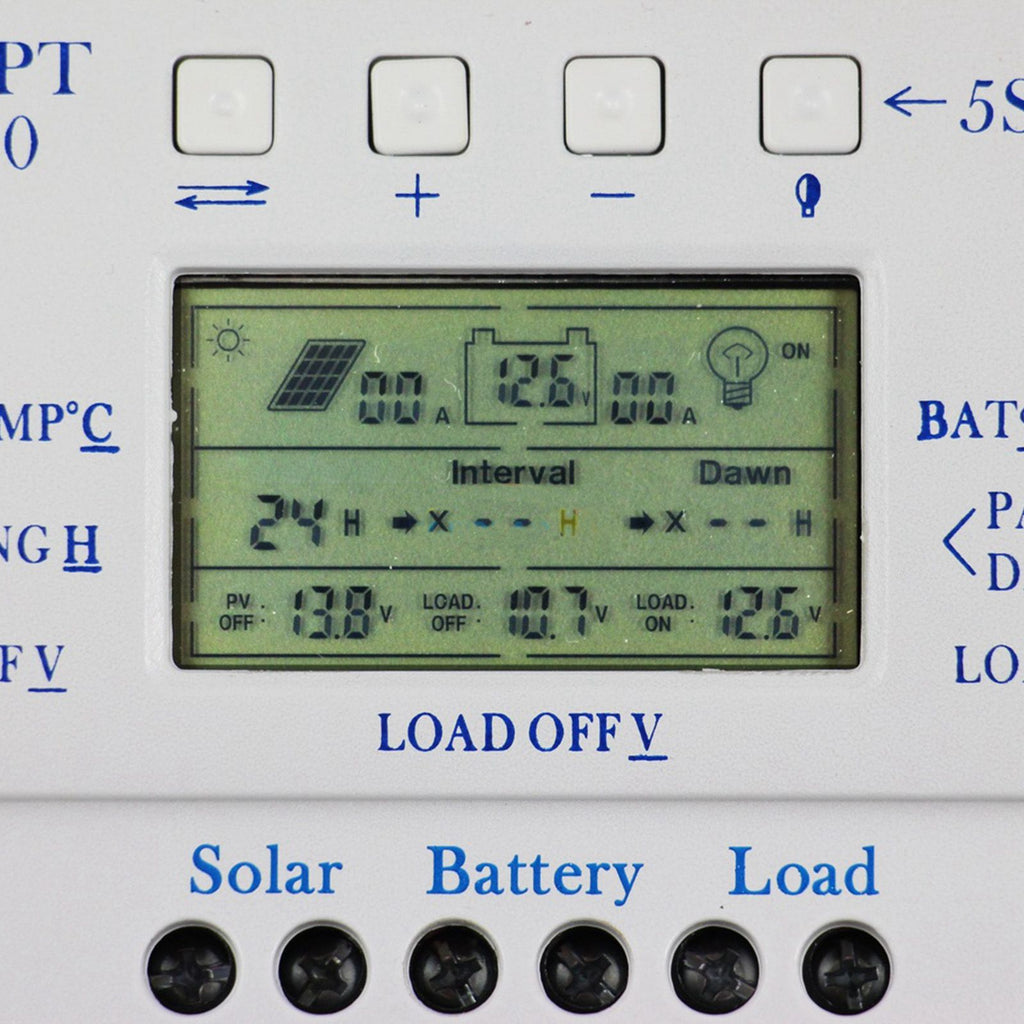

   1, LCD screen display

   2, Easy operation interface

   3, MPPT+PWM charging mode (Controller Provided  MPPT Maximum power point tracking Function,charging mode is PWM)

   4, Parameter user can reset,

   5, A key to open and close the load,

   6, A key to restore the factory settings,

   7, Battery reverse discharge protection,

   8, Battery reverse polarity protection

   9, Battery under voltage protection,

   10, Overload, short-circuit protection,

   11, Automatic temperature compensation function,

   12,Can charge and discharge at the same time, Always keep the battery in full status

   Package contents:

   1* MPPT Solar Controller

   1* English User Manual

   1* Temp Sensor

   Note:

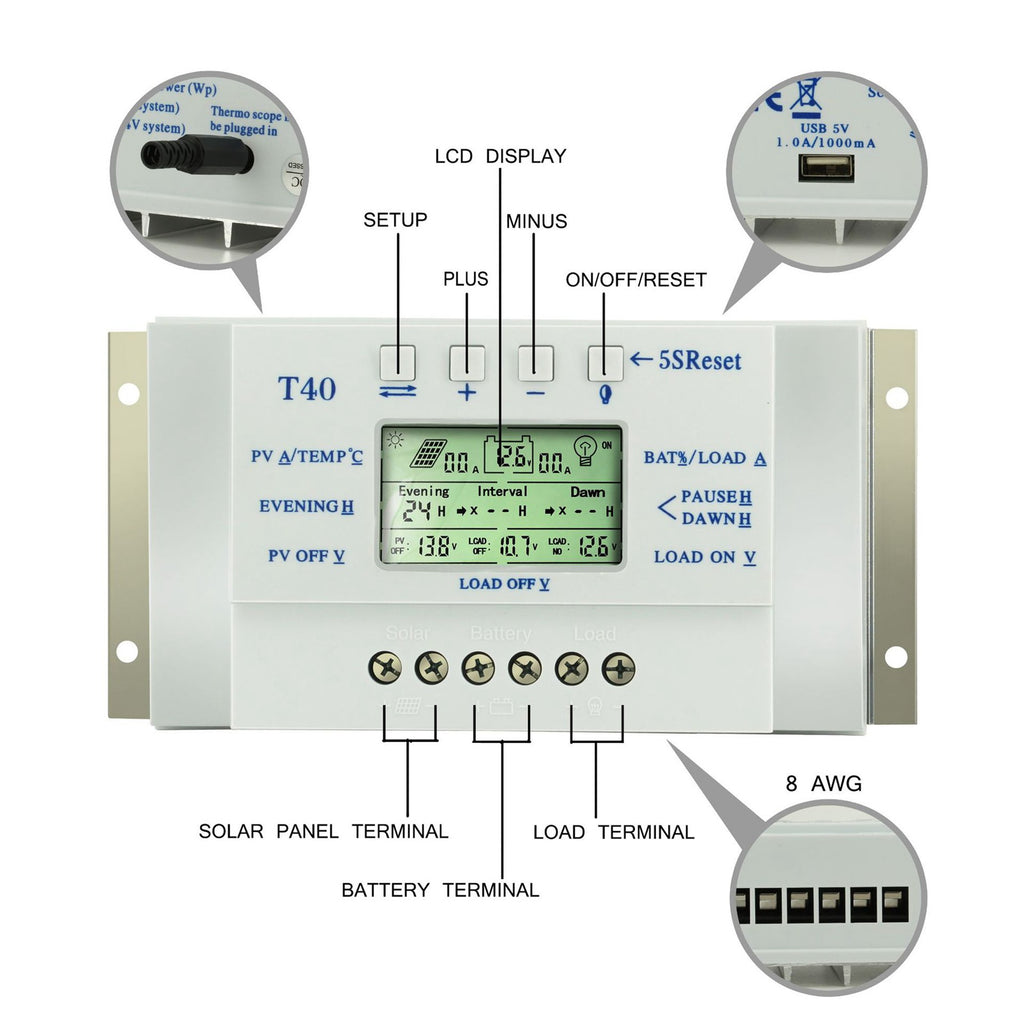

   Only MPPT 30A and 40A with USB Port.
