Full 3K Carbon Fiber airframe featuring 4mm removable arms

     Custom aluminum hardware to enable one tool, quick swapping of arms in race pit settings

     Black Oxide steel screws

     Easy grip anodized spacers

     Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).

     "Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.

     Easy Lipo Access (suggested Lipo is a 1300mah 3 or 4s)

     Support for 32mm board cams as well as 26mm cams.

     Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included)

     Wheelbase: 220MM

     brushless motor:1806~2206 (KV2000~2300)

     brushless esc:10~15a

     flight controller:F3 Flight Controller

     battery cells:3S  1500~2200mah(not include)

     Propellers:5045,5030 (5 inch)

     Image transmission:5.8G 200~600wm 32CH(not include)

     Antenna:5.8G(not include)

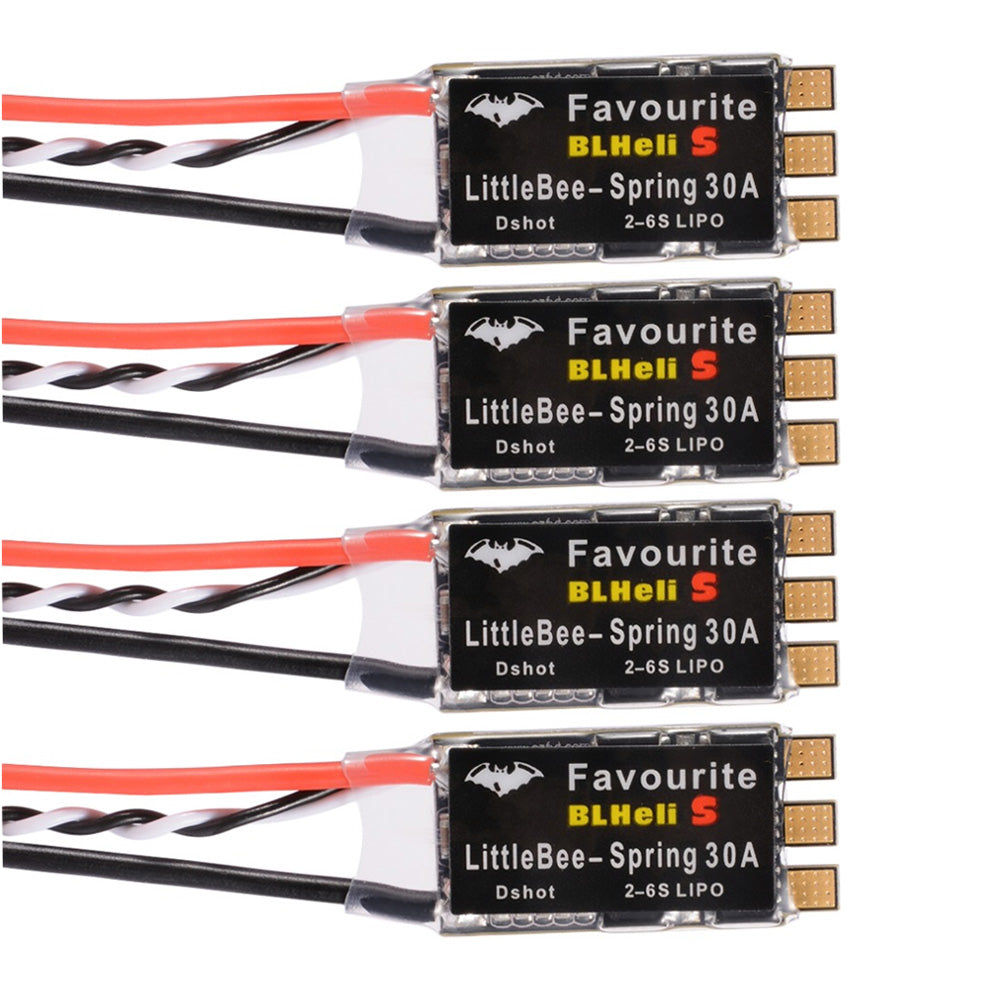

     LittleBee 30A-S OPTO ESC BLHeli_S 2-6S

     Description:

     Item name: FVT LittleBee 30A-S ESC

     Input Voltage: 2-6S Lipo

     BEC Output: No

     Continue Current: 30A, Burst Current: 35A up to 10S

     Size: 35*17mm

     Weight: 9g(include Power and signal wire)

     Support Damped mode, Oneshot125, Oneshot42 and Multshot

     Main IC: SILABS EFM8BB21F16, MCU run 48MHz

     MOS: Both low and high side fets are Nfets

     Switching speed is very fast, it has dedicated driver chip

     BLHeli_S Bootloader & Firmware

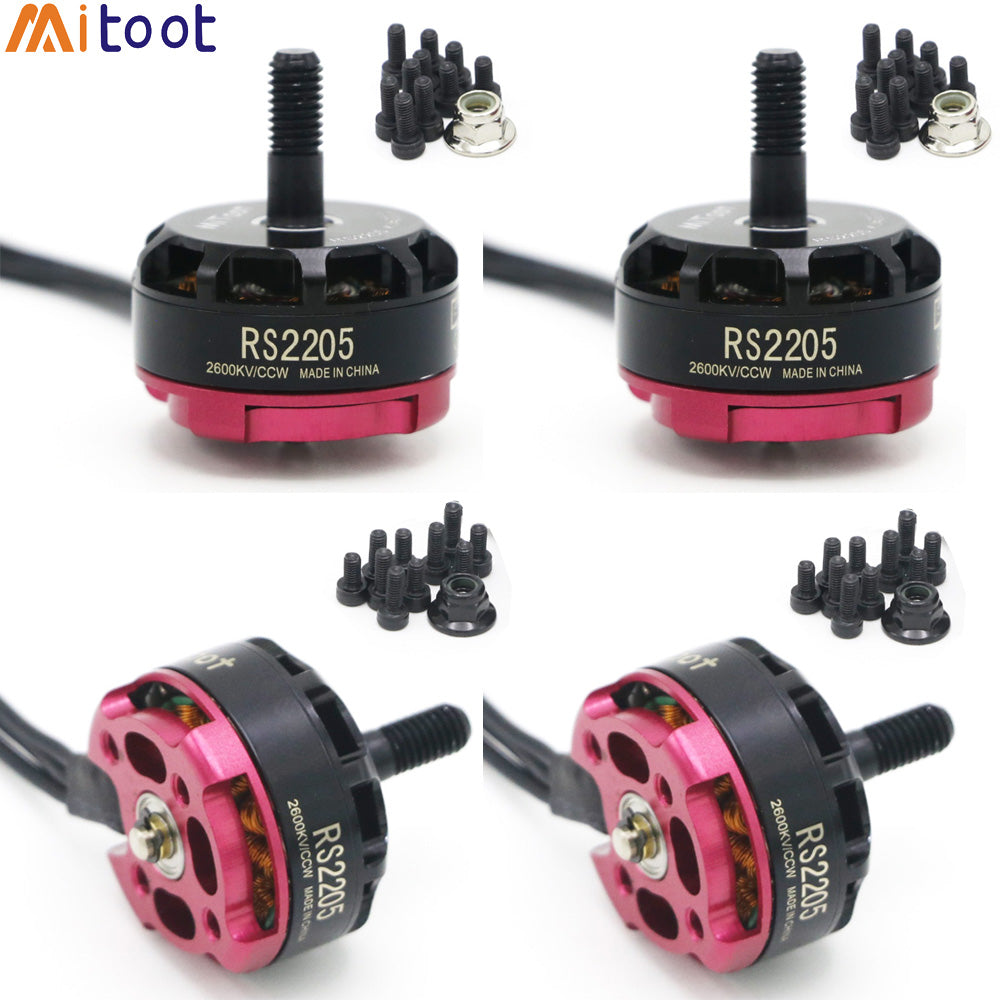

     Model: RS2205-2300

     Framework: 12N14P

     No. of Cells: 3 - 4S

     Color: Red

     Length: 31.7mm

     Shaft: M5

     KV: 2300

     Max Thrust: 1024g

     Diameter: 27.9mm

     Propeller Suggested: 5045 BN

     Weight: 30g

     Features:

     1. Race Spec Performances

     2. High Strength N52 Neodyum Magnets

     3. Active Cooling Fins Greatly Reduce Motor Temeratures

     4. Low CG, Light Weight Design

     5. Japanese Bearing For Performances

     6. Enchance Anti Off U Ring For Safety & Stablility

     7. Dual Lock CW / CCW Locknuts

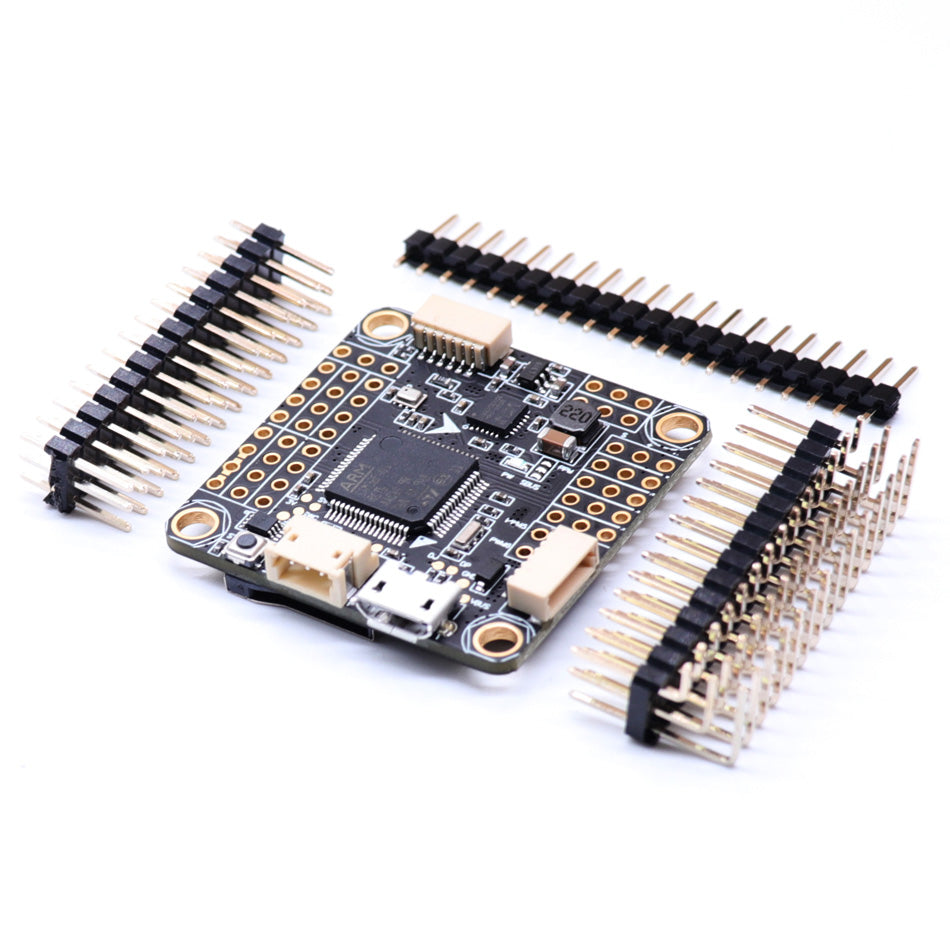

  F4V3S flight controller Item Specifics:

Product Name: F4 Flight Controller Board

Material: Electronic component

Standard Board Size: about 36x36mm

Standard Size of Mount Hole: 30.5x30.5mm

Features:

-STM32 F405 MCU

-Dshot support

-Drag and Drop OSD configured via Betaflight Configurator

-Smartaudio v2 support  Tune your PID's and configure the omnibus F C from your Transmitter

-MPU6000 6 axis SPI Gyro & Accelerometer

-SBUS/PPM AND Spketrum dsm-x Ports

-SD card blackbox

-Baro(BMP280)

-5V 3A SBEC

-On-board Video Filter(only can supply 5V to VTX and Camera)

-SmartAudio V2 via tx6 on J10

-4×3 pin ESC pin layout

-IR pins for lap timing transponder

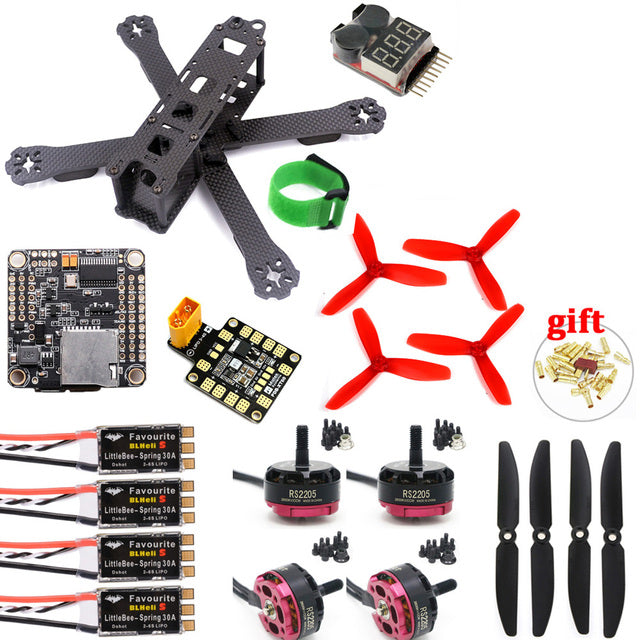

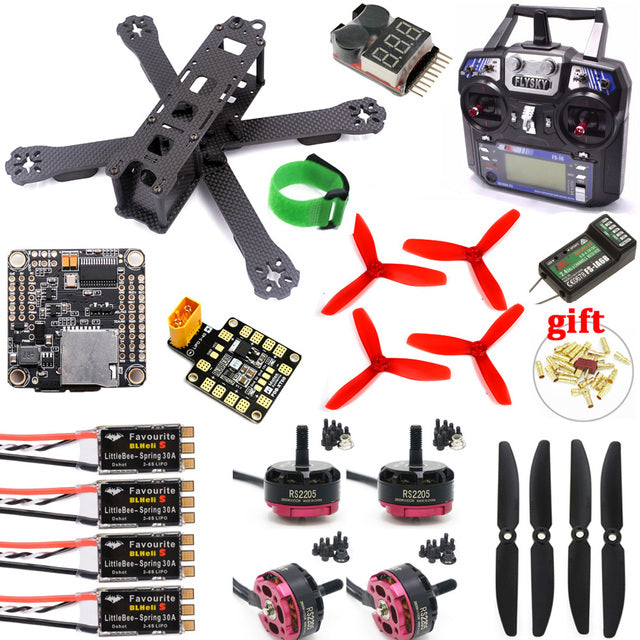

     Package Included:

     - 1pcs QAV-R 220mm 4-Axis Carbon Fiber Quadcopter Frame Kit (not assembeled, just a frame kit)

     - 1pcs F4 Flight Control Board

     - 4pcs Littlebee 30A-S BLHeli_S  PRO esc

     - 4 pcs RS2205 2300kv (2CCW, 2 CW)

     - 1pcs  5V / 12V PDB-XT60 distribution board

     - 4pcs  motor cover

     - 2 pairs 5045 3 blade propellers

     - 2 pairs 5030 2 blade propellers

  ESC
