2.Support MPPT function, can be connected to solar panels for charging.

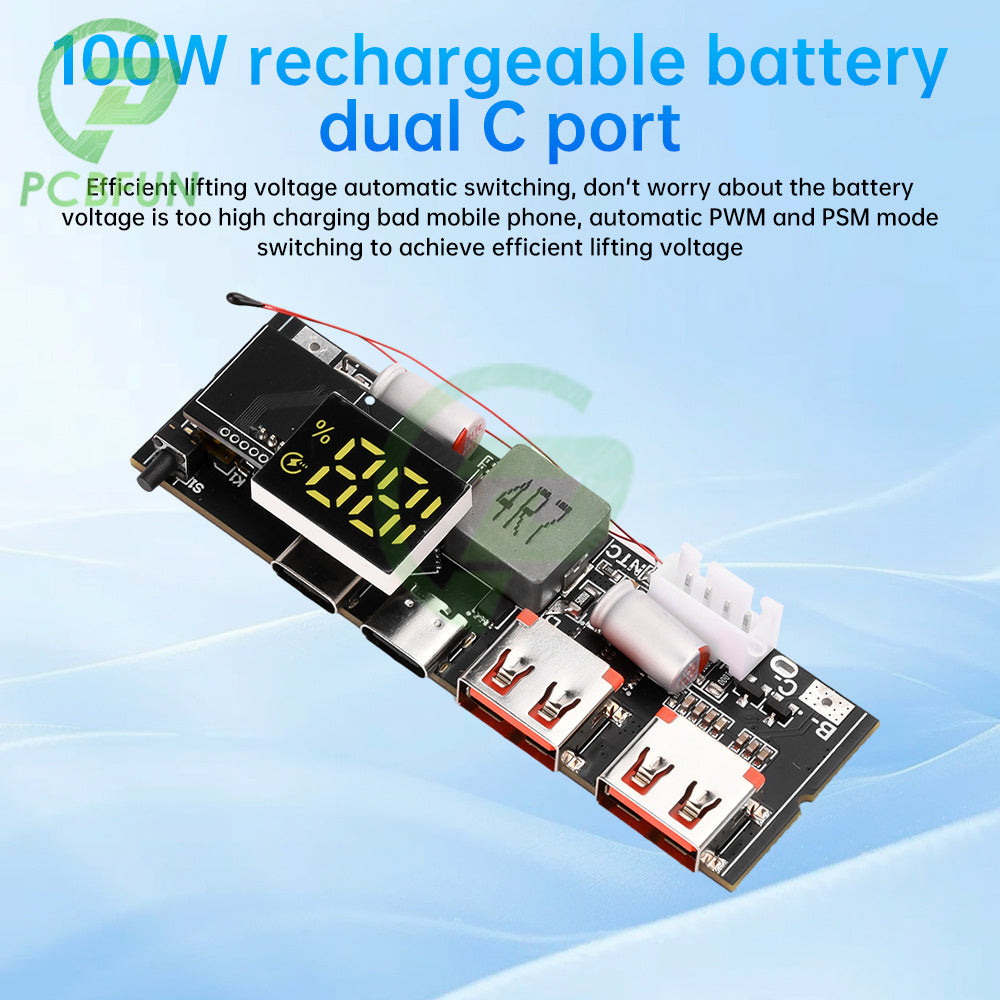

3.Efficient lifting voltage automatic switching, don't worry about the battery voltage is too high charging bad cell phone, automatic PWM and PSM mode switching to realize efficient lifting voltage.

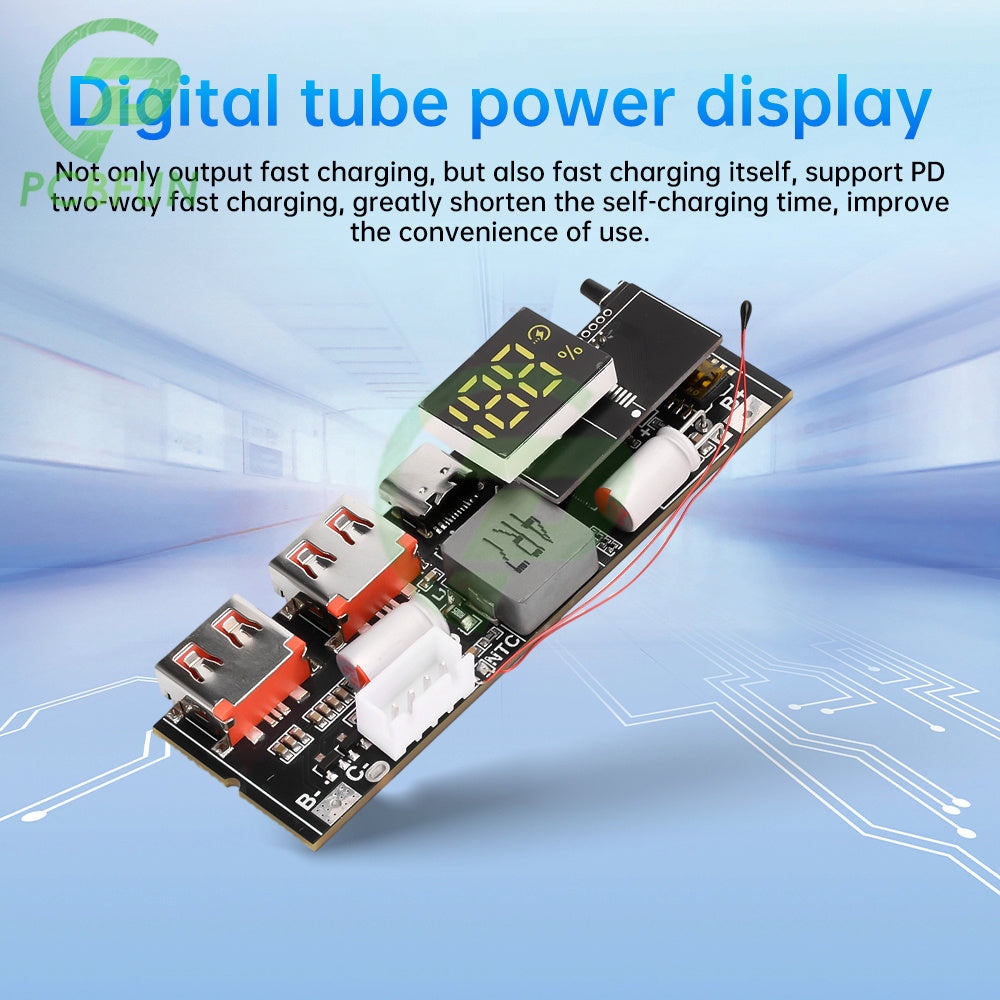

5. Not only the output fast charging, its own charging is also rapid, support PD two-way fast charging, significantly shorten the self-charging time, improve the convenience of use

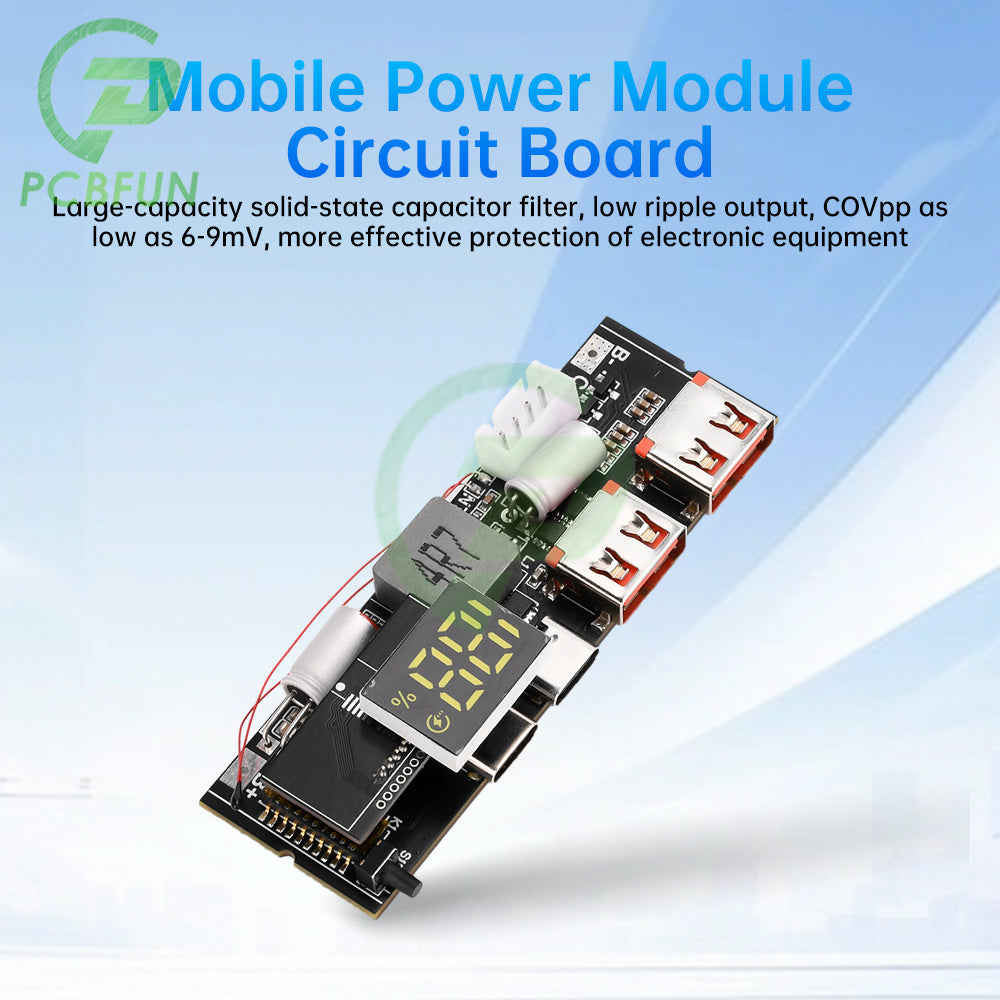

6. Large-capacity solid capacitor filtering, low ripple output, C port Vpp as low as 6-9mV, more effective protection of electronic equipment
Parameter:

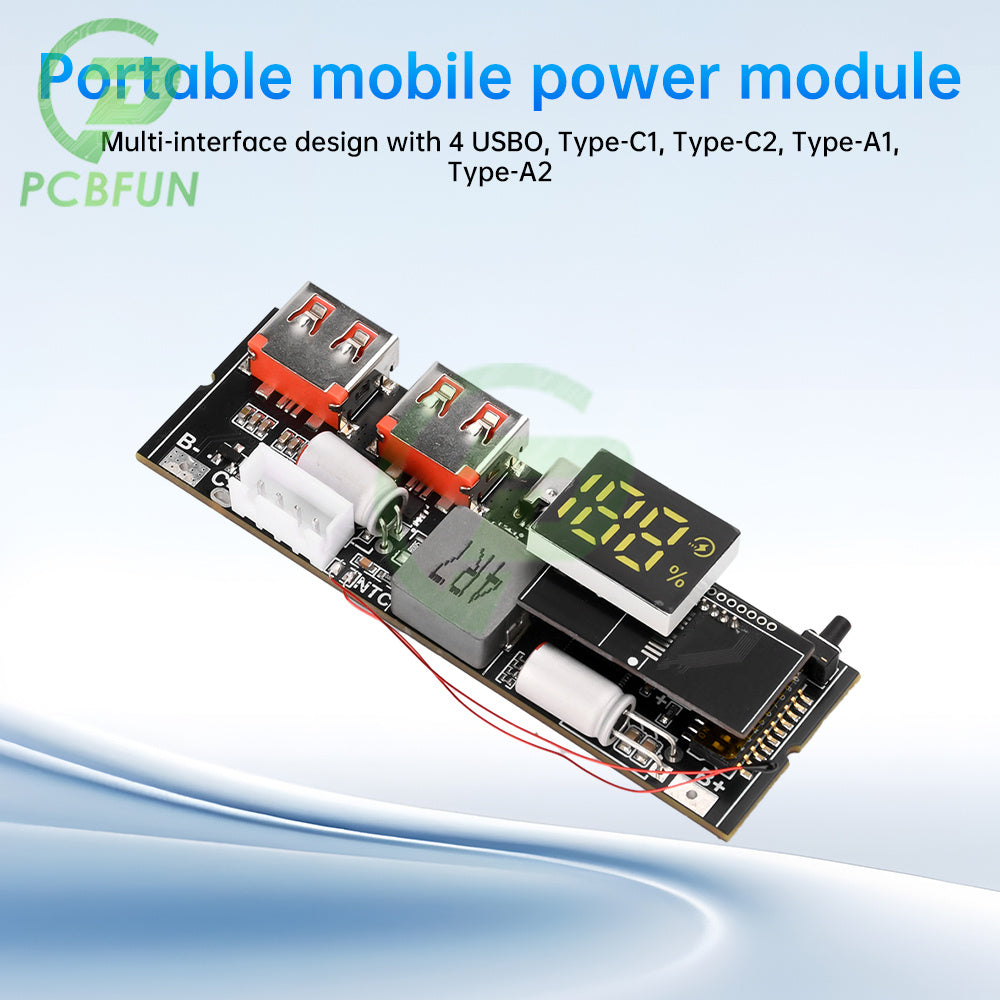

The motherboard has 4 USB ports by default, Type-C1, Type-C2, Type-A1, Type-A2
Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols.

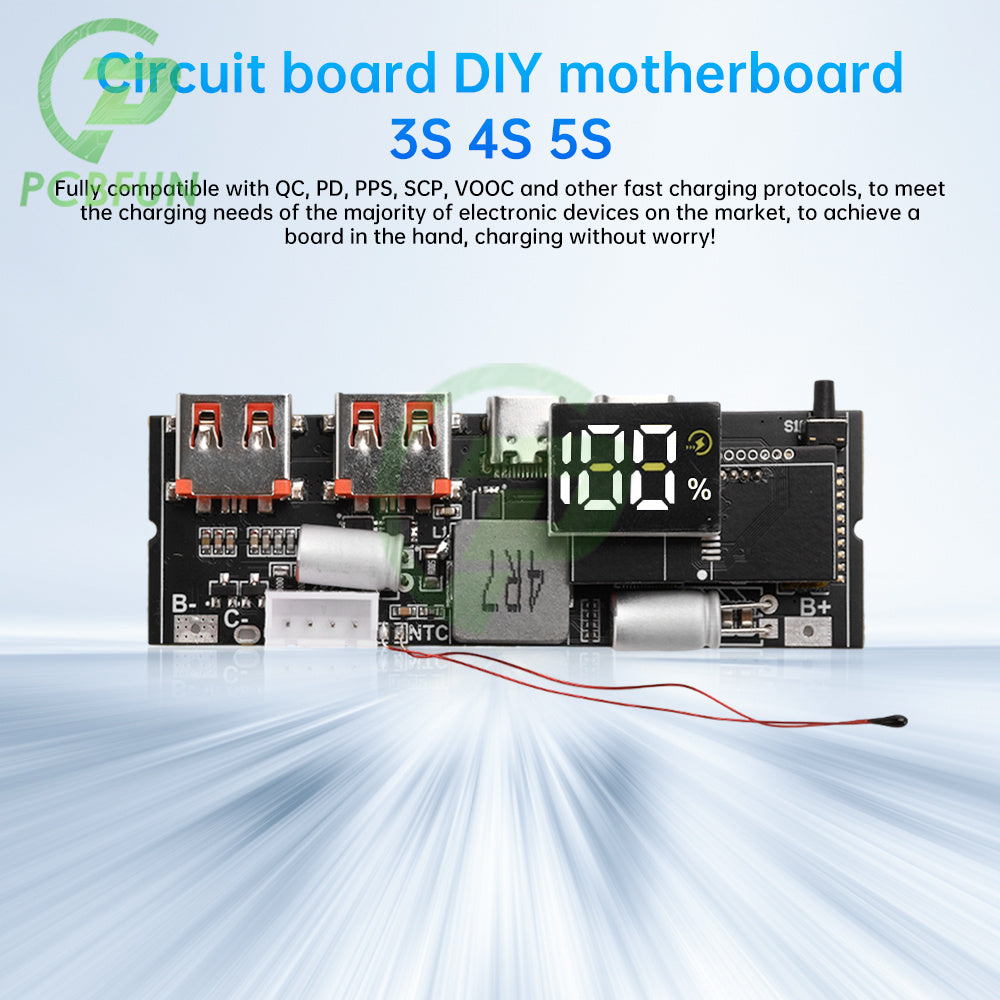

Support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP Output Protocol Type-A1/Type-A2 Support UFCS/PE1.1/PE2.0/QC3+/0C3.0/QC2.0/AFC/FCP/SCP/ SFCP output protocol
Voltage Current Power:
PPS/PD3.1: 20V@5A, 3.3V-21V@5A, Maxin100W/Maxout60W
UFCS: 3.4-21V@5A, Maxin100W/Maxout60W
QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A
QC3.0: 3.6V-20V@200mV/step!5V@3A/9V@3A/12V@2.8A/20V@1.5A
AFC: 5V3A/9V3A/12V2.8A
FCP: 5V3A/9V3A/12V2.8A
SCP: OUT3.3V-12V, IN5V/9V/10V/12V, support 10V4A
PE1.1: 5V/7V/9V/12VPE2.0: 5V-12V@500mV/step
SFCP: 5V/9V/12V
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
