Battery Balance Charger CB86 PLUS specification:
Main:Absolutely balance charger, has six signle power supplies inside, Eight battery packs charging at one time, accurate and safe, independent balance charge for every single battery cells, punctual and fast change, efficient and low carbon, easy to install and use.
1. Eight battery packs charging at one time, one time setting for maximum eight connected battery packs, the CB86PLUS charger will auto change all the battery packs full.
2. Patent technology charge port, compatible with 1S~6S LiPo/LiFePo battery packs.
3. Independent balance charge for every single battery cells, single power supply to very battery cell, even the high voltage gap in the pack, the final voltage for every cell will be equal when the charge finished, finished cells will stop charge when it's full and never overcharge.
4. Support maximum 6A charge current for 6 battery cells, finish the charge asps, save time for you.
5. 0.001V precision voltage detection and 0.001A precision current control make sure every battery cell exactly, and never overcharge. keep the battery higher performance and higher cycle-life.
6. Self working current 70mA, only 40% of other bland balance chargers, charging efficiency reaches to 97%. Even use the maximum charge current the charger still keep cool, a great low carbon product!
7. Special TFT screen, display every battery cell's charging status, and easy to set it.
8. Self protection, wrong input power polarity the charge will not work, low and over voltage input power warning, wrong output charge polarity will not charge the battery.
Specifications:
Professional Li battery balance charger, eight battery charge simultaneous
Input voltage:10.5~15V DC
Charge capability:LiPo/LiFePo 1S-6S
Charge voltage:0.00V~4.23V
Disharge voltage:2.00V~4.23V
Charge current:0.1-6.0A
Disharge current:1.05V
Charge mode:Cycle charge and parallel charge

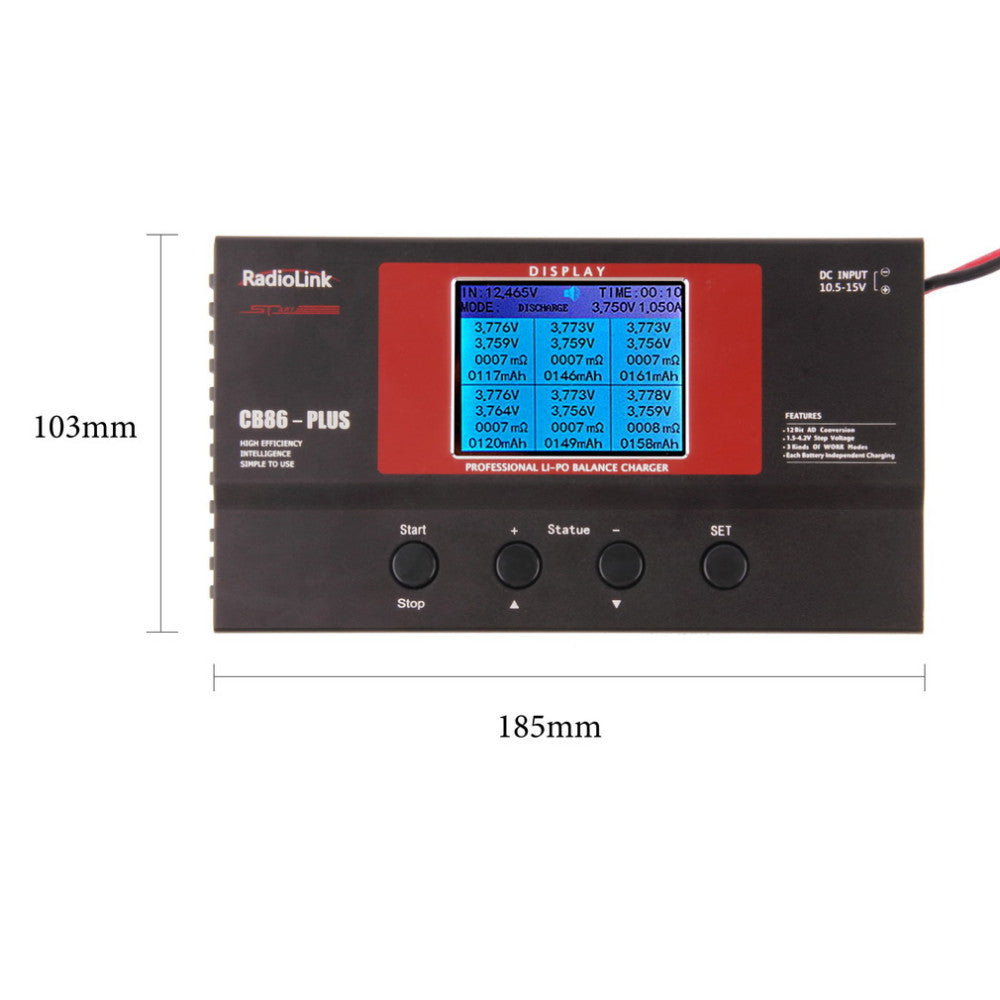

TFT Screen Size: 60*45 mm /2.36*1.77 inch
Product Size: 183*103*56 mm
Pakage size: 220*138 *99 mm
Language: English
Product description: eight battery balancer connector, max connecting eight 6S Li battery. safe design. compatible 1S-6S battery.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
