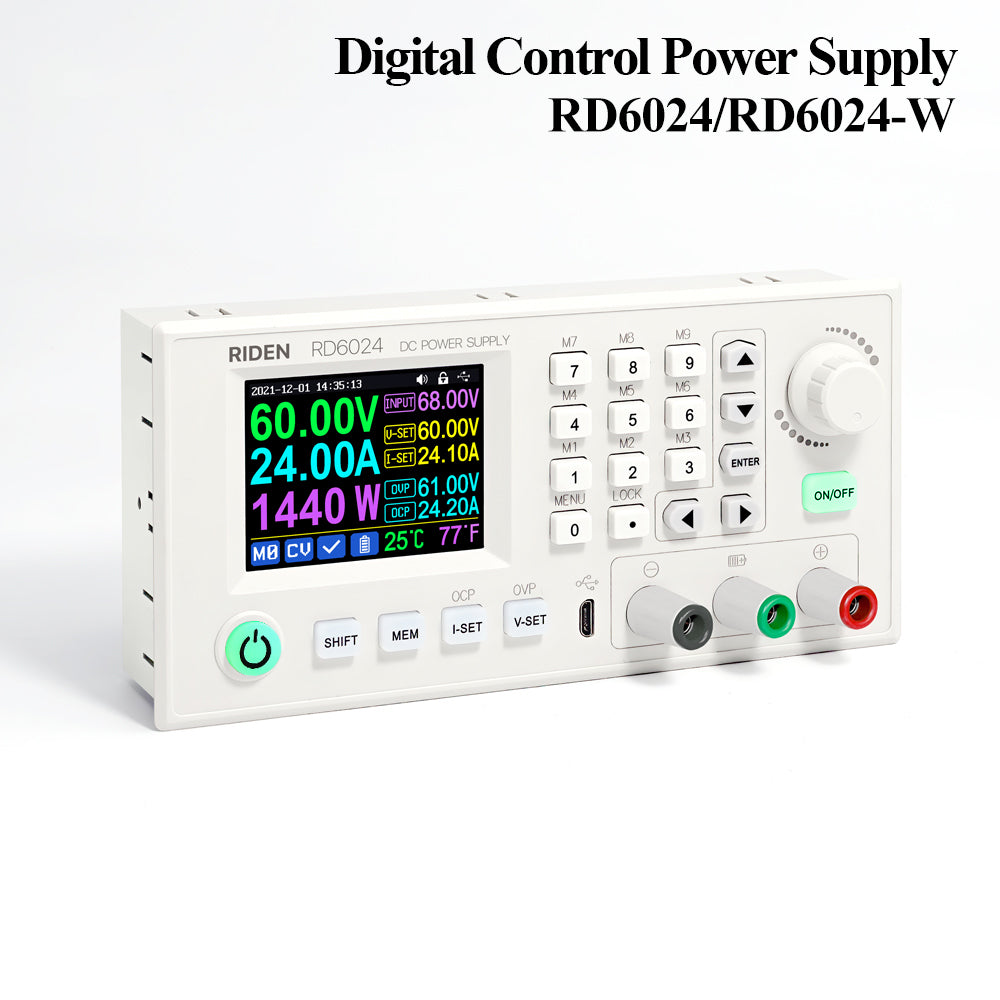

RD6024 RD6024-W Power Supply Buck Converter 2.4 Inch Adjustable Step Down Digital Constant Voltage Current Power Supplys 60V 24A

       Descriptions:

    RD6024 series is the professional constant voltage and current direct current power supplys, suitable for precision debugging, mobilephone maintenance, enterprise factory, electronic maintenance and other uses. With 2.4 inch large display screen which can give a better using experience, come on and try it, it will not let you down.

       Features:

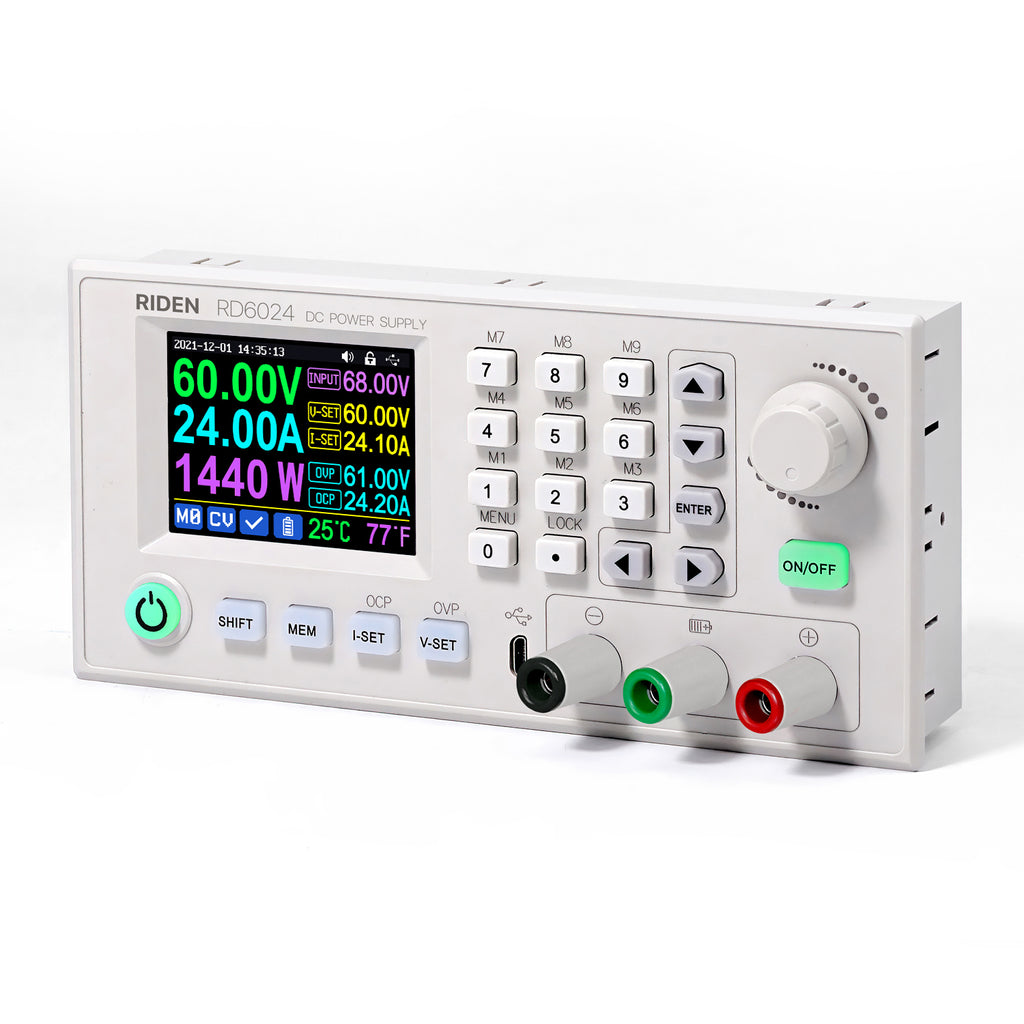

    2.4 Inch Color Screen: This power supplys adopt 2.4inch color screen for you to view the data more clearly.

3 Display Styles: The system defaults to display the classic style, you can change to the detailed style and curve style according to your needs.

5 System Languages Support: The system language can be switched from Chinese, English, French, German, Russian, you can choose the suitable language according to your needs.

Output Power Limit: When setting the output voltage and current, the device will automatically adjust to ensure that the power does not exceed the set output power.

Data Storage&Call Out: This function is convenient and effective, through the simply setting to store and recall the setting parameters.

PC Software Control: The power supplys can be monitored and set on the PC software(only support WIN7 or above), with a friendly interface and powerful functions.

Multiple protections: The output over-voltage (OVP)/over-current (OCP) value can be set when the output voltage/current exceeds the protections value, the power supply will automatically stop the output to avert damage to the device.

       Specification:

    Model: RD6024/RD6024-W

Input voltage range: 6-70.00V

Output voltage range: 0-60.00V

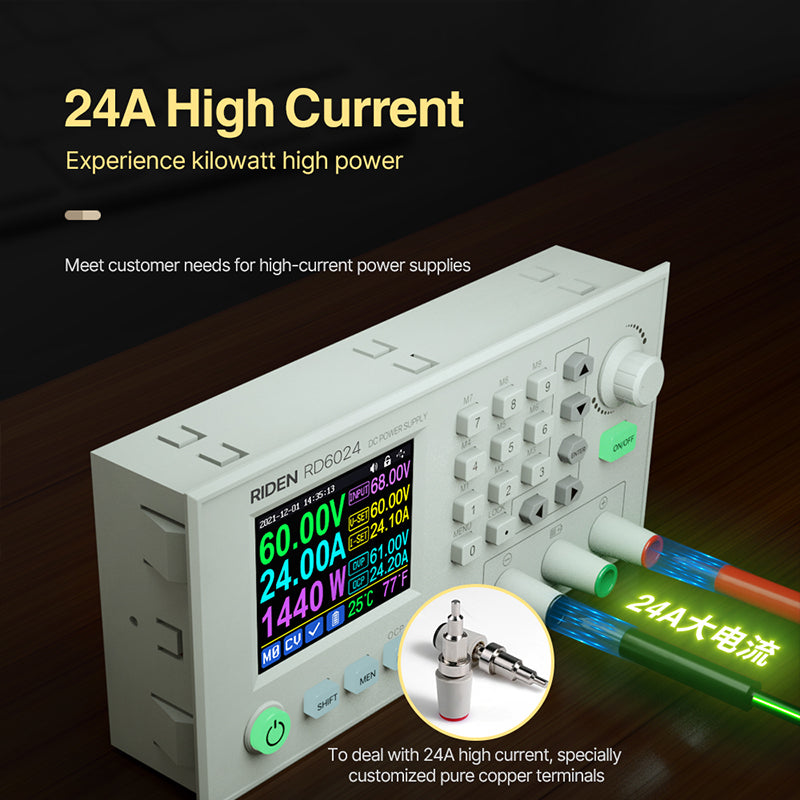

Output current range: 0-24.00A

Output power range: 0-1440W

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.01A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracybetween setting and measurement:±(0.3%+3digits)

Output currentaccuracybetween setting and measurement:±(0.5%+5digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging: Set by yourself(higher than 100mA)

Output ripple typical:100mV@12A,150mV@24A VPP

Working temperature range: -10℃~40℃

External sensor Temperature detection range:-10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy:±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: （input voltage÷1.1）-1

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Weight(with package):About 0.72kg

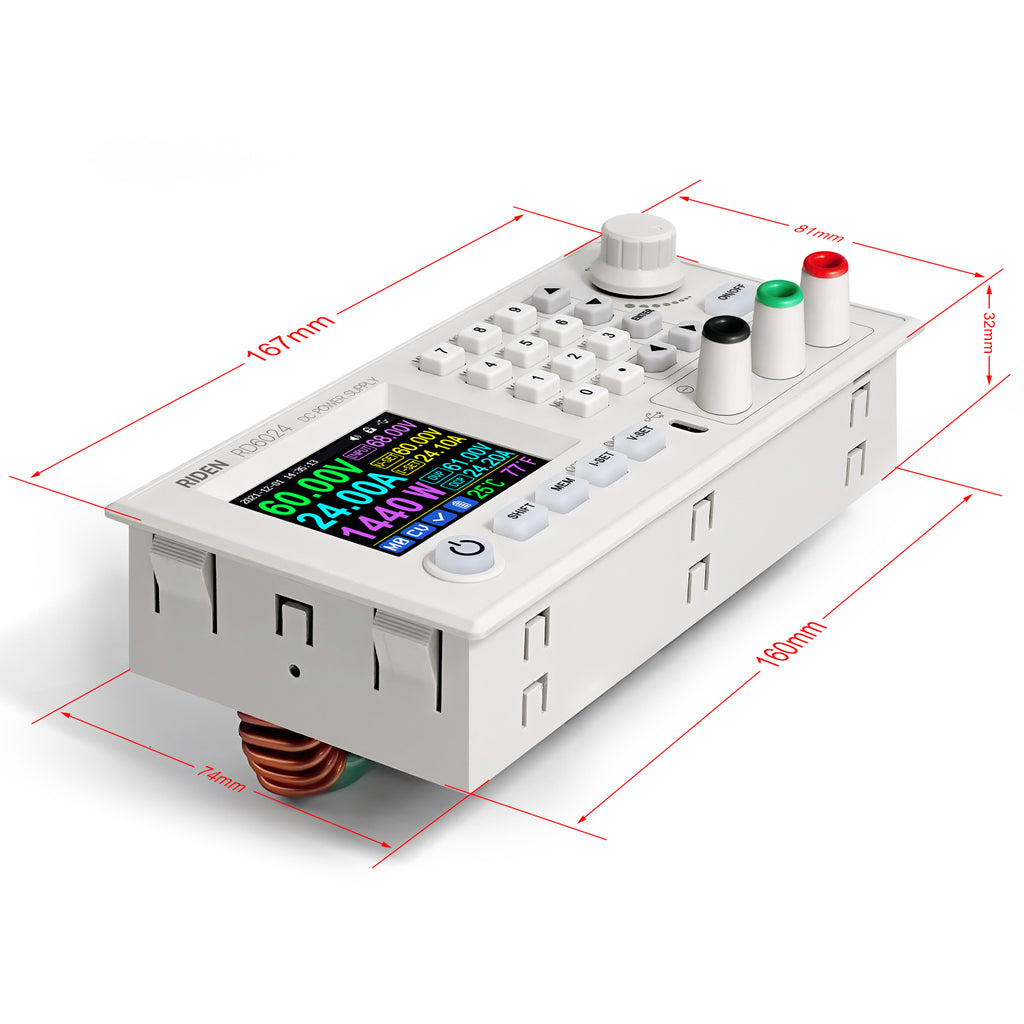

Product dimension: 167*81*69mm

Cooling fan start condition: Output current>8A or System temperature>45℃

Cooling fan shut down condition:Output current <7.9A and System temperature <45℃
