Features:
1. Aluminum alloy metal shell, good heat dissipation
2. The transmission frequency can be set within the range of 87-108MHz
4. Channel switching: stereo switching, mono switching
5. High fidelity Bluetooth: You can connect wirelessly to your phone, tablet, and other Bluetooth devices as audio input
7. Good heat dissipation: High quality double ball fan is used, with reasonable heat dissipation channels and good heat dissipation performance
8. Standing wave protection: When the antenna is not connected or damaged, it automatically enters the protection state
9. Temperature protection: When the internal temperature of the machine is too high, it automatically enters the protection state

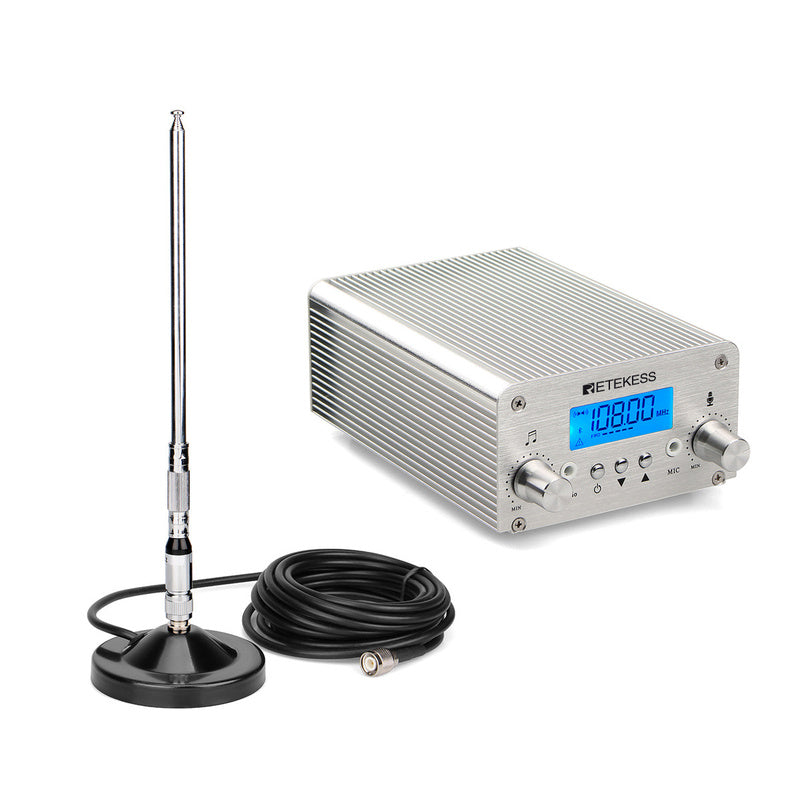

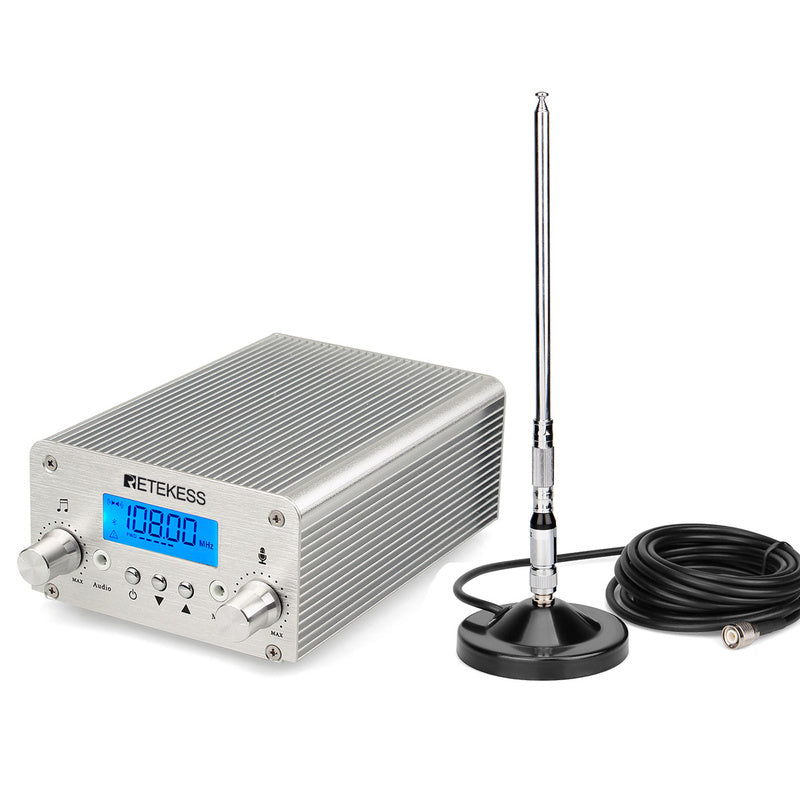

10. 1/4 wavelength strong magnetic suction cup antenna, which can be tightly attached to the roof or any metal flat object, making it easy to move the antenna to the outside of the roof, balcony or window, and more effectively emitting and receiving electromagnetic waves
Specifications:
&&&&&&&&&
Frequency range FM: 87-108MHz
Frequency step 100Khz
Frequency stability ± 10ppm
Frequency stabilization mode PLL
Harmonic and noise radiation ≤ 50dB
Output impedance 50 Ω
Pre weighted 75us
Audio distortion of 0.3%
Bluetooth distance is about 5m
Frequency response 50Hz? 9? 115000Hz
Separation degree ≥ 30dB
Frequency modulation ± 75KHZ
Signal to noise ratio ≥ 60DB
Antenna connector type TNC
Working temperature -10 ℃? 9? 145℃

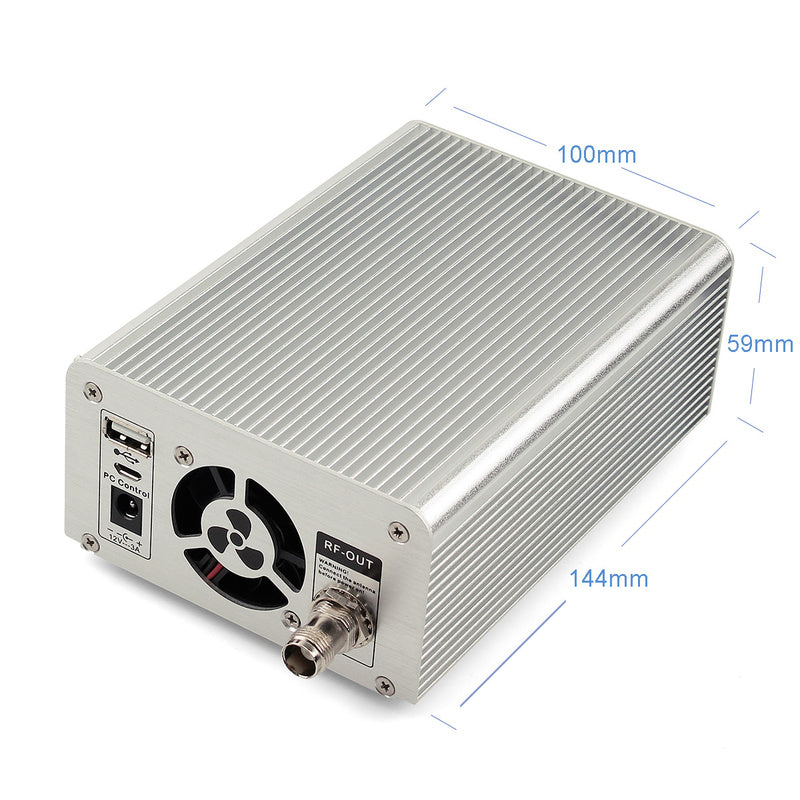

Transmitter size 144 x 100 x 59mm
Transmitter weight 545 grams
antenna
Connector type TNC
Gain 2.15dB
Impedance 50 Ω
Minimum shrinkage length 210mm (0.69 ft)
Paper feeder length 5m (16.4 ft)
source
Input voltage of 100? 9? 1240V 50 / 60Hz
Output power DC 12V 3A
Usage scenario:
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
