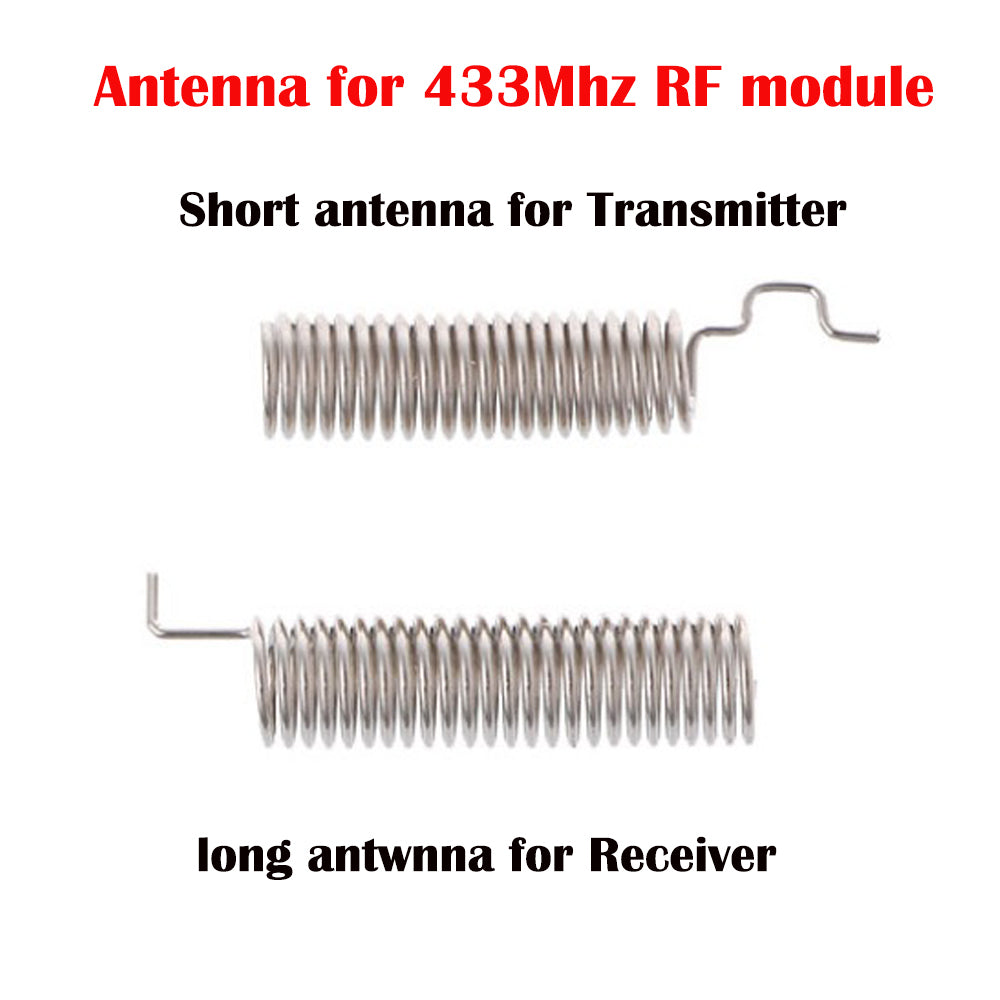

RF module 433 Mhz Wireless Receiver Module Transmitter Receiver Learning Code 1527 4Ch with antenna For Arduino uno DIY kit
Product description:

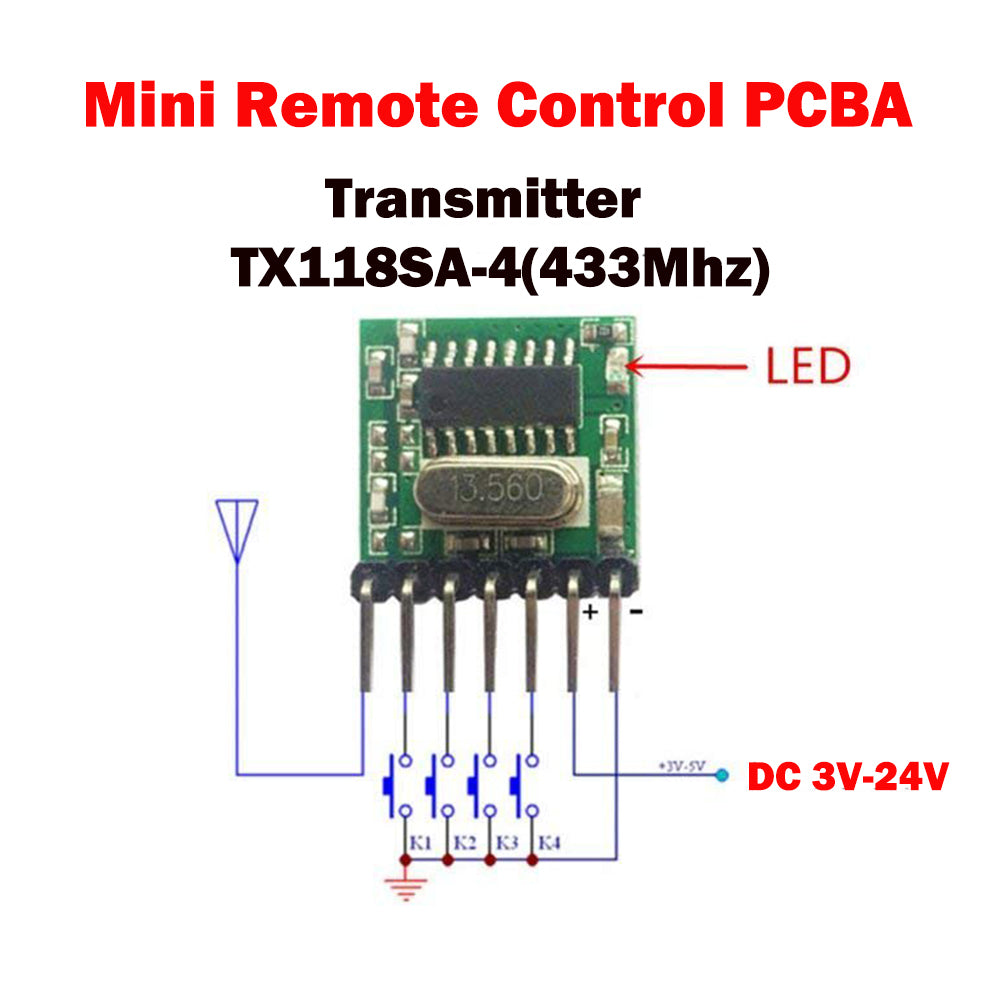

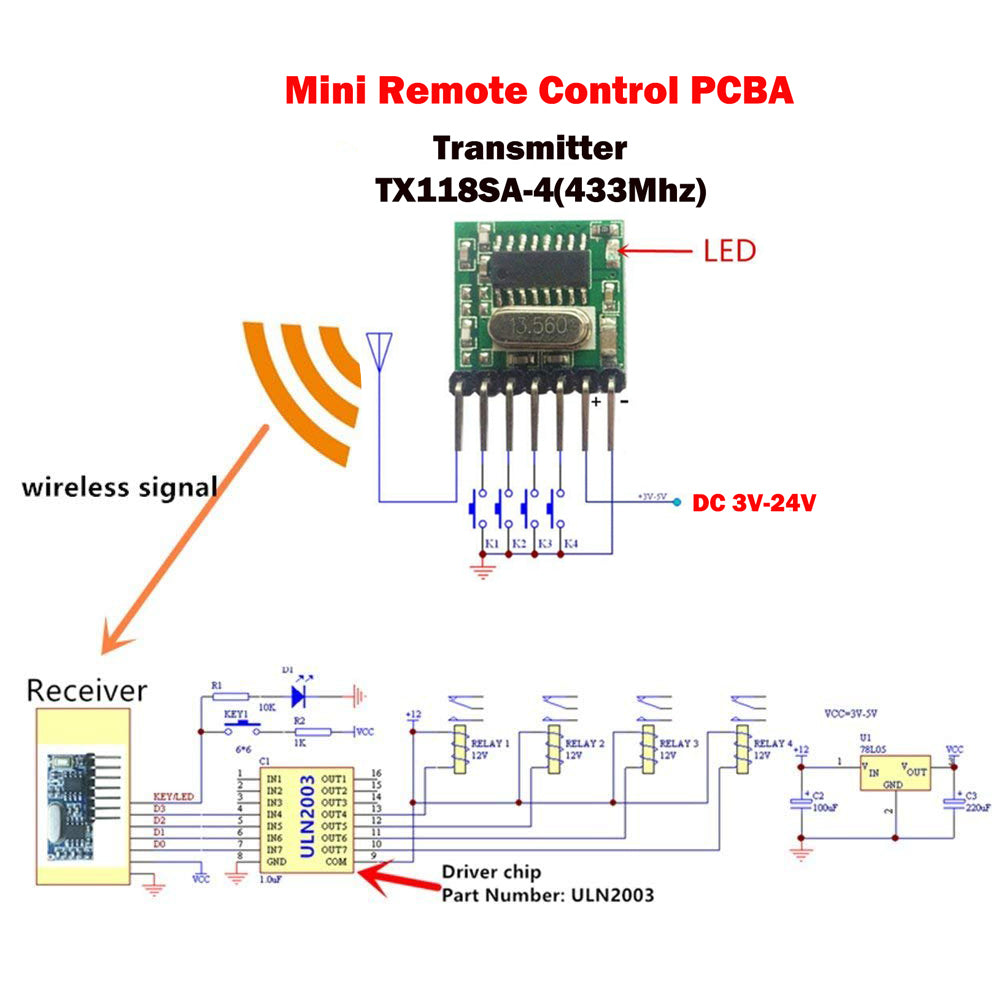

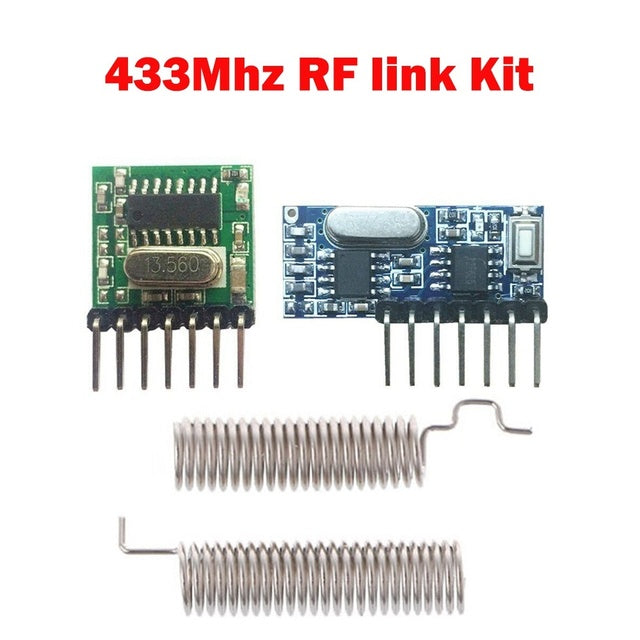

[Transmitter module ] Product Model: TX118SA-4 (10 pack)
Transmitting power: 11dbm
Emission current: 10 mA
Rate of fire: maximum 10KB / S
Operating Voltage: DC 3V-24V
Encoding : EV1527 1527 Learning code
Each module has a unique address code, the address code of K1~K4 which are on the same module is the same.
[Receiver module ] Product Model: RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : ≤5mA
Output current : 10 mA
Working Frequency: 433MHz
Receive Sensitivity: -108dB
Working Temperature : -25~75
Working mode: Momentary Mode , self-locking (Toggle-Mode of the 4 Channels) , interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

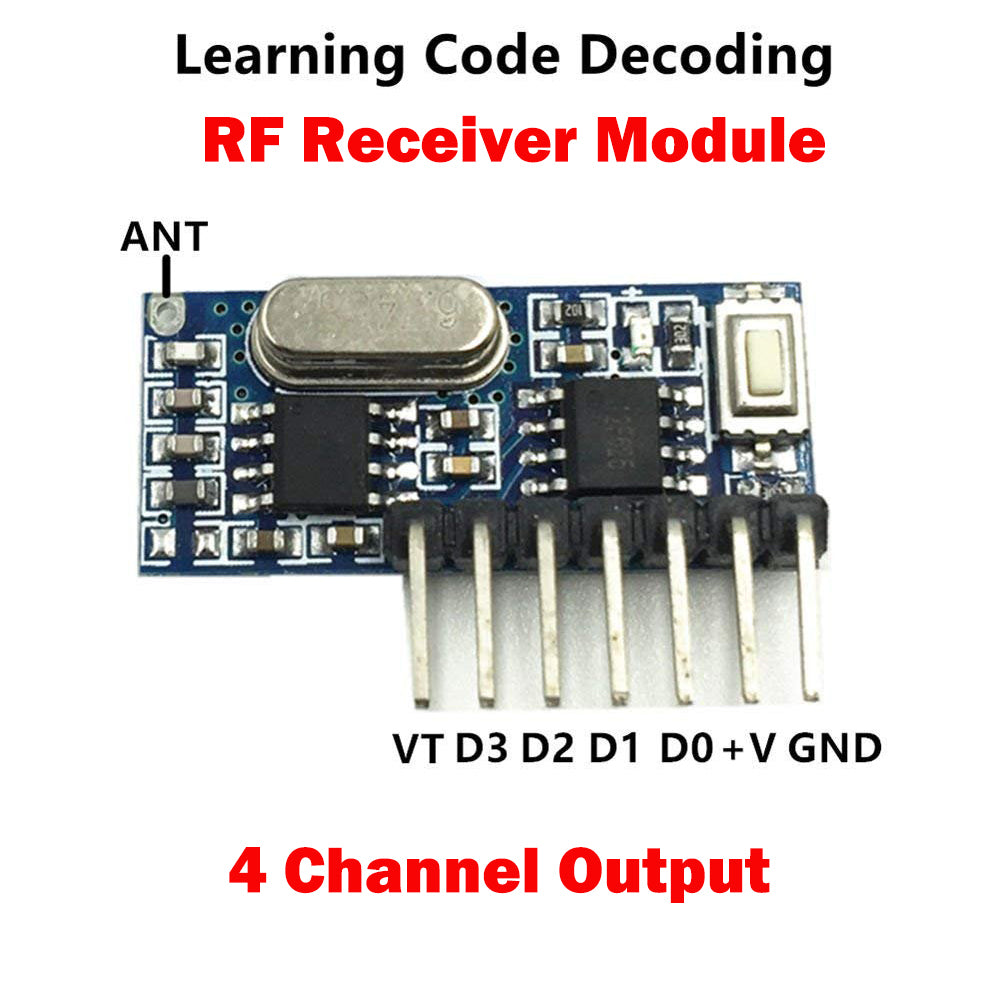

Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output
How to match the transmitter and receiver
1. Delete existing data: Press learning button(on the receiver) 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning button(on the receiver) once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control.
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

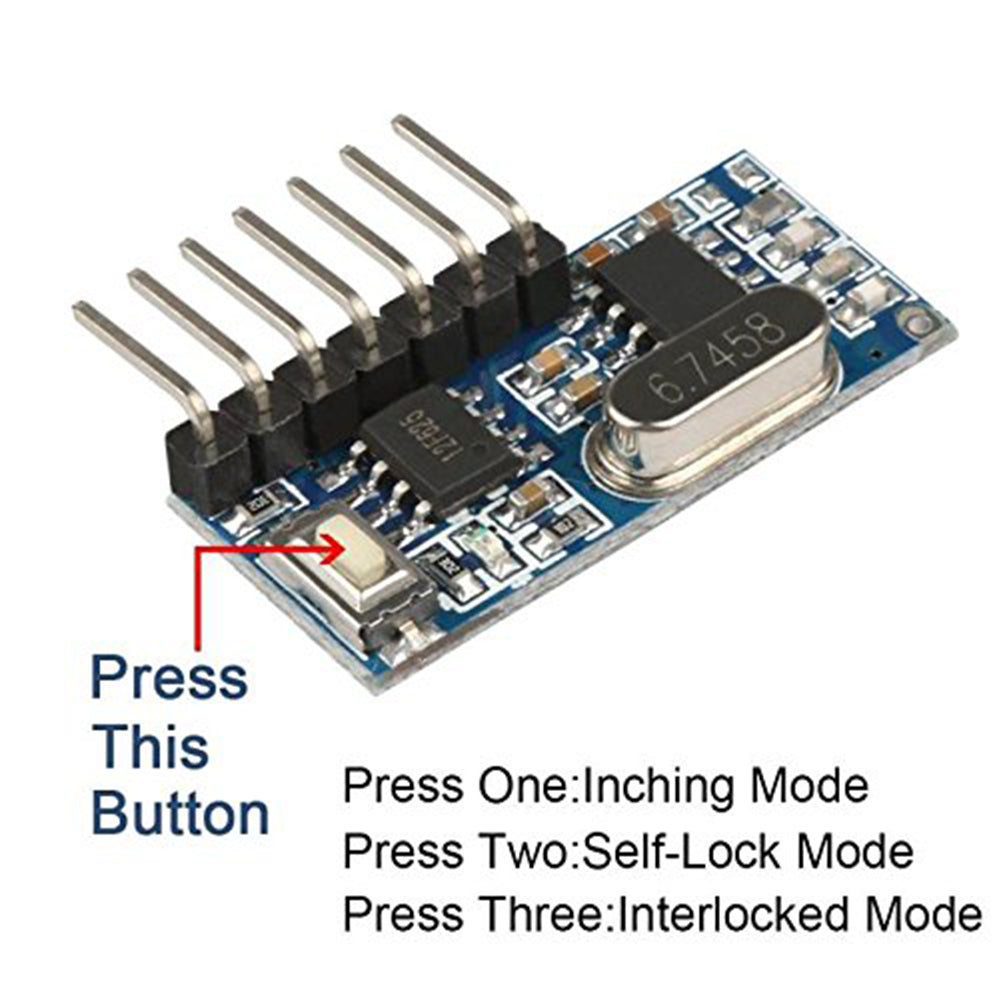

Button usage (sets mode and starts pairing process):
Press once: Inching mode (Momentary Mode)
Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)
