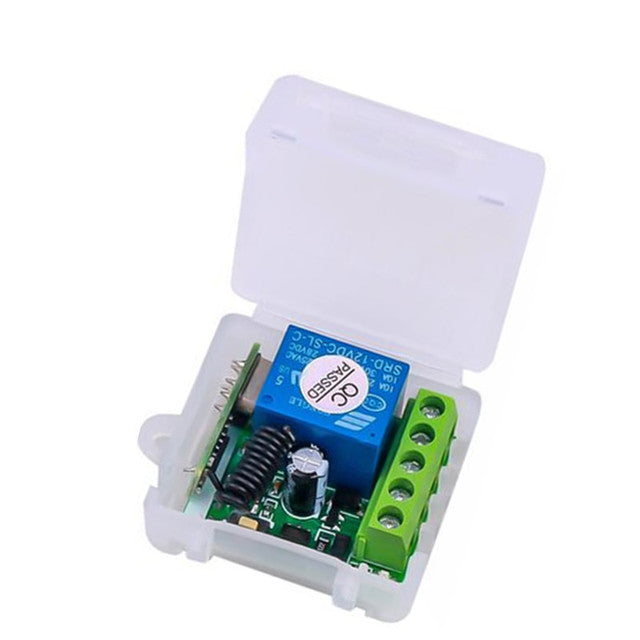

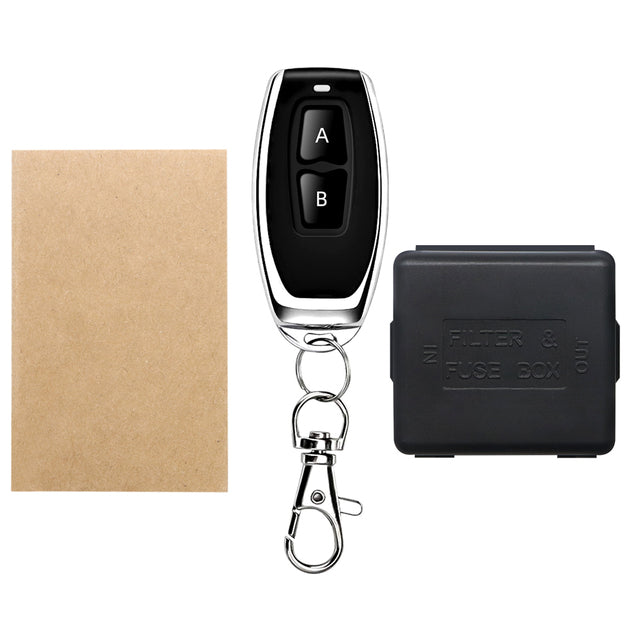

RF Transmitter 433 Mhz Universal Wireless Remote Control Switch 433mhz DC 12V 1CH relay Receiver Module For Smart Home LED Light DIY Remote Control 40% off

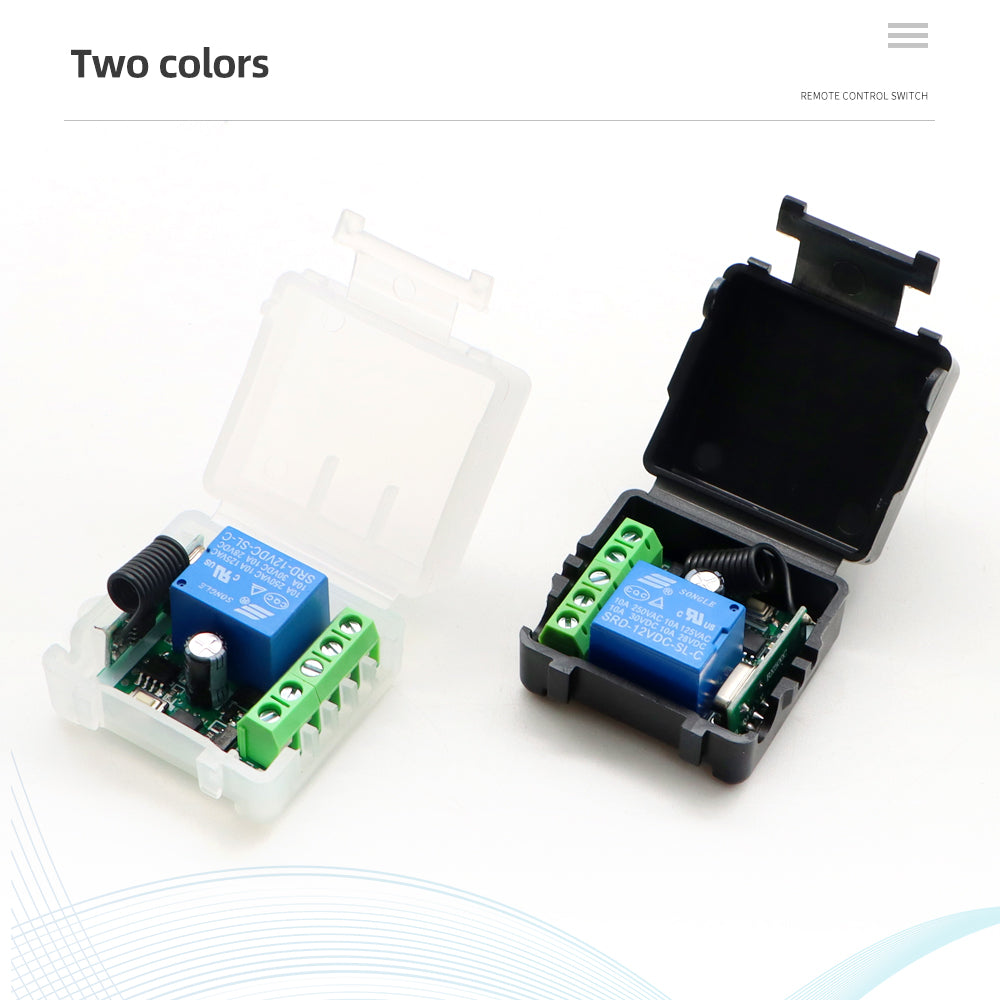

Technical Data Of Receiver:

Input Power:DC10V-14V

Standby Current:<5MA

RF Frequency:315M or 433M

RF working mode:superheterodyne

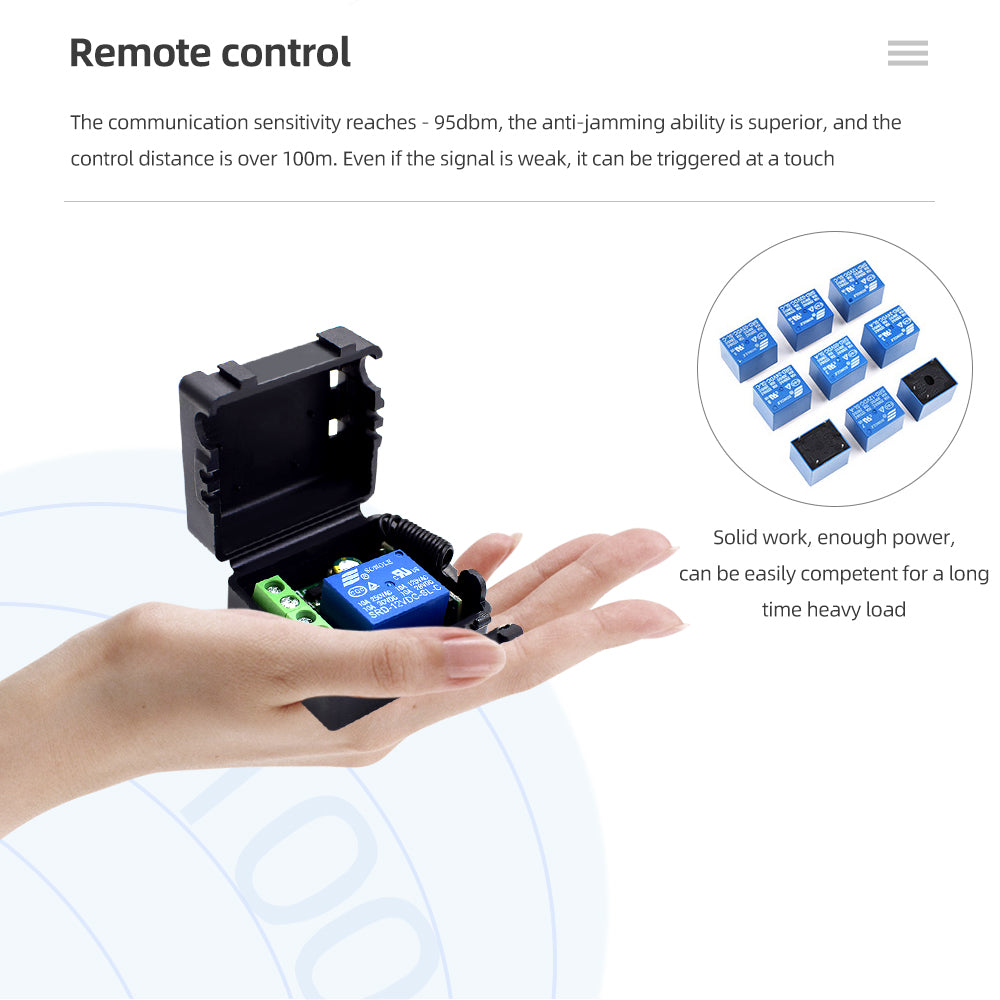

Receive sensitivity: >97dbm

Transmitting distance:>100m ( open space)

Decoding mode:MCU software decoding

Remote storage:25pcs

Support remote type: Learning code, Fixed code(Rolling code can be design)

Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

Wiring type:fixed terminal

Output Terminal :NO , NC , COM

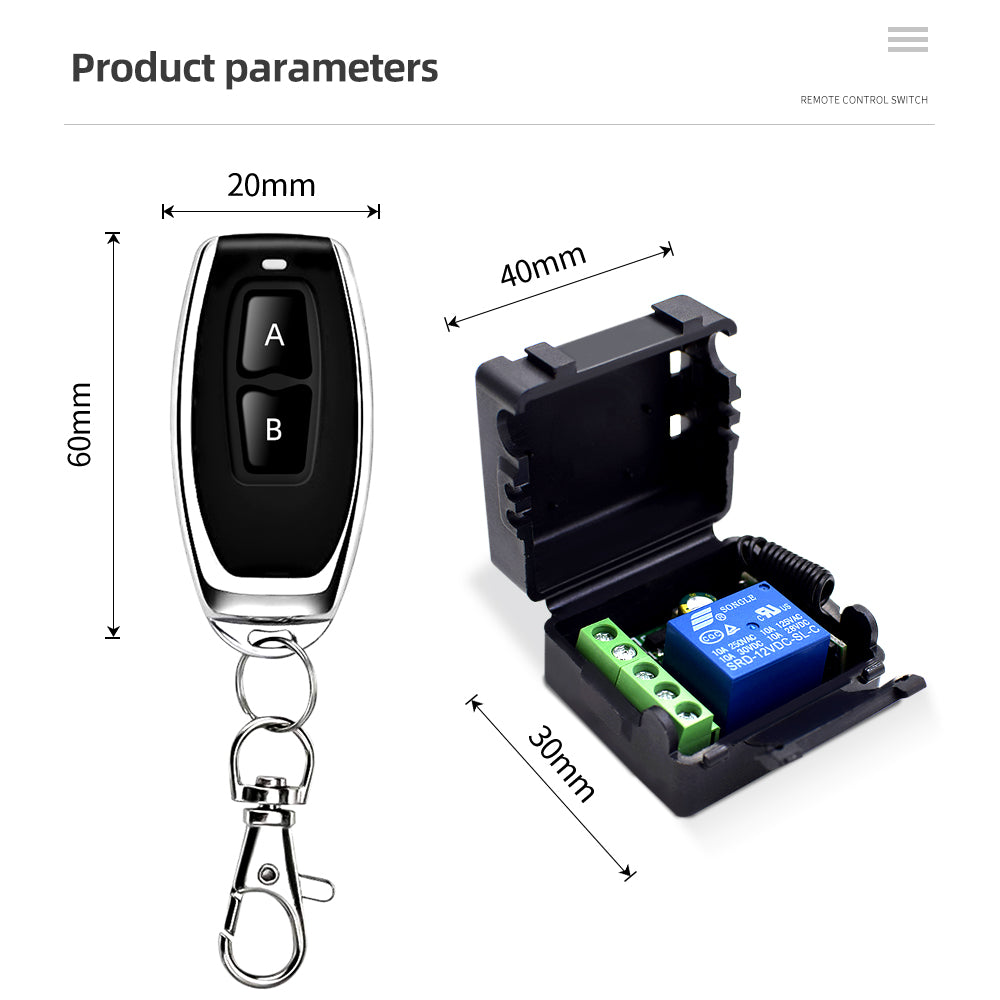

Dimension of PCB:35*30*18mm (L,W,H)

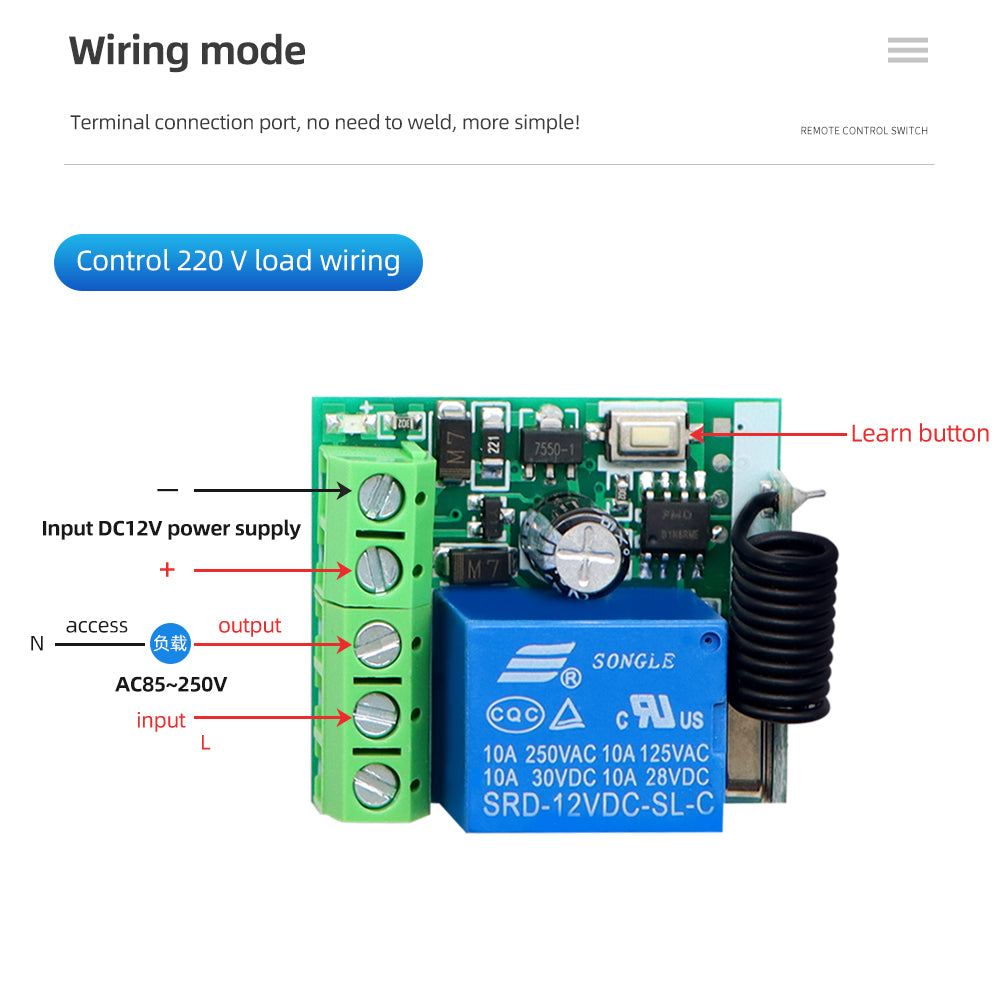

Wiring diagram 1:

+V : 12V + input ;

- V: 12V - input ;

NO: Output , normal open;

COM:Output , common ;

NC: Output , normal close.

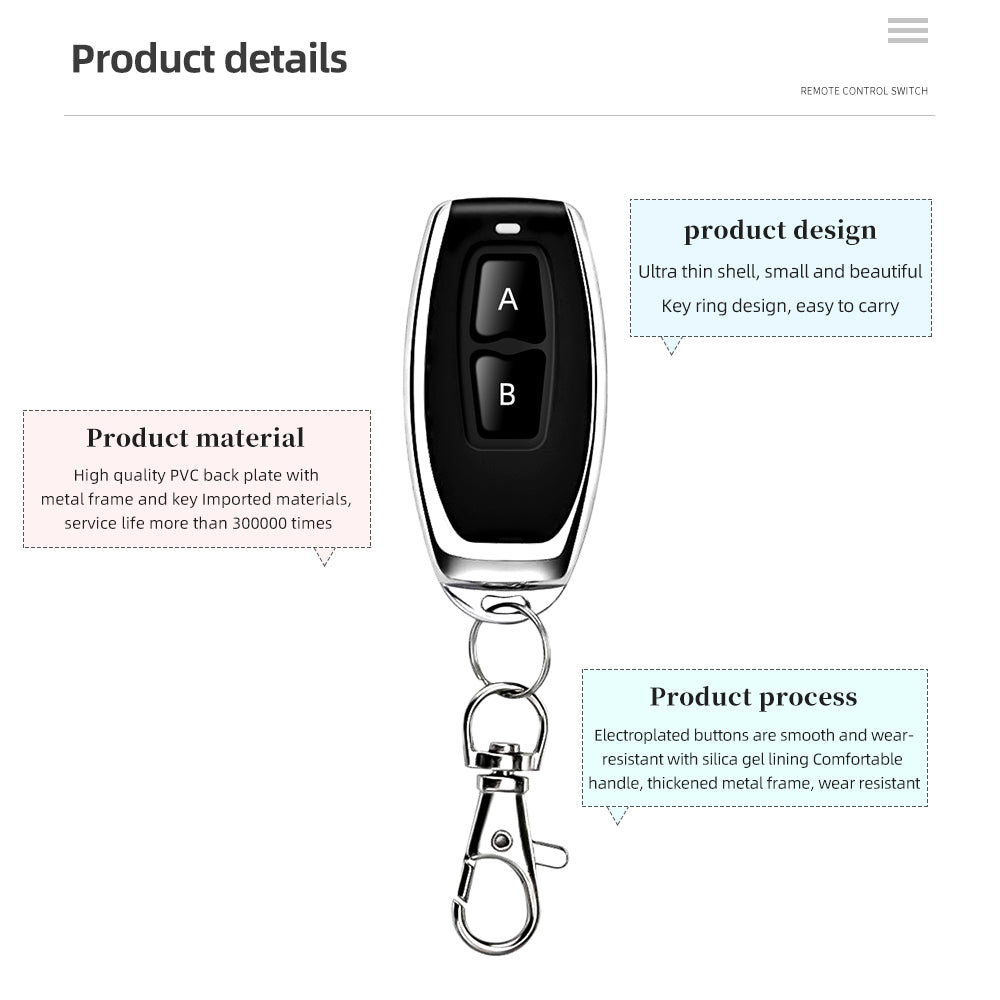

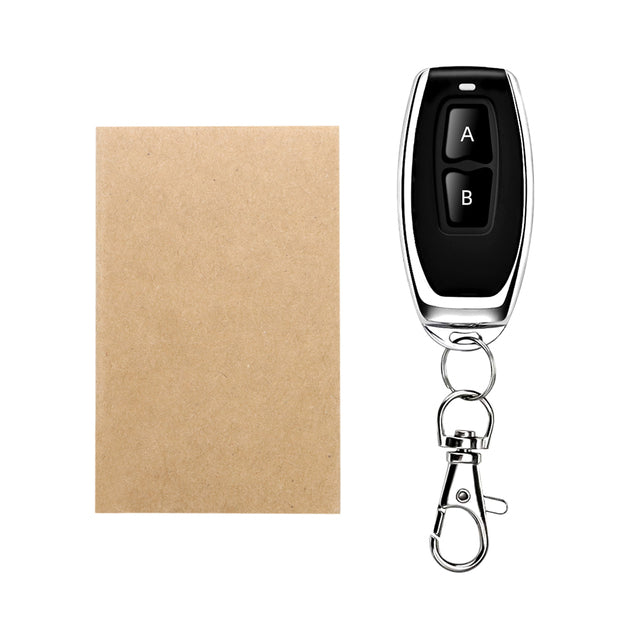

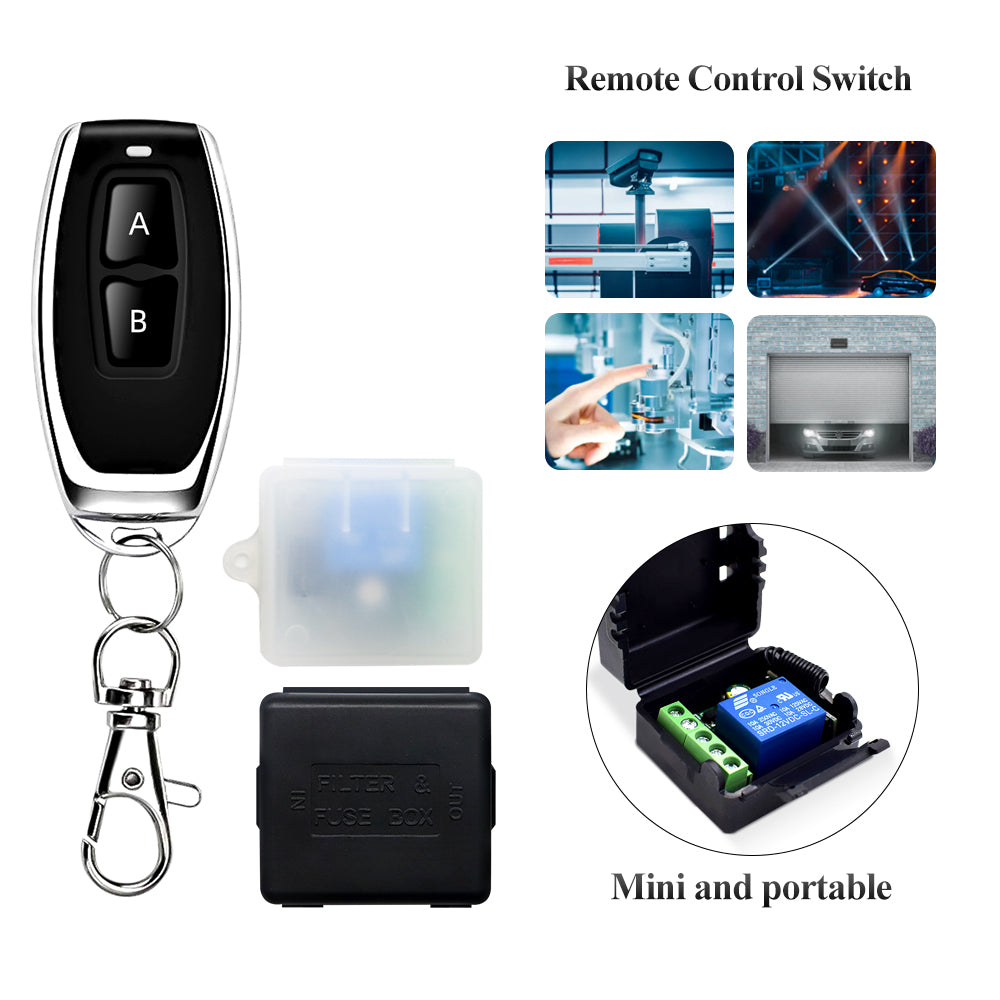

 Specifications Of The Remote Control:

 Operating frequency: 433.92MHz

 Power by 2pcs 3V Coin Cell Button Battery   (Battery  included ),

 Material: PVC.

 Button: 2 buttons

 Size:   59mm x 28mm x 8mm;

 Operating voltage: 6V ;

 Operating Current: 12mA

 Transmitting power: 10mw

 Modulation mode: ASK (AM).

 Encoding type: Learning.

 Transfers distance: 80m

Working mode:

1. Inching mode: press the remote control the relay will connect, and then release the remote controlto disconnect the relay;

2. Self-locking mode: press the remote control the relay will connect, and then press the remote control again to disconnect the relay;

3. Interlock mode: press the remote control key A to connect the relay, and press the remote control key B to disconnect relay.

4. Delay mode: press the remote control the relay will connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.

Learning Methods:

1. Inching learning method:

Press the code pairing button on the control panel once, and the LED indicator will flash once. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

2. Self-locking learning method:

Press the code pairing button on the control panel twice, and the LED indicator will flash twice. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

3. Mutual lock learning method:

Press the code pairing button on the control panel three times, and the LED indicator will flash three times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

4. 5S delay learning method:

Press the code pairing button on the control panel four times, and the LED indicator will flash four times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

5. 10S delay learning method:

Press the code pairing button on the control panel five times, and the LED indicator will flash five times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

6. 15S delay learning method:

Press the code pairing button on the control panel six times, and the LED indicator will flash six times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

Clearingmethod:

Press the code pairing button on the control panel eight times, then it will automatically clear all the learned remote controls.After clearing, the remote control previously learned can no longer be used.
