Features:
2.20.000 call groups.
3.250 text messages.
4.4000 channels (250CH/Zone, 16 Zone)
5. Built in GPS.
6. True 2 time slots allow for two call paths on one frequency.
7. Dual frequency, dual display, dual standby.
8. AMBE vacoder, with crystal clear sound quality.
9. With an ultra small size and a power output of up to 20W, it is easy to install on any device.
10. Customizable keys ensure quick and easy operation.
General
Product Code RT73
Frequency range UHF: 400-480MHz
Very high frequency: 136-174MHz
Number of channels 4000 (250 channels/area)
Channel spacing 12.5KHz/25KHZ
Standby current 160mA
Working temperature range -20 ℃~+50 ℃
Antenna impedance 50 Ω
Dimensions 121.5 * 65.5 * 42.5mm
Rated voltage DC-13.8V
transmitter
RF power 5-20W
Modulation limit ± 2.5dB@12.5kHz / ± 5.0dB@25kHz
FM buzz and noise -40dB@12.5kHz / -45dB@25kHz
Conducted/radiated emission -36dBm 1GHz/-30dBm 1GHz
Neighborhood selectivity -60dB@12.5kHz / -65dB@25kHz
Audio response+1~-3dB
Audio distortion of 3%
Emission current 3A
Recipient
Frequency stability+/-1.5ppm
Simulate sensitivity of 0.3 μ V/0.25 μ V
Digital sensitivity (5% BER) 0.25 μ V/0.2 μ V
Intermodulation 65dB
Neighborhood selectivity 60dB@12.5kHz / 65dB@25kHz
Stray suppression 65dB
Rated audio 500mw
FM buzzing sound -40dB@12.5kHz / -45dB@25kHz
Audio response+1~-3dB
Receiving current 350-460mA

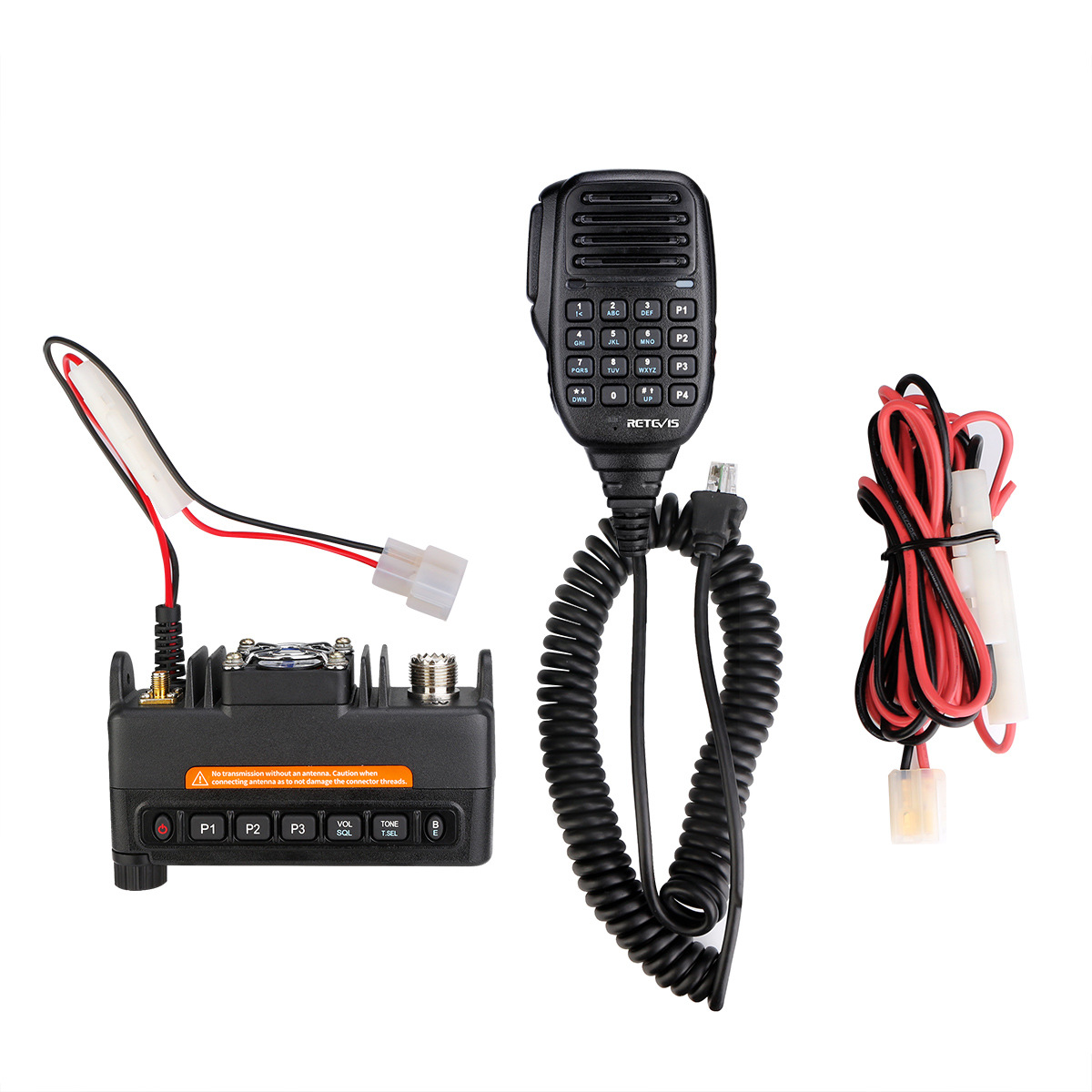

The package includes:
1 x Mini Mobile Radio

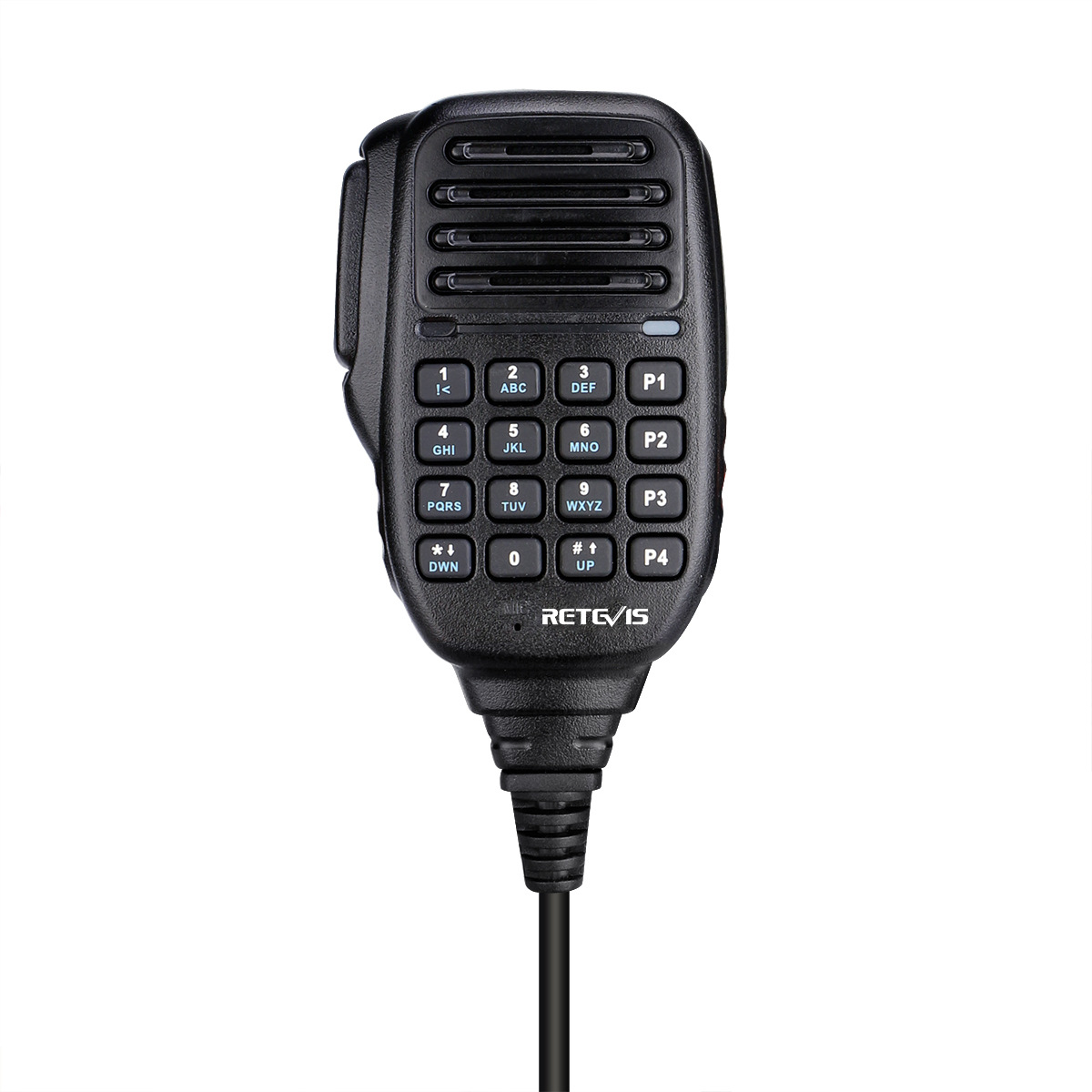

1 x Handheld microphone
1x GPS antenna
1x power cord
1x bracket
1x screw
1x Explanation
