Specifications:

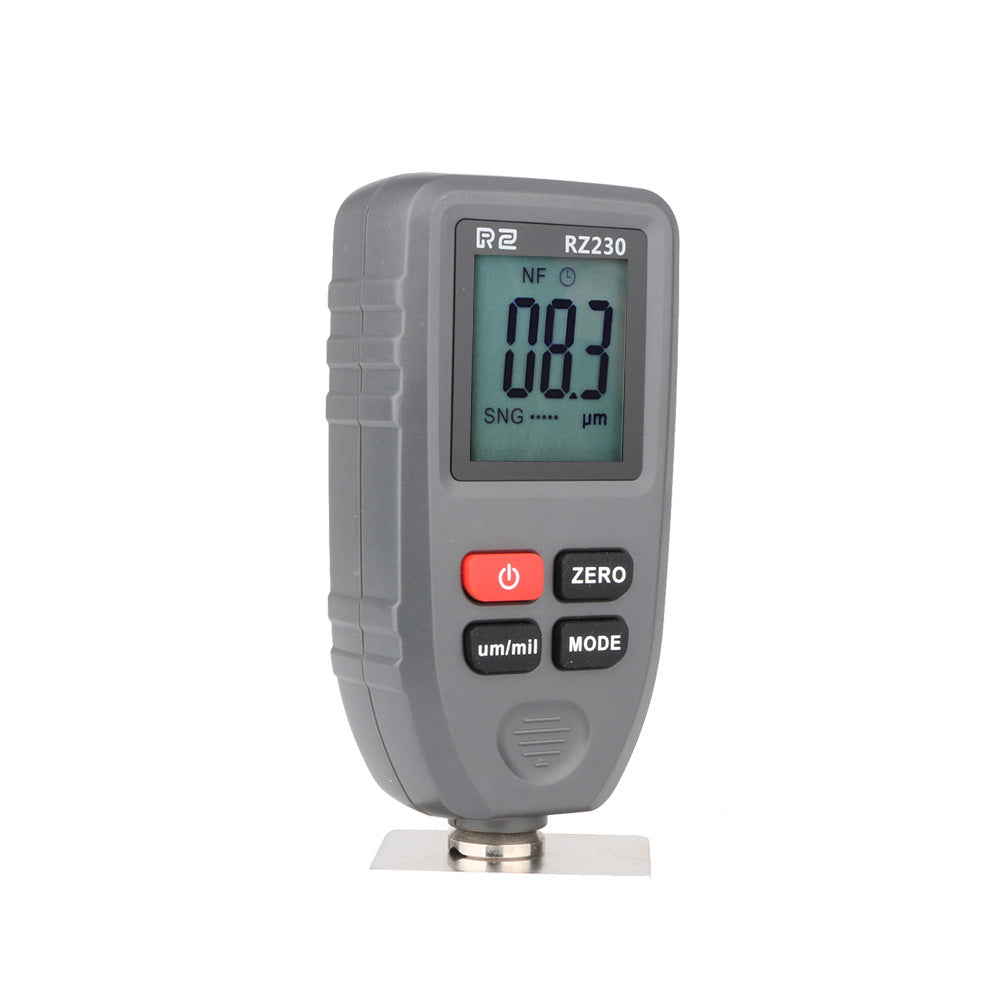

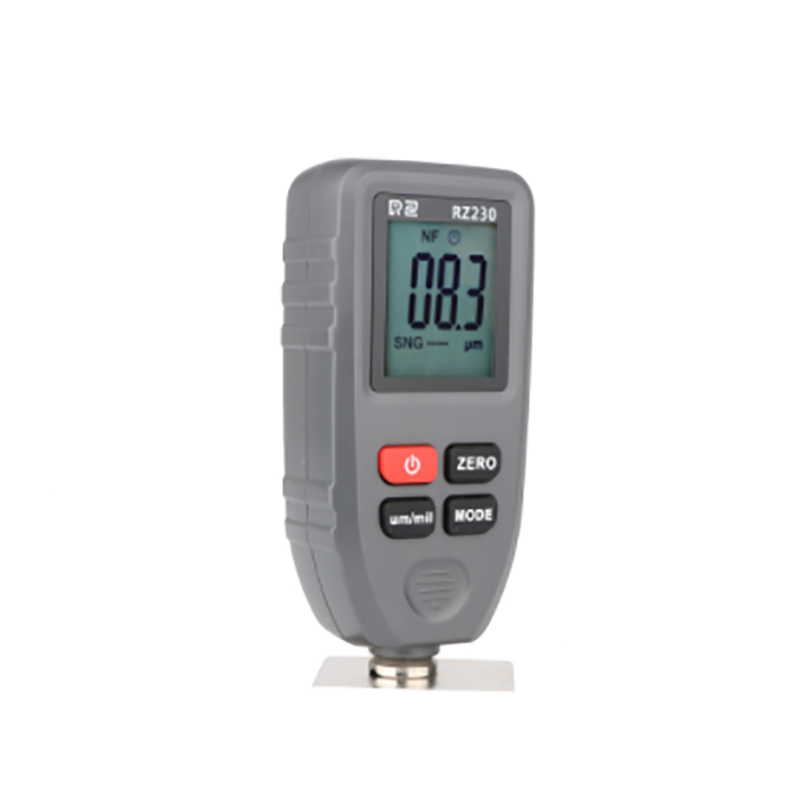

COATING THICKNESS GAUGE RZ230 (Ferrous & Non-Ferrous 2 in 1 )

Introductions:

The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.

Application Field:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Operating Principle:

Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.

F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.

N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.

Description：

1. Fe--Magnetic substrate indicator: Steel/Iron

2. NF--Non-magnetic substrate indicator: Copper/Aluminum

3. Auto power off flag, auto power-off in 15 minutes with no-operation

4. Low battery indicator

5. Measured Reading Display

6. SNG: Single Measurement Mode

7. CON: Continuous Measurement Mode

8. Unit: um, mil

9. ON/OFF

10.um/mil: Unit Switch Key,System Resetting Key( Press and Hold More than 3s )

11. ZERO: Clearing Display when SNG shows;

Using for calibration when CON shows.

12. MODE: Switch SNG/CON; SNG shows, Single-point Mode; CON shows, Continuous Mode

13. Anti-Skid Slot

14. Probe

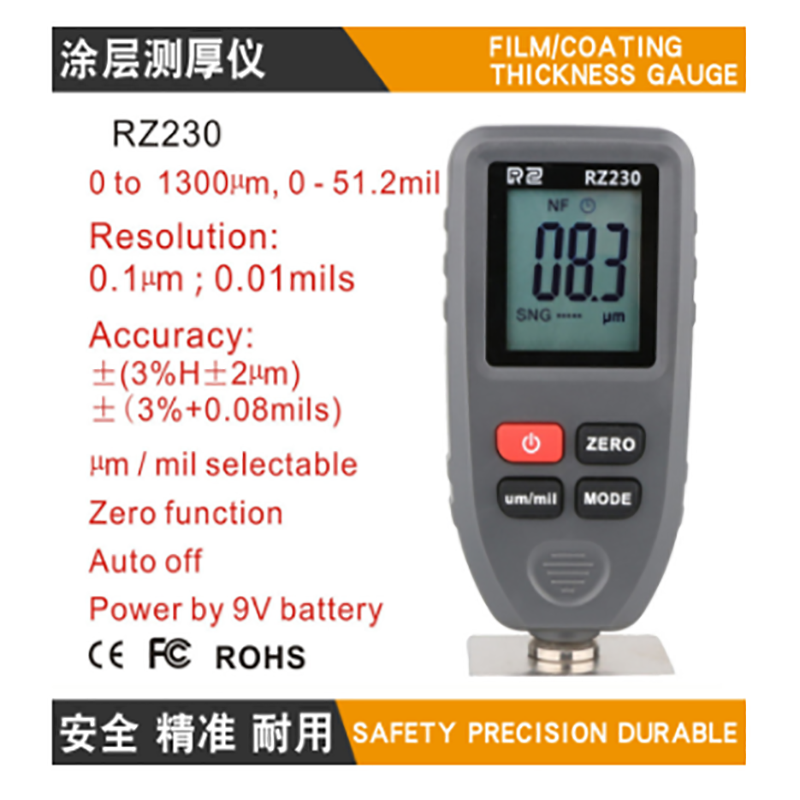

Technical specifications

   Probe F

   Probe N

       Principle

   Magnetic Induction

   Eddy Current

       Range

   0~1300um

0~51.2mil

   0~1300um

0~51.2mil

       Accuracy

   ±(3%+2um)

±(3%+0.08mil)

   ±(3%+2um)

±(3%+0.08mil)

       Resolution

   0.1um/0.01mil

   0.1um/0.01mil

       Calibration

   Points: ZERO/50/100/250/500/1000um

       Units

   um, mil

       minimum curvature radius convex: 1.5mm

       minimum curvature radius concave: 25mm

       minimum measuring area: Diameter 6mm

       minimum thickness of substrate

   0.5mm(0.02”)

   0.3mm(0.012”)

       Power

   One 9V battery

       OperationEnvironment

   Temperature:0~40℃(32~104℉) Humidity:20%~90%RH

       Size

   124mm x 62mm x 32mm

(4.88” x 2.44” x 1.26”)

       Weight

   100g(3.53oz)

One unit packing size & weight: 20*9.5*6.5 / 318g

薄膜 /涂层测厚仪 RZ230 (铁基及非铁基两用）

产品概述:

本测厚仪用于测量金属表面电镀层或涂层的厚度，具体可测量钢/铁等磁性材料表面的非磁性涂镀层厚度（如铬/油漆/陶瓷等），也可测量铜/铝等非磁性材料表面的涂层厚度（如油漆等）。本仪表内置精密探头，通过电磁感应和涡流效应自动检测基材属性并探测涂镀层厚度。

应用领域:

本仪器可以无
