The Zyxel NR5103E has 5G NR DL speeds of up to 4.7 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*. The wide spectrum bandwidth
accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. With the high-speed
5G NR service you are able to fulfill the worldwide market requirements of mobile broadband access services.
WiFi 6 (11ax) technology for superior performance and coverage
Compliant with the latest WiFi 6 (802.11ax) standard, the Zyxel NR5103E offers speeds of up to 1.8 Gbps with 2x2 UL/DL MU-MIMO.
The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the NR5103E to
deliver premium speed for multi-streaming data access and optimal WiFi experience without dead zones.
Strengthen your competitive edge with Fixed Wireless Access (FWA)
Deploying NR5103E as part of FWA allows you to extend your 5G service coverage into subscribers’ homes and workplaces without
extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with
a premium fiber-grade connection.
Remote management and upgrade
Through the 5G/LTE radio interface, the NR5103E supports TR-069, remote GUI, and FTP to be fully configurable. Firmware
Over-The-Air (FOTA) support enables remote firmware upgrades and troubleshooting through events triggered by the operators.
The NR5103E comes with an IEEE 802.3af/at Power over Ethernet (PoE) and a subscriber app – Zyxel Air. The intuitive user interface
of Zyxel Air provides the necessary assistance from device setup to routine management. You can minimize service calls during the
installation process while enhancing a satisfying user experience.
* Product type: Zyxel 5G WiFi Router
* Compatible with 4G LTE FDD and TDD Category 19 Frequencies, B1/B3/B5/B7/B8/B20/B28/B32/B38/B40 /B41/B42. DL 4*4 MIMO
B1/B3/B7/B38/B40/B41/B42. Speed up to 1.6 Gbps download, and 200 mbps upload. Modulation 16-QAM, 64-QAM and 256-QAM
* Compatible with 5G NR Release 15 frequencies, NSA and SA mode, Sub+6 DL 2xCA (TDD/FDD): FDD n1, n3, n5, n7, n8, n20, n28; TDD n38, n40, n41, n77, n78. DL 4x4 MIMO FDD n1, n3, n5, n7; TDD n38, n40, n41, n77, n78. 5G SA throughput up to 4.67 Gbps download and 2.5 Gbps upload. 5G NSA throughput up to 3.74 Gbps in dl and 1.46 Gbps in up. Modulation supported 16-QAM, 64-QAM, 256-QAM
* WiFI 6 802.11 b/g/n/a/ac/ax, Speed up to 1.2 Gbps for the 2.4Ghz band, and 2.4 Gbps for the 5Ghz frequency (variable according to the environment). WiFi antenna gain: 3 dBi for 2.4Ghz, 5 dBi for 5Ghz. WiFi Features: Auto Channel Selection, WPS, WMM, 64 Connected Devices, WiFi Security WPA2, WPA2+WPA3, WPA3, Mac Address Filtering, Multiple SSIDS/ Hidden SSIDS, WiFi Scheduling.
* 4 female TS9 connectors on the back for connecting an external antenna, 4 integrated omnidirectional antennas up to 5 dBi gain.

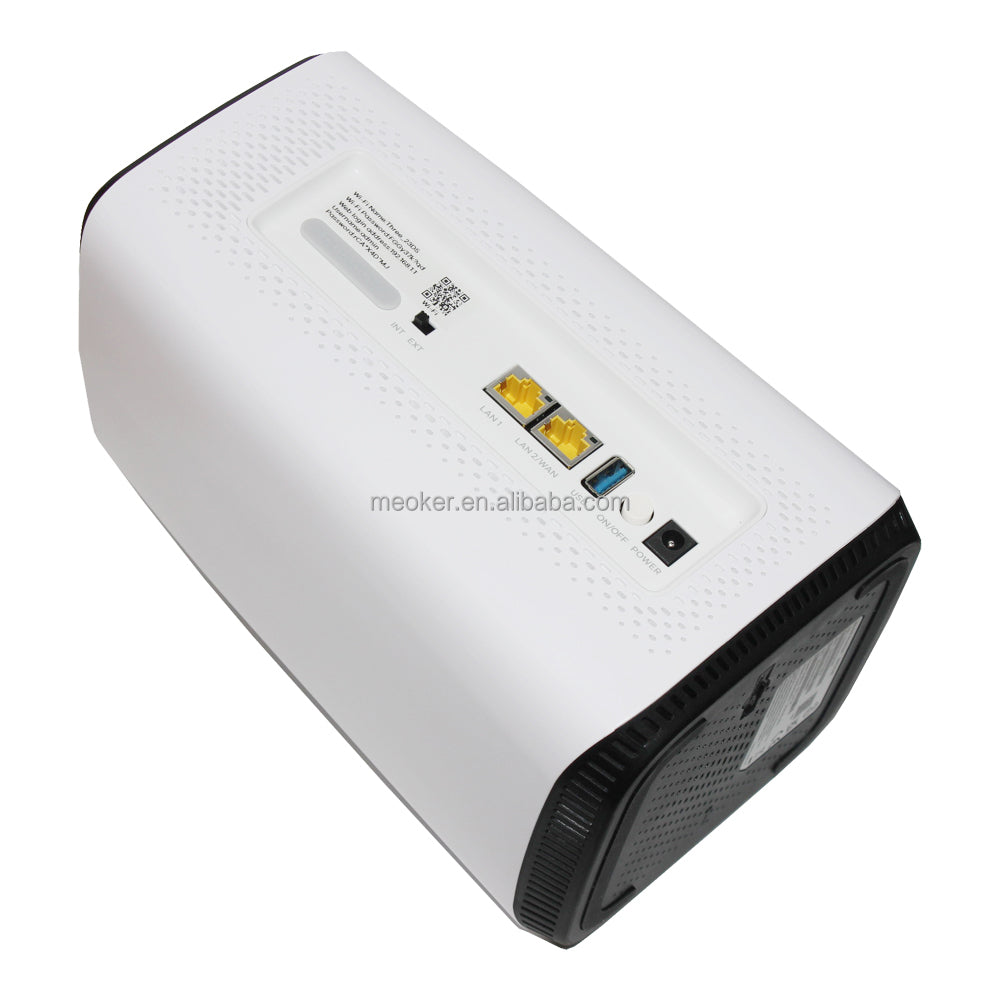

* 2100/1000/2500 mbps Ethernet ports, including a LAN/WAN port.
* LED indicators: Power, SMS status, signal strength, Internet connection status, WiFi AP status, WPS
* Slot for microSIM sim card (3FF), power on/off button, WPS/WiFi on/off button, RESET button, Int/Ext switch to select internal
4G/5G antenna mode or external antenna mode via TS9 4G/5G, one USB 3.0 port.
* Network Features: Supports dual stack IPv4/IPv6 (NDP IPv6), DHCP Server, VPN Pass-through, NAT/NAPT, DMZ, Multiple APNS, Port
forwarding, ALG, Gateway and Router mode, Dynamic DNS for the first APN, Remote management under Bridge mode.
* Consumption up to 48 watt
* Dimensions (mm): 132.5 x 134 x 230
* Box dimensions (mm): 250 x 200 x 140
* Product weight: 1 kg, total weight with packaging: 1.5 kg
* Operating temperature: 0°C to 40°C
* Operating humidity environment: 10% to 90% RH
* Storage temperature: -30°C to 70°C, humidity: 5% to 95%
* Certification: CE/WEEE/RoHS,HSF

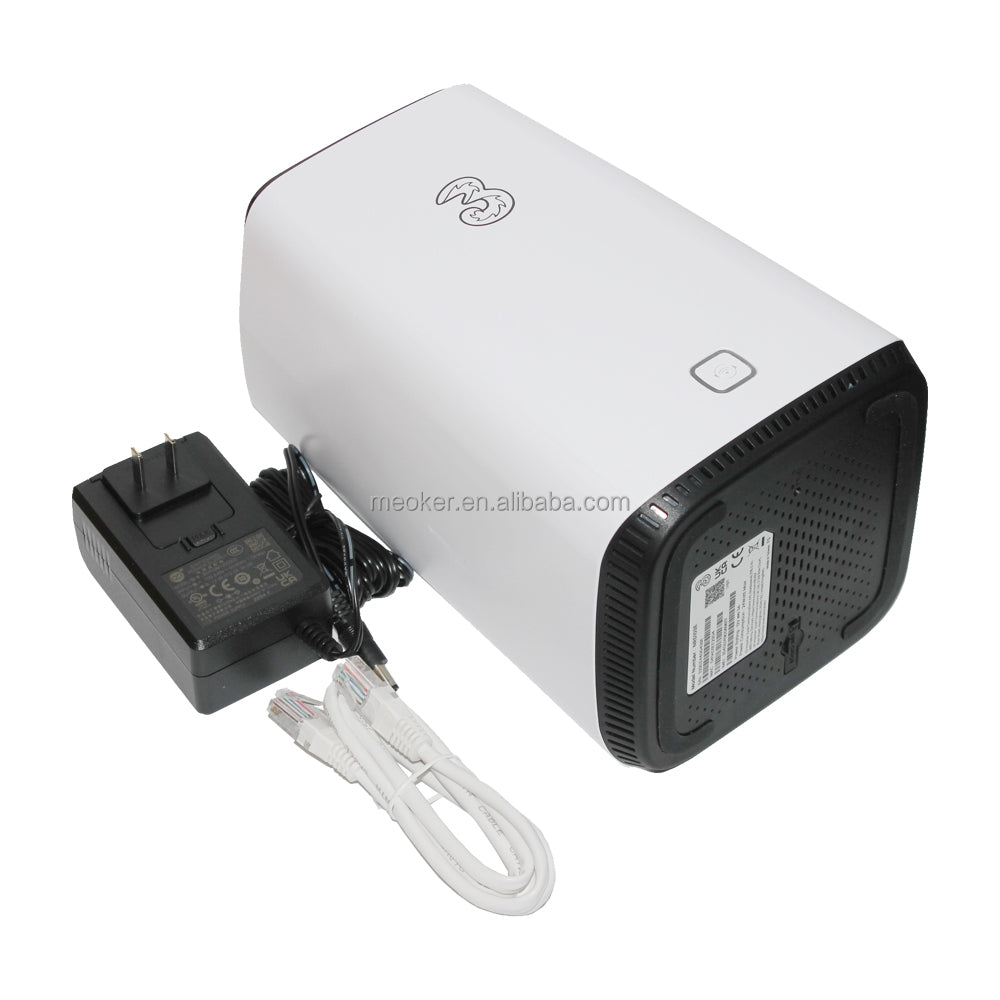

* Package Contents:
- 1 x NR5103E-EU
- EU/UK Mains ChargerA
- 1.8m 8P8C Ethernet Cable
- Quick Start Guide, Warranty
|
Item
|
5G CPE Wireless Router
|
|
Private Model
|
Yes
|
|
Products Status
|
Stock
|
|
Style
|
External
|
|
Type
|
5G CPE Wireless Router
|
|
Interface Type
|
2.4Ghz And 5Ghz Dual Band
|
|
Transmission Rate
|
Up To 2500Mbps And 64 Simultaneously
|
|
Brand Name
|
Zyxel
|
|
Model Number
|
Zyxel NR5103E
|
|
Place Of Origin
|
China
|
|
5G Baseband
|
Qualcom SDX55
|
|
Speed
|
4.67Gbps
|
|
5G Network Modes
|
5G NR
|
|
5G NR FDD
|
N1, N3, N7, N8, N20, N28
|
|
5G NR TDD
|
N38, N40, N41, N77, N78
|
|
Function
|
Data Transmission
|
|
Protocol
|
IEEE802.11n/b/g/a/ac/ax
|
|
Weight
|
About 2.0KG
|
|
OS
|
|
|
Application
|
HOME,SOHO
|
|
Package Contents
|
1 x EU Standard Mains Charger, 1 x NR5103E
|
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
