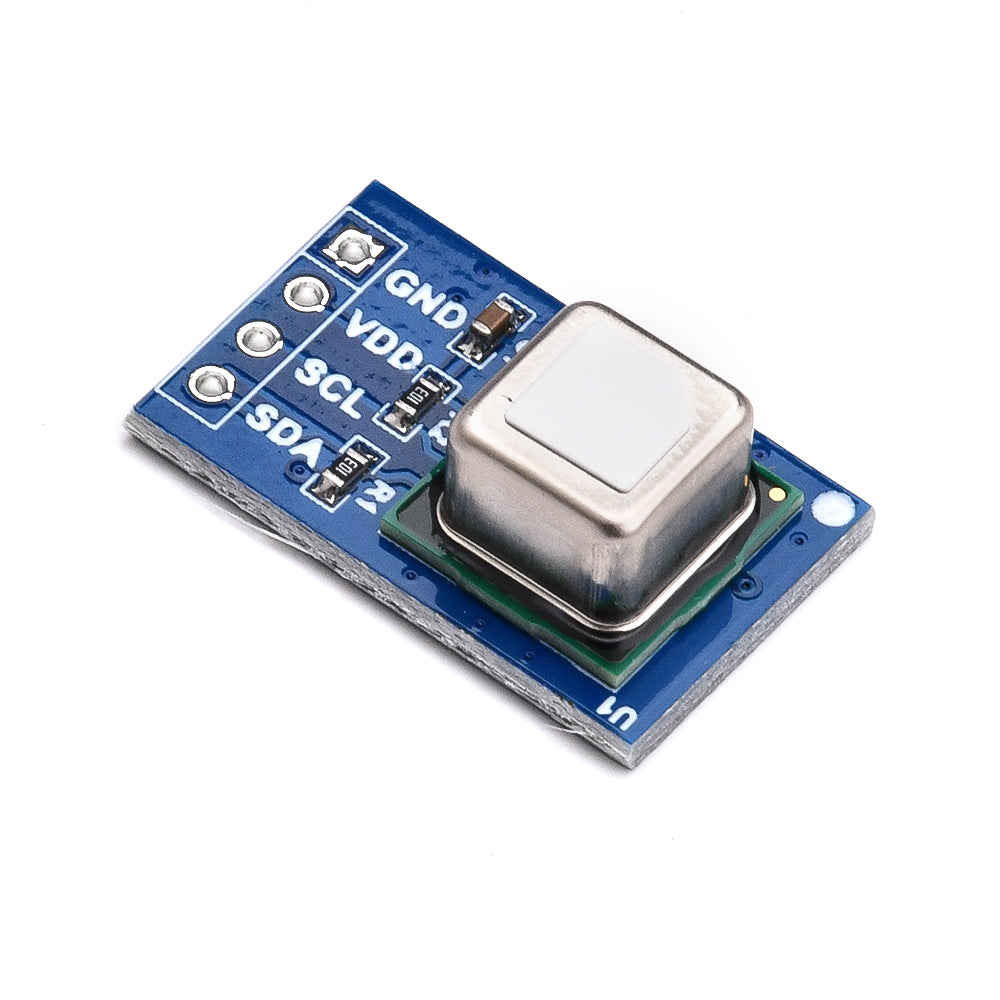

SCD40/SCD41 Gas Sensor Module Detects CO2, Carbon Dioxide, Temperature and Humidity In One Sensor I2C Communication
Features:
1. With pin header
2. Using high-quality materials, the quality is guaranteed
3. High precision
4. Two-in-one temperature and humidity
5. The appearance of the product is exquisite and small
Description:
Carbon dioxide is a key indicator of indoor air quality that damages human cognitive ability and happiness. SCD40/SCD41 is Sensirion's next-generation miniature carbon dioxide sensor. SCD40/SCD41 has high precision and high cost performance. The module is powered by a 2.54mm pitch pin header interface. The on-chip temperature and humidity compensation is realized by the built-in temperature and humidity sensor to achieve humidity and temperature measurement. The SCD40/SCD41 can intelligently adjust the indoor ventilation system according to the carbon dioxide concentration. The indoor air quality helps to reduce the carbon dioxide concentration for a period of time. Maintain a healthy, productive environment.
Specifications:
Supply voltage range: 2.4–5.5 V
Digital I2C interface
Integrated temperature and humidity sensor
low power operation to
SCD40:
COz measurement accuracy: ±(50 ppm +5% MV)
Measurement range: 400 - 2000 ppm
Accuracy: ±50 ppm
Relative humidity measurement range: 0 - 95 %RH
Typical relative humidity accuracy: 6 %RH
SCD41:
COz measurement accuracy: ±(40 ppm +5% MV)
Measurement range: 400-5000 ppm (low power)
Accuracy: ±40ppm
Relative humidity measurement range: 0 - 95 %RH
Typical relative humidity accuracy: 6 %RH

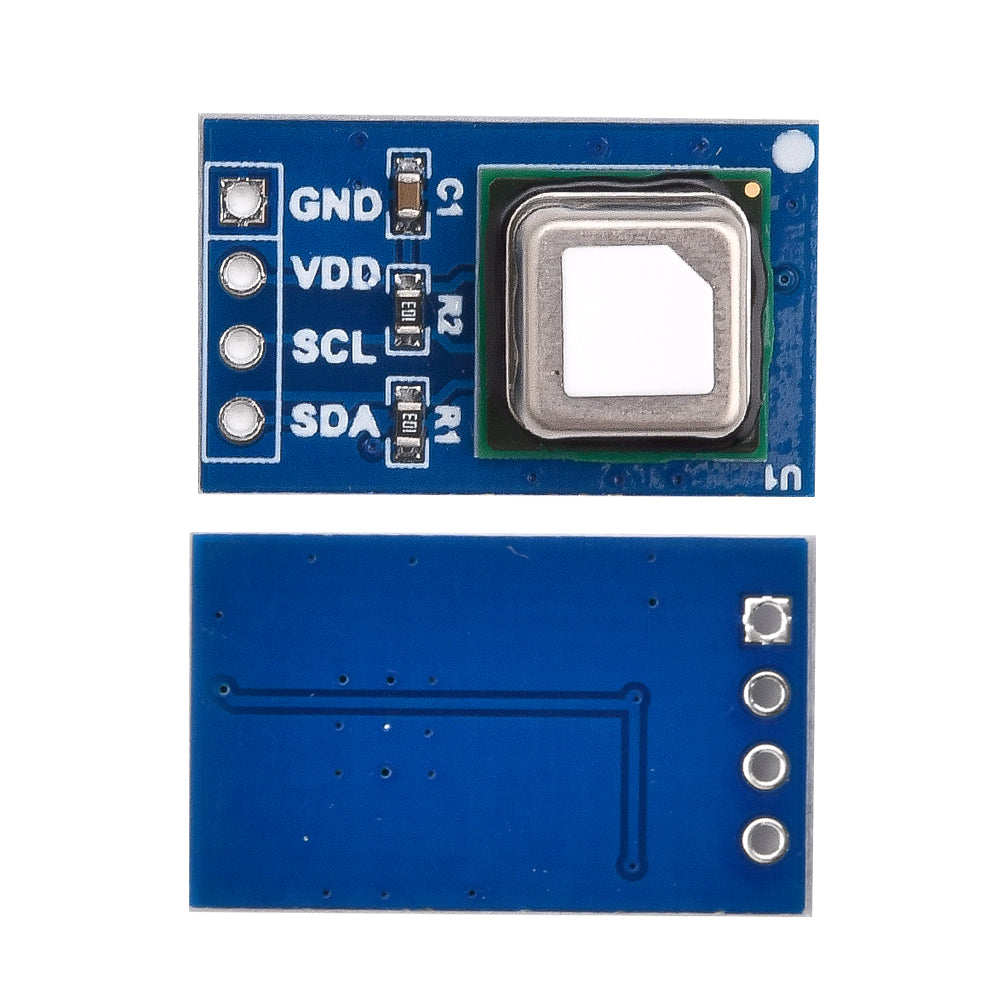

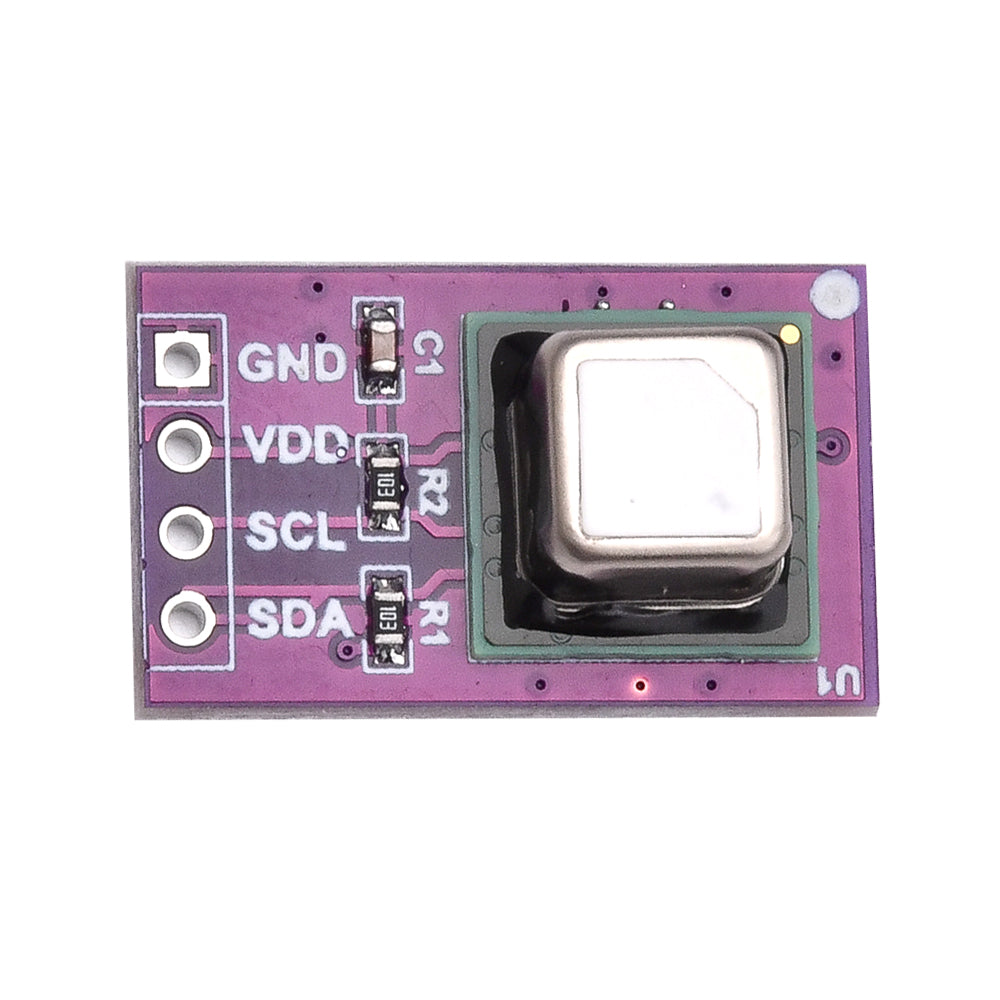

Interface Definition:
1.GND: negative power input port
2.VDD: Positive input port of power supply
3. SCL: I2C clock port
4. SDA: I2C data port

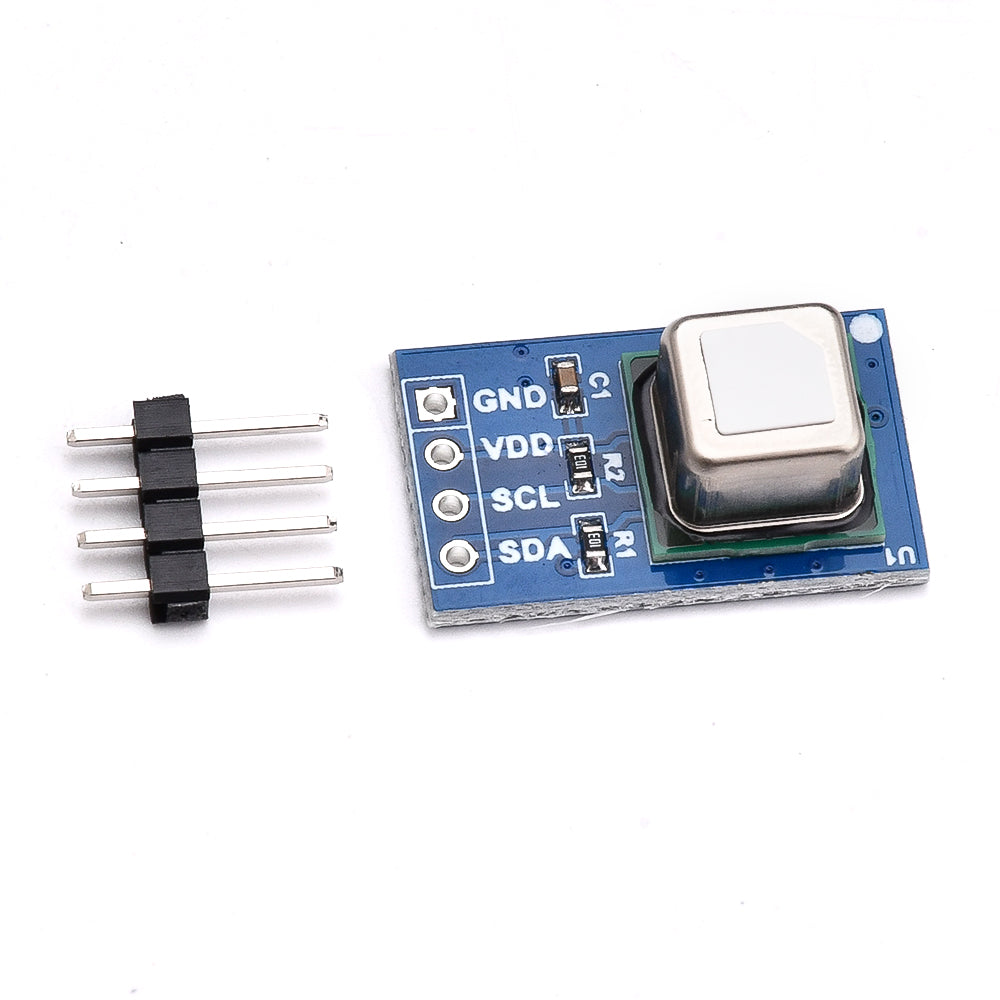

Package Included:
module X
Pin header X1
