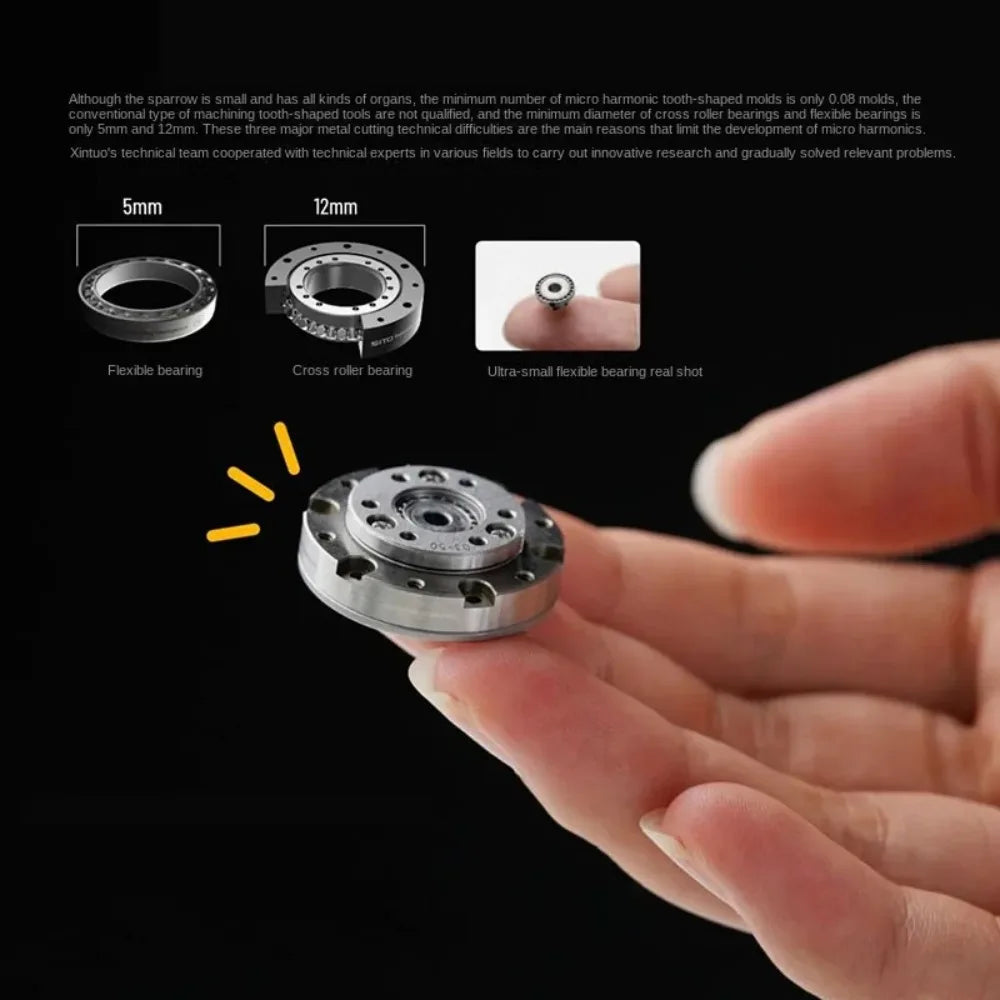

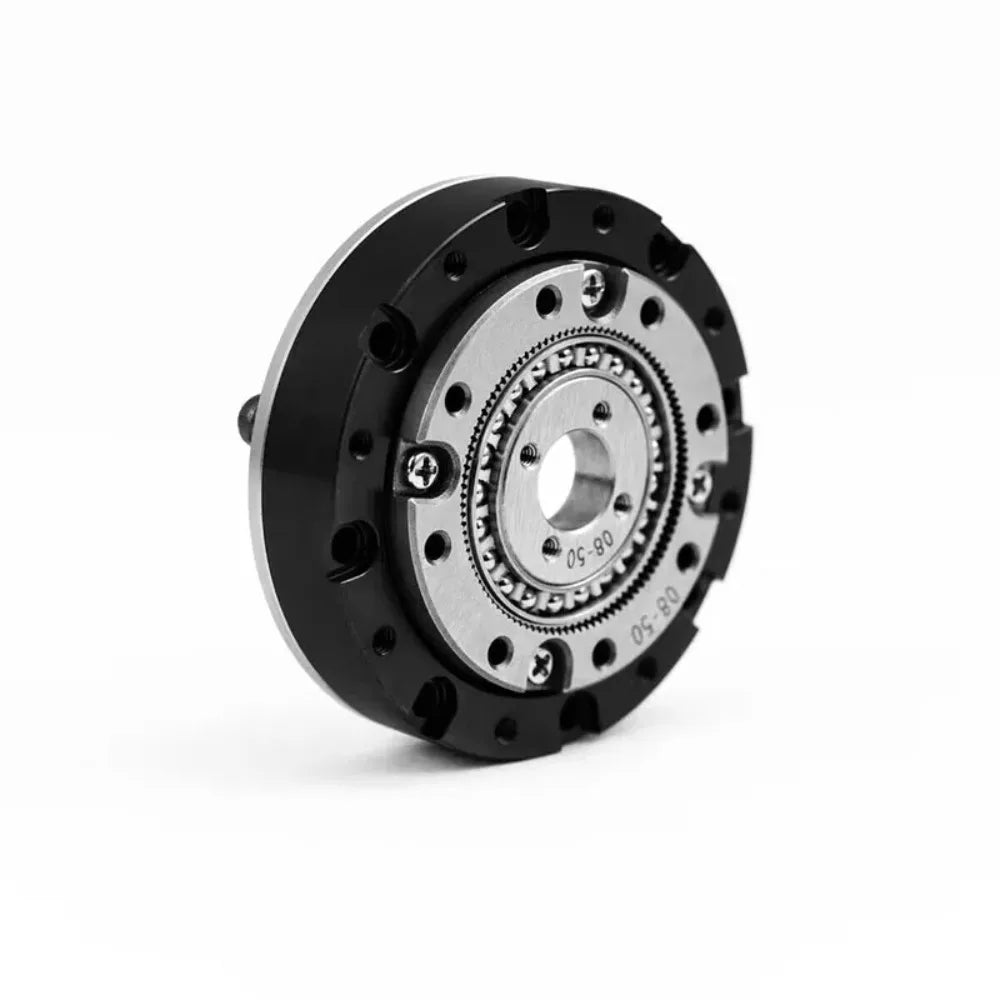

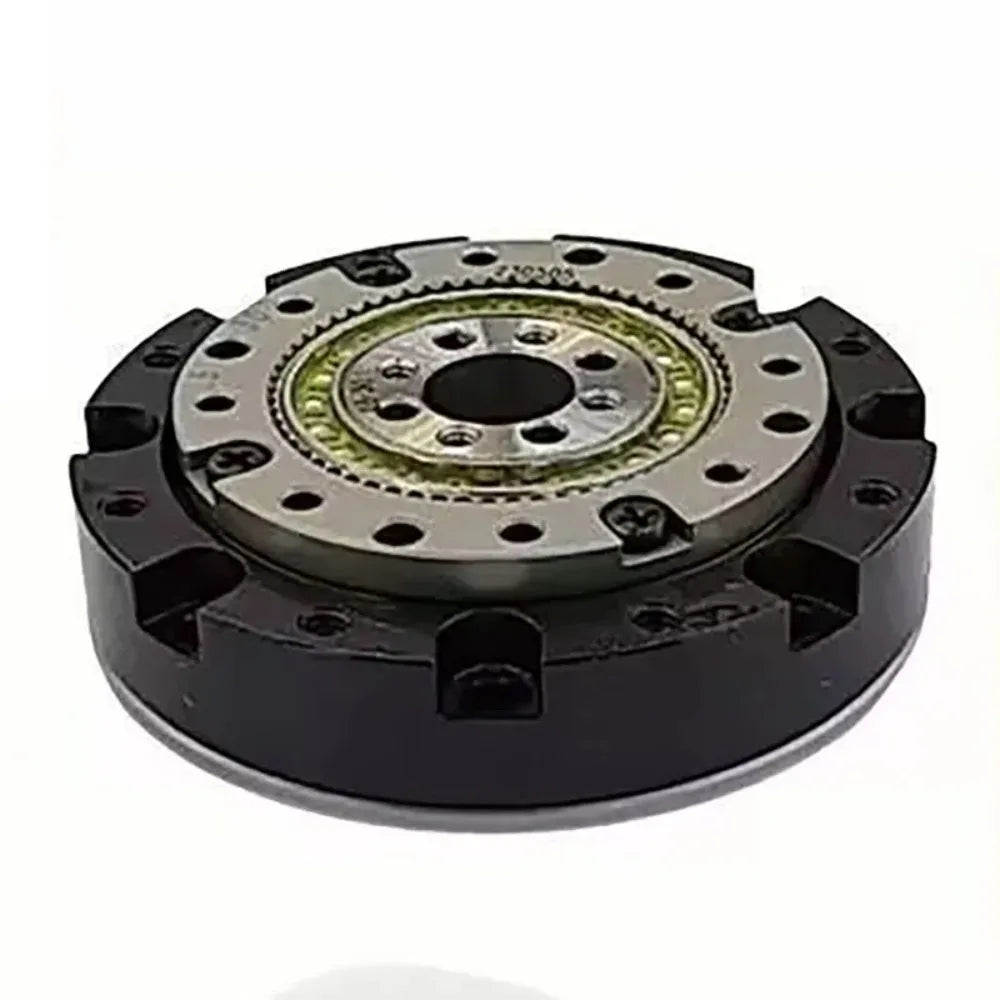

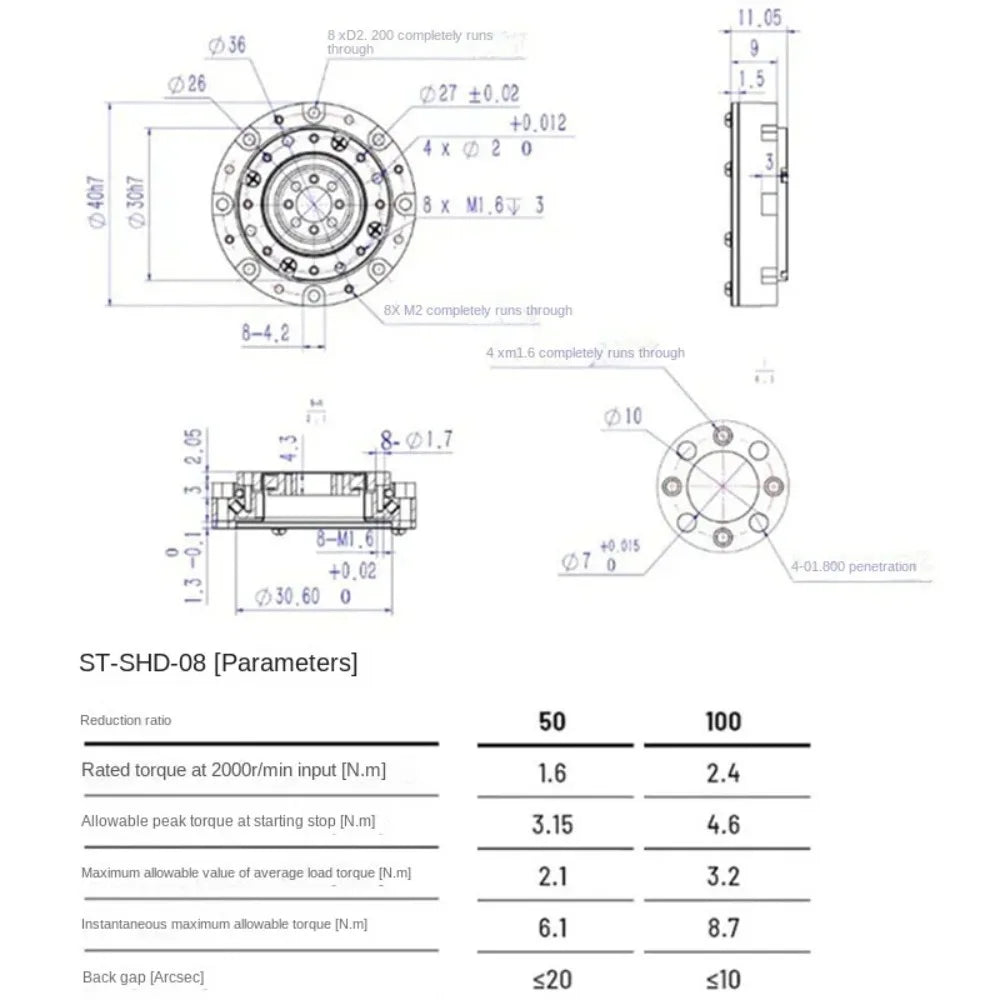

Name: Harmonic reducer
Diameter: 40mm
Thickness: 11.5mm
Weight: 0.061-0.06kg
Reduction ratio: 30, 50, 80, 100
Rated torque when inputting 2000r/min: 1.6N.m, 2.4N.m
Allowable peak torque when starting and stopping: 3.15N.m, 4.6N.m
Allowable maximum average load torque: 2.1N.m, 3.2N.m
Instantaneous maximum allowable torque: 6.1N.m, 8.7N.m
Maximum allowed input speed: 8500r/min
Allowable average input speed: 3500r/min
Gap (arc seconds): ≤20≤10
Moment of inertia (1/4GD) (kgcm2): 3.2x10-3, 3.0x10-3
