SKX-6000D/SKX-6000E defibrillation simulator is a signal simulation tool specially developed by Xuzhou Mingsheng Company for measuring the detection of . Because it can generate different abnormal waveforms, it can be widely used in various Models of and AED are used for daily maintenance and testing.

The difference between SKX-6000D/SKX-6000E:

SKX-6000D cannot detect defibrillation energy value

SKX-6000E can detect the released energy value of defibrillation/AED, the detection range is 50J-200J

The features of SKX-6000D/E are as follows:

Built-in 18650 large-capacity lithium battery, power management module to ensure stable power supply and low interference during use

Output. Optional standard micro usb universal interface power charger.

2. sing menu-style operation, parameter changes are simple, convenient and fast, and convenient for users to set.

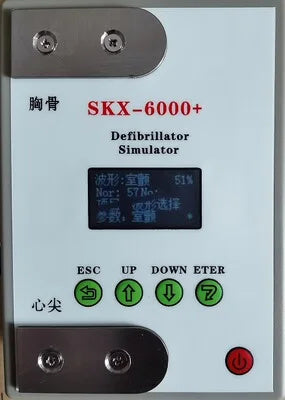

3. OLED display is used to display the contents of the menu.

4. Simple button operation, menu management, easy to use.

5. Built-in Chinese and English waveform setting instructions, easy to understand waveform settings and parameter selection.

Quick operation guide:

1. The simulator often presses the power button for two seconds, the simulator is turned on, you can view the help, and you can directly enter the interface by selecting the return key (ESC);

2. The simulator is set to the automatic conversion mode of normal and abnormal waveforms by default. When the duration of the normal waveform is over, it is automatically converted to the abnormal waveform, and the normal waveform is automatically converted after the duration of the abnormal waveform is over;

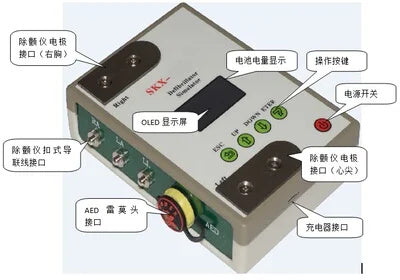

3. When the simulator is working, thecan be connected to the simulator's stainless steel electrodes through the defibrillation electrodes, and can collect simulated ECG waveforms and defibrillate the simulator. The simulator receives the defibrillation energy released by the After that, it is automatically converted to a normal waveform, and it is displayed as 1 in the status bar at No:; it means that a defibrillation energy is received; Nor: the normal waveform countdown starts.

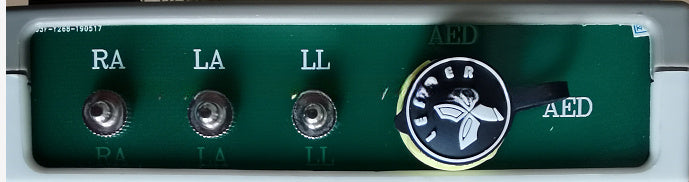

4. The AED can be pasted to the stainless steel contact sheet through the electrode pads for defibrillation discharge, the process is the same as that of 3; it can also be connected through the AED Remo head interface on the side wall of the simulator, using the wire connection of the disposable electrode pads. The AED and the simulator carry out the working process of process 3. The obsolete disposable electrode sheet can be cut and welded to the Remo plug, which can be used as an adapter cable between the AED and the simulator.
