Features:

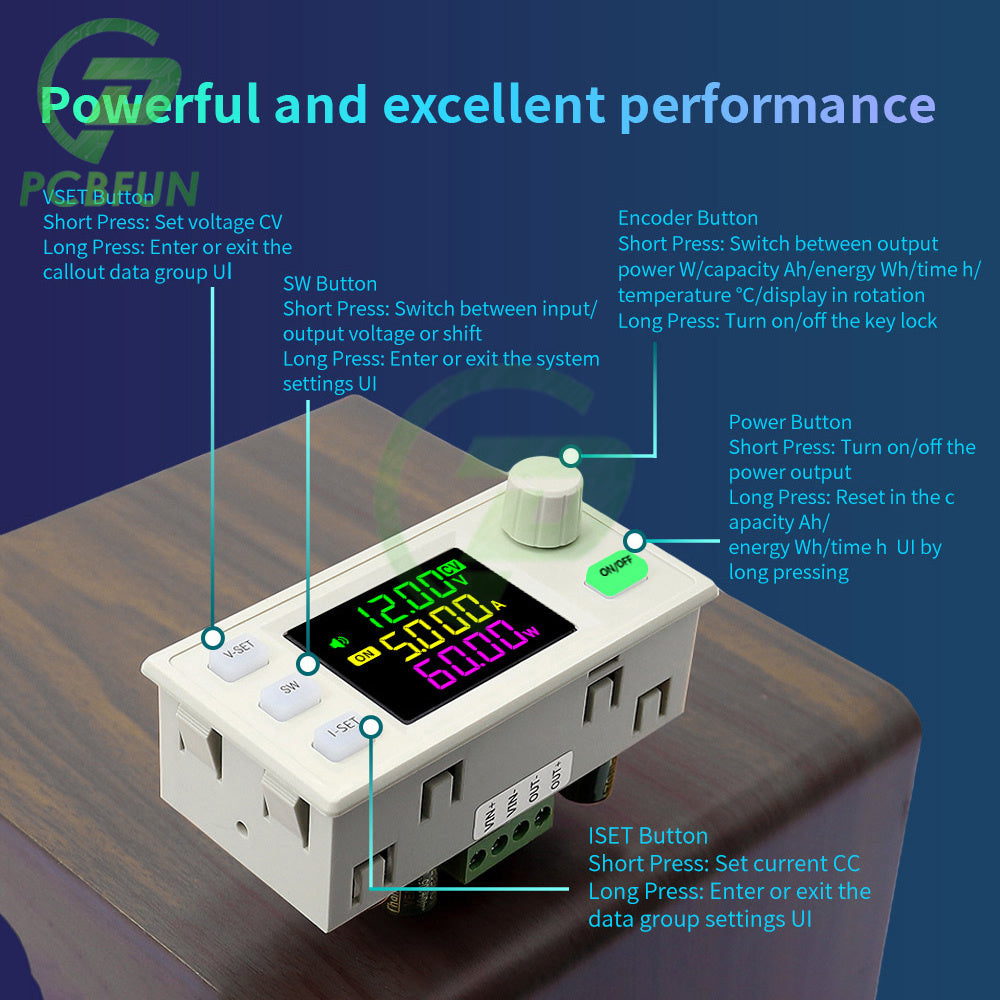

1.X series products use silicone buttons, feel comfortable, each button with cool indicator light
2.LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!
3. The display board adopts immersed gold design, anti-oxidation, better conductivity, more durable! The use of one-piece injection molding shell, flame-retardant material is safer! Double-layer buckle design, double-layer circuit board fixed more firmly!

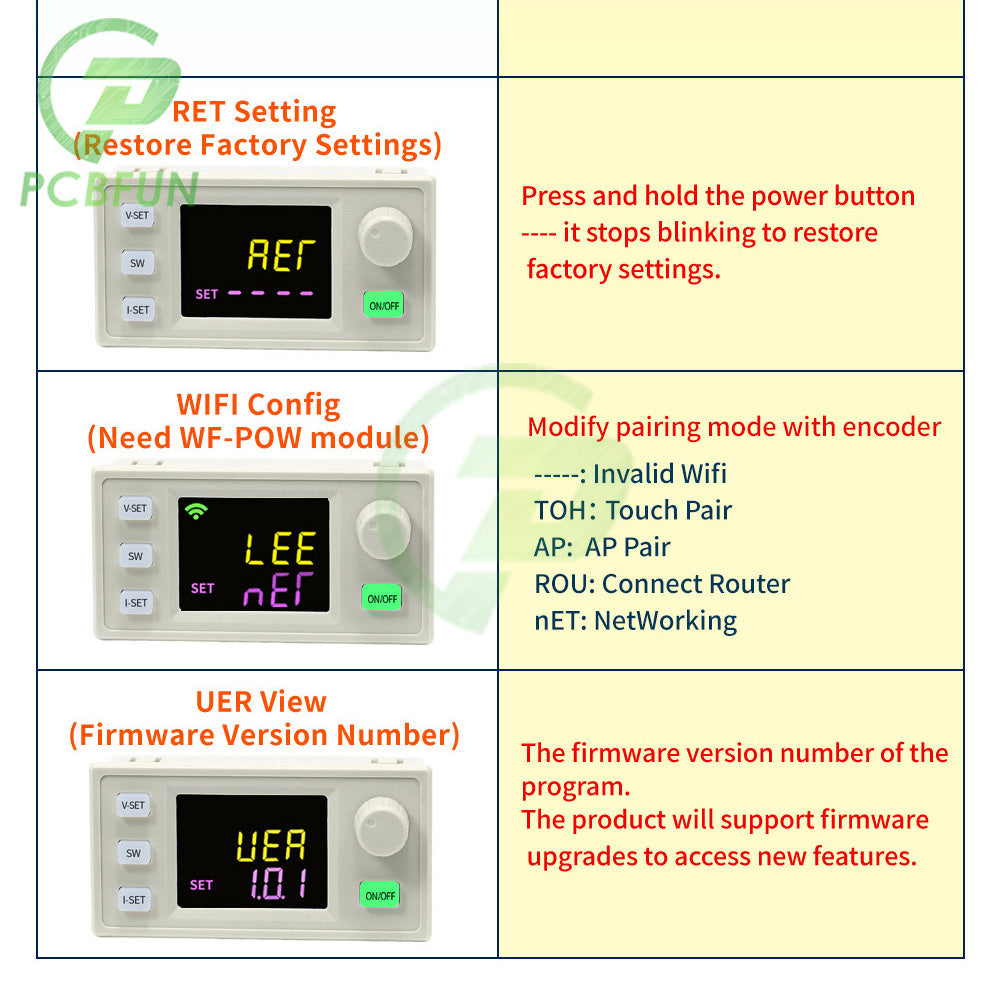

4.The product supports serial communication standard Modbus protocol, support for firmware upgrade, support for MPPT solar charging, full-featured!
5.The product adopts high-precision external clock crystal to ensure the accuracy of time, capacity/energy statistics more accurate, 48-pin powerful MCU controller, 64M frequency computing speed faster!

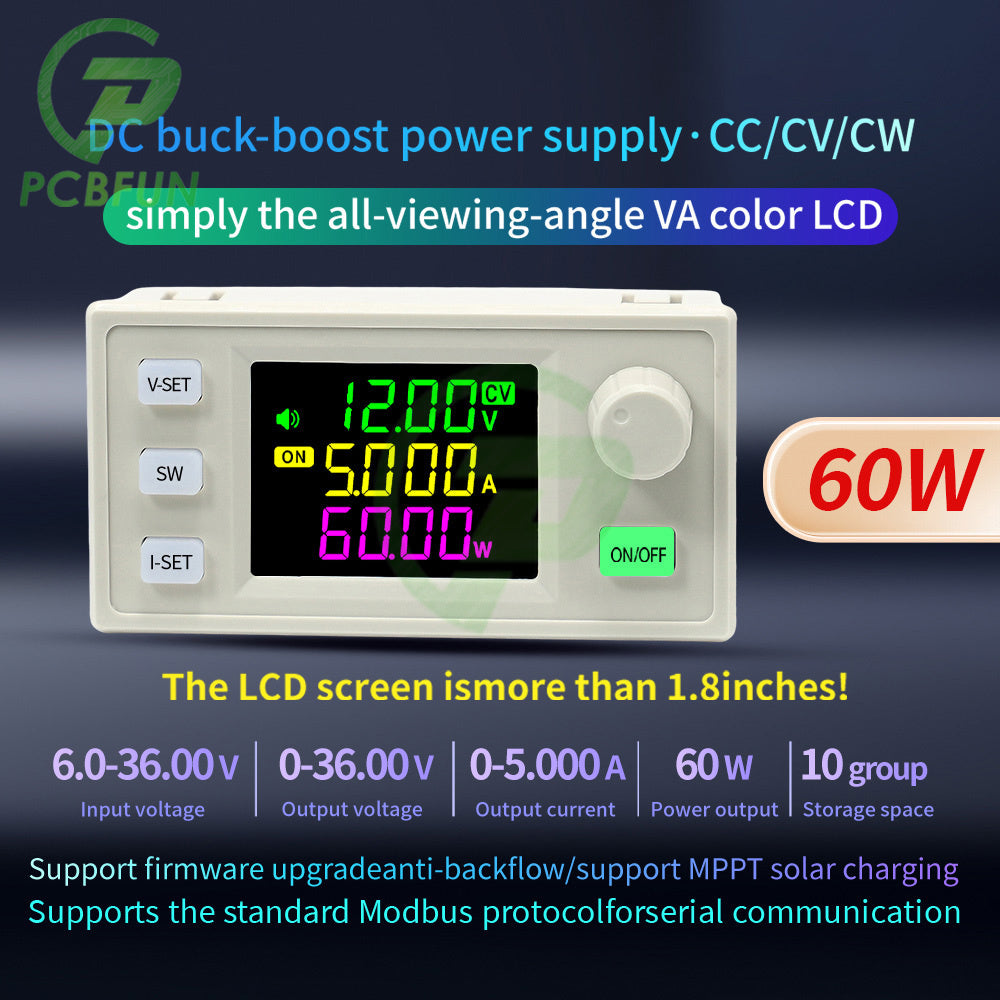

Parameter:
Input voltage: 6.0~36V
Output current: 0~5.000A
Output power: 60W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.01A
Storage data group: 10 groups

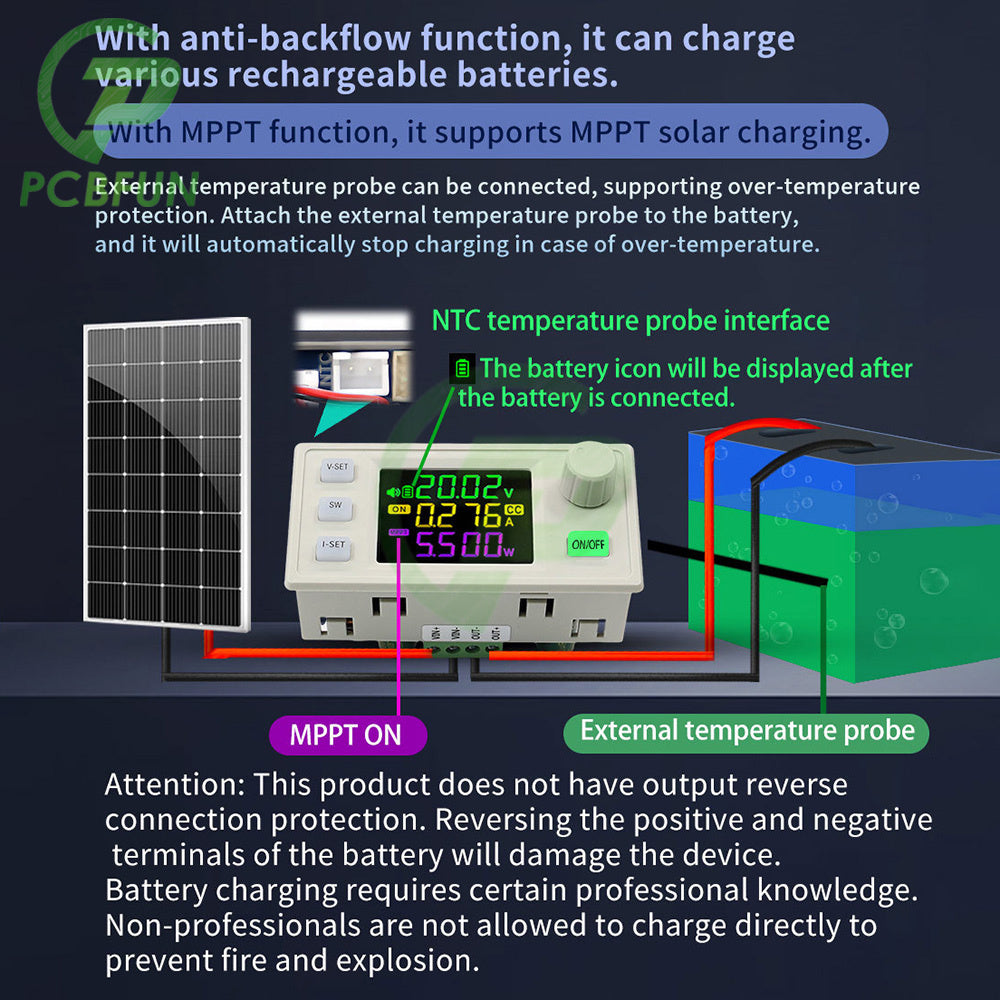

MPPT function: support MPPT solar charging
Typical value of output ripple: VPP-150mv
Buzzer: Yes
Soft start: Yes
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0 -5.2A adjustable, default 5.2A
Output over power protection: 0 -80W adjustable, default 65W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~4200KWH adjustable, default off
Package include:
Adjustable boost and buck module *1
