Slide Stage Actuator Linear Guide Rail 90 Wide Ball Screw Motion Table 300mm StrokeKBF1610

Name: Slide Stage Actuator Linear Guide Rail 90 Wide Ball Screw Motion Table 300mm StrokeKBF1610
Brand: mickcara
SKU: 8606473942193
Price: 279.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8606473942193

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$279.00

Quantity:

Subtotal: $279.00

283 customers are viewing this product

Tags:

Description

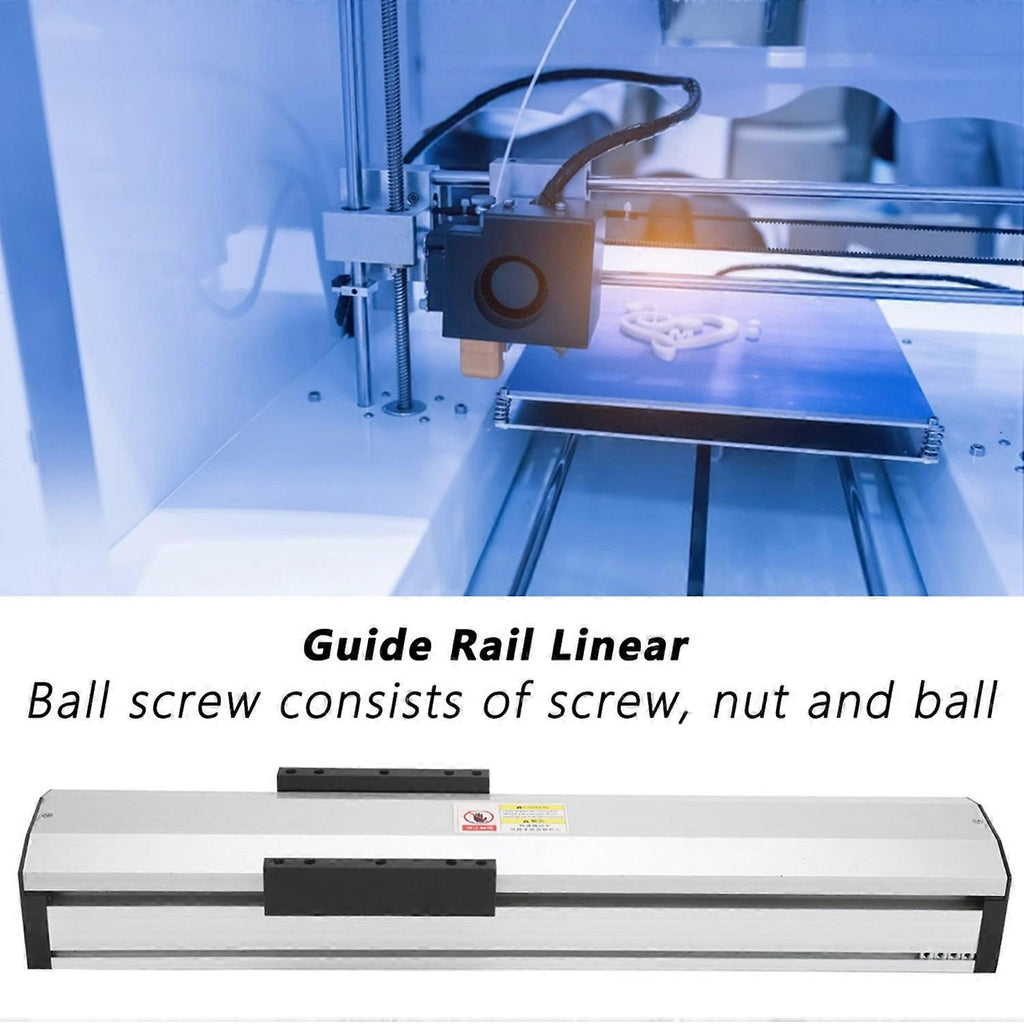

Feature: 1. Good quality aluminum alloy material, possess good strength and corrosion resistance 2. The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance 3. Mounting holes are well-designed, adjustable and easy to install on other devices 4. Slide stage actuator come with high accuracy and heavy load resistance 5. The product possess long life, low coefficient of friction, versatility Specification: Item Type: Slide Stage Actuator Product Description: Linear modules are often called accurate electric slides, servo slides, linear modules, single-axis manipulators, XYZ robotic arms, single-axis robots, XY tables, etc. in China. The single-axis manipulator accurate electric sliding table is generally driven by a servo motor or a stepping motor to achieve accurate positioning, workpiece positioning, workpiece transfer and handling. Material: Aluminum alloy Effective Stroke: Approx. 300mm / 11.8in Screw Diameter: Approx. 16mm / 0.6in Horizontal Load: 30KG Vertical Load: 15KG Repeat Positioning Accuracy: 0.03-0.05mm Motor Model: 42/57 series stepping motor How to Use: 1. Can be installed with the motor of the corresponding motor piece on the sliding table 2. Then use the driver and controller after connecting the power supply(if there is a PLC, no controller is needed) Size: Approx. 90mm / 3.5in40mm / 1.6in 2mm / 0.1in 100mm / 3.9in 115mm / 4.5in 7.5mm / 0.3in 15mm / 0.6in 35mm / 1.4in 10mm / 0.4in 65mm / 2.6in 44mm / 1.7in 12mm / 0.5in 9.4mm / 0.4in 66mm / 2.6in 4.3mm / 0.2in 6.25mm / 0.2in 7mm / 0.3in 12mm / 0.5in 69.75mm / 2.7in 115mm / 4.5in 15mm / 0.6in 35mm / 1.4in 112mm / 4.4in Diameter: Approx. 9mm / 0.4in. Package List: 1 x Slide Stage Actuator1 x User Manual
