Want to test the sound level? Need to know the noise level? Try our digital sound level meter. It's featured with wide measuring range (30-130dB). It's portable and easy to use as a handy instrument for sound quality control in factory, office, home, school and construction site.

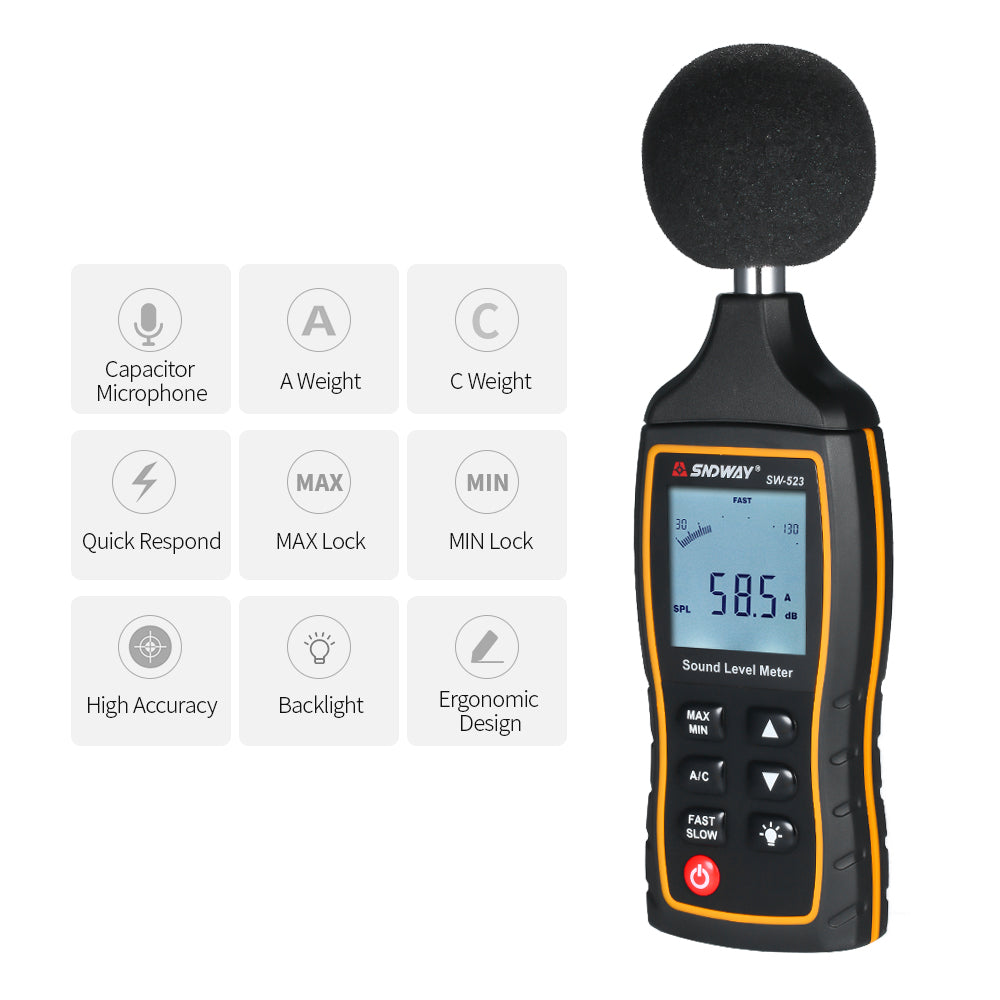

Features:

This Audio DB Meter complies with IEC651 Type 2 and ANSI S1.4 Type 2, with the measuring scope from 30 to 130 dB and automatic shifting function, A and C Frequency Weighting mode selection and High speed(FAST)/Low speed(SLOW) response rate selection.

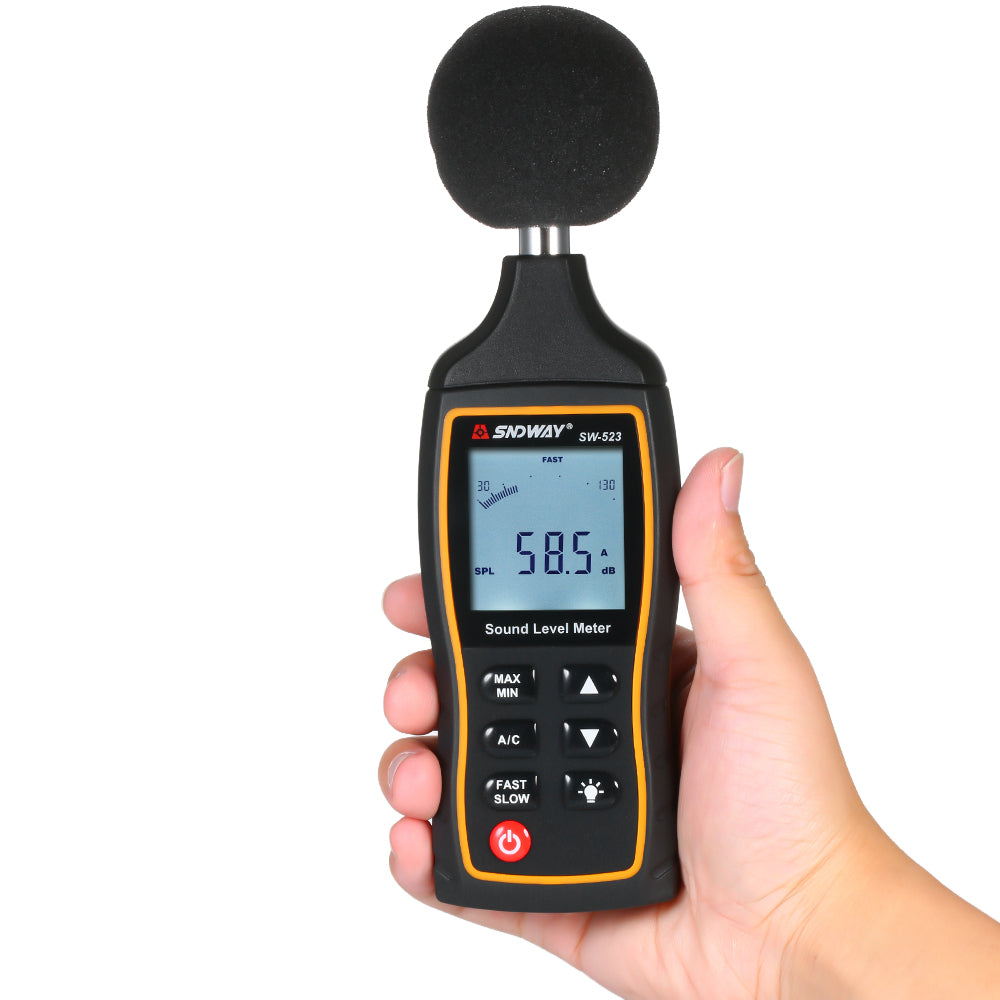

The mini handheld digital sound level reader is compact, lightweight, and easy to use, it is not only extremely wear-resisting, but also elegant.

The output of AC and DC analog signal can be connected to frequency analyzer or X-Y axles recorder for statistic analysis of data.

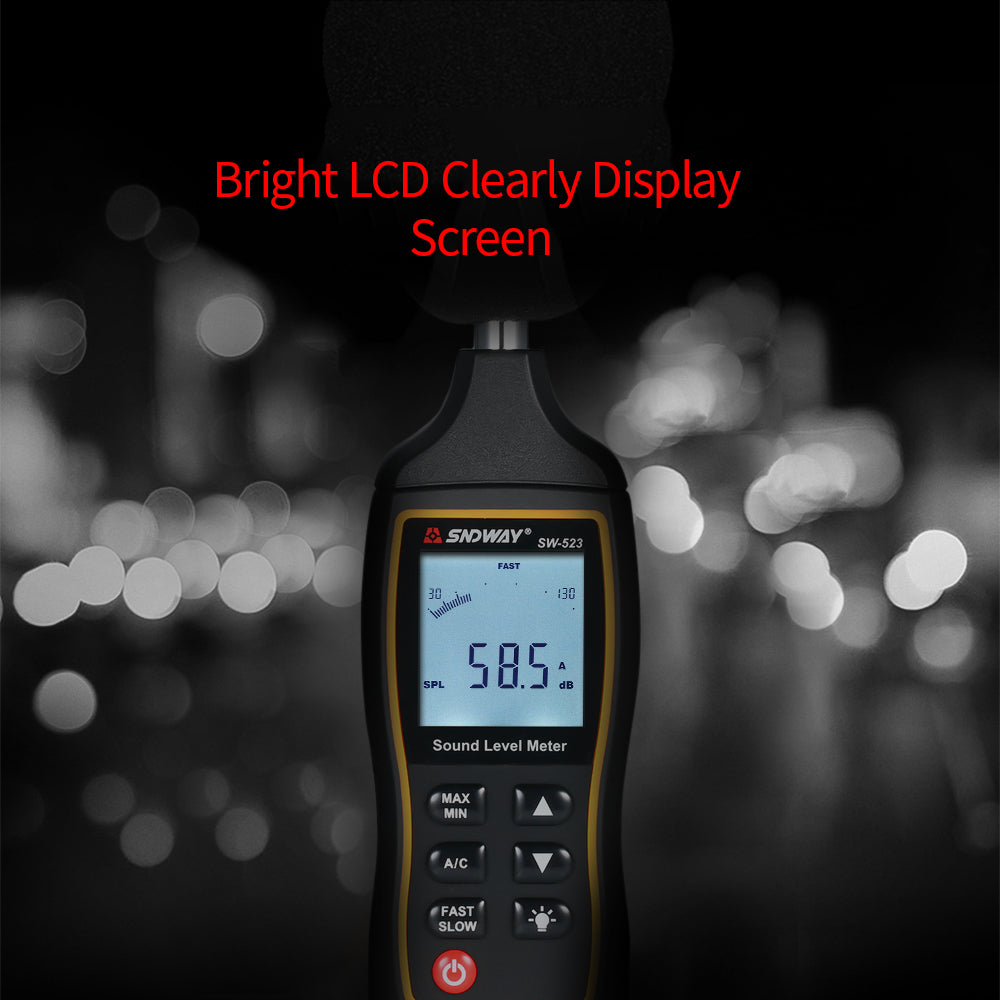

Features with backlight feature, it is appropriate for gathering the sound data at night. And auto power off function is provided, high-reliability and well-designed high-efficiency power supply circuit make the battery more durable.

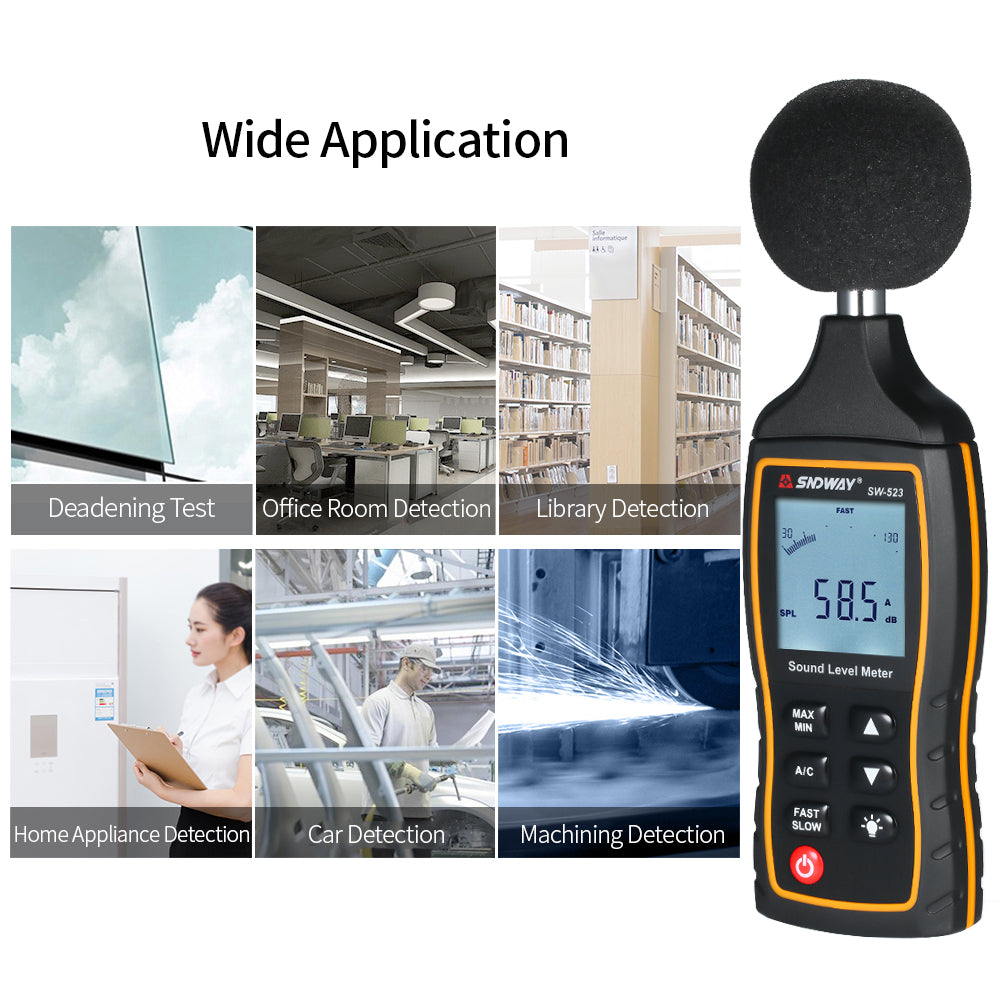

Portable and easy to use, suitable for checking, monitoring or controlling the sound level for personal, families, business, studies, industrial, etc.

Specifications:

Material: ABS plastic

Accuracy: ±1.5 dB (based on the standard sound source, 94dB @ 1KHz)

Frequency Response Range: 31.5Hz~8KHz

Dynamic State Range: 50dB

Measurement Range: 30~130dBA, 35~130dBC

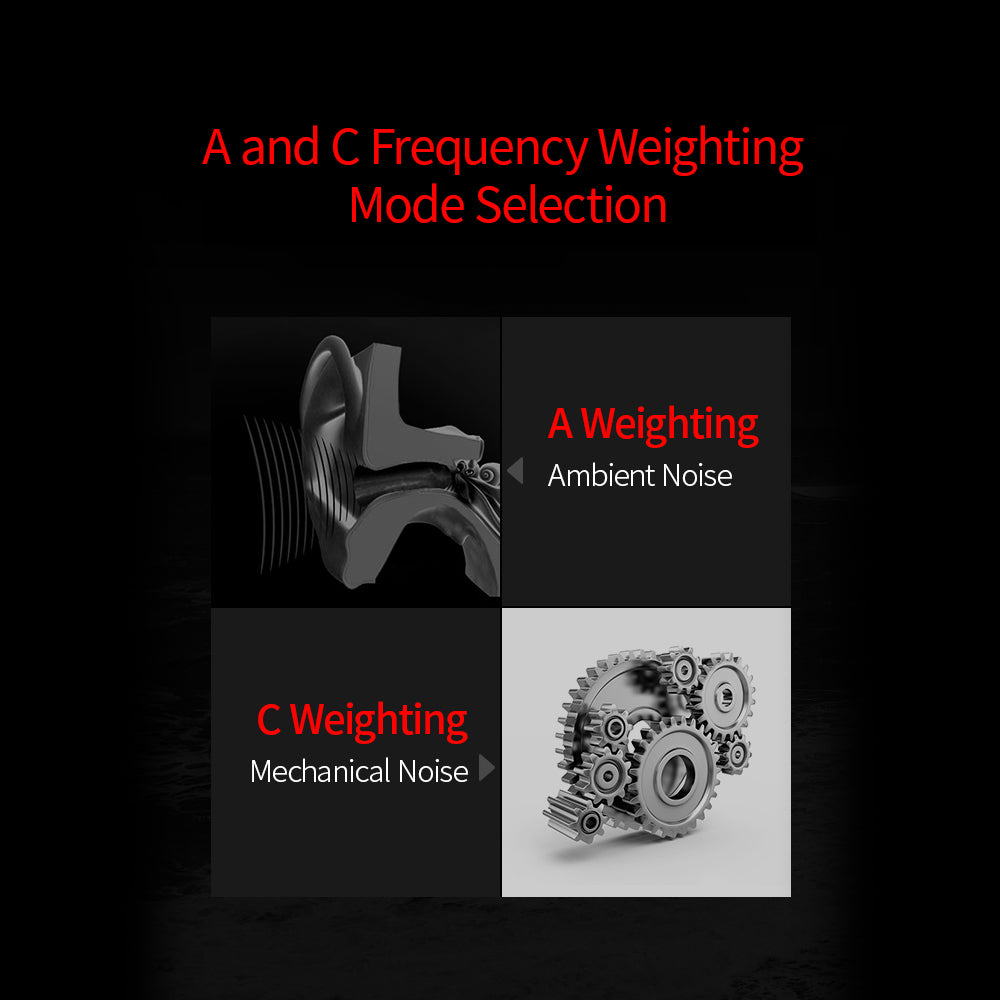

Frequency Weighting Character: A weight and C weight

Dynamic Characteristic of Sound Pressure: FAST 125ms, SLOW 1sec

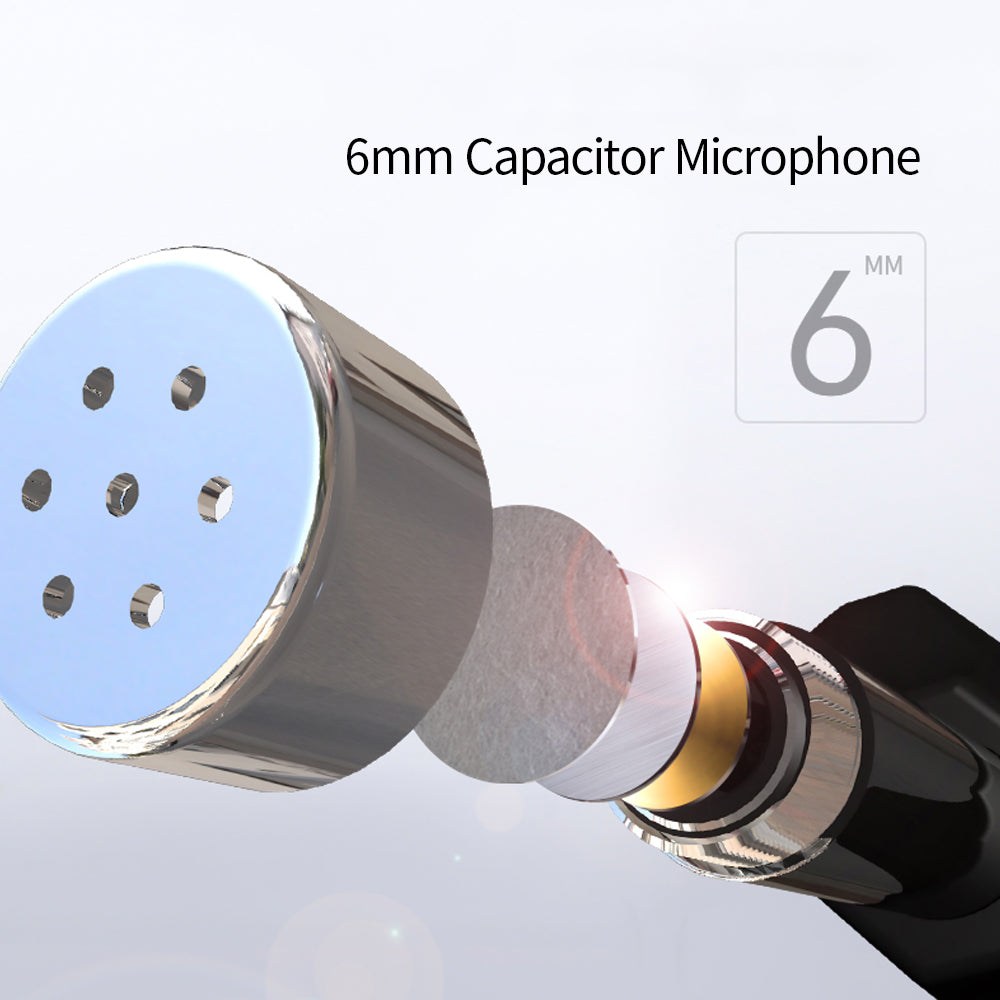

Microphone: 6mm capacitor microphone

Digital Display: 4-digit, resolution: 0.1 dB, sampling rate: 2 times/sec

Dynamic Scale Display: 1 scale equals 2dB or 1dB, sampling frequency 2 times/sec

Dynamic Scale Shift: 30~130dB, 30~80dB, 50~100dB, 80~130dB

Overload Display: "UNDER" or "OVER" in display screen

AC Signal Output: 0.65Vrms for each shift and full scale, the output of impedance around 600ohm

DC Signal Output: 10mV/dB, the output of impedance around 100ohm

Power Supply: 3 * 1.5V AAA battery (NOT included)

Operating Temperature & Humidity: 0～40℃ / 32～104℉ (10%～80%RH)

Storage Temperature & Humidity: -10～60℃ / 14～140℉ (10%～70%RH)

Item Size: Approx. 215 * 64 * 27mm / 8.46 * 2.52 * 1.07in

Item Weight: Approx. 178g / 6.29oz

Package Weight: Approx. 336g / 11.87oz

Package Size: Approx. 23.3 * 18 * 5.5cm / 9.18 * 7.09 * 2.17in

Package List:

1 * Sound Level Meter

1 * User Manual (English)
