Features:
* Optimal voltage / current: 6-18V / 150A. Support welding 0.1-0.15mm nickel plate.
* 6×300A ultra-low-resistant MOS tubes, feature stable and strong current of up to 1800A.
* Provide 5-gear output power adjustment via button, meeting different welding needs.

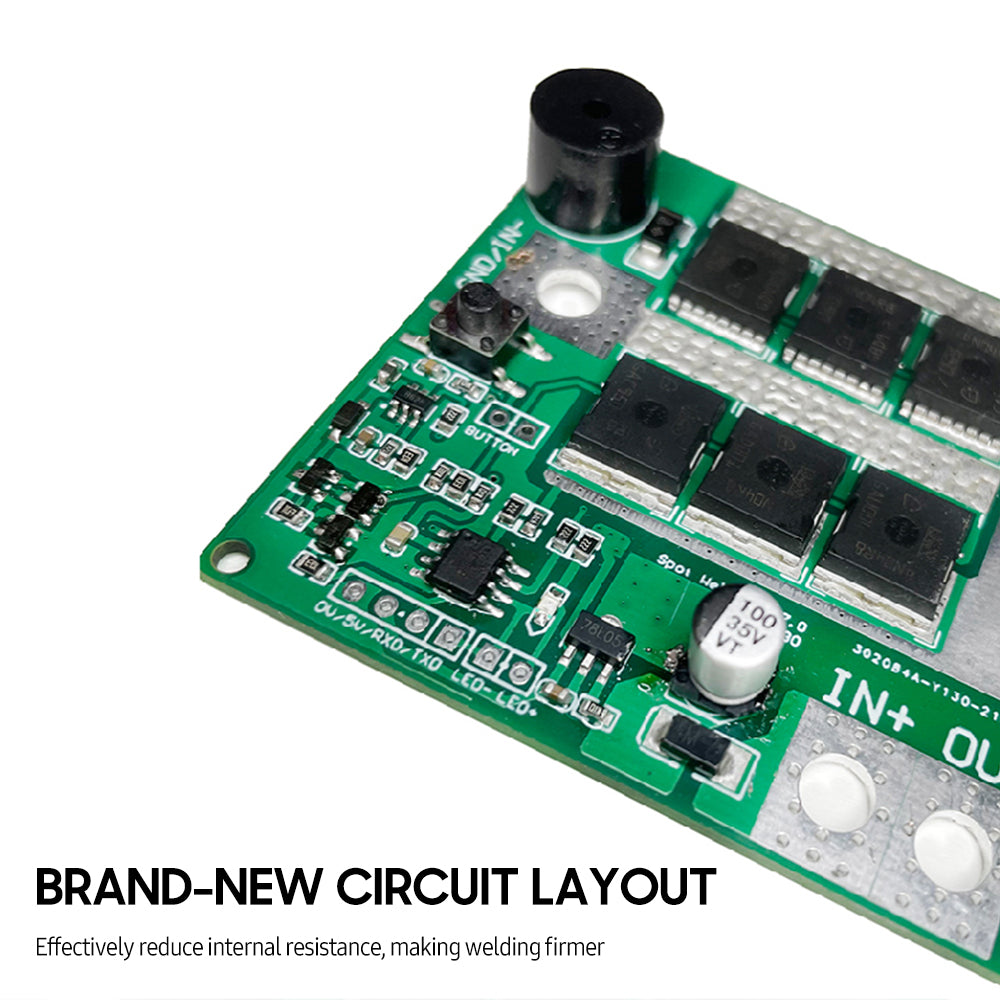

* Brand-new circuit layout, greatly reduces internal resistance, making welding firmer.
* Adopting voltage stabilizing circuit, it supports 6-24V wide voltage use, more stable and reliable.
* 35cm ultra-long welding pen (including wire) and soft silicone wire, allow you to weld flexibly and freely, easier to operate.
* 10AWG wire and ODSC welding needle, ensure large-current-passing capacity and durability.
* Anti-slip screws and pure-copper joints, reduce internal resistance and increase current-passing area.
* Widely suitable for welding 18650 / 26650 / 32650 lithium battery and other cylindrical lithium batteries.
Note:
1. 6V-18V voltage and 100-200A current are recommended. It doesn't work with working current of ＜100A.

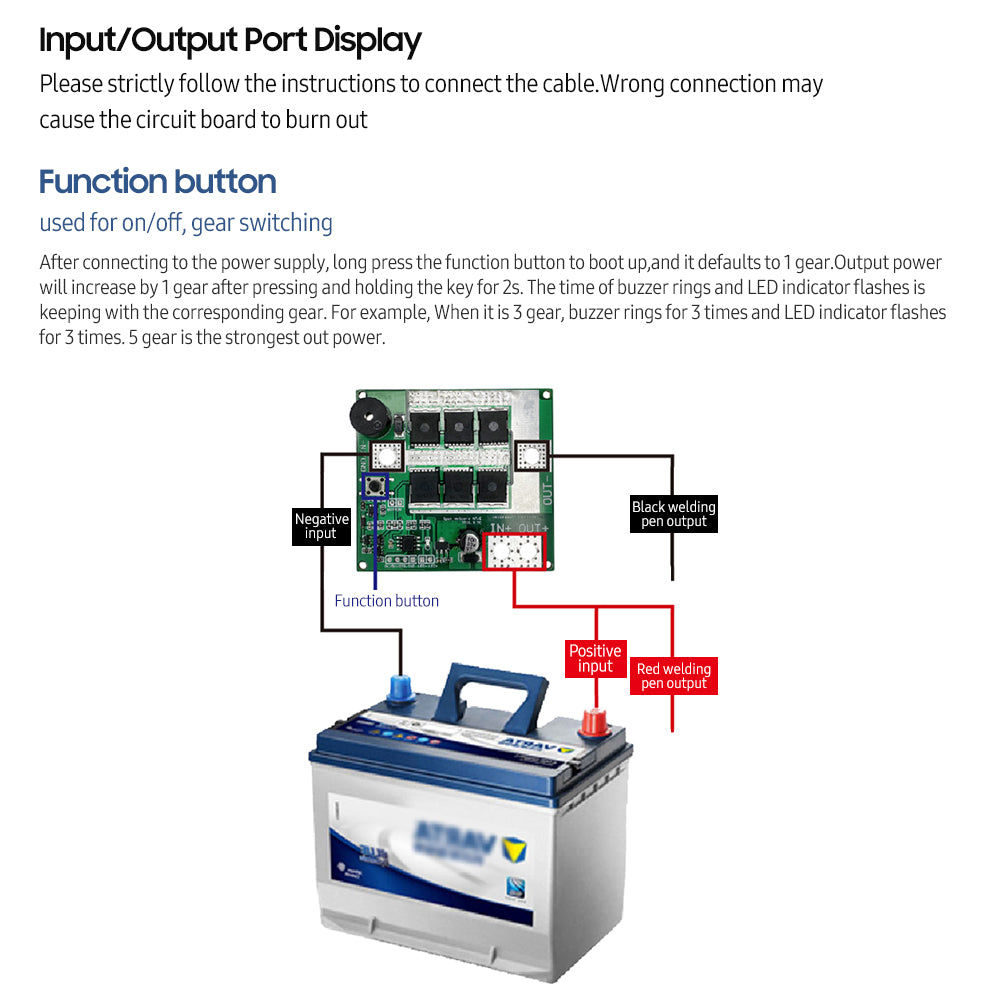

2. Power Gear Switching: After connecting to the power supply, long press the function button to boot up, and it defaults to 1 gear. Output power will increase by 1 gear after pressing and holding the key for 2s. The time of buzzer rings and LED-indicator flashes is keeping with the corresponding gear. For example, When it is 3 gear, buzzer rings for 3 times and LED-indicator flashes for 3 times.

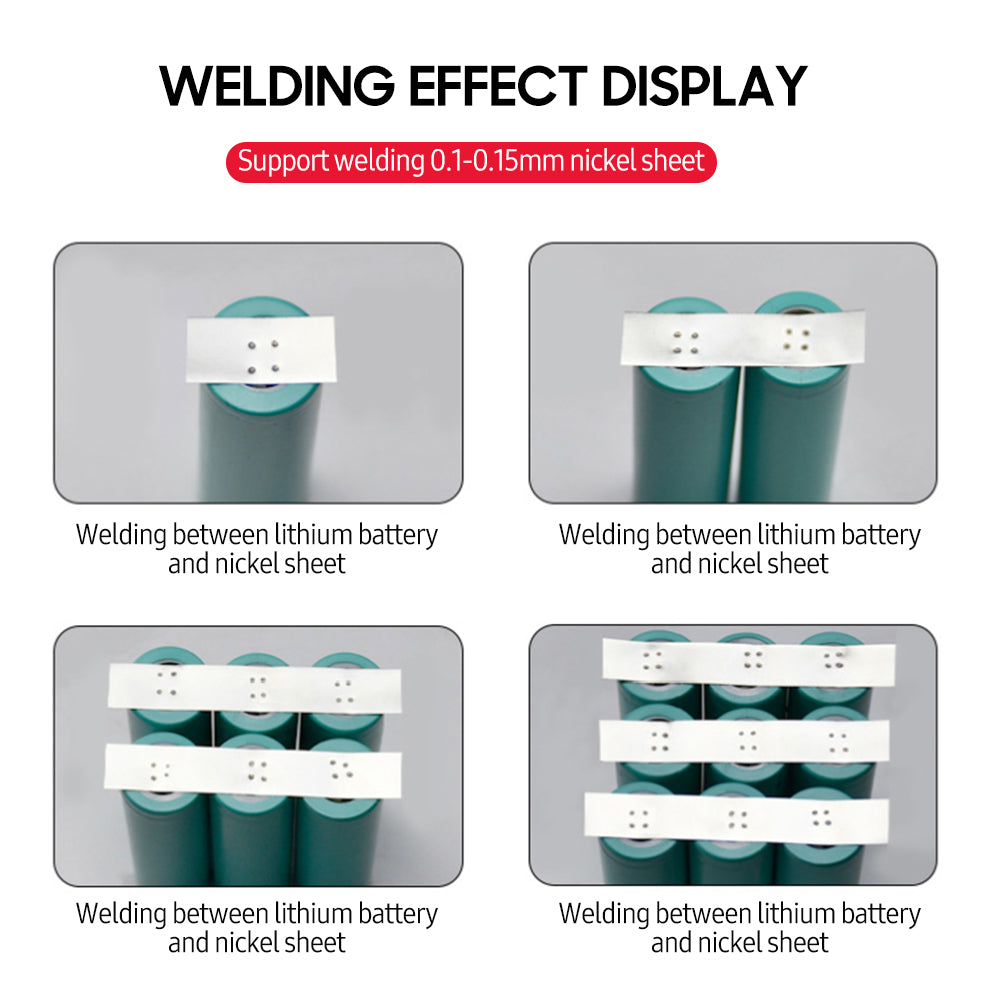

3. Welding tip: Put the nickel sheet on the surface of the battery electrode that needs to be burst, tilt the nickel sheet with one pen, then tilt the nickel sheet with another pen. The welding will be triggered after about 0.5s when the control board detects that the pen is placed. If the solder joint is black, turn down the gear. If the melting point is too small, increase the gear.
Specifications:
Material: Copper+PC+Electronic Element
Color: Green+Black+Red
Power Supply: 6-24V
Working Current: 100-200A
Max. Welding Thickness: 0.15mm
Recommended Working Power Supply:
(1) 36-60Ah automotive starting power supply
(2) 2-3 20Ah motorcycle battery, parallel
(3) 2S-5S 4Ah 30C＋aeromodelling lithium battery
Item Size: 6.5 * 6cm / 2.56 * 2.36in
Package Size: 13.3 * 8.2 * 4.8cm / 5.24 * 3.23 * 1.89in
Package Weight: 164g / 5.78oz

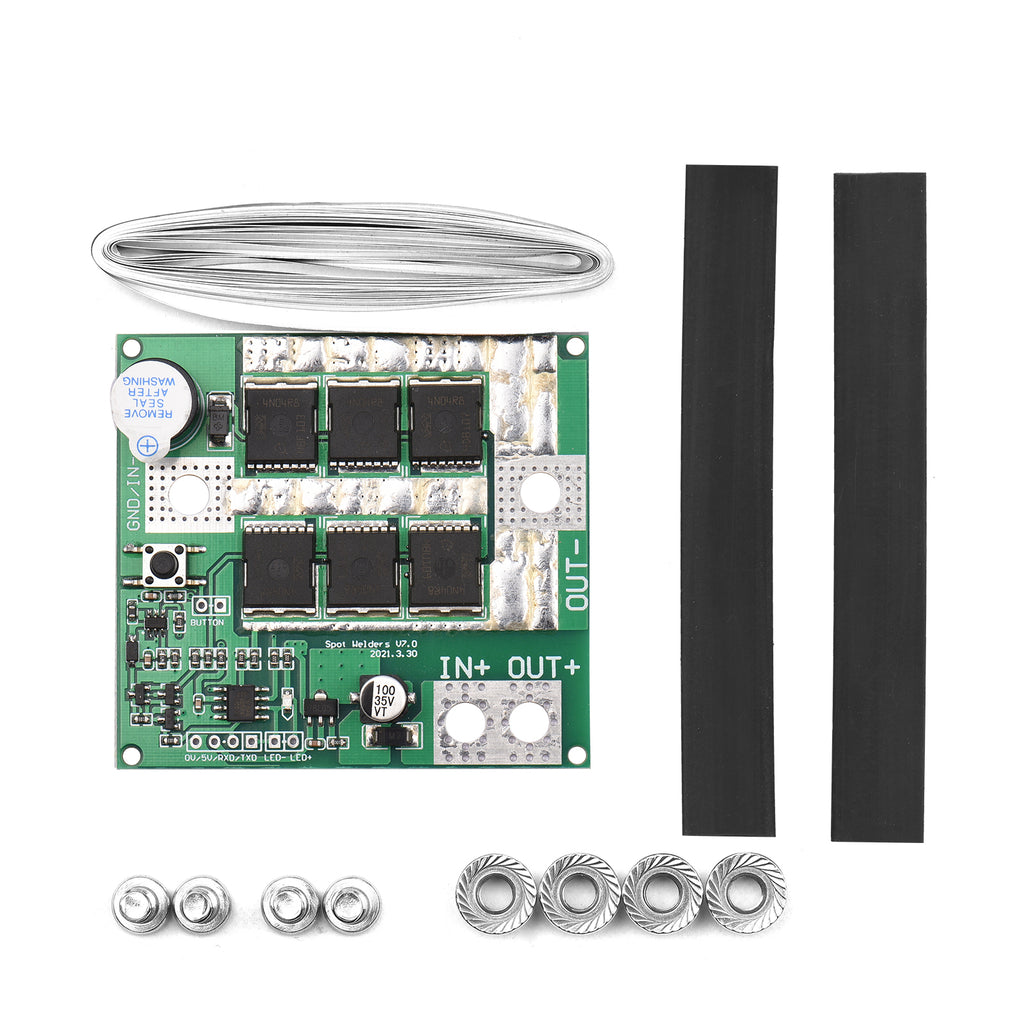

Package List:
1 * Main Circuit Board
2 * Input Cable
2 * Spot Welding Pen
1 * Roll of Nickel Sheet
4 * Set of Screw
2 * Heat Shrinkable Tube
