SQ001 Mini Smart portable 65W soldering station electric soldering iron Upgraded of TS100 100-400 °C weldding tool with TS100 iron tip and power supply

       Note:this product is NO-original TS100 station

    Specification:

         Model name: SQ001(TS100 Upgrade)

      Color: Black, Blue      Power output：65W      Temperature range: 100-400 °C / 212-752°F      Factory default temperature:  300  °C / 572°F      Power supply: DC 12-24V  5.5 * 2.5mm standard interface

    Preset temperature                            300℃(Initial setup)

    Power saving temperature                 200℃(Initial setup)

 Operating voltage     Power                The fastest time to heat up  (from30℃-300℃)

            12V                    17W                       40s

            16V                    30W                       20s

            19V                    40W                       15s

            24V                    65W                       11s

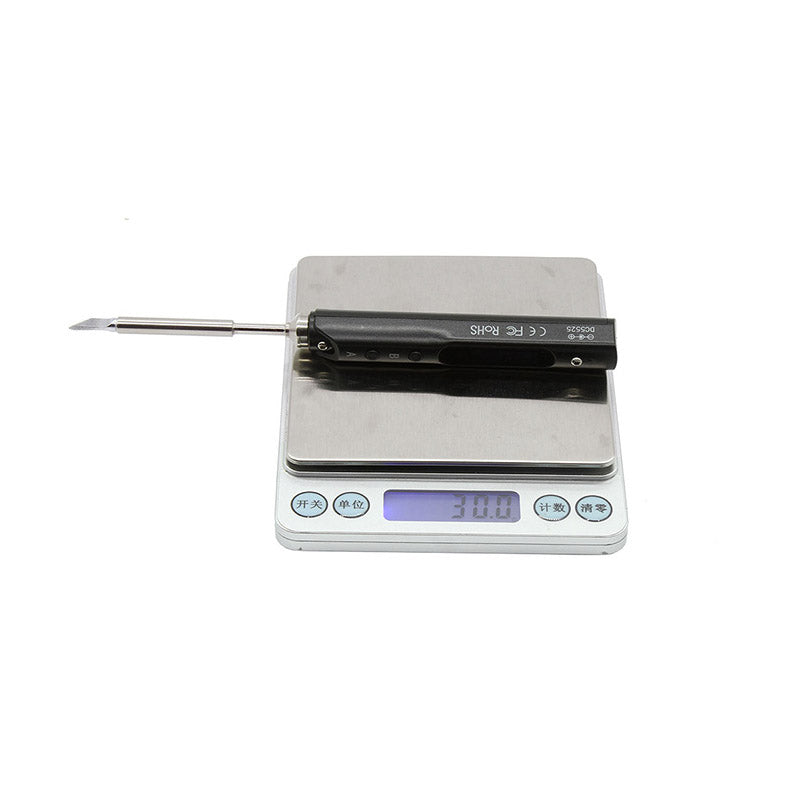

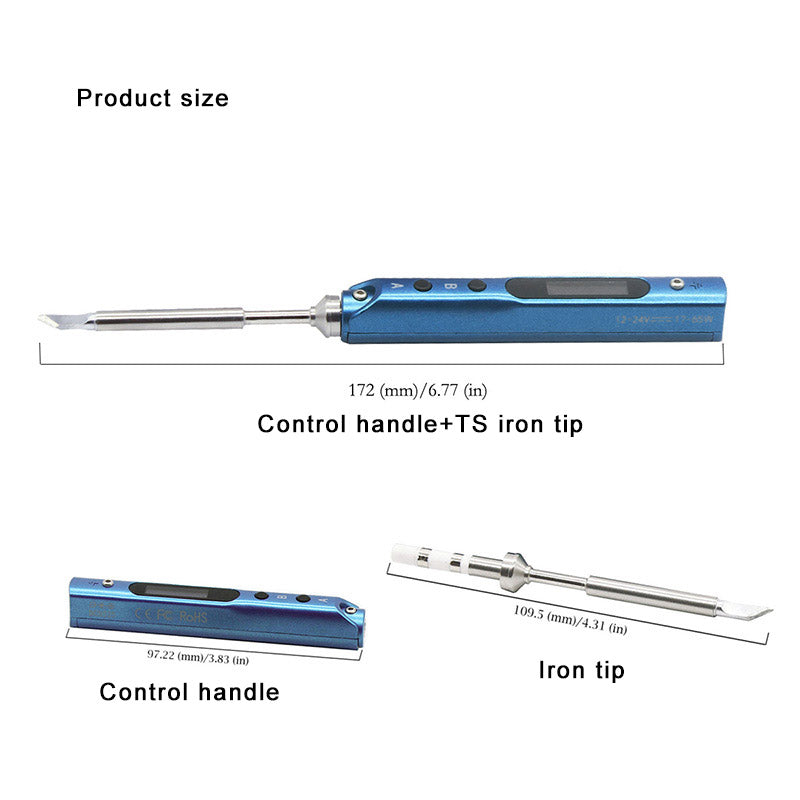

        Universal interface expand the scope of application      Super Light weight  & mini size (with iron tips assembled):  31g / 172mm      Multiple choice of power supply

    The Advantage of Mini TS100 Upgraded Version SQ-001

        MINI SQ-001 Electric soldering iron is an upgraded version of TS100 internal heat intelligent numerical control soldering iron. Lightweight design, easy to install and use, easy to remove and store, comfortable control handle, high-efficiency heating end, simple control interface. It is a favorite tool for electronic engineers and electronic maintenance enthusiasts.      It can work in DC 12-24V, OLED screen display, key temperature adjustment, external independent power supply. In DC 19V 40W state, 15 seconds temperature rise to 300 ℃.      SQ-001 intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm and other functions      The heating end adopts internal heating core      Temperature stability range: ± 2%      External independent power supply: DC 5525 power interface, suitable for DC 12-24v notebook power supply, vehicle power supply and mobile power supply.      Micro USB interface: set temperature rise curve, user defined function key and firmware upgrade function through parameter file.      Additional functions: application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.

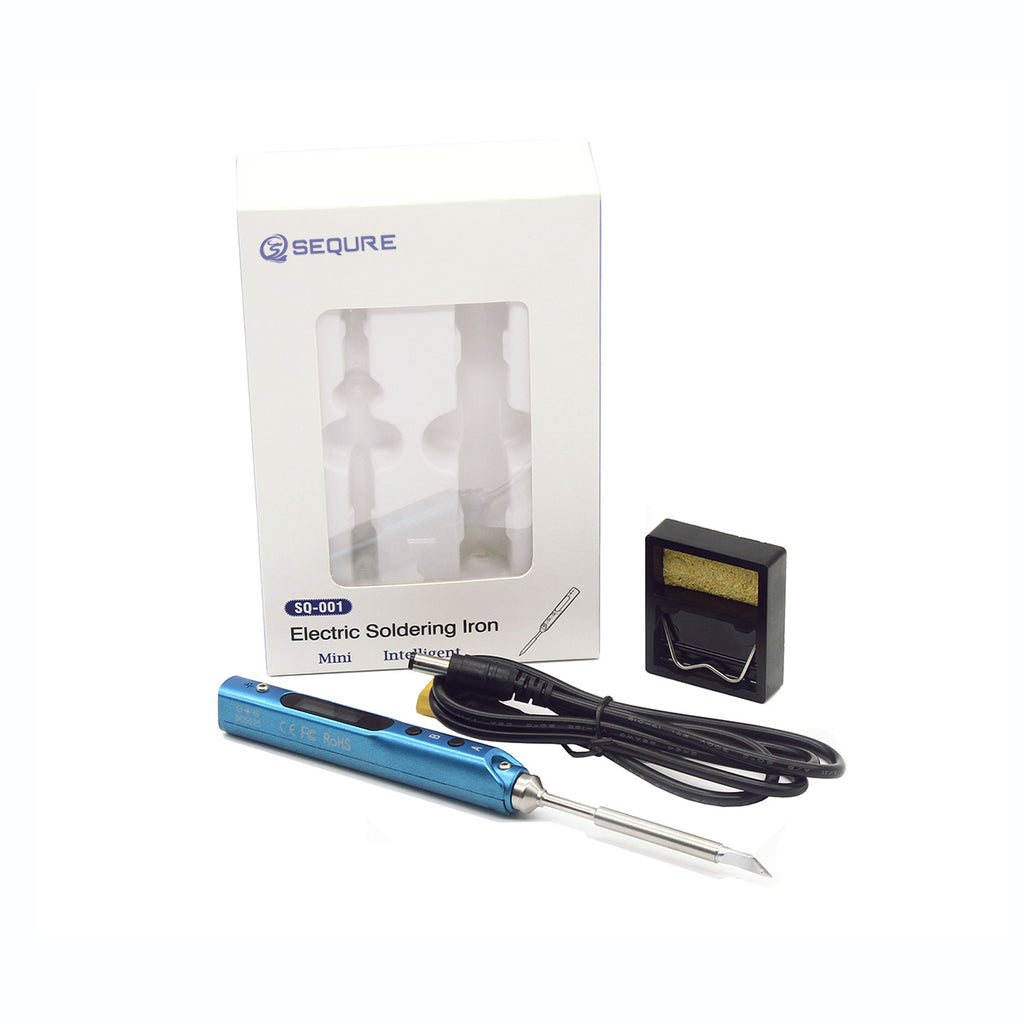

     Package includes :

             1x SQ-001 Controller

      1x TS100 Solder Tip

      1x Hex Key

      1x User Manuel

      1x DC5525 XT60 Power Cable

      1x Mini iron Stand Holder

      1x Tube tin wire

      1x DC24 power supply

      1x Rosin（Protective agent for iron tip）
