Description:
SPECIALLY CUSTOMIZED MOTOR SHAFT DIAMETER OF 5MM FOR THE MYO 550 HELICOPTER. The new 4025-1100KV is a process improvement, upgraded 1.2 double strand, large torque, more power saving.
The new batch is available in 25 and 30 holes. (30mm=M4 / 25mm=M3)

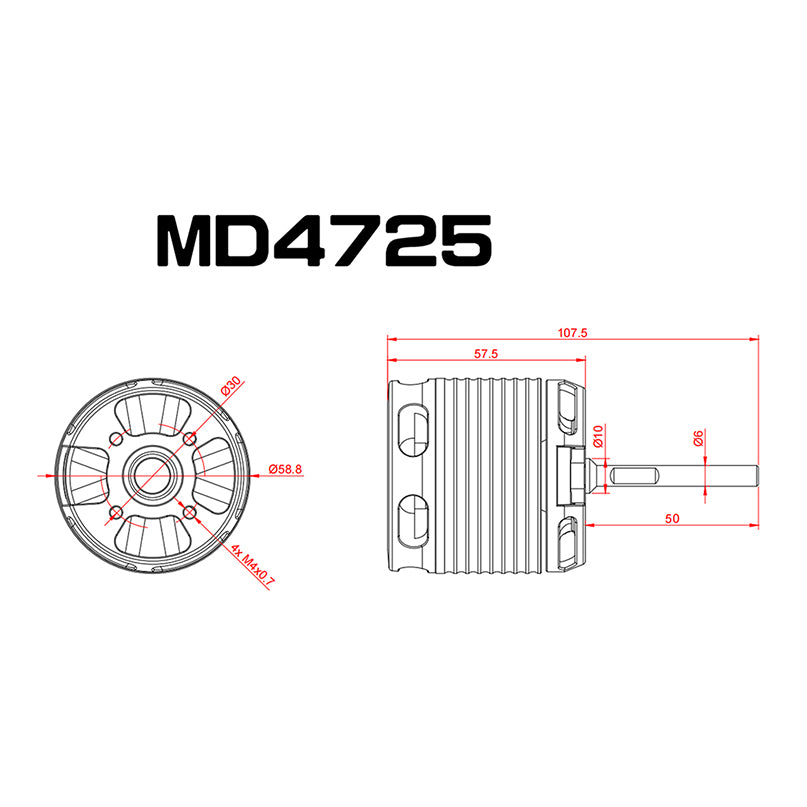

Specifications:
Stator diameter Stator Diameter 40 mm
Stator Thickness 25 mm
Stator arm No. of Stator Arms12
Stator poles Magnet Poles10
Number of motor windings Motor Wind4+3 Turn Delta
Motor Wire2-Strand 1.2 mm
Motor KV value Motor Kv1100KV RPM/Volt
No-Load Current (IO/10v) 4.19 Amps
Motor Resistance (RM) 0.006 Ohms
Max Continuous Current Max Continuous Current100 Amp
Max Continuous Power2400 Watt
Weight Weight350 Grams
Outside diameter 50.8 mm
Shaft diameter Shaft Diameter 5 mm
Body length Body length 54.5 mm
Overall shaft length 90 mm
Maximum support for Max Lipo Cell6s
Peak Continuous Current130 Amps (5 seconds)
Peak Continuous Power2920 Watts (5 seconds)
Motor Timing5deg~12deg
Drive frequency Drive Frequency 8kHz~32kHz

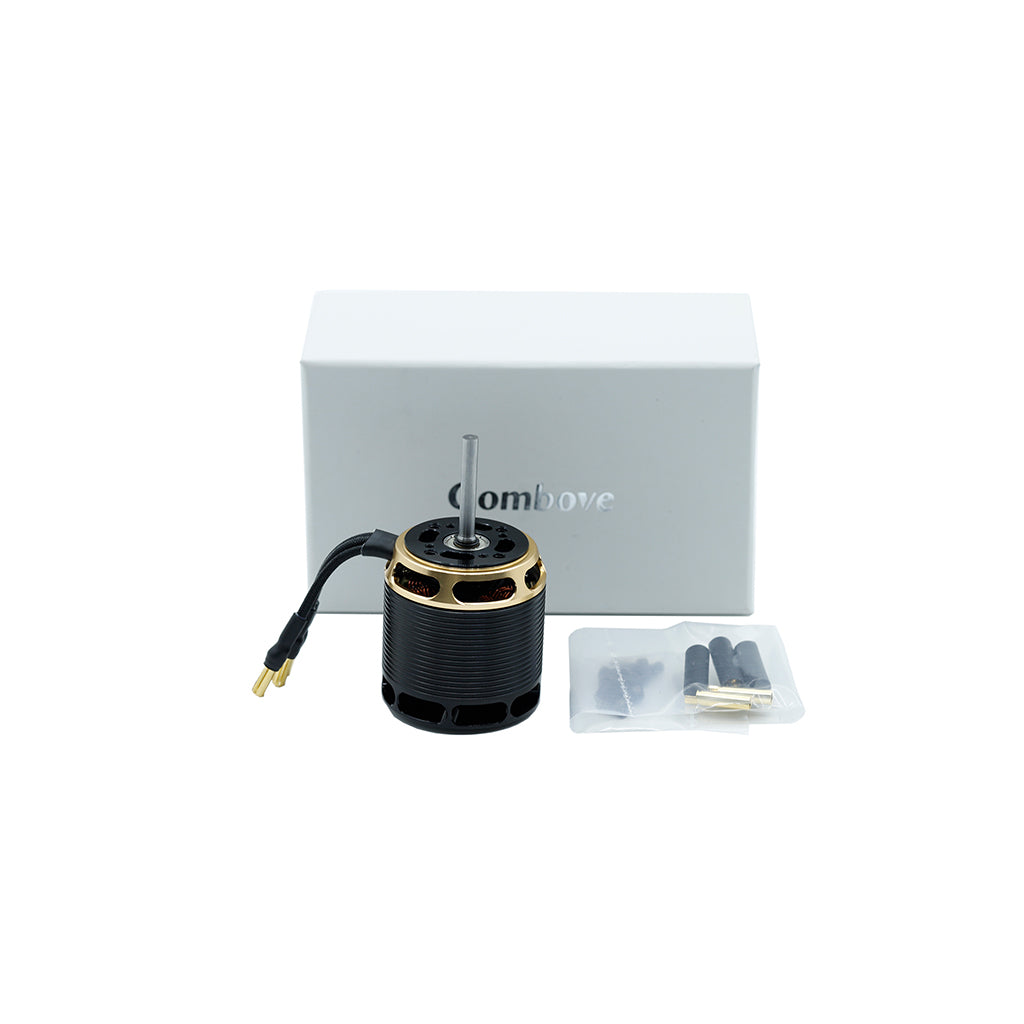

Packaging List:
4725-520KV brushless motor/wire diameter 1.4mm×1
M4× 4 Allen screws in the 7.5mm cup head× 4
Φ7.0 gold-plated banana male ×3
Φ7.0 gold-plated banana female× 3
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
