Product introduction

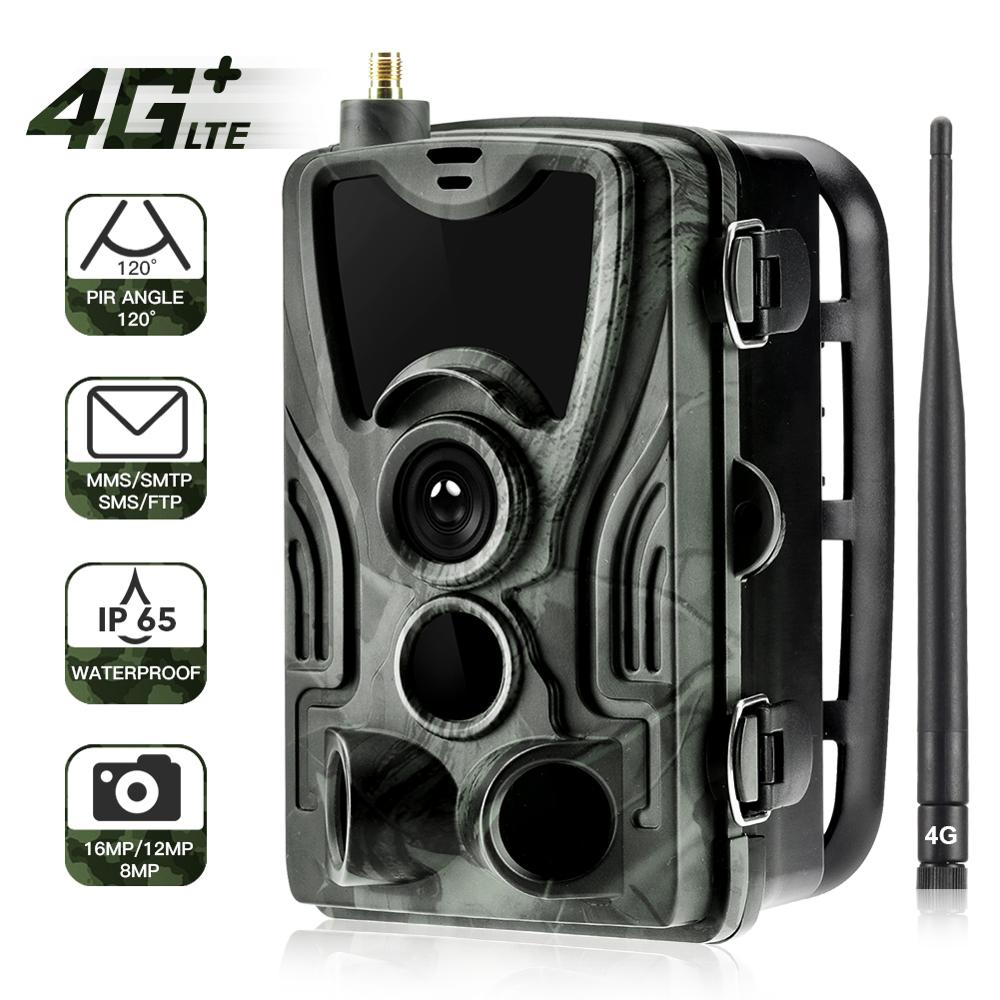

 This is a high-definition digital camera with MMS function and automatic monitoring camera, monitoring and reconnaissance. Hunting cameras use thermosensitive animal (human) sensing technology to automatically capture high-definition (20 million pixels) images and streaming video.This hunting camera is energy-efficient without detecting animals (human body), and its standby power consumption is 0.1mA. It can be on alert for a long time.It can also automatically capture high-quality images (up to 20 million pixels) or record high-definition video clips (WVGA) that can be sent via mobile devices over GSM networks.When it starts taking infrared (black and white) photographs and videos, it comes with a 2.0-foot color LCD camera and a sound recorder with audio embedding for easy use. MMS/ e-mail is supported by GSM network transmission. The camera has infrared shooting function and can automatically shoot ultra-long standby time in the absence of light at night. In addition, this camera can be used as a portable digital camera, carry-on, is a good help you go out to catch surprises. 32G Micro SD card and 20 million pixels, super waterproof, can adapt to all kinds of environments, not only for hunting, field animal observation and research, but also for Shangchao,company.community, family and other security monitoringwork.

    Note: HC-801A does not have MMS and mail

           Image Sensor

      8 Mega Pixels Color CMOS

            Memory

      Micro SD Card to 32GB(not included)

            Lens

      F=3.1; FOV=90 °

            Size

      135mm * 90mm * 86 mm

            Display

      2.4 inch TFT

            Mode

      Camera/Video/Camera&Video/Timelapse

            LED

      Black  940nm

            PIR Distance

      High/Normal/Low

            PIR Detect Range

      120 Degree

            Night Vision Distance

      65ft/20meters

            IR LED

      36 pcs Infared LEDs

            PIR Distance

      65ft/20 meters

            Trigger Speed

      0.3second with 3 PIRs

            PIR Interval

      1/5/10/30sec/min (default 1 sec)

            Image Resolution

      20MP/16MP/12MP

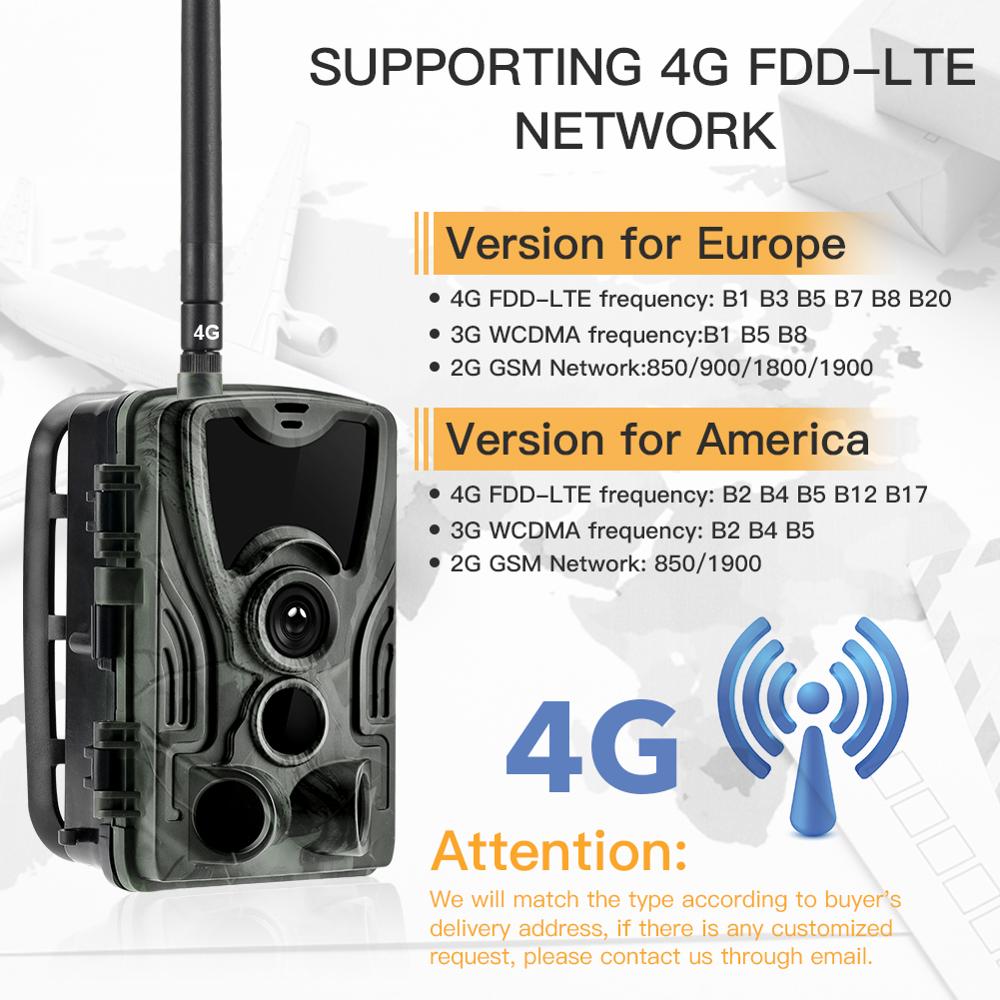

            Frequency Bands

      FDD-LTE: B1/B3/B5/B7/B8/B20 (Europe) FDD-LTE: B2/B4/B5/B12/B17(U.S.& Canada) WCDMA: B1/B5/B8 (Europe) CDMA:B2/B4/B5(U.S.& Canada) GSM: 850/900/1800/1900

            Remote Control

      SMS

            Data transmission

      Data transfer by email

            MMS to phone

      1-3 phone number

            MMS to e-mail

      1-3 email address

            Video Resolution

      1080P/720P/WVGA/VGA

            File Format

      JPEG/AVI

            Date Time  Imprint

      Yes

            Moon Phase  Imprint

      Yes

            ISO Exposure:

      Auto/100/200/400

            Password Security

      4 digital PIN code

            Stand-by current

      0.1mA

            Stand-by time

      6Months

            Interface

      TV out ; USB2.0; Micro SD Card; 9V/1A External

            Fix Method

      Belt, Tripod mount

            Motion Detection

      Low/Medium/High

            Operation Temperature

      -20 ~70℃(-4~158℉)

            Power

      8×AA (not included)

            Timer

      Yes

            Waterproof

      IP65

            Language

      En/FR/DE/ES/RU/DK/NL/PL/PT/SE/IT/FI/JP

            Certificate

      CE,RoHS,REACH

  Packing Accossories:

 Hunting Camera ×1 USB cable ×1 User manual ×1

 CD x1 Tree Bandage Belt ×1

 Tweezers ×1

 Note: - Please insert the TF card when the camera is power off. - Please do not insert or take out the TF card when the camera is power on. - Recommended formatting the TF card by the camera when used at the first time.  - The camera will be in USB mode when connected to a USB port of a computer. In this case, the TF card function as a removable disk.  - Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly. If any fault occurs after improper upgrading process, the camera may stop function properly.
