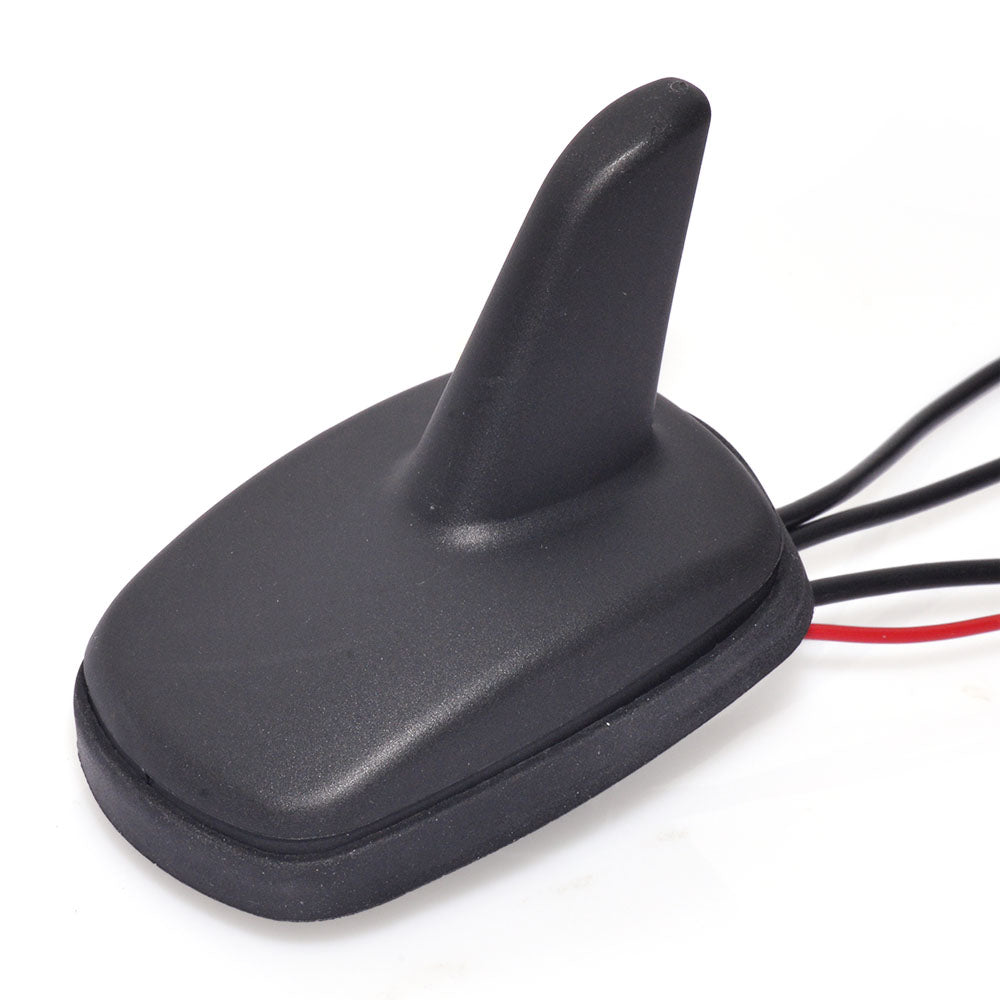

Superbat DAB/DAB/GPS/FM/AM Car Digital Radio Amplified Aerial Roof Mount Antenna Roof Mount Antenna for AutoDAB
Specifications:
DAB
Frequency:174MHz～240MHz (Band III)
Impedance :50 Ω
Amplification：20dB
VSWR:≤2.0:1

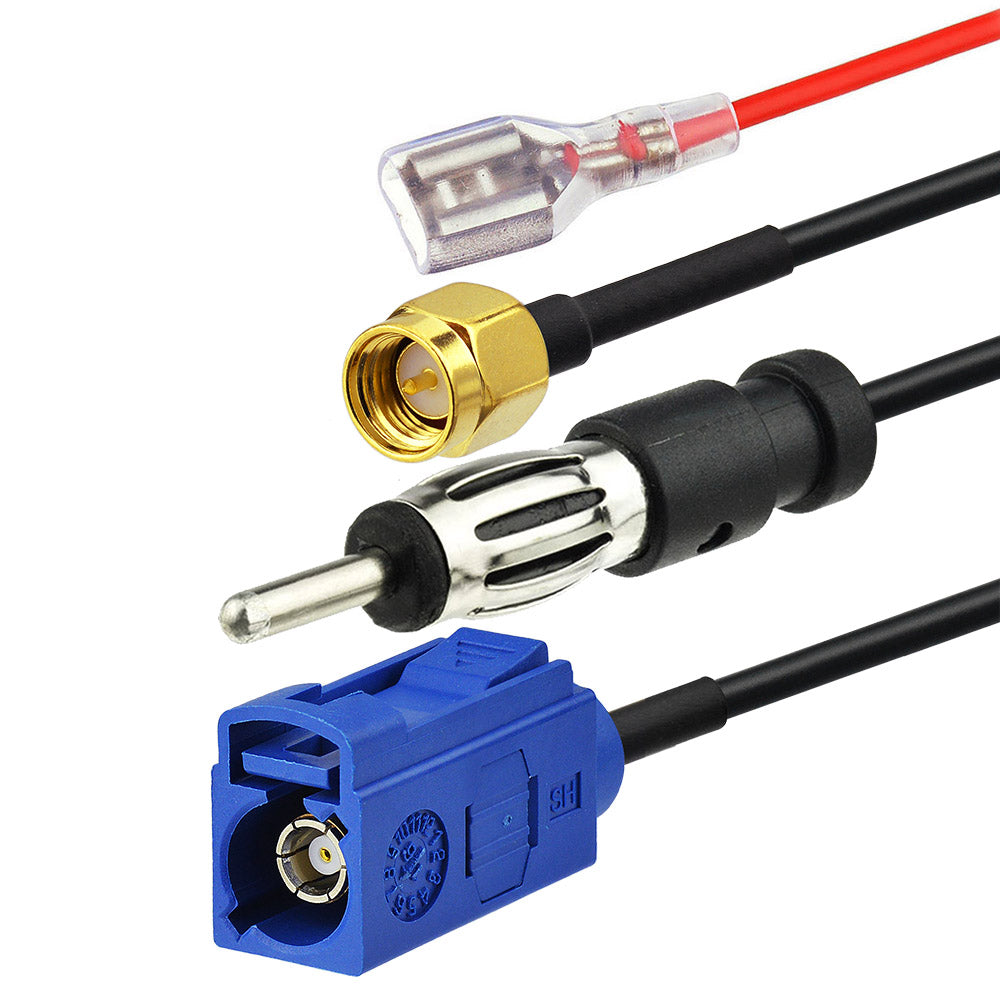

Connector :SMA Plug
Cable:5M RG174
GPS
Frequency:1575.42MHz
Impedance :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Jack
Cable: 5M RG174
FM
Frequency:87.5-108 MHz
Impedance : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:DIN Plug
Cable: 5M RG174
Voltage : 12v direct feed for both DAB an AM/FM
Current Consumption : 50mA

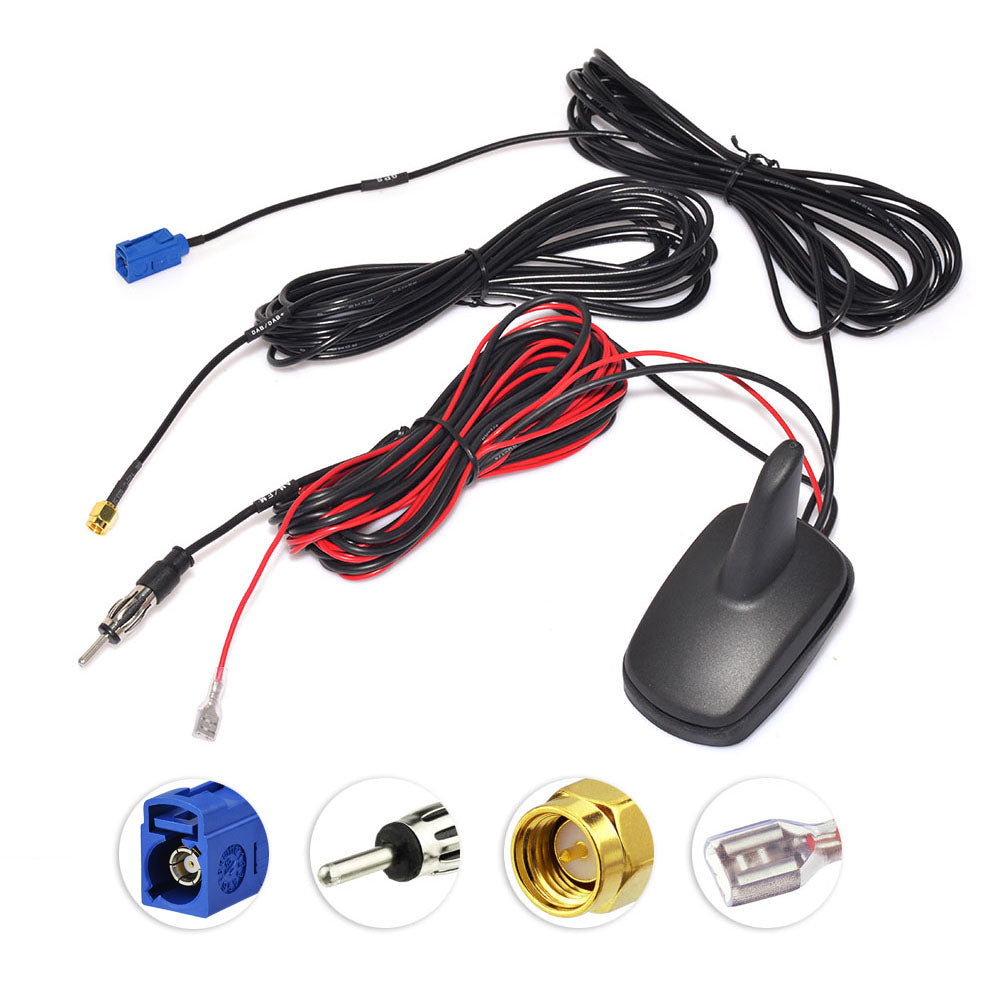

Package included:5M DAB/FM Car Aerial GPS
Advantages:
Very neat and stylish.
Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the Following DAB Radios：
AutoDAB All Models
Beat 400 485
Clarion DAB302E
Connects 2 CTDAB-2
Dual DAB CAR1
Goodmans GFMTDBA10
In-Phase All in- car DAB Except ProDAB
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.

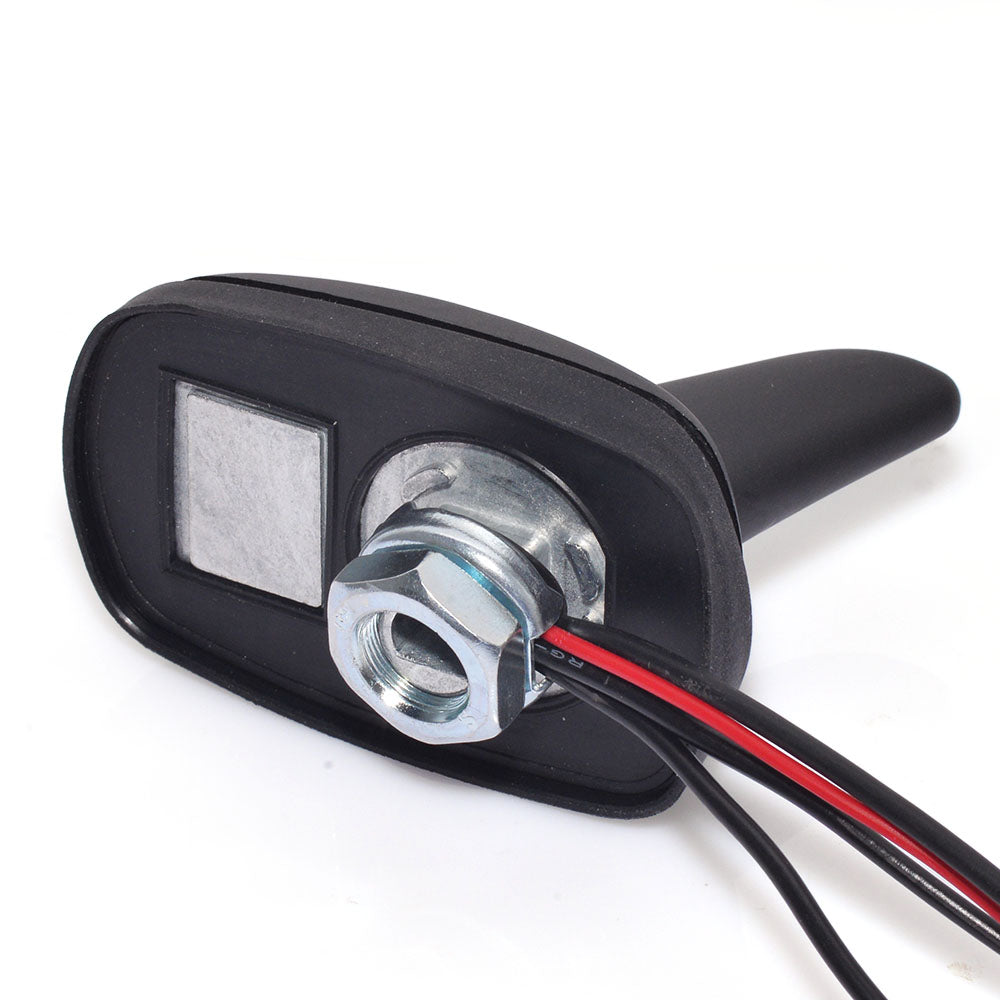

Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
