E323
Flush Mount Cardioid Boundary

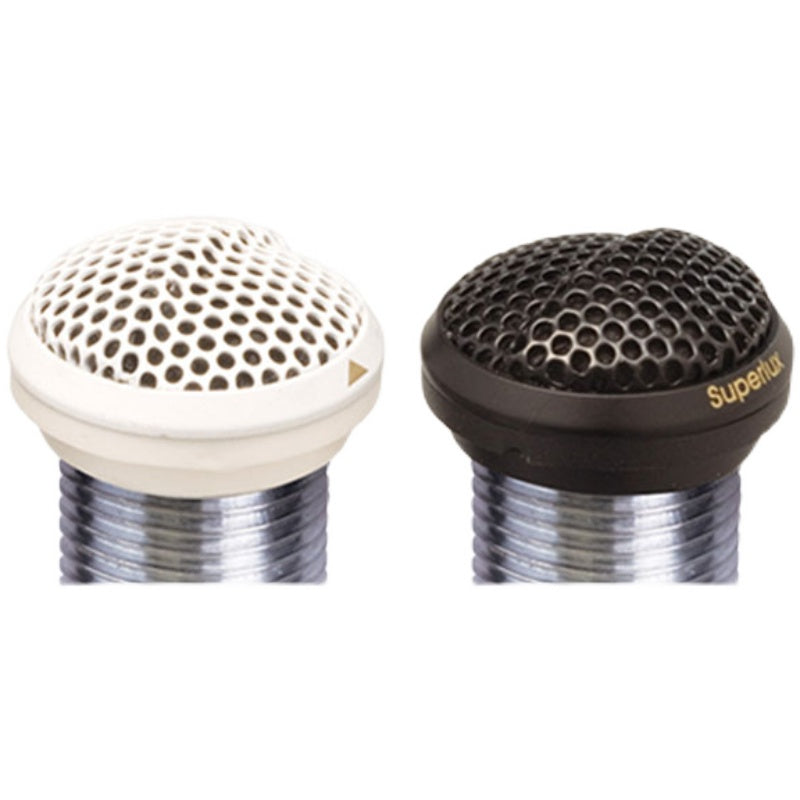

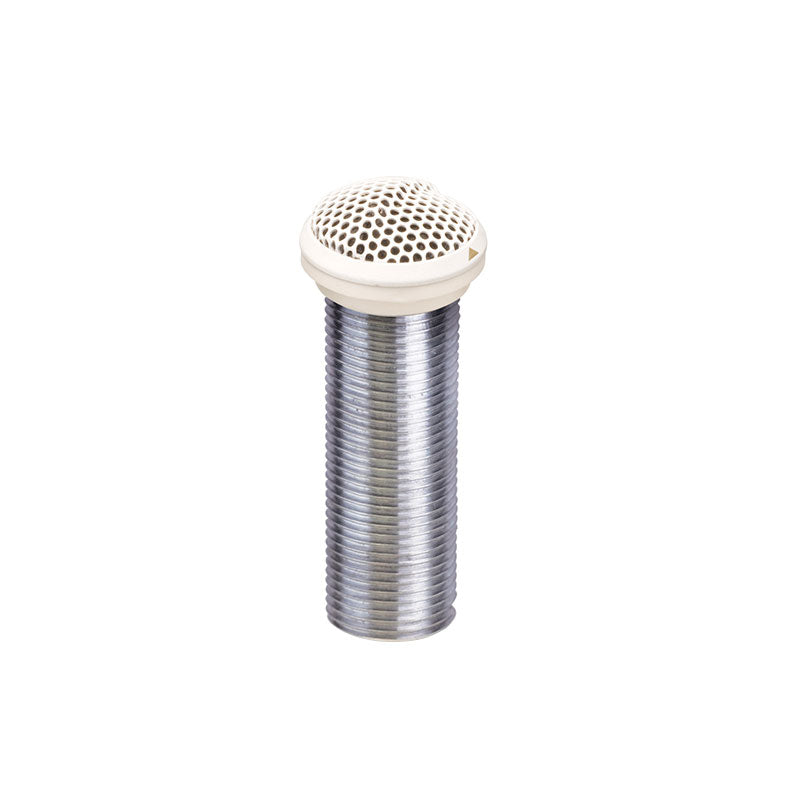

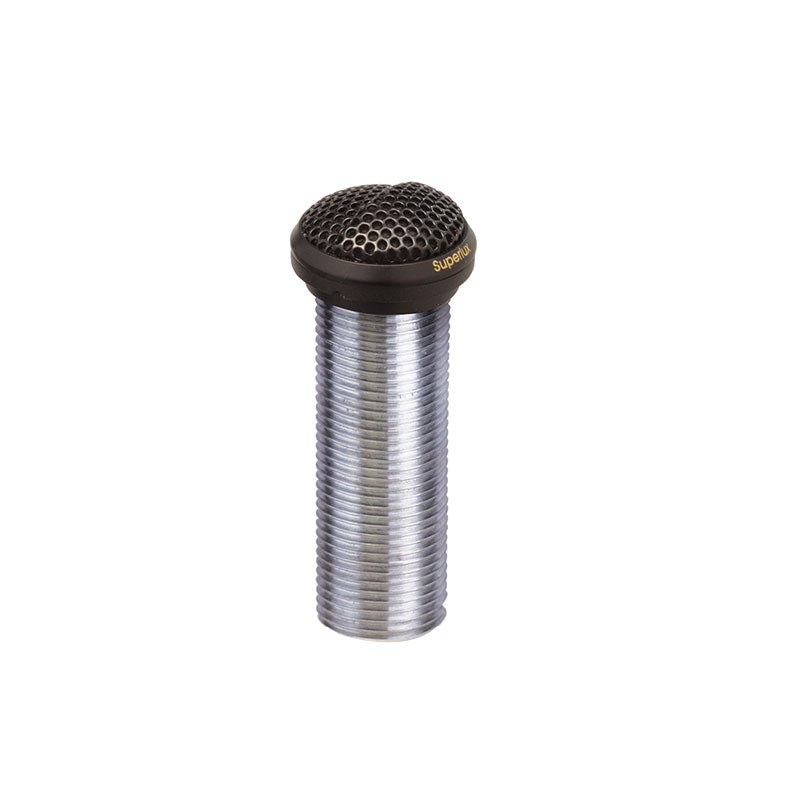

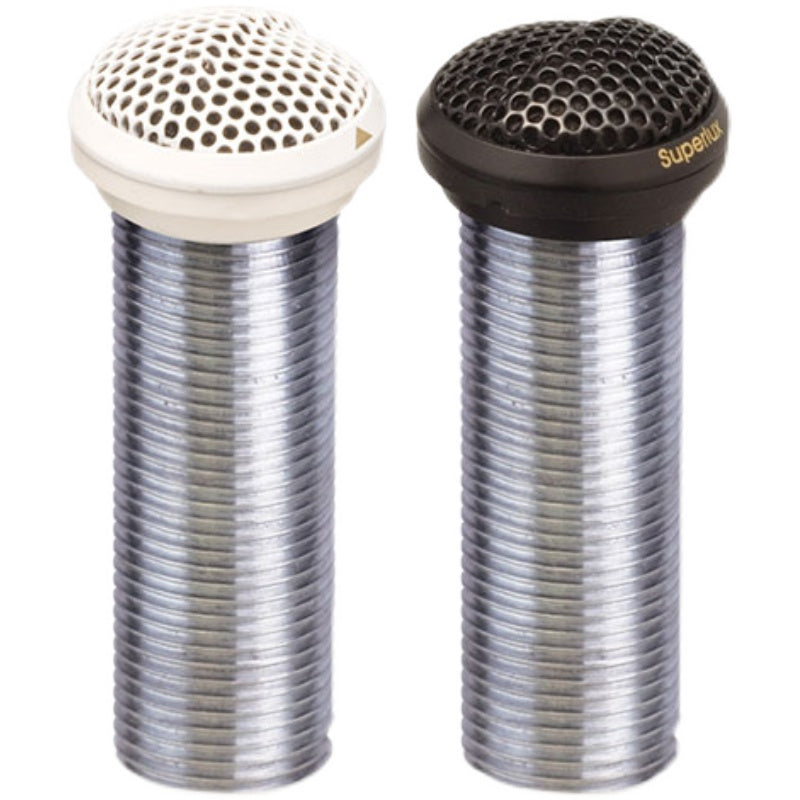

The E323 flush mount boundary microphone has a cardioid polar pattern that can reduce the possibility of feedback when installed in a speaker amplification application. The E323 is finished in no-gloss black or white, with a built-in power circuit, and XLR3M connector.
General Features
• Full metal structure, double layer grille
• 2 anti-vibrating rubber and mounting screws
• XLR3M output connector
Specifications
Type：Back electret, Ø9.7mm（Ø0.38"）
Polar pattern：Cardioid
Frequency Response：60～14,000 Hz
Sensitivity：-35 dBV/Pa（17.8 mV）
Output Impedance：200 Ω
Min. Load Impedance：1,000 Ω
S/N Ratio：68 dB
Equivalent Output Noise：26 dB
Max. SPL：132 dB SPL
Dynamic Range：106 dB
Power Requirements：Phantom 12-48V DC, 2 mA
Finish：Black, White
Connector：XLR3M
Dimensions：Ø28（34）× 73mm [ Ø1.1"（1.34"）× 2.87" ]
Net Weight：53g（1.87 oz）
Packaging：White box
