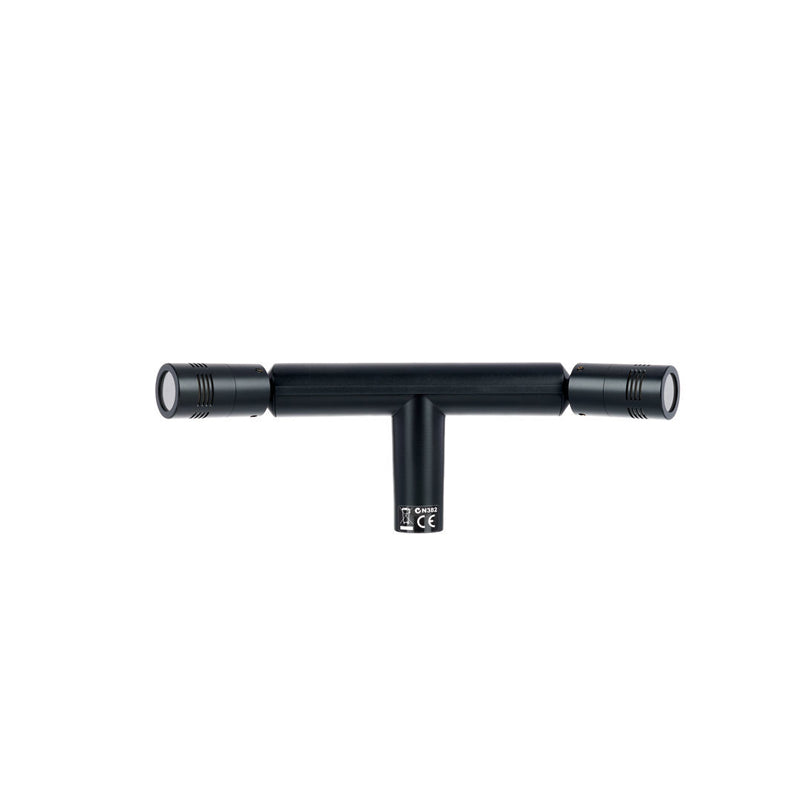

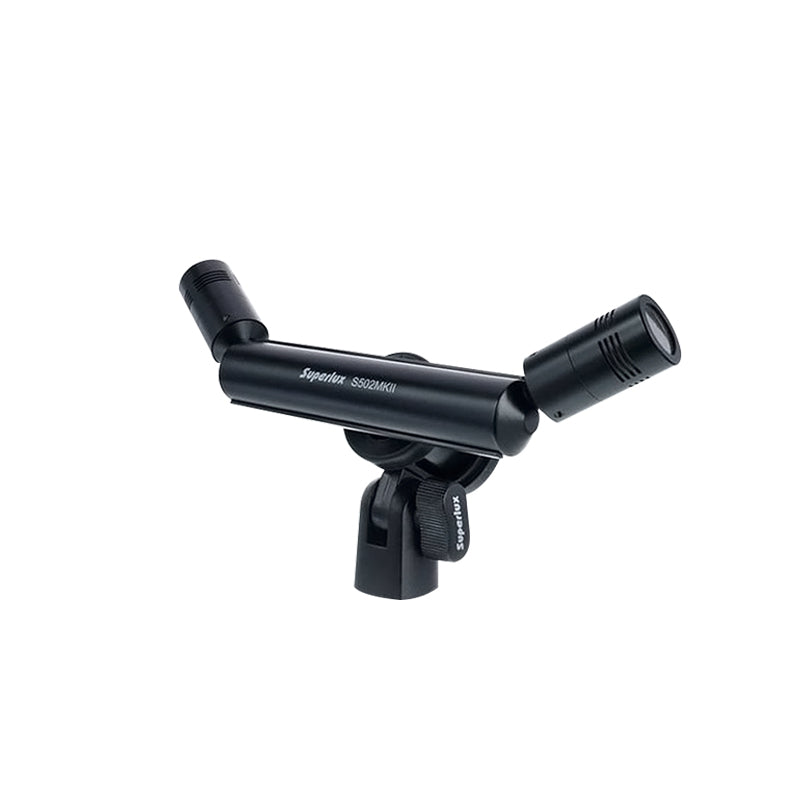

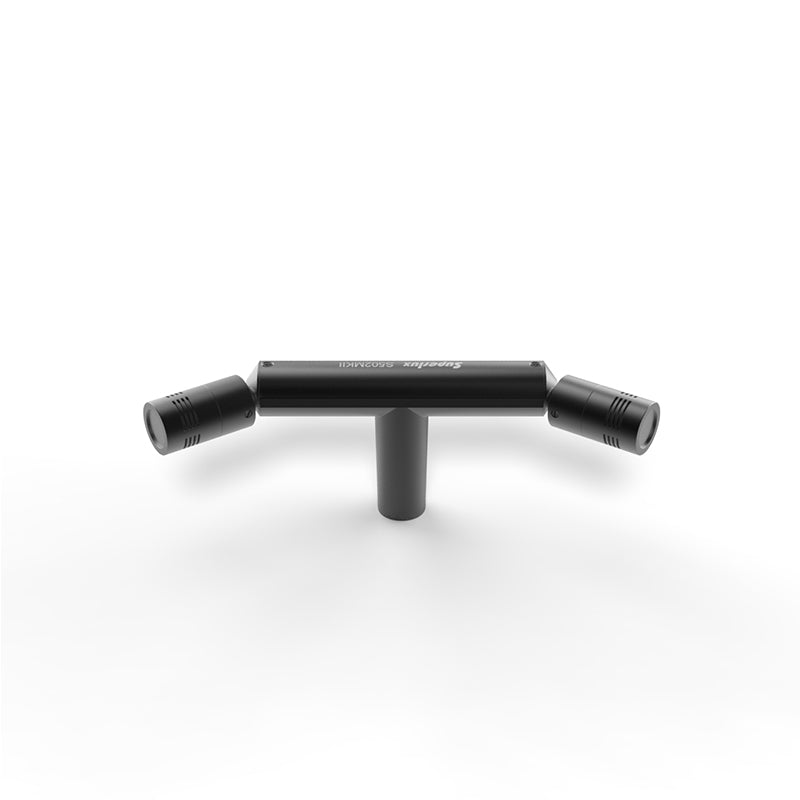

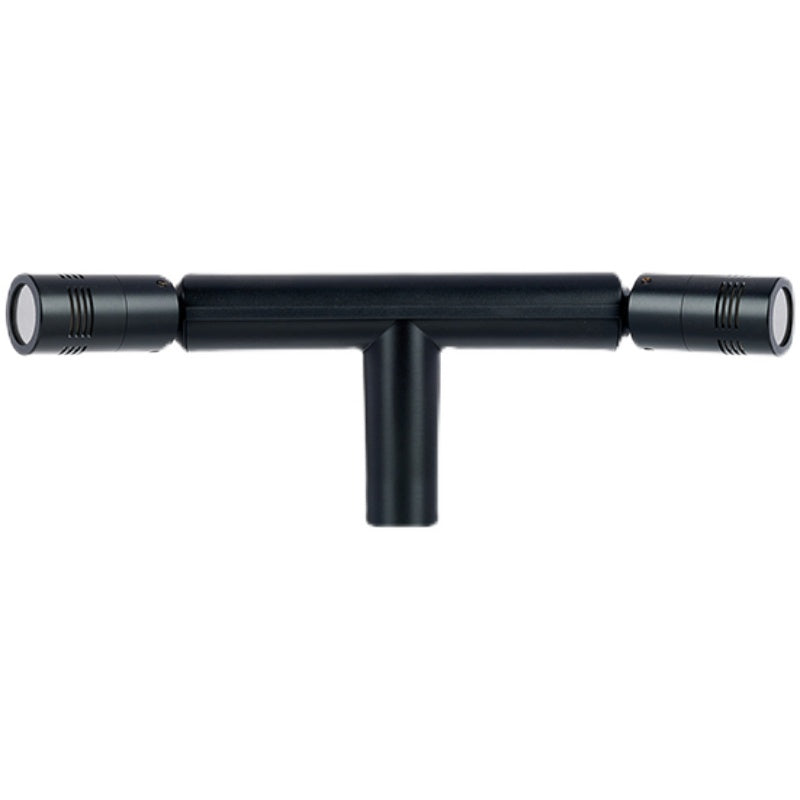

S502MKII
ORTF Stereo 1/2" True Condenser Microphone
The Superlux S502 ORTF recording microphone has earned an outstanding reputation in the professional audio industry. Building on this success, Superlux is pleased to announce a new improved version, the S502MKII. The S502MKII features specialized diaphragm technology that provides better directivity, a lower S/N ratio and improved total harmonic distortion.
The new Superlux S502MKII reveals more sound detail with extended high frequency response. Compared to the original S502, the new S502MKII delivers a flatter frequency response with a crystal-clear, natural sound quality that captures a wide stereo field with increased depth and realism. The Superlux S502MKII ORTF stereo microphone is a perfect choice for any professional recording or sound reinforcement application.
General Features
• 1/2” OD 3μm ultra-thin diaphgram capsule
• Uniform frequency response
• ORTF fixed standard capsule arrangement
• Balanced output
• Best for stereo sound field recording
• Extra-low background noise
Applications
• Classical Music Recording
• Location Recording
• Studio Recording
• Drums Recording
Specifications
Type：True condenser, Ø1/2”（Ø12.7 mm）matched pair
Polar Pattern：Cardioid
Frequency Response：40～20,000 Hz
Sensitivity：–37 dBV/Pa（15.8mV）
Output Impedance：200 Ω
Min. Load Impedance：1,000 Ω
S/N Ratio：79dB
Equivalent Output Noise：15dB（A-weighted, IEC/DIN651）
Max. SPL：134dB（THD≦1%1000Hz）
Dynamic Range：117dB
Power Requirements：48V DC, 4.5mA
Finish：Black
Connector：XLR5M
Pin：Left channel pin 2/3; Right channel pin 4/5; pin 2/4 connect to “+” signal; pin 1 connect to shield and ground
Dimensions：Capsule：Ø20mm（Ø0.79"）, Width 184.5mm, High 66.8mm （Width 7.26", High 2.63"）
Net Weight：245g（8.6 oz）
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
